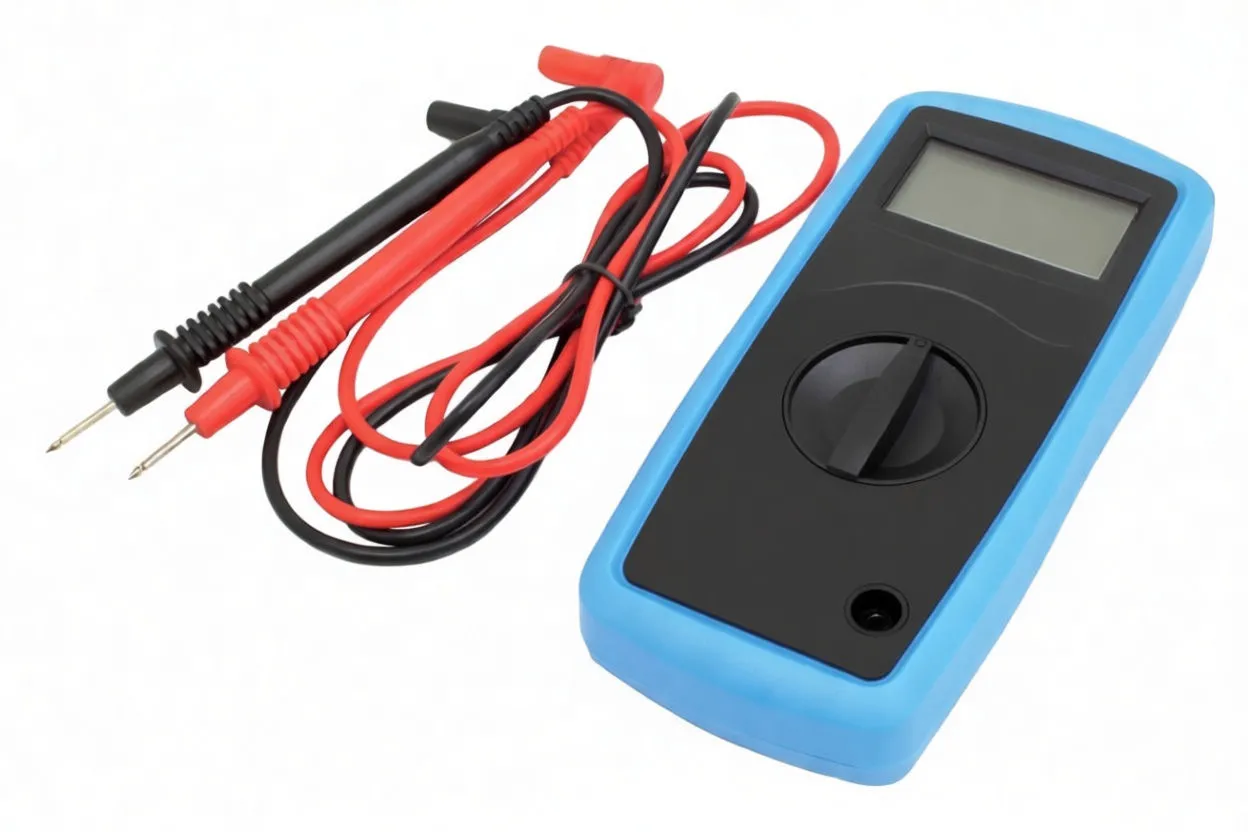

Digital Multimeter with 1999 Display, Backlight, and Data Hold Function

Brief Overview

This compact digital multimeter delivers the core measurement capabilities your shop needs for routine electrical diagnostics, component testing, and troubleshooting. With a solid 1999 maximum display resolution and backlit LCD, it handles DC/AC voltage, multi-range current measurement, resistance, and specialized tests like diode checking and transistor hFE validation. The rugged blue rubberized case and included test leads make it field-ready from day one. For shops looking to stock essential diagnostic tools alongside more specialized instruments like acoustic continuity testers, this multimeter fills the gap for everyday measurement tasks.

Key Features

• Dual-Range Current Measurement: 200µA to 10A across five selectable ranges (200µ/2m/20m/200m/10A) – covers both precision micro-amp diagnostics and heavy-load current draws
• DC Voltage Accuracy: Six ranges from 200mV to 1000V with ±0.5% accuracy; AC voltage up to 750V (±1.0%)
• Resistance Testing: Five ranges spanning 200Ω to 2MΩ for component verification and circuit continuity checks
• Specialized Testing Functions: Diode mode, continuity buzzer, transistor hFE measurement, and dedicated 1.5V/9V battery testing ports
• Data Hold Function: Freezes readings for hands-free note-taking or documentation
• Backlit LCD Display: 45×23mm screen with 1999-count maximum; readable in dim workshop conditions
• Overload Protection: Safeguards against accidental misuse and extends tool life
• Low Battery Indicator: Alerts users before power loss compromises measurement accuracy
• Dual Input Architecture: Separate 10A MAX jack and standard VΩmA jack prevents accidental high-current damage to the meter

Business Advantages for Resellers

Margin Driver: Entry-level diagnostic equipment remains a consistent profit category. This meter's feature-to-price ratio makes it competitive with budget competitors while maintaining healthy distributor margins on volume orders.

Stock Velocity: Multimeters have predictable, steady demand across automotive, electrical, HVAC, and industrial maintenance segments. No seasonal constraints; consistent reorder pattern.

Complement Your Range: Pairs naturally with oscilloscopes, clamp meters, and specialized testers—upsell opportunity when customers return for advanced diagnostics.

Low Return Risk: Straightforward functionality with CE certification means fewer warranty claims and customer support headaches.

Bundled Resale Value: Ships with test leads and batteries—customers perceive added value without additional cost to you.

Technical Specifications

Specification	Detail
DC Voltage	200mV / 2V / 20V / 200V / 1000V (±0.5% accuracy)
AC Voltage	200V / 750V (±1.0% accuracy)
DC Current	200µA / 2mA / 20mA / 200mA / 10A (±1.8% accuracy)
AC Current	Not specified
Resistance	200Ω / 2kΩ / 20kΩ / 200kΩ / 2MΩ (±1.0% accuracy)
Display	LCD 45×23mm, 1999-count maximum
Special Functions	Diode test, continuity buzzer, transistor hFE, battery test (1.5V/9V)
Data Hold	Yes
Backlight	Yes
Overload Protection	Yes
Low Battery Indicator	Yes
Power Supply	Two 1.5V AAA batteries
Dimensions	160×76×32mm
Weight	155g (±3g)
Included Accessories	Meter with batteries, dual test leads (red/black), user manual
Certifications	CE certified

Practical Application Notes

This meter suits technicians who need reliable basics without unnecessary complexity. The 10A maximum current range and transistor testing make it suitable for automotive electrical work, small appliance diagnostics, and general circuit verification. The separate 10A input jack prevents common user errors that damage cheaper meters. Continuity buzzer testing and data hold function reduce the need for repeated measurements on awkward-to-reach components.

Not recommended for high-precision bench work or applications requiring AC current measurement—those warrant investment in a more capable instrument.

Your Reseller Story

Position this as the "daily driver" diagnostic meter—the tool every technician wants on the bench or in the van. Stock it at competitive price points and watch it move consistently across seasonal fluctuations. Pair it with your higher-margin specialized testers to create tiered diagnostic solutions that grow with customer needs.

---

Ready to order? Bulk quantities qualify for volume pricing. Contact your account manager for distributor pricing on cases of 12 or more.
