Dismantling Assembly Tool Set with Threaded Draw Bolt and Adapter Rings

Brief Overview

This is a precision dismantling and assembly tool designed for controlled removal and installation of press-fit components in automotive and industrial applications. The kit includes all essential components needed for safe, controlled disassembly work, making it an ideal companion to specialized equipment like crankshaft pulley removal tools and vibration damper assembly solutions.

Key Features

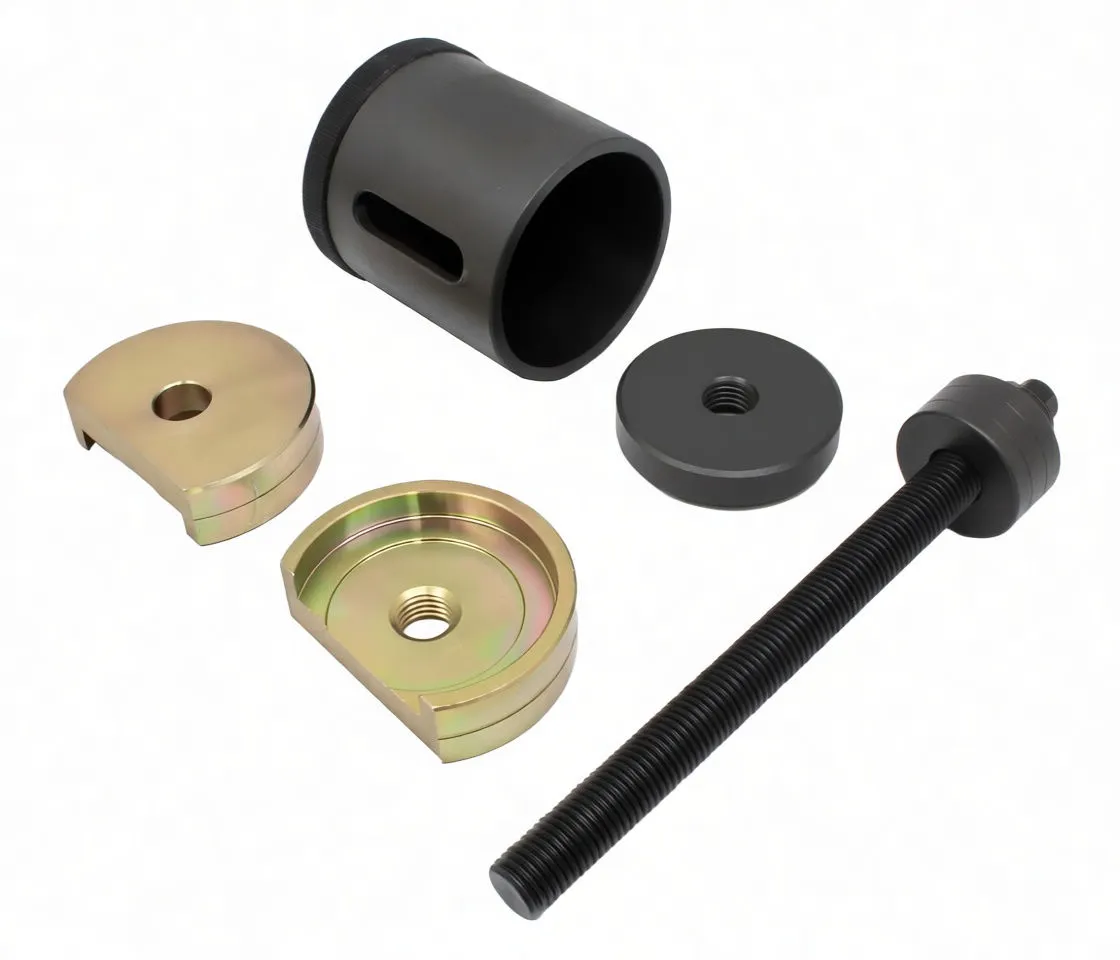

• Hollow Cylindrical Cup: Precision-machined black-coated steel cup with two elongated side slots for secure component positioning
• Adapter Ring Set: Two semi-circular gold zinc-plated adapter rings with internal female threads for versatile coupling configurations
• Threaded Draw Bolt: Long black threaded rod with machined collar stops and hex nut for controlled pulling force application
• Pressure Plate: Flat circular end plate with central thread for load distribution during disassembly operations

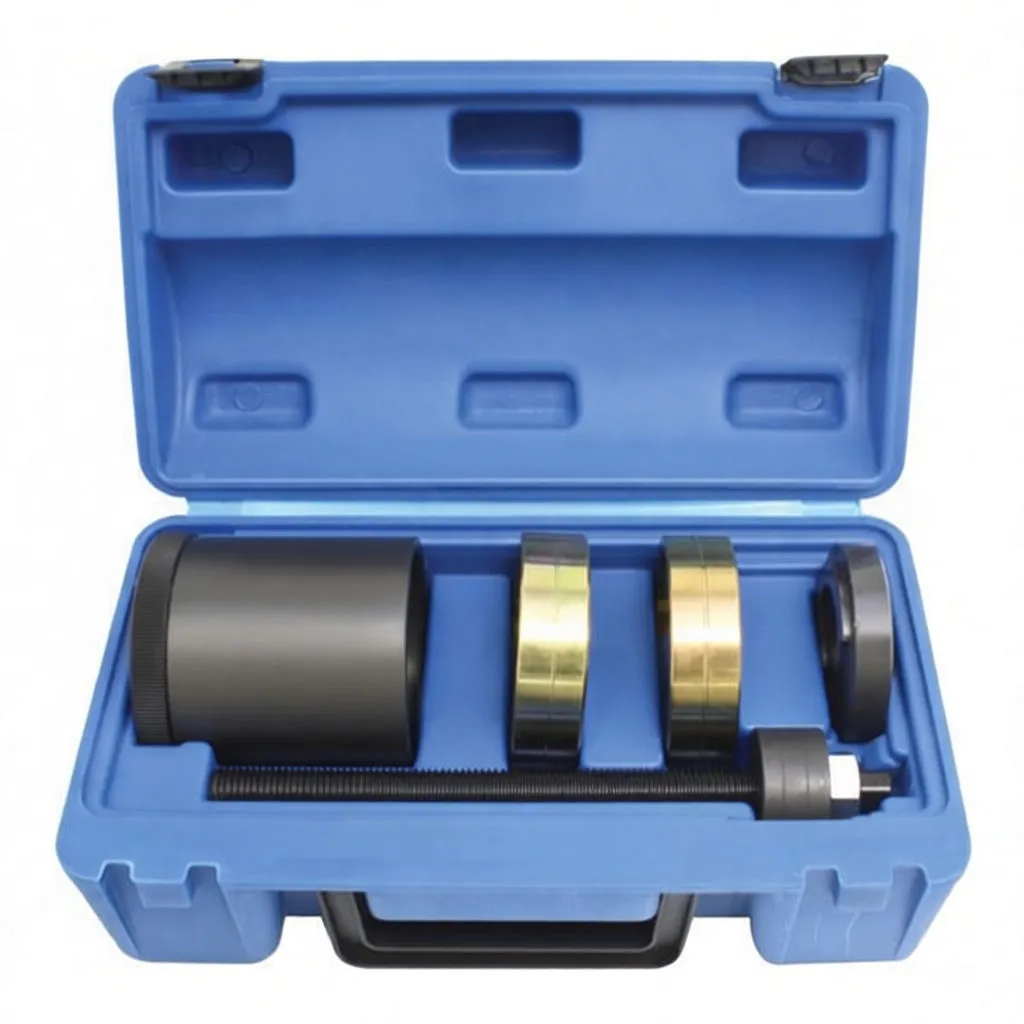

• Organized Storage: Complete set housed in a molded blue plastic carry case with built-in compartments, fold-flat handle, and secure latch clips
• Professional-Grade Construction: Yellow zinc-plated and black-coated steel components designed for durability and corrosion resistance

Why Resellers Choose This Tool

• Complete Kit Format: All components in one organized case—no additional purchases required for basic dismantling tasks
• Multi-Application Design: The modular adapter system allows use across various bearing and pulley sizes, increasing customer demand
• Professional Presentation: Factory-organized carry case enhances perceived value and justifies premium pricing
• High-Margin Accessory: Pairs naturally with larger pulley and bearing removal equipment, driving bundled sales opportunities
• Durable Investment: Precision-engineered components with corrosion-resistant finishes ensure long customer satisfaction and repeat business confidence

Technical Specifications

Component	Description
Cup Body	Hollow cylindrical, black-coated steel with dual elongated side slots
Adapter Rings	Two semi-circular, yellow zinc-plated steel with internal threads
Draw Bolt	Long threaded rod with machined collar stops and hex head nut
End Plate	Circular black-coated steel pressure plate with central thread
Case Material	Molded blue plastic with built-in compartments and secure latches
Finish	Black epoxy coating (cup, bolt, plate); yellow zinc-plated (adapters)

Application Notes

This tool is purpose-built for controlled disassembly of press-fit components where precision and safety are critical. The threaded draw bolt system allows mechanics to apply steady, controlled force without shock or impact, reducing risk of component damage. The modular adapter design accommodates various bore sizes and configurations, making it suitable for bearing removal, pulley disassembly, and similar precision mechanical tasks.

Value Proposition for Your Shop

Stock this kit alongside other specialized disassembly tools to offer customers a complete solution for precision mechanical work. The organized carrying case and professional presentation justify positioning this as a premium tool. The broad compatibility of the adapter system means one kit serves multiple applications across your customer base, improving inventory turnover and customer retention.
