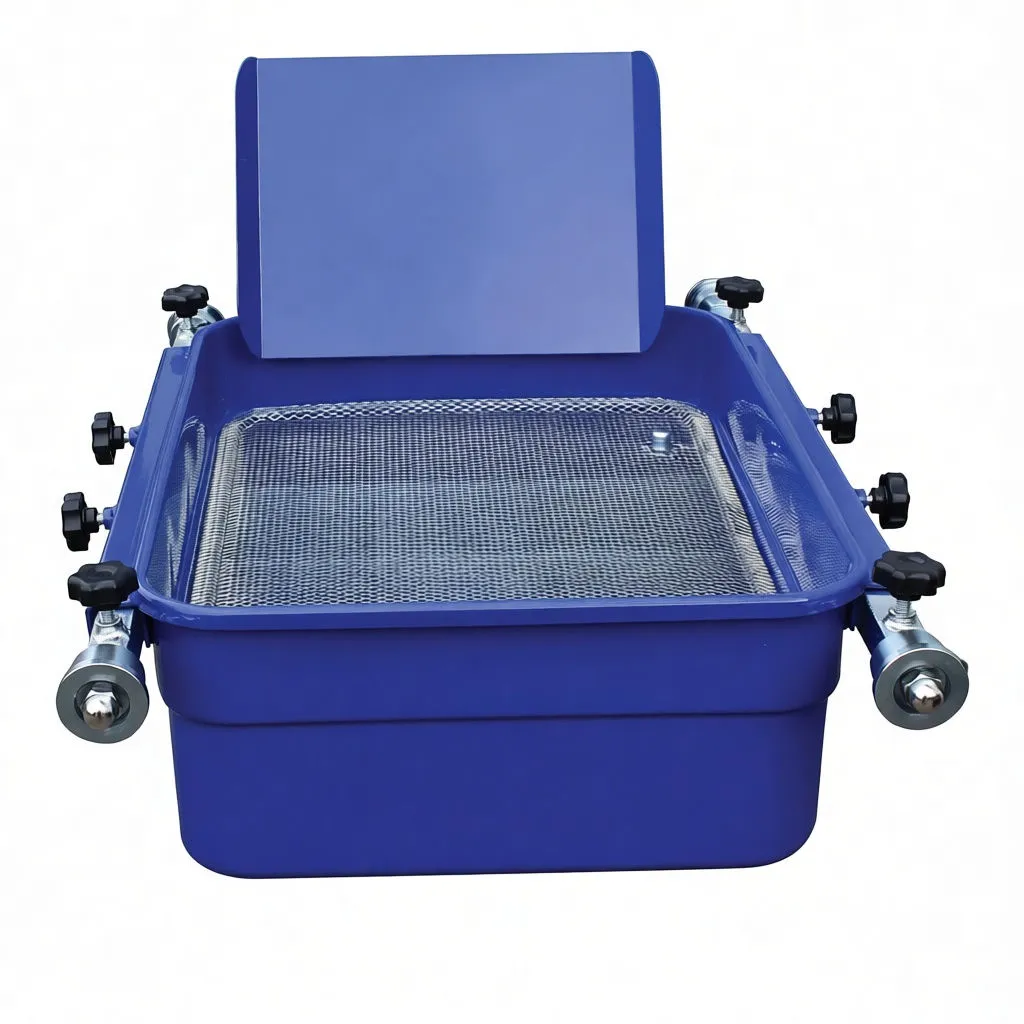

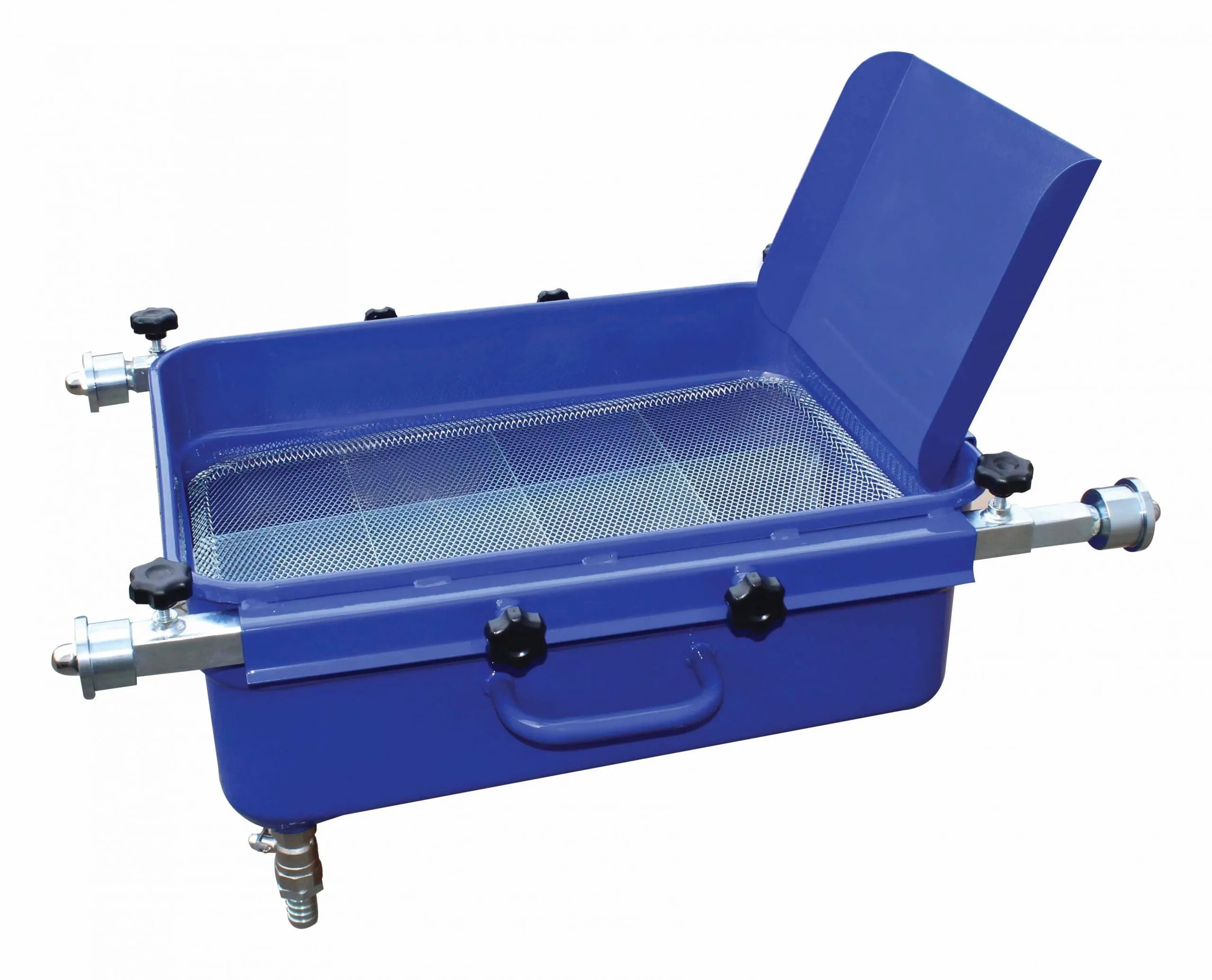

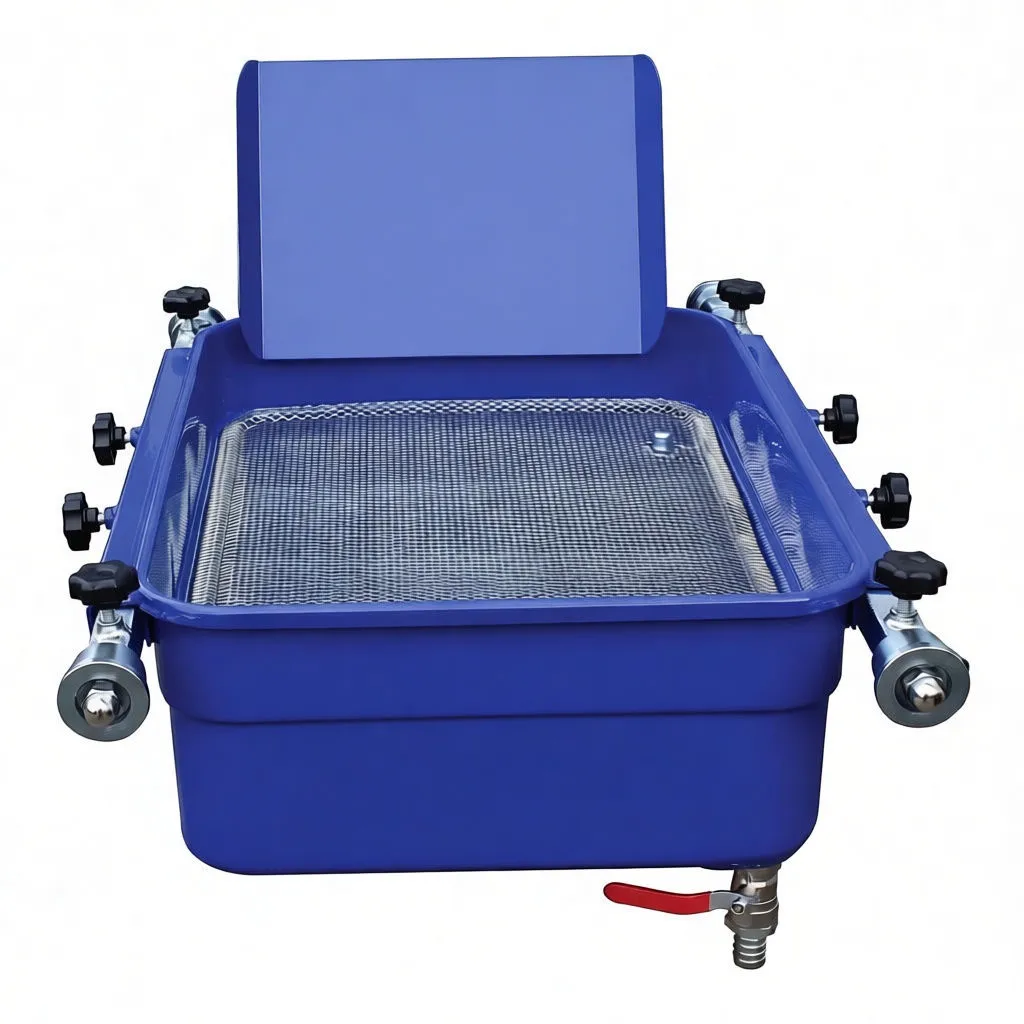

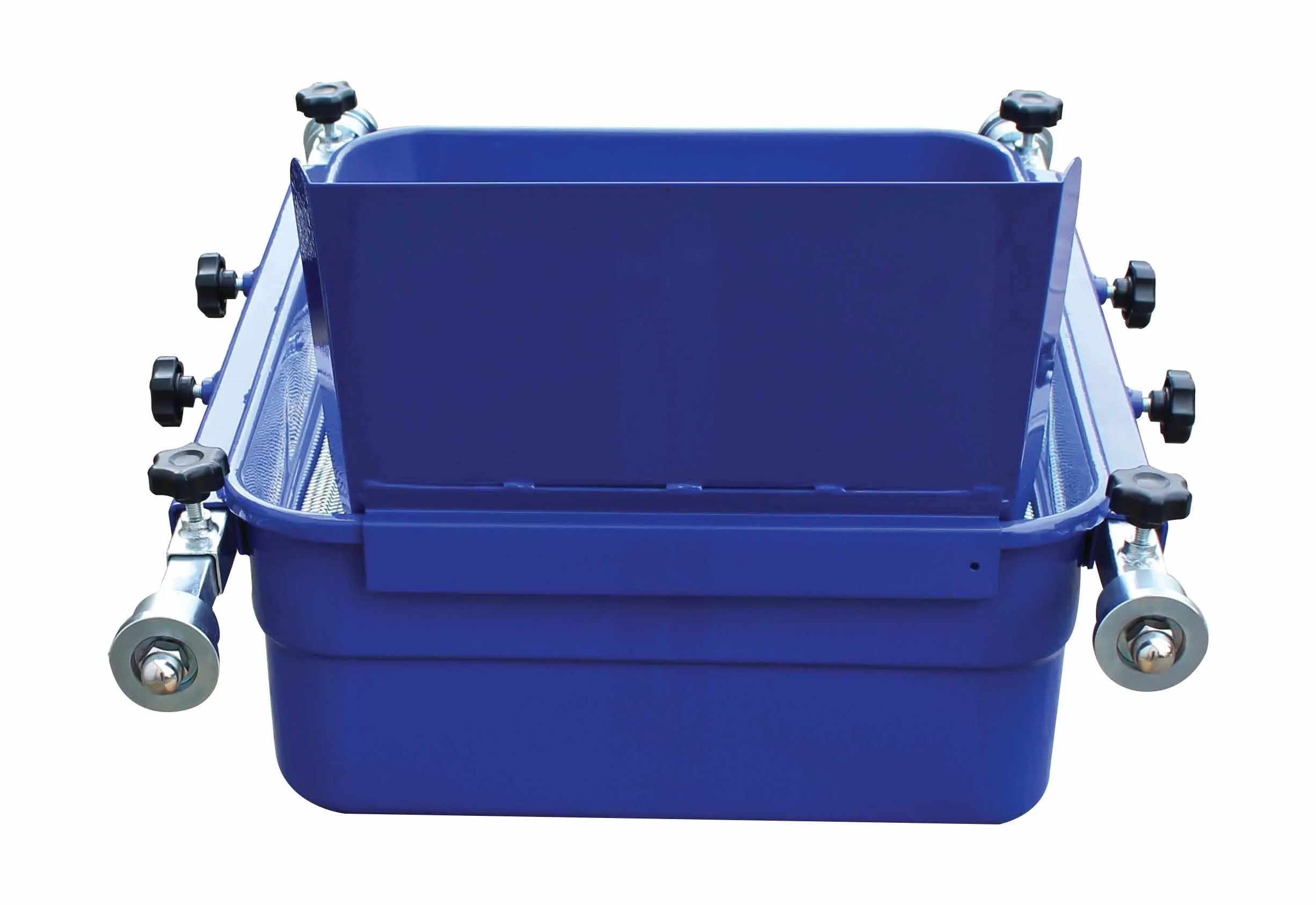

Blue rectangular drain pan with mesh insert, hinged splash shield, metal rails and ASTA logo; inset close-up of rail endOblique view of blue lift drain pan with mesh tray, raised splash panel, rails, clamping knobs and ASTA logoFront view of blue ASTA drain pan showing mesh, splash guard, star knobs and red-handled drain valveAngled side view of blue drain pan showing mesh, upright splash shield, external rails with collars and drain valveRear view of blue drain pan with upright splash shield, mesh insert, side rails and multiple clamping knobs

65-Liter Drain Pan for Vehicle Lifts, Gravity Feed/Discharge with Mesh Filter

Professional-grade 65L drain pan with gravity discharge, pneumatic pump compatibility, and removable mesh filter for efficient used oil collection.

Request Quote

Description

Drain Pan for Lifts – Gravity Feed/Discharge, 65L Capacity

Brief Overview

This 65-liter drain pan is engineered for high-volume workshop environments where efficient oil collection is non-negotiable. Designed for direct gravity discharge from vehicle lift systems, it combines a large usable capacity with flexible extraction options—making it compatible with both passive gravity drainage and active pneumatic pump extraction. The removable perforated metal mesh insert handles filter draining without cluttering your workflow. For shops requiring additional containment options, pairing this unit with a stainless steel drain pan provides backup capacity for multi-vehicle operations.

Key Features

  • 65L Total Capacity – Handles extended service intervals without frequent emptying
  • 37L Net Anti-Surge Capacity – Dedicated clean oil collection zone with overflow protection
  • Dual Drainage Options – Gravity discharge valve for passive draining; integrated hose-tail fitting for pneumatic pump extraction
  • Removable Mesh Filter Insert – Perforated metal tray captures used filters and debris, allows quick swapping and cleaning
  • Hinged Splash Guard – Reduces spillage during transfer and vehicle positioning over the pan
  • Mobile Design – Four wheels (two with steering) for easy repositioning within the workshop
  • Secure Rail Mounting – External metal mounting rails with adjustable clamp knobs for stable attachment to lift systems
  • Chrome Ball Drain Valve – Ergonomic red lever for quick on-off control

Technical Specifications

Specification Detail
Total Capacity 65 liters
Net Anti-Surge Capacity 37 liters
Drainage Method Gravity discharge + pneumatic pump compatible
Filter Insert Removable perforated metal mesh tray
Mobility 4 wheels (2 directional)
Drain Valve Chrome ball-type with red lever, hose-tail fitting
Construction Material Durable plastic tank with metal mesh insert and rail system
Mounting System External metal rails with adjustable black clamping knobs
Splash Protection Hinged guard panel

Business Advantages for Resellers

  • High Workflow Density – The 65L capacity with 37L anti-surge zone handles busy multi-bay operations, reducing downtime for emptying
  • Flexible Extraction – Gravity-only shops can use passive drainage; shops with pneumatic systems can upgrade without replacing the unit
  • Durable Mobile Platform – Four-wheel design with steering capability keeps the pan accessible across the service floor, reducing lifting injuries and improving efficiency
  • Recurring Service Revenue – Mesh filter replacement and maintenance contracts extend customer relationship value
  • Competitive Margin – Industrial-grade construction at a mid-market price point attracts both independent shops and fleet services

Why This Matters for Your Customers

Mechanics and shop managers lose time waiting for slow gravity drainage. This pan eliminates that bottleneck—the large capacity means fewer interruptions, and the pneumatic pump option transforms it into an active system for shops ready to invest in speed. The moveable design keeps it where it's needed without permanent installation constraints.

Stock this unit for shops serious about throughput and professional oil handling.
