Drill-Powered Transfer Pump for Mobile Fluid Handling

Brief Overview

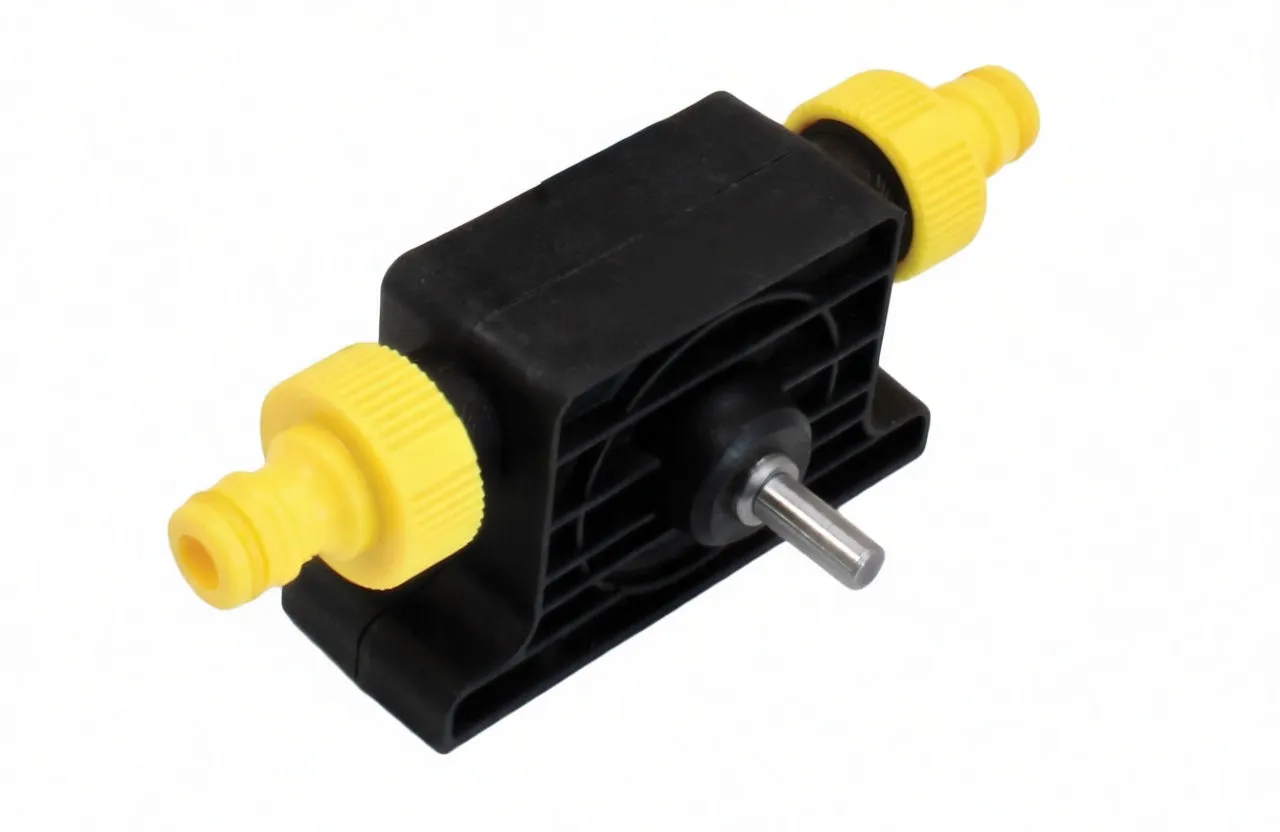

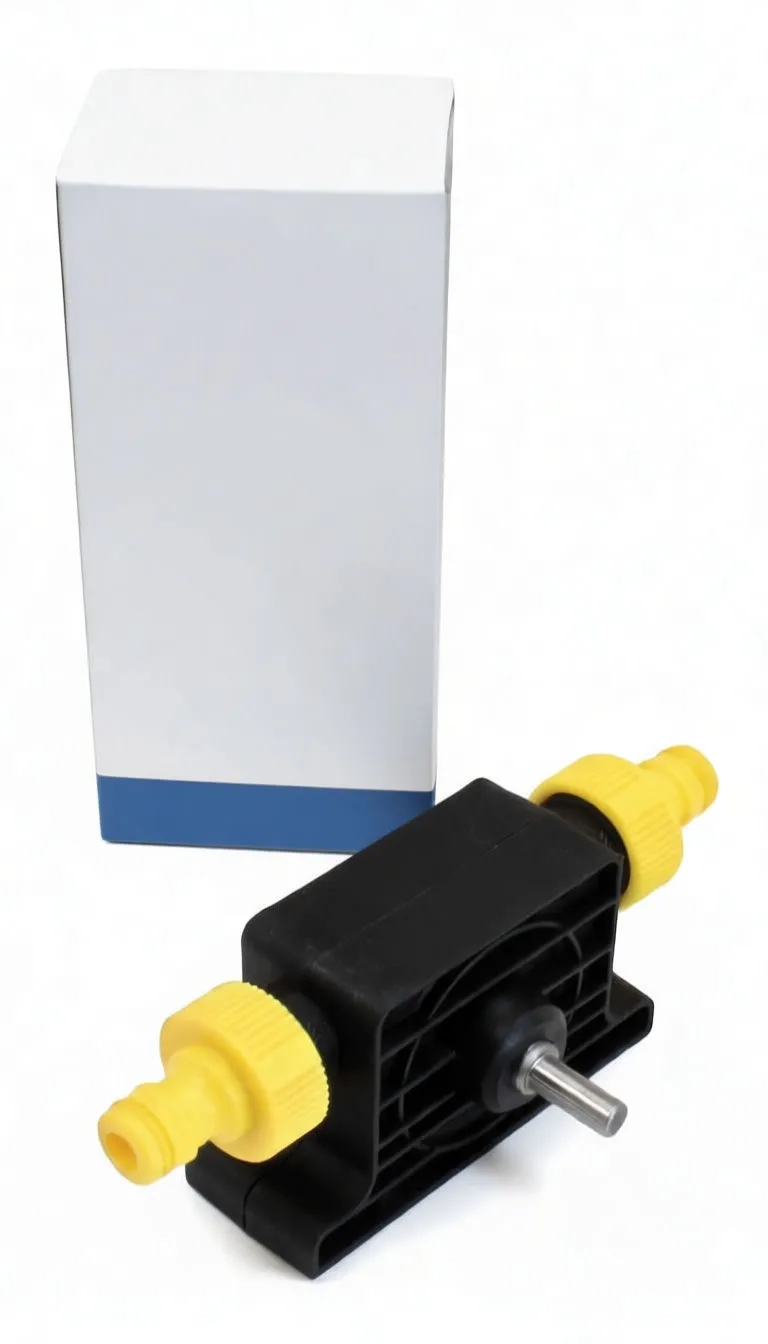

This is a straightforward, cost-effective transfer pump designed to connect directly to any standard drill, transforming it into a portable fluid-handling device. No external power source required—simply attach the pump's 8mm drive shaft to your drill chuck and begin transferring liquids. Ideal for workshops that need occasional pumping capability without investing in dedicated equipment. Pairs well with pneumatic drilling tools for complete mobile workshop setups, or complement it with a dedicated hand pump for specialized fluids for full operational flexibility.

Key Features

• Universal Drill Compatibility: 8mm drive shaft connects to all standard drill chucks
• Compact, Portable Design: Lightweight plastic housing with integrated mounting base
• Quick-Connect Hose Fittings: Yellow quick-fit 3/4-inch (19mm) connectors for rapid setup and disconnection
• Safe Dry-Run Protection: Tolerates up to 12 seconds of dry operation before requiring fluid
• Low-Maintenance Construction: Sealed, non-serviceable design minimizes downtime

Business Advantages for Resellers

• High-Margin Add-On: Low cost of goods paired with strong perceived value makes this an excellent bundling opportunity with drill sales
• Workshop Essential: Every professional shop needs occasional fluid transfer capability—this fills that gap without significant investment
• Repeat Purchase Driver: Distributors can recommend this as an affordable accessory to existing drill inventory, capturing incremental orders
• Minimal Support Load: Simple, robust design with no moving external parts reduces warranty claims
• Seasonal Demand: Peak interest during spring maintenance season and system flush operations

Technical Specifications

Specification	Value
Drive Shaft Diameter	8mm
Maximum Flow Capacity	2.4mm³/h
Hose Connection	3/4" (19mm) quick-fit
Maximum Operating Pressure	3 BAR
Maximum Delivery Height	30m
Maximum Suction Height	3m
Maximum Fluid Temperature	40°C
Maximum Dry-Run Time	12 seconds
Maximum Drill Speed	3,400 RPM

Operational Considerations

Suitable for:

• Water transfer and circulation
• Light coolant handling
• Fluid distribution in workshop environments
• Emergency mobile pumping needs

Fluid Limitations:

• Temperature ceiling of 40°C limits use to ambient-temperature or lightly heated liquids
• Not suitable for aggressive chemicals or high-temperature fluids
• Designed for low-viscosity fluids (water-based preferred)

Safety & Maintenance:

• Always disconnect the drill before assembly or disassembly
• Immediately stop operation if water leaks are visible
• Do not attempt to repair or disassemble the pump—it is a sealed assembly
• Unplug drill when not actively pumping

Why Resellers Should Stock This

This pump bridges the gap for shops that own drills but lack dedicated pumping equipment. It's an affordable, low-risk inventory addition that converts an existing tool into a multi-function asset. With virtually no technical support burden and straightforward installation, it delivers solid margin on minimal SKU complexity.

Stock this as a bundled accessory with drill kits, or position it as an impulse add-on at checkout. It solves a real problem for small shops and field operations.
