Engine Service Tool Set for Ford, Fiat, Suzuki, and GM

Brief Overview

This specialized engine service tool set covers a significant range of 1.3-liter diesel engines across Ford, Fiat, Suzuki, and Opel/Vauxhall platforms. Whether you're performing timing belt replacement or timing chain service, this kit provides the essential locking pins, alignment tools, and locking plates needed for accurate and safe engine work. For shops handling a broader range of diesel platforms, consider pairing this with our timing tool solutions for Ford and Mazda diesel engines and diesel engine timing systems to maximize coverage.

Key Features & Components

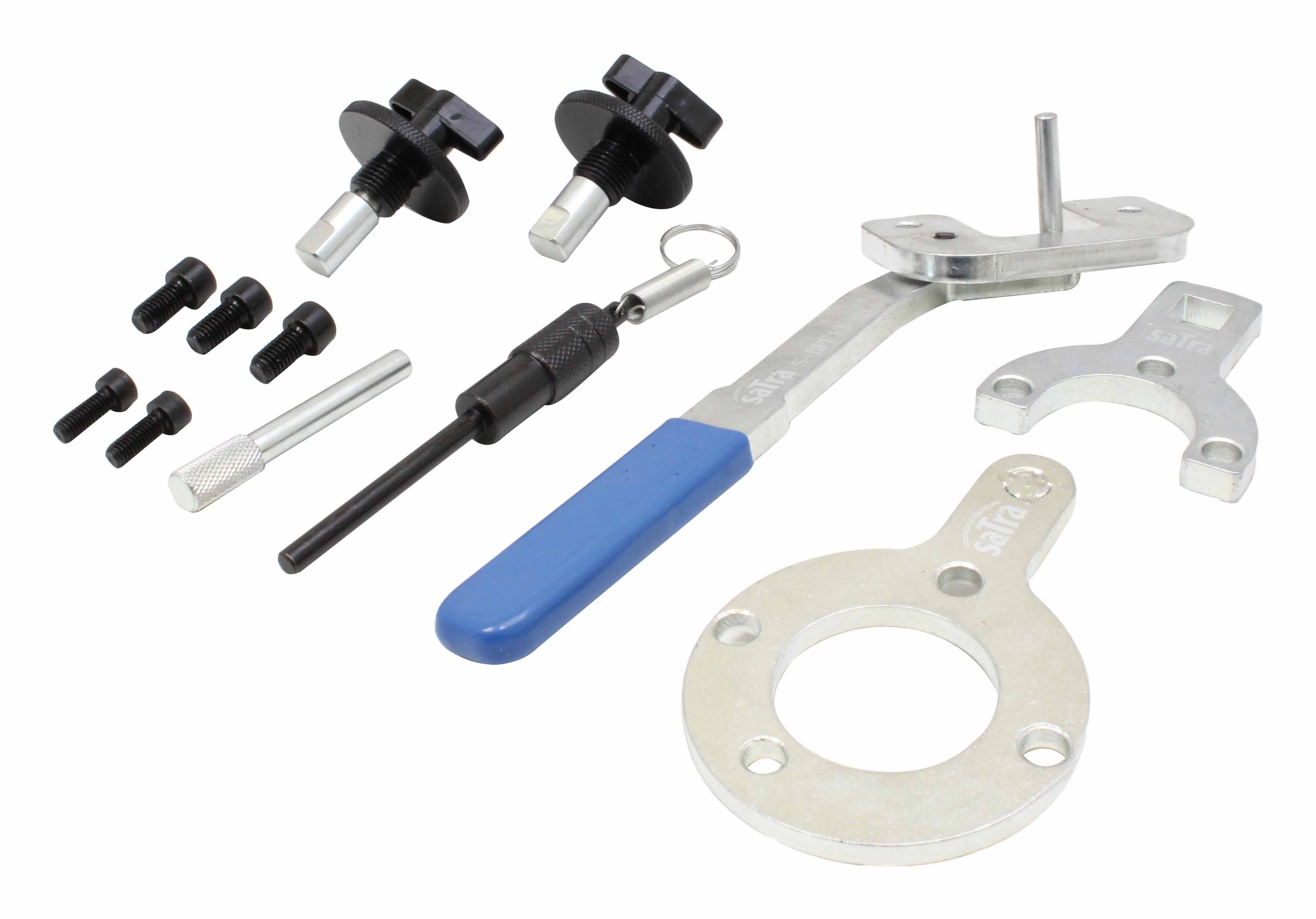

• Multi-hole Locking Plate – Precision-machined metal locking ring with multiple bolt holes for secure camshaft positioning
• Threaded Locking Pins (x2) – Black-finished camshaft locking pins with square drive ends and knurled handles for firm, controlled positioning
• Pull-Pin Tensioner Tool – Ring-type extraction tool for safely releasing and adjusting timing chain tension
• U-Shaped Spanner – Compact fork tool for accessing tight engine bay spaces
• U-Bracket with Locating Pin – Precision alignment component for exact camshaft positioning
• Alignment Dowel Pin – Silver steel pin for crankshaft or pulley alignment
• Hex Bolts and Socket Adapter – Complete fastener set for secure tool attachment

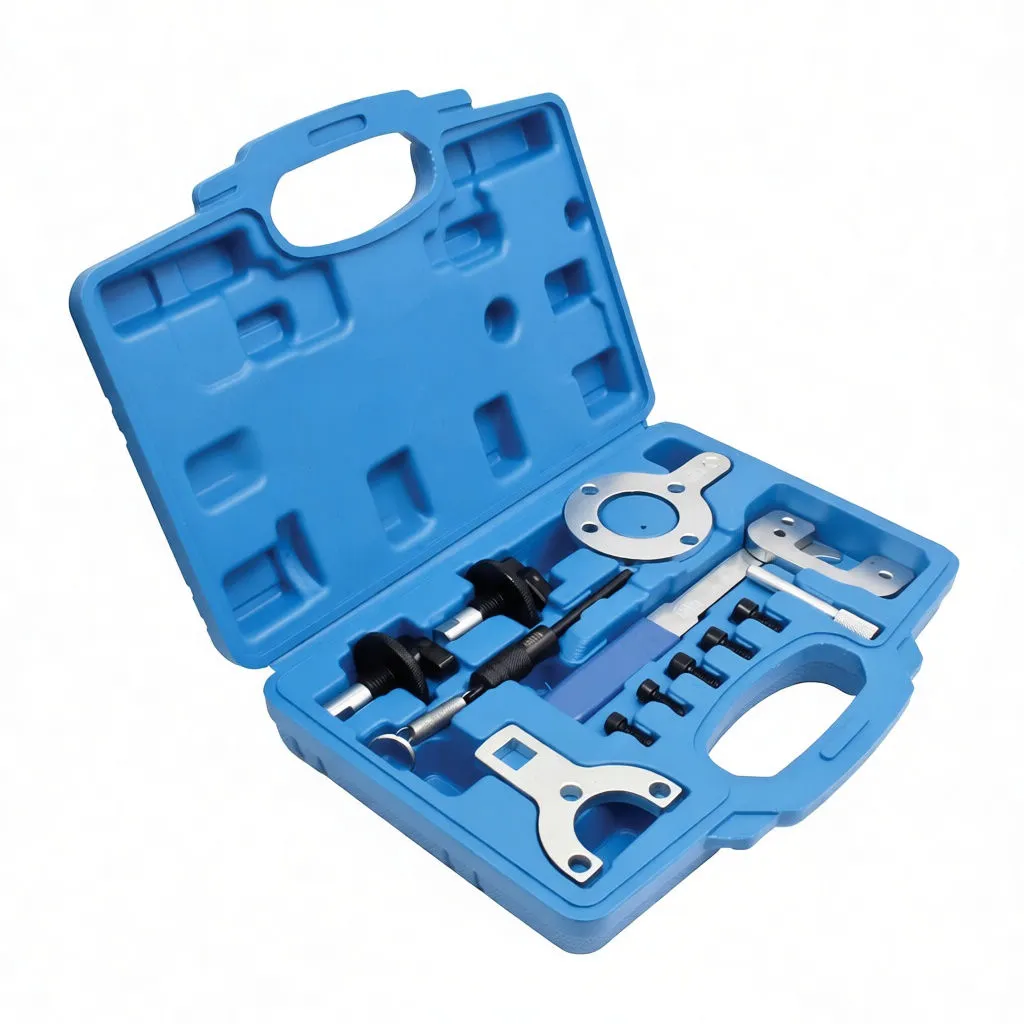

• Durable Carrying Case – Blue molded plastic case with form-fitting cavities, snap latches, and integrated handle; includes instruction label on lid

Why This Tool Set Matters for Your Shop

Vehicle Coverage & Market Demand: This kit targets a well-established customer base with multiple vehicle platforms—Ford KA, Fiat Punto/Panda/Idea/Doblo, Suzuki Swift/Wagon, and Opel/Vauxhall Corsa/Astra/Combo/Meriva. Timing belt and chain service is a recurring revenue stream, particularly on these 1.3L diesel platforms popular in European and emerging markets.

Operational Efficiency: Having the complete set eliminates improvisation and reduces job time. Mechanics can execute timing service in a single session without sourcing substitute tools, reducing callback risks and improving labor margins.

Professional Presentation: The molded case with clearly organized components signals quality to customers. A well-presented tool set justifies labor pricing and differentiates your shop from competitors using makeshift solutions.

Stock Turnover: This specialized kit appeals to independent diesel shops and multi-brand dealers. While not a high-volume item, the consistent demand for diesel timing service—especially on Fiat and Opel platforms—ensures steady resale activity.

Technical Specifications

Specification	Details
Primary Application	Timing belt and timing chain service
Engine Coverage	Ford 1.3 TDCi; Fiat 1.3 JTD Multi-Jet; Suzuki 1.3 CDTi Z13DT; Opel/Vauxhall 1.3 CDTi (Z13DT, Z13DTJ)
Vehicle Years Covered	2003–2010 range (see detailed list below)
Main Tool Material	Hardened steel (locking plate, dowels, bolts); black-finished camshaft pins
Handle Material	Blue plastic grip on primary tension tool; knurled finishes on adjustment pins
Case Material	Durable blue molded plastic with snap latches
Case Dimensions	Form-fitted molded interior for all components (approximately 400–500mm length estimated)
Weight	Approximately 2–2.5 kg (complete kit in case)

Detailed Vehicle Coverage

Ford:

• KA 1.3 TDCi

Fiat:

• Punto 1.3 JTD Multi-Jet 188A9.000 (2003–2007)
• Panda 1.3 JTD Multi 169A1.000; 188A8.000 (2003–2009)
• Idea 1.3 JTD Multi 199A3.000; 188A9.000 (2004–2006)
• Doblo 1.3 JTD Multi 188A9.000 (2004–2006)

Suzuki:

• Ignis 1.3 CDTi Z13DT (2003–2009)
• Wagon R 1.3 CDTi Z13DT (2003–2009)
• Swift 1.3 CDTi Z13DT (2003–2010)

Opel/Vauxhall:

• Agila 1.3 CDTi Z13DT (2003–2008)
• Corsa-C 1.3 CDTi Z13DT (2003–2007)
• Combo-C 1.3 CDTi Z13DT (2003–2009)
• Corsa-D 1.3 CDTi Z13DT, Z13DTJ (2006–2009)
• Astra-H 1.3 CDTi Z13DT (2004–2006)
• Tigra-B 1.3 CDTi Z13DT (2004–2006)
• Meriva 1.3 CDTi Z13DT, Z13DTJ (2004–2006)

Reseller Advantages

Multi-Brand Appeal: One kit covers four manufacturers—Ford, Fiat, Suzuki, and Opel. This breadth reduces inventory complexity while increasing sellability to shops serving diverse fleets.

Recurring Service Revenue: Timing belt and chain service is scheduled maintenance. A well-stocked tool offering positions your business as a one-stop supplier for this high-value service category.

Professional Image: Offering a complete, purpose-built kit—rather than cobbled components—enhances your credibility with both independent mechanics and dealership buyers.

Accessible Pricing Point: Specialized engine timing tools are essential but often overlooked by emerging markets and smaller shops. This set represents an attractive entry point into diesel engine service tooling.

Bottom Line for Your Business

This engine service tool set is a practical workhorse for any shop handling European diesel platforms. It eliminates guesswork, reduces job time, and establishes your operation as equipped for professional diesel engine work. Stock it as a core item for shops, or bundle it as an upsell during timing service quotes.
