Engine Timing Kit for Ford 1.0L EcoBoost

Brief Overview

This specialized timing kit is engineered for timing chain service on Ford's 1.0L EcoBoost engine family, covering the latest generation engines from 2018 onward. The set includes camshaft locking plates, VVT (Variable Valve Timing) lock mechanism, and precision alignment tools—everything required for safe, accurate crankshaft and camshaft positioning during timing work. If you also service larger displacement EcoBoost engines, consider pairing this with our timing tool set for 2.0L EcoBoost applications to maximize your workshop's engine service capacity.

Key Features & Components

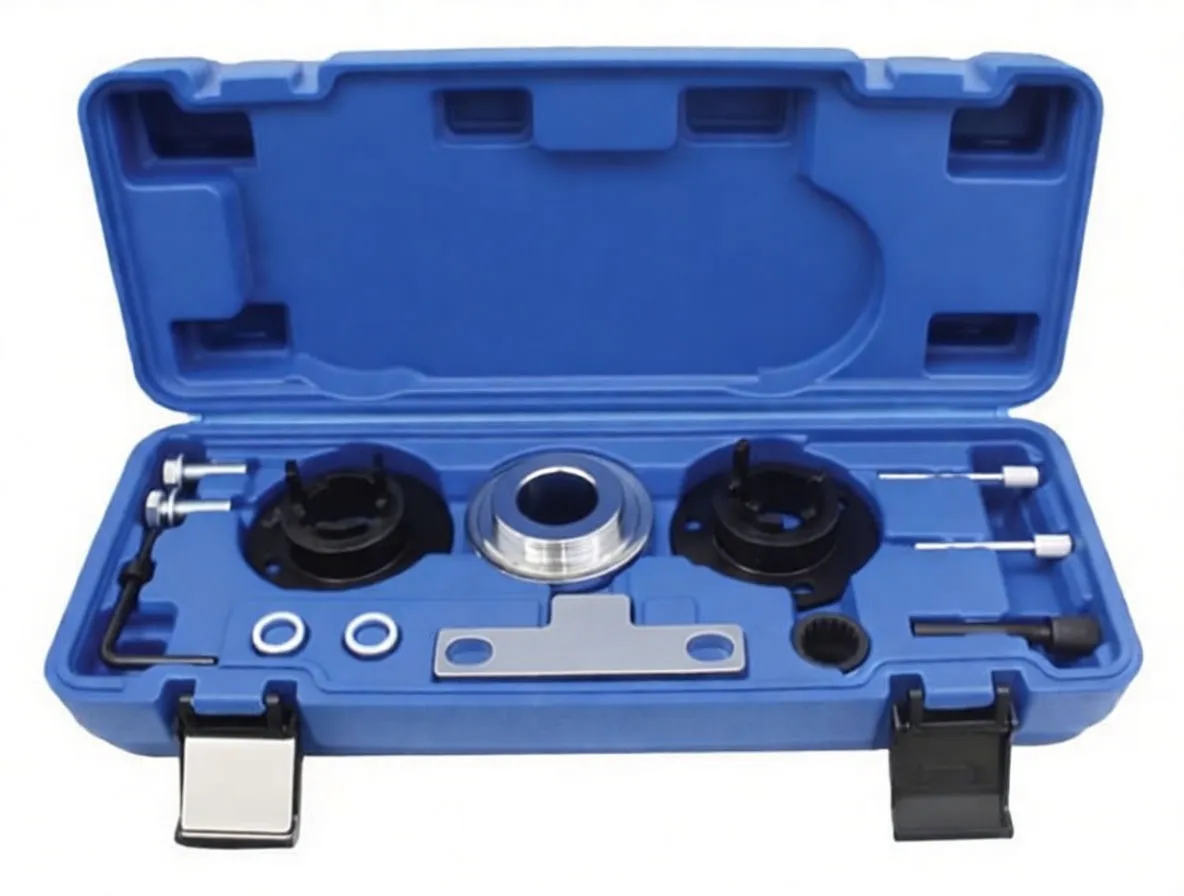

• Dual Camshaft Locking Plates – Black injection-molded design with three locator tabs and mounting holes for secure positioning
• VVT Camshaft Gear Lock – Dedicated locking mechanism for variable valve timing components
• Machined Metal Collar Adapter – Multi-stepped pulley adapter for precise crankshaft alignment
• Alignment Bracket & Spacers – Flat stamped steel plate with washers and threaded fasteners for stable tool setup
• Complete Fastener Set – Includes hex-head bolts, threaded pins, and locking pins for secure component retention

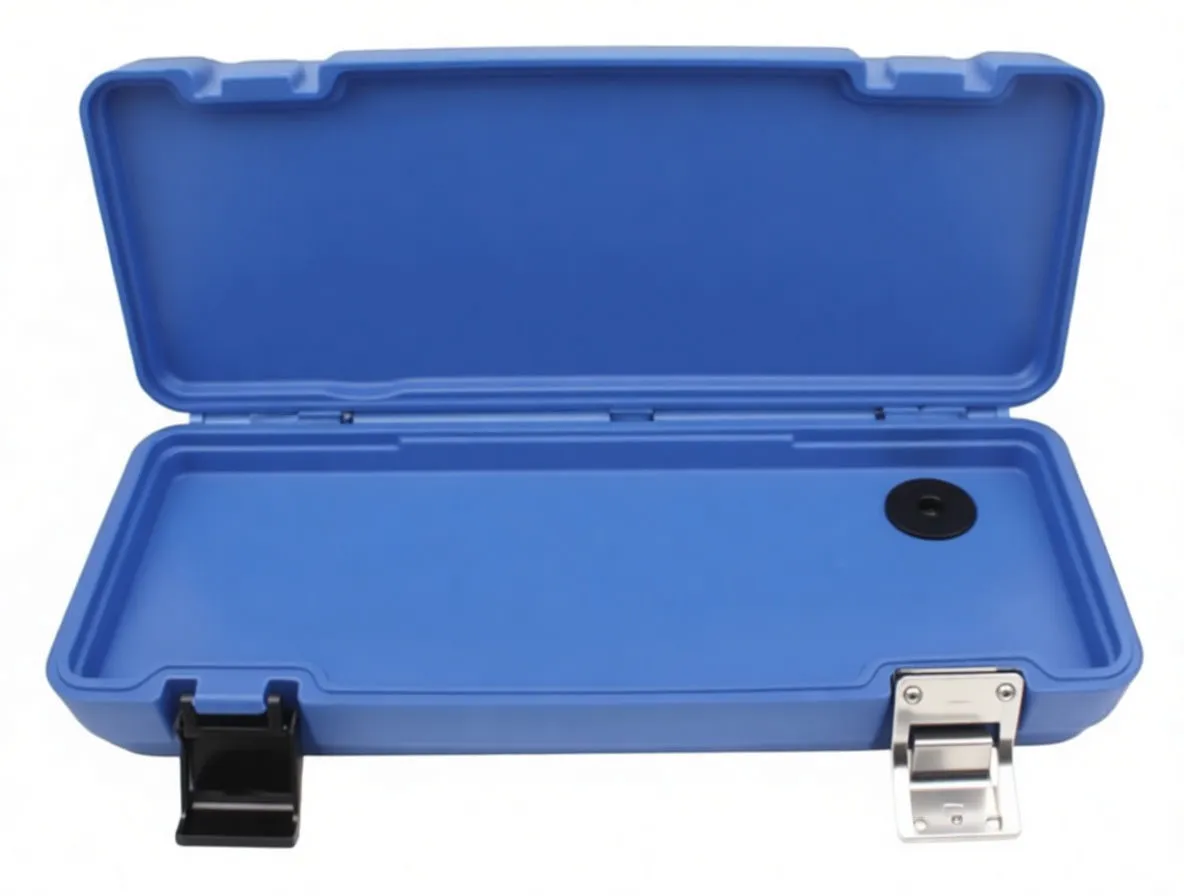

• Carrying Case – Blue molded plastic case with bespoke compartments for tool organization and job-site transport
• Instruction Guide – Mounted on case lid for quick reference during service procedures

Engine Coverage & Applications

This kit is precision-matched to the following Ford vehicle platforms and engine codes:

Vehicles:

• C-MAX (2018–2020)
• Grand C-MAX (2018–2020)
• Fiesta / Fiesta Active (2018+)
• Focus / Focus Active (2018+)
• Puma (2019+)
• Tourneo Connect (2018–2021)
• Transit Connect (2018–2021)
• Transit Connect Active (2021+)

Engine Codes Supported:

• 1.0 EcoBoost: B3DA, B7DA, B7JA, M0JA, M0JB
• 1.0 EcoBoost Hybrid: B7JB, BZJA, B7DC, M0DC
• 1.0 SCTI EcoBoost: B3GA, B3GB

Why This Kit Matters for Your Shop

Efficiency & Accuracy: Timing chain service on EcoBoost engines demands precision. This kit eliminates guesswork by providing purpose-built locking tools that keep the crankshaft and camshaft in exact TDC position. No improvisation. No risk of timing misalignment that leads to drivability issues or comebacks.

Reduced Labor Time: VVT lock and camshaft gear socket accelerate setup and positioning, cutting labor hours on each job. For shops running high service volume, this translates to faster throughput and higher job profitability.

Compatibility with Modern Ford Fleet: Ford's 1.0L EcoBoost is widespread across multiple platforms (compact cars, vans, commercial vehicles). This single kit covers hundreds of thousands of vehicles in service—a smart investment for any independent shop or dealership servicing European-market Fords.

Complementary to Your Existing Tools: Works seamlessly with crankshaft pulley removal sets (such as the ASTA A-RGBF). Your team can build a complete timing service capability without redundancy.

Business Advantages for Resellers

• High-Frequency Application: EcoBoost engines are proven performers in European fleet vehicles. Consistent demand = reliable resale velocity.
• Premium Positioning: Specialized timing tools command better margins than generic hand tools. Position this as an essential investment for professional shops serious about engine work.
• Bundle Potential: Pair with related timing tools (camshaft locks, flywheel holders, crankshaft tools) to increase average order value per customer.
• Professional Credibility: Stocking OEM-specification tools builds trust with shop owners who understand the cost of timing mistakes.

Technical Specifications

Specification	Details
Engine Compatibility	Ford 1.0L EcoBoost (all variants: naturally aspirated, hybrid, SCTI)
Vehicle Model Year Range	2018–2021 (and selected 2019–2022 models)
Kit Type	Timing chain service kit (camshaft & crankshaft locking)
Primary Components	2 × camshaft locking plates, VVT lock, pulley adapter, alignment bracket, fasteners
Material Construction	Injection-molded black plastic (locking plates), machined steel/aluminum (adapter & bracket)
Carrying Case	Blue molded plastic with custom-fit compartments
Recommended Accessory	ASTA A-RGBF set (for crankshaft pulley removal)

Close & Call to Action

For shops building serious timing chain service capability, this kit is non-negotiable. Order in bulk to ensure every service vehicle gets the precision tools it deserves—no delays, no improvisation. Stock it alongside camshaft locking tools for other engine families to maximize your workshop's versatility and profitability.

Questions on compatibility or batch pricing? Contact our team for volume discounts and technical support.
