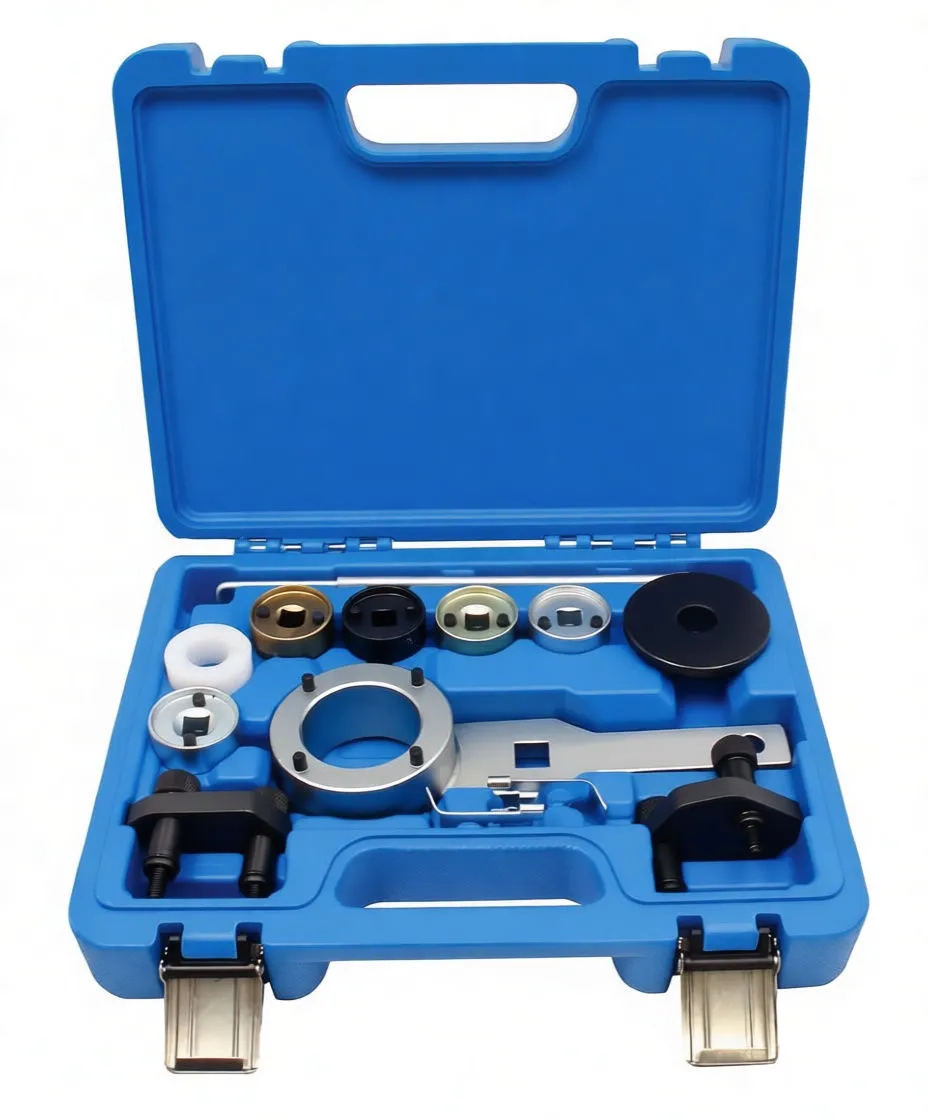

Open blue plastic case containing engine timing tool set: black locking plates, large round spanner plate, aluminum adjustment bar with knob, small hex key, and yellow instruction sticker.

Engine Timing Tool Set for VW 2.4/2.5 Diesel – Crankshaft & Camshaft Locking Kit

Complete timing tool set for VW diesel engines. Enables TDC positioning, VANOS adjustment, and precise valve timing for major engine work.

Request Quote

Description

Engine Timing Tool Set for VW 2.4/2.5 Diesel – Crankshaft & Camshaft Locking Kit

Brief Overview

This is a purpose-built timing tool set designed specifically for VW 2.4 and 2.5 diesel engines, enabling technicians to safely lock crankshaft and camshaft positions during timing chain replacement, head gasket work, and cylinder repairs. The kit allows precise top dead center (TDC) positioning and VANOS system adjustment—critical operations that demand accuracy to avoid costly engine damage. If your shop also services other VAG platforms, consider pairing this with our complete timing tool solution for VAG diesel engines to cover a broader range of diesel applications.

Key Features

  • Crankshaft Lock Assembly: Dual locking plates with locating pins ensure secure crankshaft positioning at TDC
  • Camshaft Lock Mechanism: Dedicated camshaft locking tool with adjustment screw and locking key for precise timing control
  • Piston Positioning Tool: Dedicated tool for safe piston alignment during top dead center setup
  • Valve Adjustment System: Inlet and exhaust valve adjustment tool with matching spacer for synchronized valve timing
  • Black Powder-Coat Finish: All metal components are durable black powder-coated or plated for corrosion resistance
  • Aluminum Adjustment Bar: Lightweight aluminum bar with precision knurled adjustment knob for fine-tuning alignment
  • Custom Molded Carrying Case: Hard plastic case with integrated handle and custom-fitted cavities for each tool, protecting your investment and ensuring shop organization
  • Complete OEM Specification Compliance: All components match original equipment specifications (Crankshaft Lock: OEM 118570/119190; Piston Positioning: OEM 118090; Camshaft Lock: OEM 119890; Screw: OEM 119891; Key: OEM 119892; Valve Adjustment: OEM 119893/119894)

Business Advantages for Resellers

  • High Margin Specialty Tool: Timing tool sets command premium pricing in independent shops because they're essential but purchased infrequently
  • Repeat Customer Value: Shops that invest in this kit become repeat buyers for complementary timing tools and engine diagnostics equipment
  • Professional Shop Positioning: Stocking OEM-specification timing tools elevates your shop's reputation and attracts customers who refuse compromise on engine work
  • Reduced Job Turnaround: Technicians work faster and more confidently with dedicated, properly-fitted tools—shops charge labor premiums for precision timing work
  • Multi-Model Coverage: Works across multiple VW diesel platforms (2.4D and 2.5 TDi variants), maximizing your investment across your customer base

Technical Specifications

Specification Detail
Engine Application VW 2.4/2.5 Diesel (2.4D, 2.5 TDi variants)
Primary Functions Crankshaft locking, camshaft locking, TDC positioning, VANOS adjustment, valve timing
Kit Contents Crankshaft lock plates (2), camshaft lock assembly, piston positioning tool, valve adjustment tool, spacer, adjustment screws, locking keys, locating pins, aluminum adjustment bar
Material Finish Black powder-coat (ferrous components), uncoated aluminum bar
Carrying Case Hard plastic with integrated handle, custom-molded tool cavities
OEM Compliance Full OEM specification match across all components
Typical Applications Timing chain replacement, head gasket service, cylinder repair, VANOS system adjustment

Why This Set Matters

Timing work on VW diesels demands precision—incorrect positioning can result in bent valves, destroyed pistons, or catastrophic engine failure. This set eliminates guesswork by providing dedicated locking mechanisms that hold the crankshaft and camshaft in exact OEM positions. The VANOS adjustment capability is particularly valuable because it's a common service operation that many shops otherwise cannot perform confidently.

The custom case organization isn't just convenience; it's a reflection of professional-grade tooling. When customers see a shop technician reach for a purpose-designed tool set stored in a fitted case, confidence in the work increases—and shops with confidence command higher labor rates.

Ready to stock the precision timing solution your customers demand? Bulk orders of this set qualify for tiered pricing. Contact us for distributor volume discounts.
