Engine Timing Tools Set for VW 2.4D and 2.5 TDi – Complete Camshaft & Crankshaft Locking Kit

Brief Overview

This timing tool set is engineered for precision engine work on VW diesel powerplants, specifically the Transporter 2.4D (1995–2003) and Crafter 2.5 TDi (2006–2009). Whether you're handling routine timing belt services or major engine overhauls, this kit delivers the specialized components needed to lock camshaft and crankshaft positions reliably. The molded carrying case keeps all components organized and protected on the job site. For shops managing a broader range of VAG timing tasks, consider pairing this set with comprehensive VAG timing tool solutions to cover additional engine families.

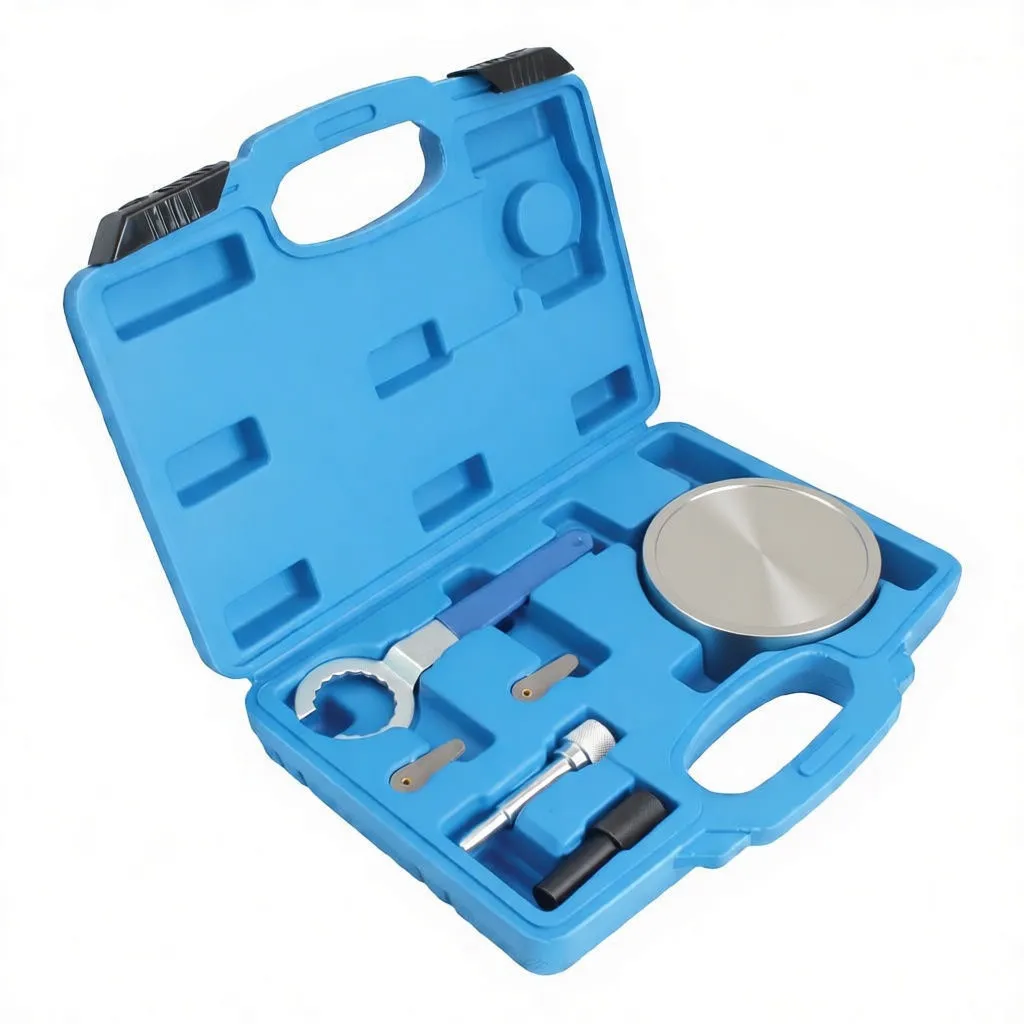

Key Features

• Camshaft Locking Bracket: U-shaped design secures camshaft in position during timing work
• Crankshaft Timing Pin (Upgrade Version): Precision-ground pin ensures accurate TDC positioning
• Flywheel Sprocket Holding Tool: Large diameter ring with square drive prevents rotation during fastener removal
• Setting Spigot: Aligns timing components for accurate reassembly
• Shim Set: Calibrated feeler blades for precise valve clearance setup and component seating
• Notched Ring Spanner: Blue-handled wrench for secure engagement on timing component fasteners
• Molded Carrying Case: Impact-resistant blue plastic case with foam-cut compartments; integral handle and secure latches
• Instruction Placard: Mounted inside case lid for quick reference on correct component application

Engine Coverage

Engine Code	Vehicle Model	Production Years
AAB, AJA	VW Transporter 2.4D	1995–2003
BJJ, BJK, BJL, BJM	VW Crafter 2.5 TDi	2006–2009

Business Advantages for Resellers

• High Demand Application: VW Transporter and Crafter fleets represent steady service volume in European workshops
• Complete Kit = Fewer SKU Dependencies: One order covers the full job; no need to stock individual components separately
• Professional Presentation: Organized case reduces technician setup time and projects quality to end customers
• Margin-Friendly: Specialized timing tools command premium labor rates; proper kit ownership ensures shops take these jobs confidently
• Cross-Sell Potential: Shops purchasing this set are likely candidates for complementary timing solutions for other VAG engine families, creating opportunity for larger account development

Technical Specifications

Specification	Details
Primary Application	Camshaft and crankshaft timing lock-up; timing belt service and replacement
Compatible Engine Types	AAB, AJA (Transporter); BJJ, BJK, BJL, BJM (Crafter)
Drive Interface	Square drive hole on main locking plate (compatible with 1/2" drive tools)
Material Finish	Zinc-plated steel (main components); hardened steel pin; stainless steel feeler blades
Case Material	Impact-resistant blue polypropylene with molded foam insert
Weight	Approximately 2.8 kg
Storage	Case dimensions: 430 × 310 × 100 mm

Application Notes

This kit is purpose-built for the specific bore profiles and camshaft/crankshaft geometry of these diesel engines. The timing pin upgrade specification ensures compatibility with later Crafter models (2006–2009) where crankshaft geometry differs slightly from earlier Transporter variants. Proper use requires locking both camshaft and crankshaft before removing or installing the timing belt, preventing accidental rotation and potential valve-to-piston contact.

Value Proposition

For shops specializing in VW diesel service or running mixed commercial-vehicle fleets, this set eliminates the guess-work from timing work. The included shim set provides precision adjustment capability, and the secure locking components reduce risk of costly engine damage. One complete kit covers both high-volume Transporter and Crafter service—a justified investment that pays for itself in job confidence and reduced warranty callbacks.

---

Ready to add this kit to your timing tool inventory? Stock it now to serve your VW diesel customer base confidently.
