Fiat 1.2 8V & 1.4 16V Engine Locking Tool Set – Camshaft & Crankshaft Timing Belt Service

Brief Overview

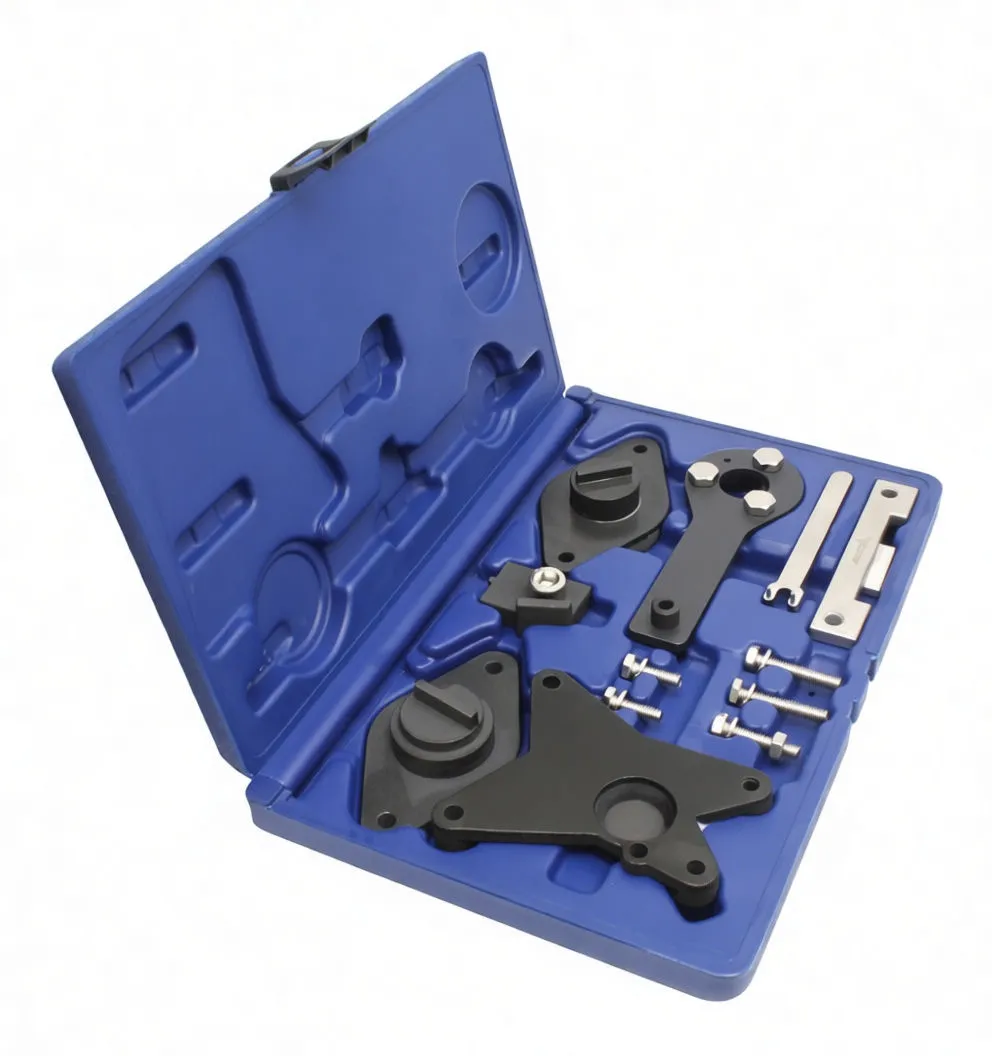

This is a dedicated engine locking tool kit designed specifically for Fiat 1.2 8V and 1.4 16V timing belt service work. It provides the precision fixtures needed to safely lock both the camshaft adjuster and crankshaft during belt replacement, preventing accidental rotation and ensuring accurate reassembly. The kit is supplied in a protective blue hard plastic carrying case with molded component storage, making it practical for workshop organization. If your technicians also service Fiat 1.6 16V twin-cam engines or Alfa Romeo twin-spark petrol units, complementary locking tool sets are available for those applications.

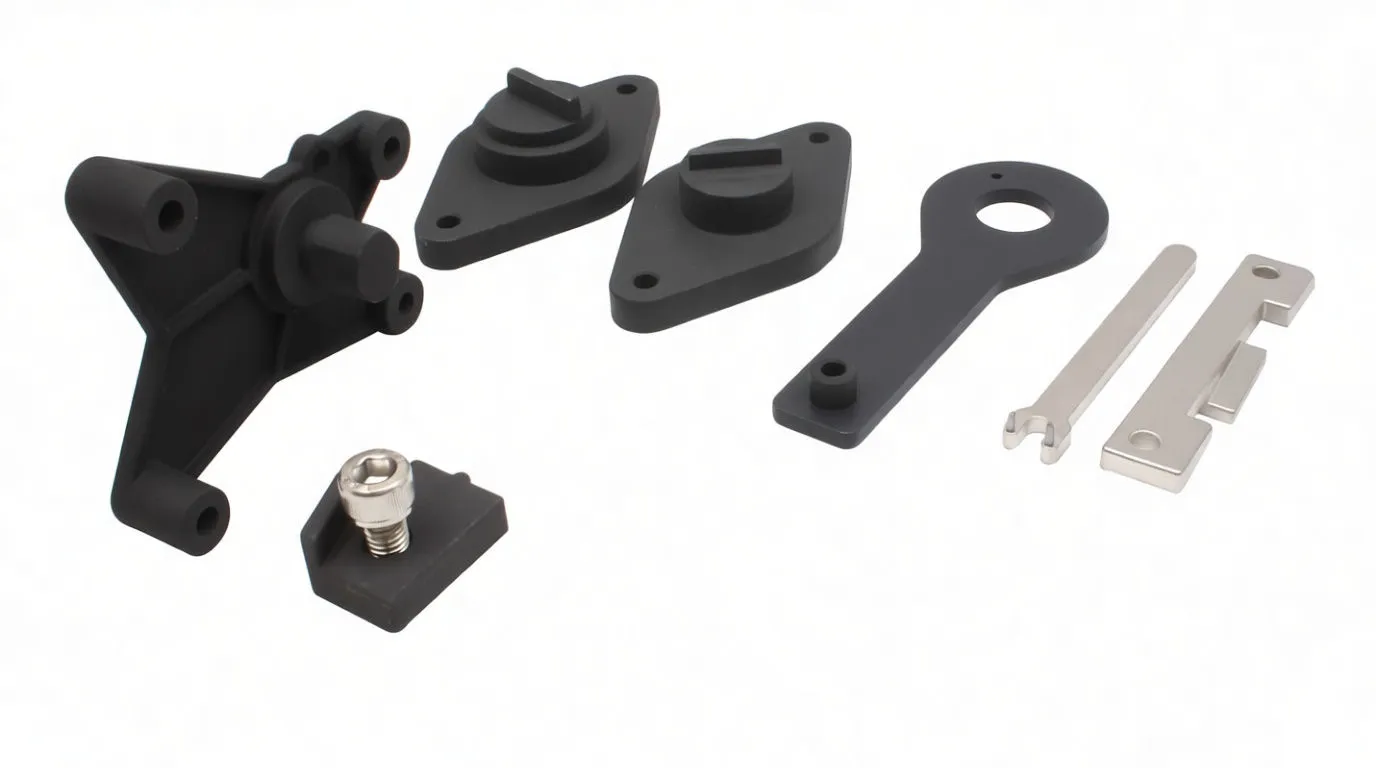

Key Features & Components

• Camshaft Adjuster Locking Plate: Machined plate designed to lock the camshaft adjuster in position during service
• Crankshaft Lock Arm: Spanner-style locking arm with circular jaw fitted with hex nuts for secure crankshaft engagement
• VVT Camshaft Tool: Additional 1.4 VVT-specific blocking tool for handling and securing the variable valve timing adjuster gear
• Multiple Locator Plates: Triangular and profile-matched locking blocks that secure to engine reference points
• Flat Locking Bars: Polished steel bars with precision cutouts for positioning against engine features
• Fastening Hardware: Stainless-steel bolts and studs in assorted lengths for secure component installation
• Protective Case: Blue hard plastic carrying case with molded recesses for tool organization and on-site portability

Engine Coverage & Model Compatibility

Fiat Models Supported:

• 500 (2007–2008)
• Idea (2004–2008)
• Linea (2007–2008)
• Grande Punto (2007–2008)
• Doblo (2005–2008)
• Panda EVO2 (2005–2008)

Engine Variants:

• 1.2 8V: 169A4.000, 199A4.000
• 1.2 8V EVO2: 188A4.000
• 1.4 16V: 350A1.000 (includes dedicated VVT adjuster tool)

Why This Kit Matters for Your Shop

Accuracy & Safety: Prevents camshaft or crankshaft drift during belt replacement, eliminating the risk of valve-to-piston contact and catastrophic engine damage.

Time Efficiency: Purpose-built fixtures reduce setup time compared to improvised locking methods, allowing technicians to focus on belt and tensioner service.

Multi-Engine Value: Single kit covers multiple Fiat model years and the later 1.4 16V VVT variant with dedicated tooling, maximizing utility across your service schedule.

Professional Presentation: Supplied in organized carrying case—establishes credibility with customers and keeps critical tools protected and accessible.

Margin Opportunity: Timing belt service is a high-frequency maintenance visit; offering this as a bundled service accessory improves job quality and customer confidence.

Technical Specifications

Aspect	Details
Primary Application	Camshaft & crankshaft locking during timing belt service
Engine Compatibility	Fiat 1.2 8V (169A4.000, 199A4.000, 188A4.000) & 1.4 16V (350A1.000)
Kit Components	2 cam-lock plates, 1 triangular locator plate, 1 spanner lock arm, 2 flat locking bars, 1 clamp block, stainless fasteners (bolts & studs)
Material Composition	Machined black steel (locking fixtures), polished stainless steel (bars & fasteners)
Storage	Blue hard plastic carrying case with molded component cavities
Included Documentation	Multilingual instruction label with safety warnings

Call to Value

This is an essential diagnostic and service tool for any shop handling Fiat 1.2 and 1.4 petrol engine maintenance. Prevent costly rework, protect your technicians from liability, and deliver professional-grade timing belt service. Stock this kit as part of your Fiat service capability—it will pay for itself within the first 2–3 belt jobs on your schedule.
