8-Piece Engine Timing Tool Set for Fiat 1.7D and 1.9D Diesel Engines

Complete timing lock kit for Fiat diesel engine service—crankshaft, camshaft, and injection pump positioning in one professional set.

Request Quote

Description

8-Piece Engine Timing Tool Set for Fiat 1.7D and 1.9D Diesel Engines

Overview

This is a purpose-built timing lock kit designed specifically for Fiat 1.7D and 1.9D diesel engines, covering critical operations like camshaft and crankshaft positioning during timing belt service, injection pump adjustment, and component replacement. The set includes three color-coded locking plates, a precision timing arm, threaded fasteners, and a dedicated adapter—everything required to safely hold engine components in position during routine maintenance or repair. If your shop also services Fiat petrol engines, consider pairing this with timing tools for Fiat 1.2/1.4 16V engines to cover a broader customer base.

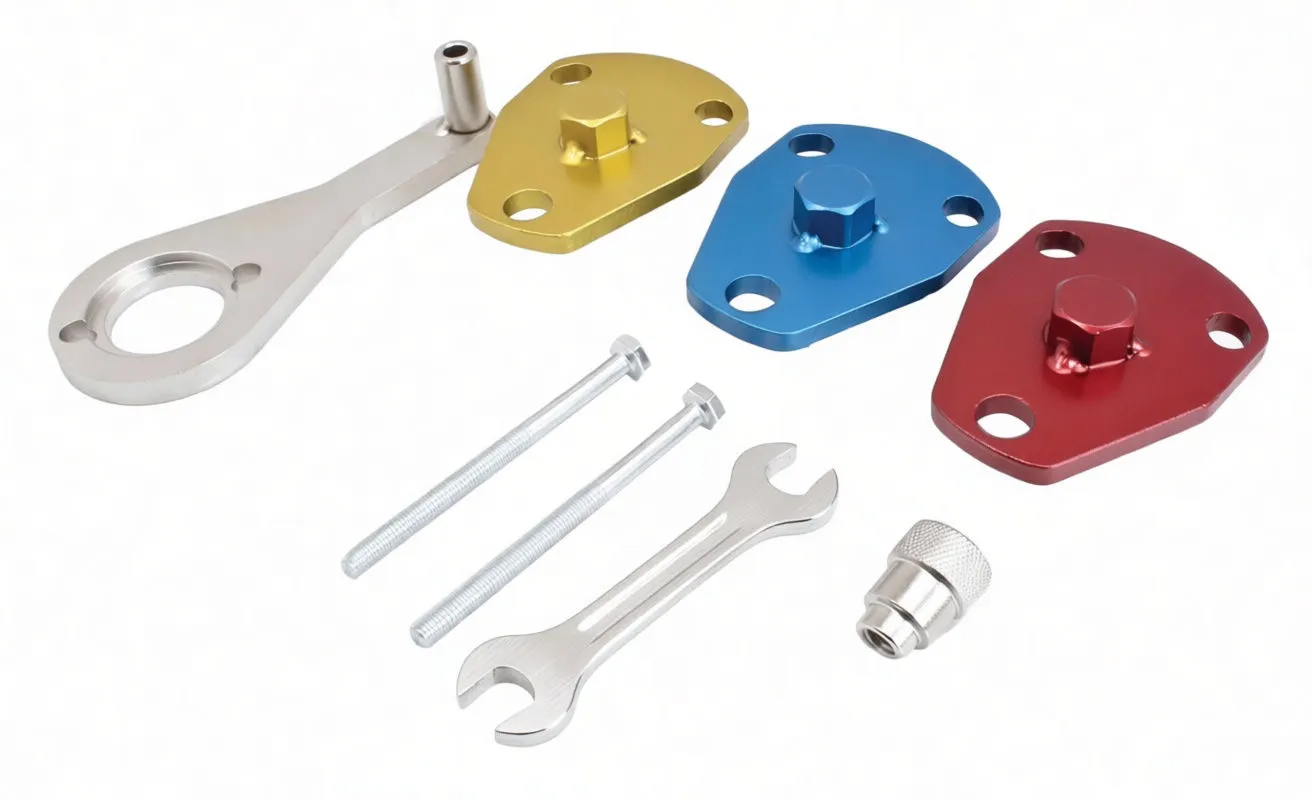

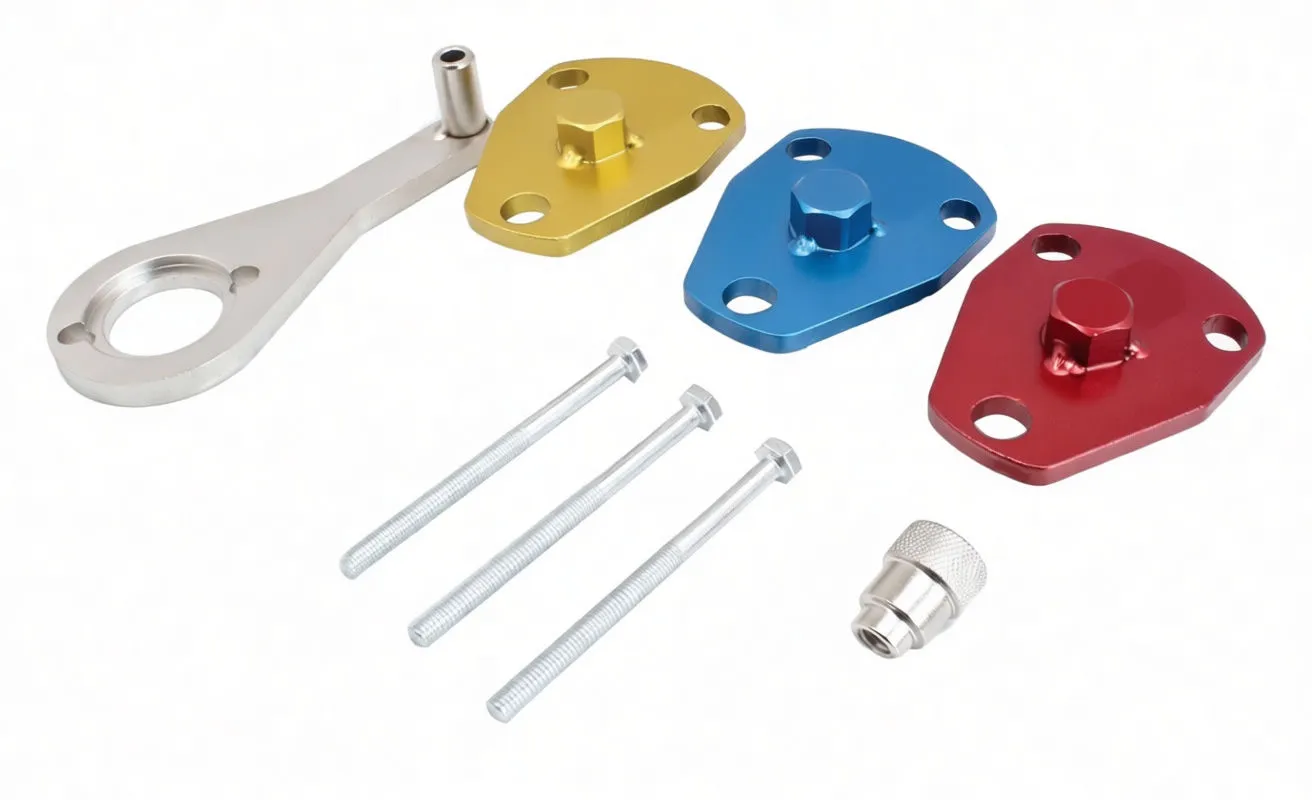

Key Components & Features

  • Three Anodized Locking Plates (Gold, Blue, Red): Color-coded for quick identification and designed to engage with camshaft gears and crankshaft positions. Each plate features a raised hexagonal central boss and three bolt holes for secure fastening.
  • Precision Timing Arm: Machined silver alloy arm with a large circular locating hole and press-fit dowel pin for accurate positioning and repeatability across multiple services.
  • Three Long Threaded Bolts: Industrial-grade fasteners for reliable clamping and locking during adjustment operations.
  • Knurled Metal Adapter/Socket: Specialized connector for injection pump or auxiliary component positioning.
  • Protective Carrying Case: Molded blue hard plastic case with custom foam inserts, yellow instruction label, and secure latches—essential for shop organization and job-site portability.

Engine Compatibility

Fiat Models & Engine Codes:

  • Punto 1.7D / 1.7TD
  • Tipo 1.9D
  • Ducato 1.9D / 1.9TD
  • Tempra 1.9TD (with adjustable camshaft gear)

OEM Reference Numbers: 1860932000, 1860934000, 1860931000, 1860933000

Engine Codes: 176B3.000, 176A3.000, 176A5.000, 149B1.000, 160A6.000, 160A7.000, 160D1.000, 230A2.000, 230A3.000, 230A4.000, 280A1.000

Why This Set Drives Profitability for Your Shop

  • Diesel Engine Focus: Fiat diesel engines are common in European fleets and light commercial vehicles. This specialized set positions your shop as the go-to service provider for timing work on these engines.
  • Complete Solution: No need to source multiple tools or improvise with generic equipment. All components are purpose-built, reducing service time and improving accuracy.
  • High Repeat Revenue: Timing belt service is a recurring job—every 80,000–120,000 km on these engines. Professional tooling ensures consistent quality and customer confidence.
  • Compact, Organized Packaging: The hard case protects components, improves technician efficiency, and looks professional in your shop environment.
  • OEM Compatibility: Direct alignment with Fiat factory specifications builds customer trust and reduces liability concerns.

Technical Specifications

Feature Specification
Piece Count 8 components
Application Fiat 1.7D / 1.9D diesel engines
Locking Plates 3 (gold, blue, red anodized aluminum)
Timing Arm 1 (machined silver alloy)
Fasteners 3 long threaded bolts
Adapter/Socket 1 knurled metal component
Case Material Blue molded hard plastic
Case Type Custom foam-lined with latches and handle
Markings Engine code identification labels on plates and arm
OEM References 1860932000, 1860934000, 1860931000, 1860933000

Critical Service Applications

  1. Timing Belt Replacement: Locks crankshaft and camshaft in position during belt removal and installation, ensuring correct alignment on reassembly.
  2. Injection Pump Adjustment: The specialized adapter and locking mechanism allow precise pump timing alignment—critical for fuel economy and emissions compliance on 1.9D engines.
  3. Camshaft Gear Service: The color-coded plates engage the adjustable camshaft gear, allowing safe removal and repositioning without damage.
  4. Component Repair & Replacement: Keeps all rotating elements stationary during valve cover removal, timing cover work, or related service.

For Your Resale Strategy

Stock this kit if your customer base includes:

  • Independent Fiat service centers
  • Multi-brand fleet maintenance shops
  • Diesel engine specialists
  • Heavy-duty commercial vehicle garages

The combination of specificity and reliability makes this a strong margin product—customers cannot improvise, and the OEM compatibility drives premium pricing.

Ready to streamline Fiat diesel timing service in your shop? Order this 8-piece set to eliminate scheduling delays and position your business as a certified Fiat specialist.
