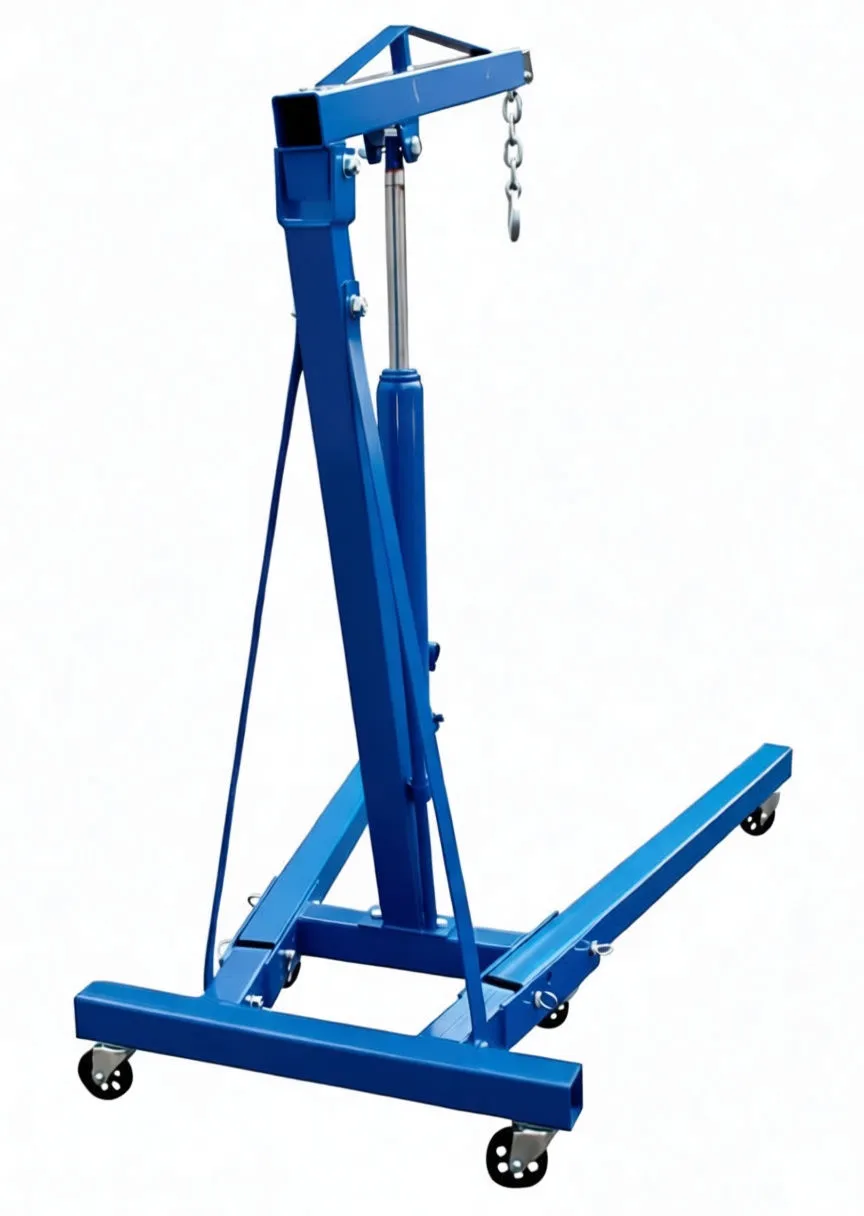

Fixed-Frame Industrial Crane, 2-Ton Capacity, Adjustable Arm Height 25–2000mm

Brief Overview

This fixed-frame industrial crane is purpose-built for automotive shops and heavy-duty repair environments where reliable engine and component lifting is essential. The strengthened design combines a rigid steel boom with smooth hydraulic actuation, delivering consistent 2-ton lifting capacity across multiple height and reach adjustments. Folding legs and swivel casters enable quick repositioning and compact storage—critical for shops operating under tight spatial constraints. For operations requiring supplementary lifting solutions, a 2-ton chain hoist pairs well as a backup or secondary lifting tool.

Key Features

• Adjustable Arm Height: 25–2000mm range provides precise positioning for engines, transmissions, and heavy assemblies at optimal working heights

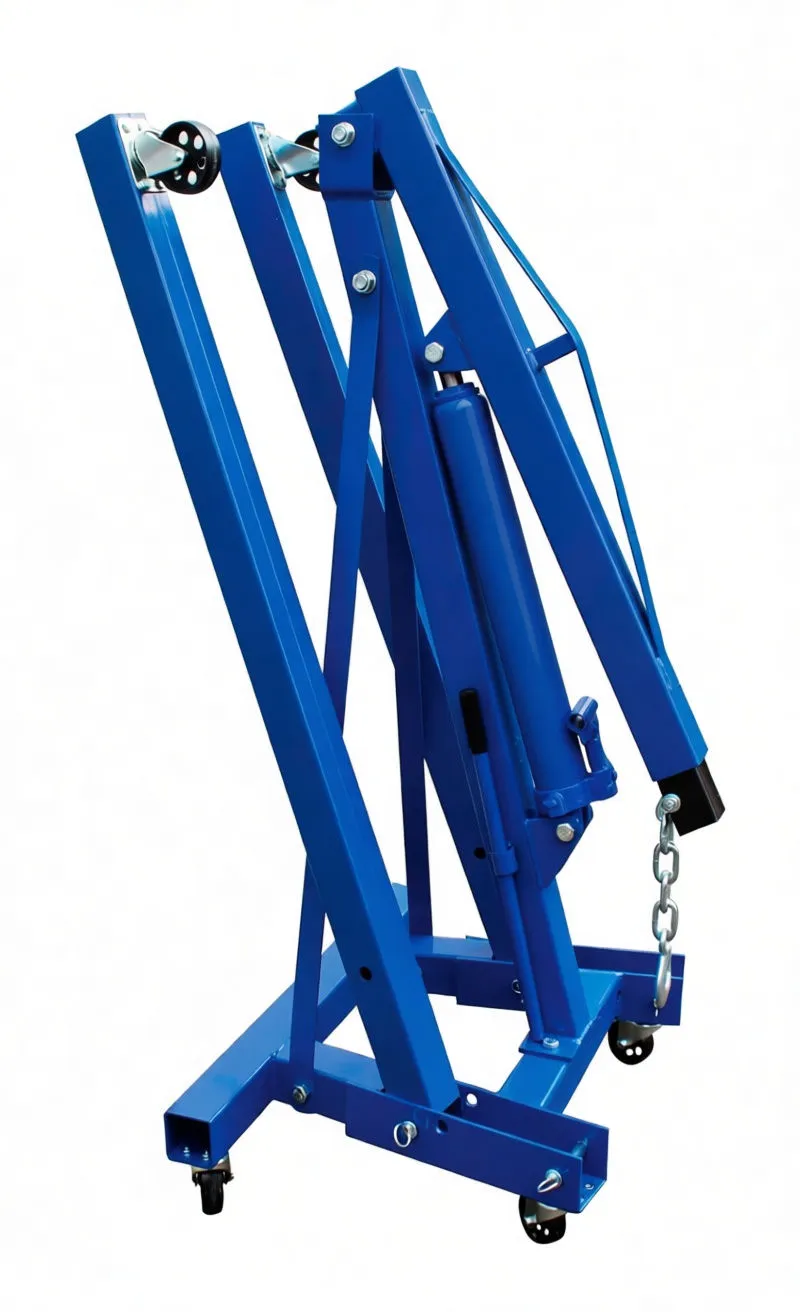

• Folding Leg Design: Collapsible frame reduces footprint for storage and transport without sacrificing stability during operation
• Hydraulic Lift System: Smooth, controlled vertical movement with integrated release valve for safe lowering

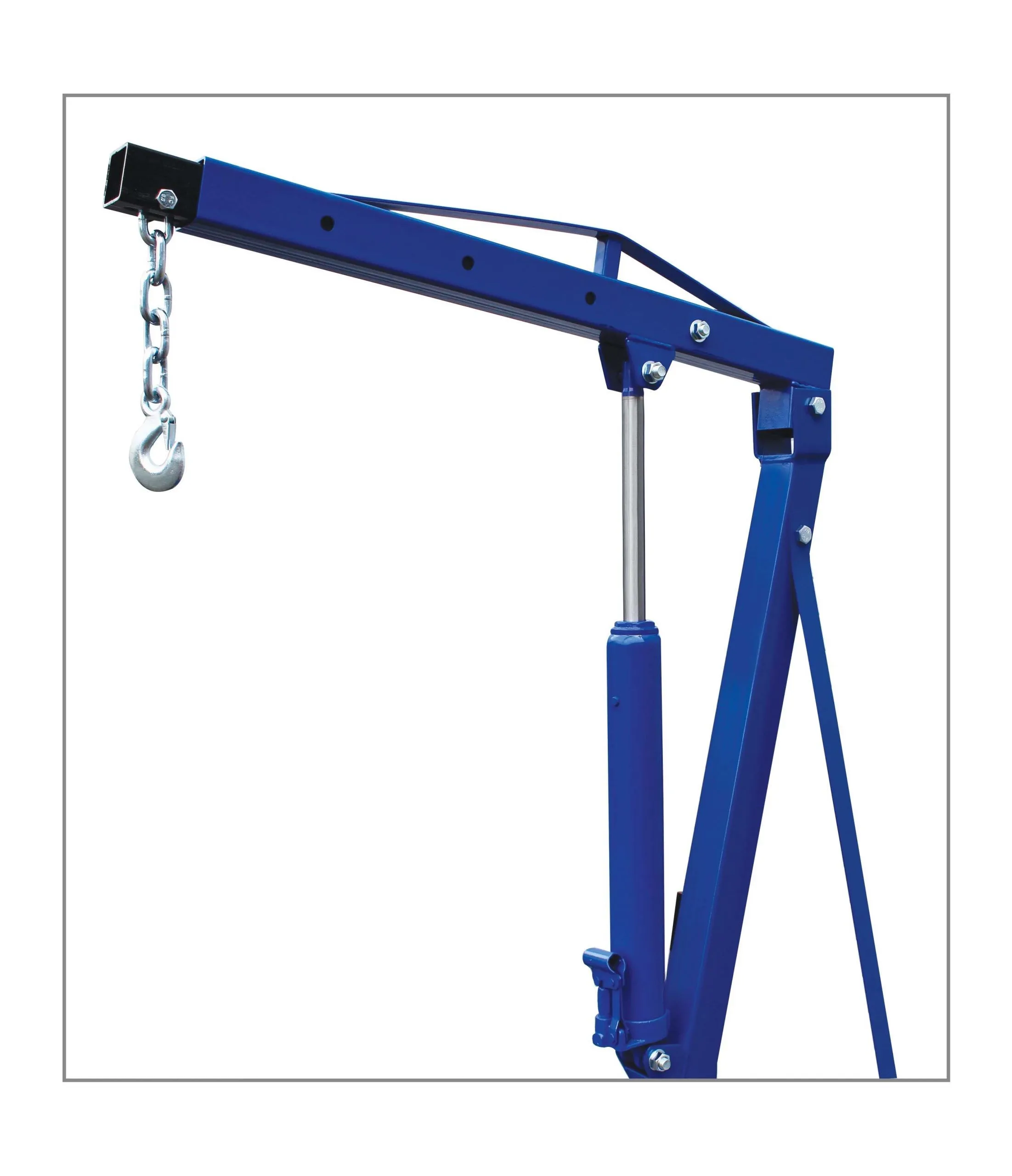

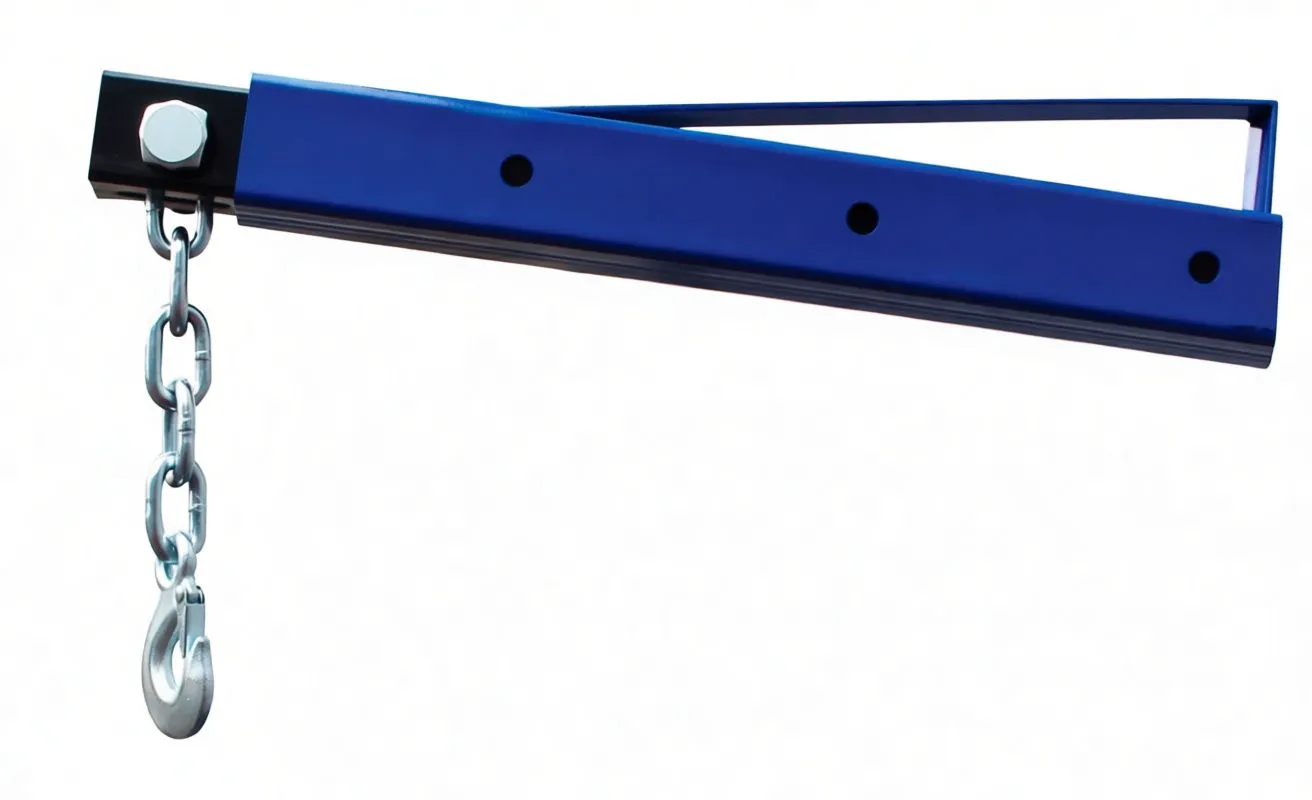

• Multi-Position Boom: Adjustment holes along boom length allow capacity/reach reconfiguration for different load geometries
• Heavy-Duty Steel Construction: Welded box-section boom with gusseted welds, bolted pivot joints, and full blue powder-coat finish for corrosion resistance
• Mobile Base: Swivel caster wheels enable one-person repositioning across shop floor
• Integrated Chain & Hook: Short-length lifting chain and substantial steel hook rated to load capacity

Business Advantages for Resellers

This crane targets high-volume automotive repair shops, independent garages, and fleet maintenance facilities—all of which require reliable, durable lifting equipment as core operational assets. The 2-ton capacity sits at the sweet spot for engine and transmission work, making it a natural fit for shops already committed to quality tooling. The folding design and easy hydraulic access reduce setup time and maintenance overhead, improving shop efficiency and justifying repeat orders. Shops upgrading from manual hoists or aging equipment recognize the speed and safety benefits immediately, creating strong word-of-mouth demand. Bulk orders are practical for shop networks or distributor inventory, as the crane's rugged design ensures minimal warranty exposure.

Technical Specifications

Specification	Detail
Lifting Capacity	2 tons (2000 kg)
Adjustable Arm Height Range	25–2000 mm
Overall Dimensions (Extended)	1750 × 1040 × 1486 mm
Boom Type	Fixed-frame, welded steel box section
Hydraulic System	Vertical piston cylinder with manual release valve
Mobility	Swivel caster wheels (four-point base)
Folding Capability	Yes—collapsible legs for compact storage
Lifting Chain	Integrated short-length chain with steel hook
Finish	Blue powder-coat, corrosion-resistant
Construction	Welded steel with bolted pivot joints and gusseted bracing

Why This Crane Matters

Engine and transmission removal is a daily reality in automotive repair. Manual chain hoists work but demand physical effort and operator skill. Hydraulic floor cranes eliminate guesswork—the operator controls lift height and speed with smooth precision, reducing fatigue and the risk of dropping expensive components. The 2-ton rating covers 99% of automotive engine applications, from compact 4-cylinder blocks to V8 assemblies. The folding frame means shops don't lose valuable floor space when the crane isn't in use, and the easy access to the hydraulic pump (as noted in the improved design) keeps maintenance quick and predictable.

The adjustable arm height from 25mm to 2000mm is not cosmetic—it means the same crane works under tight engine bays and for overhead work, adapting to different shop layouts and vehicle types without requiring multiple units.

Call to Value

Stock this crane for shops serious about efficiency and safety. It's a confidence-builder for your customers—a visible, durable asset that justifies ongoing investment in your product line. Offer bulk discounts for shop networks or distributors purchasing 2–3 units at once; the standardized design minimizes SKU complexity and inventory management.
