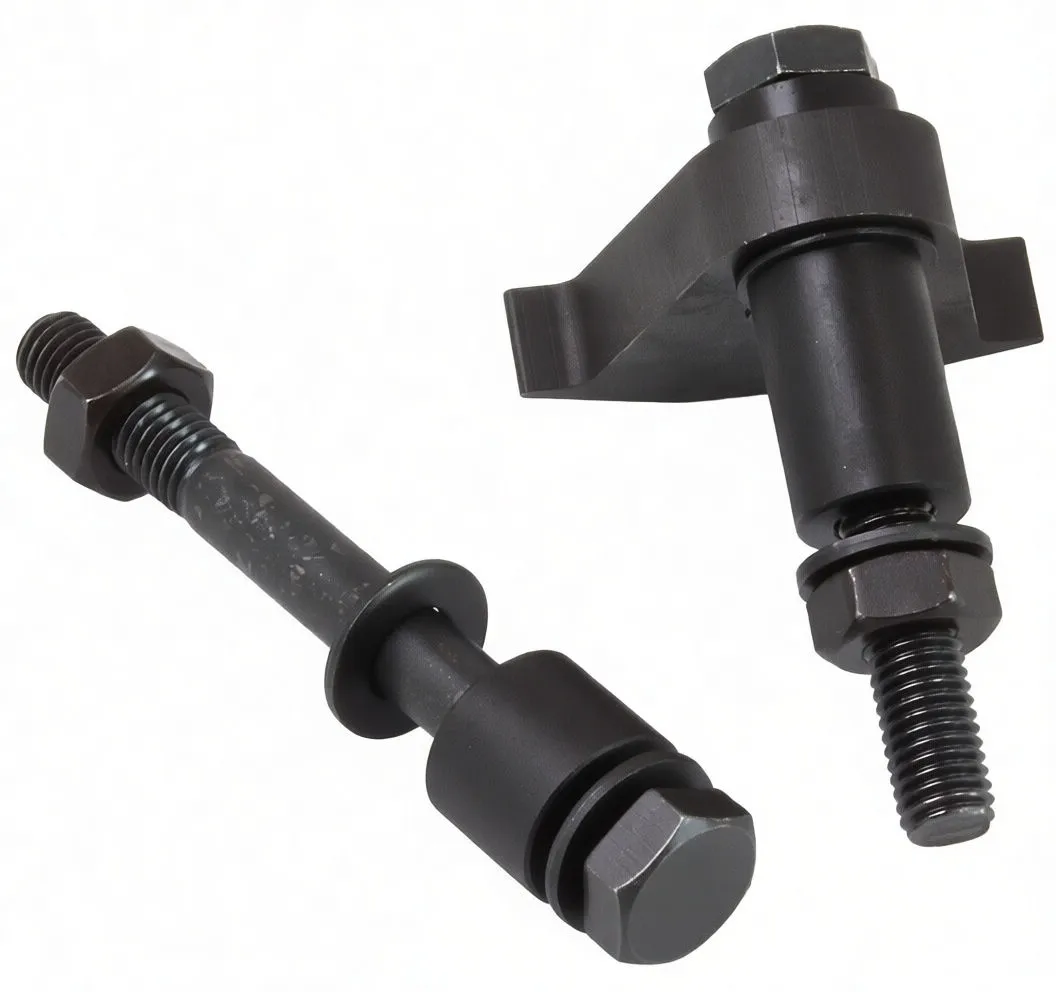

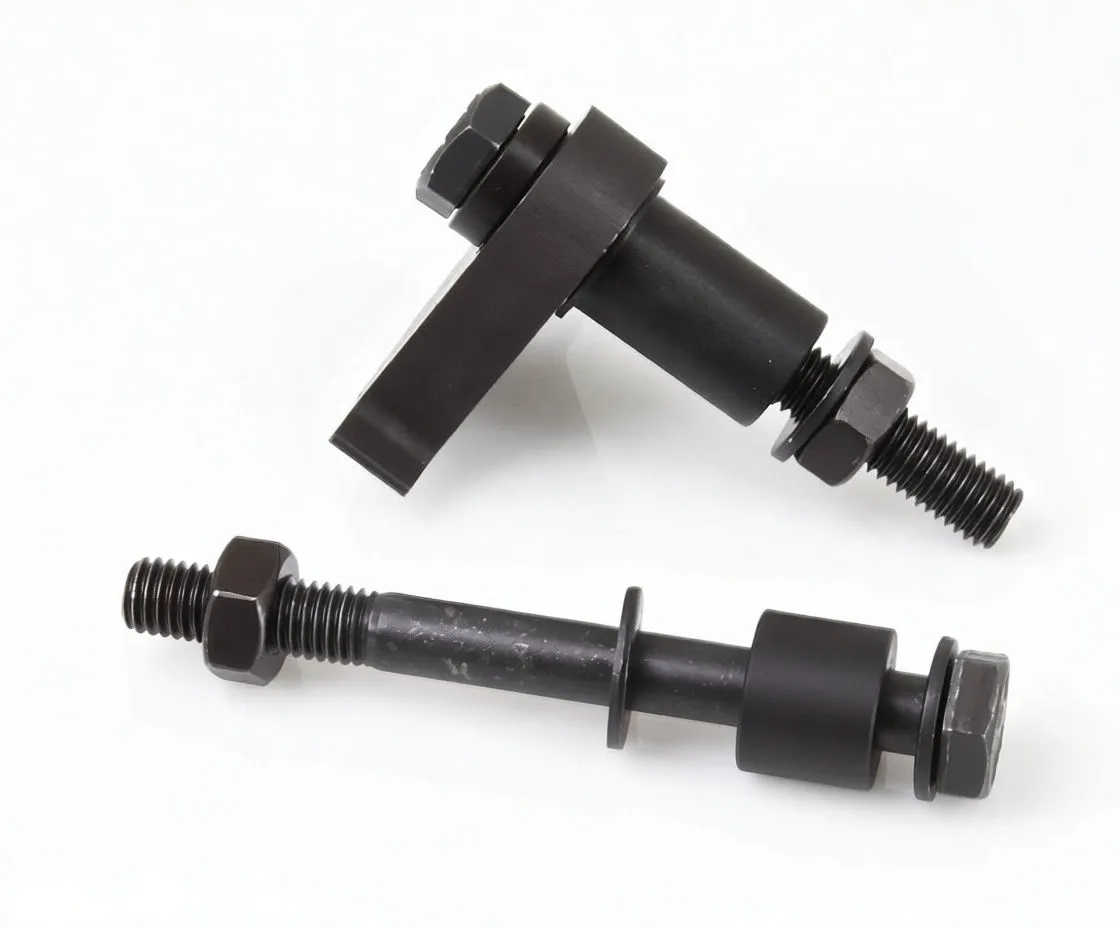

Close-up of two black steel flywheel adjustment tool pieces: a long threaded bolt with nuts, washer and sleeve, and a shorter cylindrical piece with a flanged arm; small logo on collar and "8.8" marking on hex head visible.Angled photo of two black metal flywheel adjustment tool parts: threaded rod with sleeve and nuts, and a cylindrical piece with a flat engagement flange; small stamped marks visible.Top-down view of flywheel adjustment tool: long threaded bolt with washer and collar, plus a shorter cylindrical piece with perpendicular flange, all black steel with hex nuts and small stamped markings.

Flywheel Adjustment Tool for VW 02A, 02J and 6-Speed Transmissions

Professional-grade flywheel holding tool for secure bolt removal and installation on VW Golf and compatible transmissions.

Request Quote

Description

Flywheel Adjustment Tool for VW 02A, 02J and 6-Speed Transmissions

Brief Overview

This specialized flywheel adjustment tool is engineered to safely hold the flywheel stationary during clutch and flywheel bolt removal and installation operations. Built from hardened steel with precision machining, it delivers the reliability your shop needs for transmission service work on VW platforms. When paired with complementary shop tools like a transmission locking solution, you can establish a complete transmission service capability that builds customer confidence and shop reputation.

Key Features

  • Dual-Component Design: Threaded shaft assembly with hex head, washer, and collar combined with a separate cylindrical pivot piece featuring integral flanged engagement arm
  • Hardened Steel Construction: Grade 8.8 rated fasteners and black oxide finish for corrosion resistance and durability
  • Engine Block Mounting: Non-threaded adapter seats into the rearmost hold on engine block for secure positioning
  • Adjustable Positioning: Rotate tool upwards to achieve correct angle for bolt access and safe operation
  • Precision Machining: Clean, tight tolerances ensure repeatable positioning across multiple service cycles

Technical Specifications

Specification Detail
Application VW 02A, 02J, 6-Speed Transmissions
Compatible Models VW Golf 7 (1.2L, 1.4L TS engines)
Material Hardened Steel, Grade 8.8
Finish Black Oxide
Installation Method Engine block adapter with nut and washer fastening
Primary Function Flywheel stabilization during clutch/flywheel bolt service
NOT Recommended For Crankshaft belt sprocket center bolt removal/installation

Installation & Application Notes

  1. Insert the non-threaded adapter into the rearmost engine block hold
  2. Secure with provided nut and washer
  3. Rotate tool upwards to achieve correct working position
  4. Proceed with flywheel bolt removal or installation

The tool's simple, robust design minimizes training time for technicians while maximizing reliability. The separate pivot component engages the flywheel teeth, preventing rotation during the critical torque phase of bolt work.

Business Advantages for Your Shop

  • Service Capability Expansion: Add VW transmission clutch service to your shop's capability matrix—a high-margin service many independent shops currently outsource
  • Inventory Efficiency: Single tool covers 02A, 02J, and 6-Speed platforms (common across multiple model years and engine sizes)
  • Bulk Order Economics: Stock this tool for retail sale to independent technicians and smaller shops in your territory—consistent repeat demand
  • Technician Confidence: Reduces comebacks and warranty issues by ensuring proper bolt torque during installation (no flywheel slip during tightening)
  • Professional Positioning: Demonstrate VW-specific expertise to customers seeking transmission service outside the dealership network

Call to Value

This is a specialized tool with recurring demand in regions with significant VW populations. At minimal shelf space investment, you gain a product that builds customer loyalty through superior transmission service capability. Recommend bulk quantities to shop partners and consider featuring this in technical training sessions at local technical colleges.
