Ford EcoBlue 2.0 Diesel Injector Puller Set with Carrying Case

Brief Overview

This specialist injector puller set is engineered for safe, non-destructive removal of fuel injectors from Ford EcoBlue 2.0 TDCi diesel engines. The system uses mechanical extraction rather than force, preserving injector integrity and enabling reassembly without component replacement—a critical advantage for shops managing fleet maintenance or high-volume Ford service work. If your operation also services other diesel platforms, consider pairing this with a Citroën/Peugeot diesel injector removal kit to expand your service capabilities across additional vehicle lines.

Key Features

• Non-Destructive Extraction: Mechanical puller design prevents injector scoring and seal damage, enabling safe reuse and reducing customer costs
• Precision-Engineered Tooling: Steel crossbar with threaded extraction rods and manufacturer-specific adapter blocks matched to Ford EcoBlue geometry

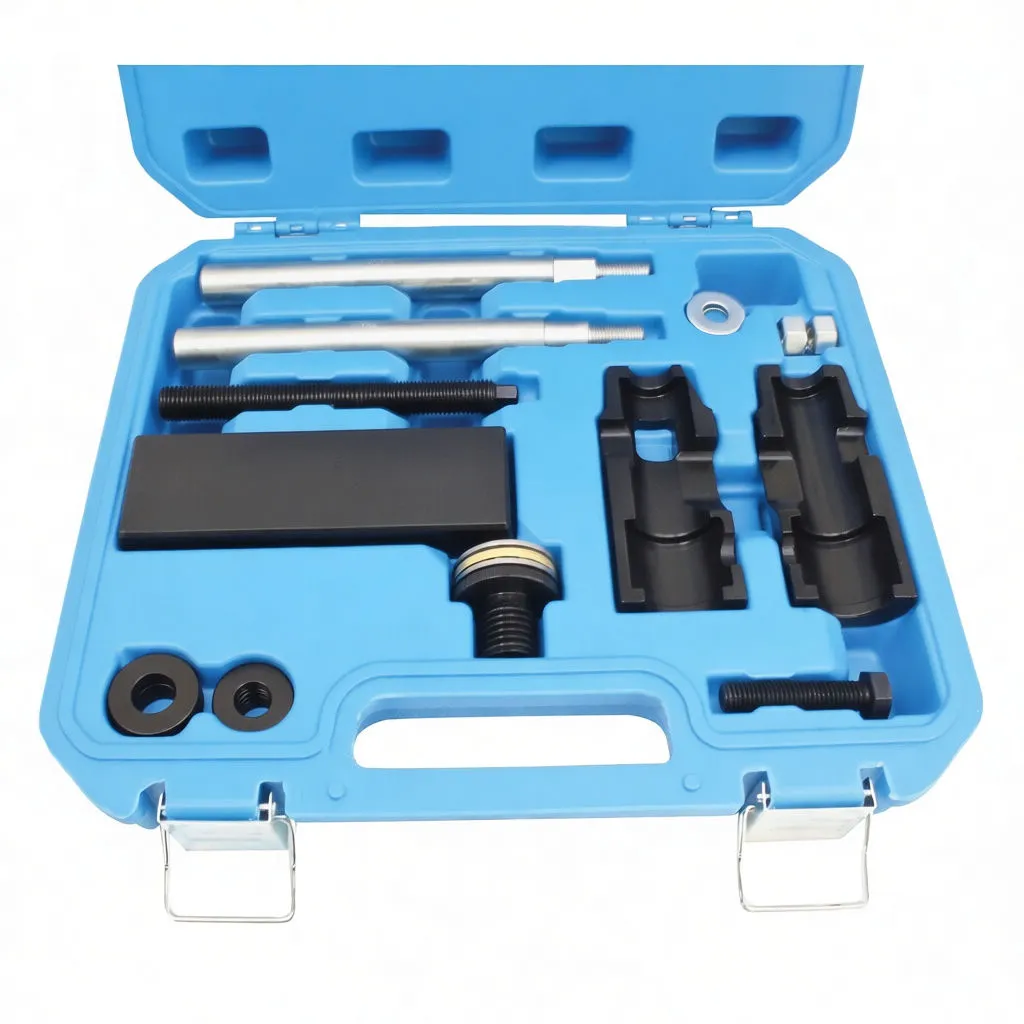

• Complete Component Set: Includes extraction rods, clamping jaws, spacing collars, threaded fasteners, and adapter blocks for proper injector mounting
• Carrying Case: Foam-molded blue plastic case with metal latches organizes all components and facilitates shop storage and job-site transport
• Torque-Controlled Operation: Clear specification (maximum 200 Nm on main screw) prevents over-tightening and injector deformation
• Lubrication Guidance: Includes molybdenum disulfide grease requirement to ensure smooth operation and component longevity

Business Advantages for Resellers

• Recurring Service Revenue: Enables profitable diesel injector service and reconditioning without component waste
• Fleet Maintenance Appeal: Ford's EcoBlue platform is widely deployed in commercial vehicles (Transit, Ranger, S-Max) and SUVs—strong market demand
• Margin Protection: By preventing injector damage, shops can offer cost-effective cleaning and reuse services rather than expensive replacement units
• Differentiation: Specialist tool positioning allows resellers to capture diesel service work from shops lacking dedicated Ford EcoBlue capabilities
• Low Inventory Risk: Single set covers 23+ engine codes across multiple Ford vehicle lines manufactured from 2016 onward

Technical Specifications

Specification	Detail
Application	Ford EcoBlue 2.0 TDCi Diesel Engines
Compatible Vehicles	Edge (2018+), Focus (2018+), Galaxy (2018+), S-Max (2018+), Kuga (2019+), Mondeo (2019+), Ranger (2019+), Tourneo (2016+), Transit (2016+)
Engine Codes Supported	23 variants including BC2X, BCCA, BCDA, BJFA, BKFA, BLFA, YLCA, YMCA, YNCA, and others (see full list in technical documentation)
Main Fastener Maximum Torque	200 Nm
Extraction Method	Mechanical threaded pull (non-impact)
Case Material	Hard plastic with foam-molded component trays
Case Latch Type	Metal clasps
Lubrication Requirement	Molybdenum disulfide grease (application before use)
Component Materials	Steel extraction rods, steel crossbar, steel adapter blocks, steel fasteners

Professional Guidance

Before deployment, familiarize technicians with the assembly sequence: seating the injector in the appropriate adapter block, securing clamping jaws, mounting the crossbar, and threading the extraction rod with controlled torque. Always lubricate the main clamping screw threads with molybdenum disulfide grease to prevent galling and ensure repeatable, smooth extraction cycles.

Closing Value Statement

For Ford diesel service specialists and multi-brand shops targeting commercial fleet maintenance, this injector puller set transforms a labor-intensive, high-risk operation into a controlled, repeatable service—protecting both components and shop reputation while generating predictable margin on high-frequency service calls across a broad Ford vehicle platform.
