Engine Timing and Camshaft Adjustment Tool Kit for Ford, Mazda, and Volvo (T4, T5)

Complete engine timing adjustment kit with precision locating tools for Ford, Mazda, and Volvo petrol engines. Includes camshaft and crankshaft alignment accessories.

Request Quote

Description

Engine Timing and Camshaft Adjustment Tool Kit for Ford, Mazda, and Volvo (T4, T5)

Brief Overview

This comprehensive engine adjustment tool kit is engineered for professionals working on Ford, Mazda, and Volvo petrol engines, specifically the T4 and T5 engine families. The kit includes precision-machined components designed to streamline camshaft and crankshaft alignment—critical tasks in engine timing work that directly impact engine performance and reduce rework. Whether you're servicing variable valve timing systems or performing routine engine maintenance, this kit eliminates guesswork and accelerates job completion. For shops specializing in Volvo timing work, consider complementing this kit with a dedicated Volvo camshaft alignment solution for maximum efficiency across your service bay.

Key Features

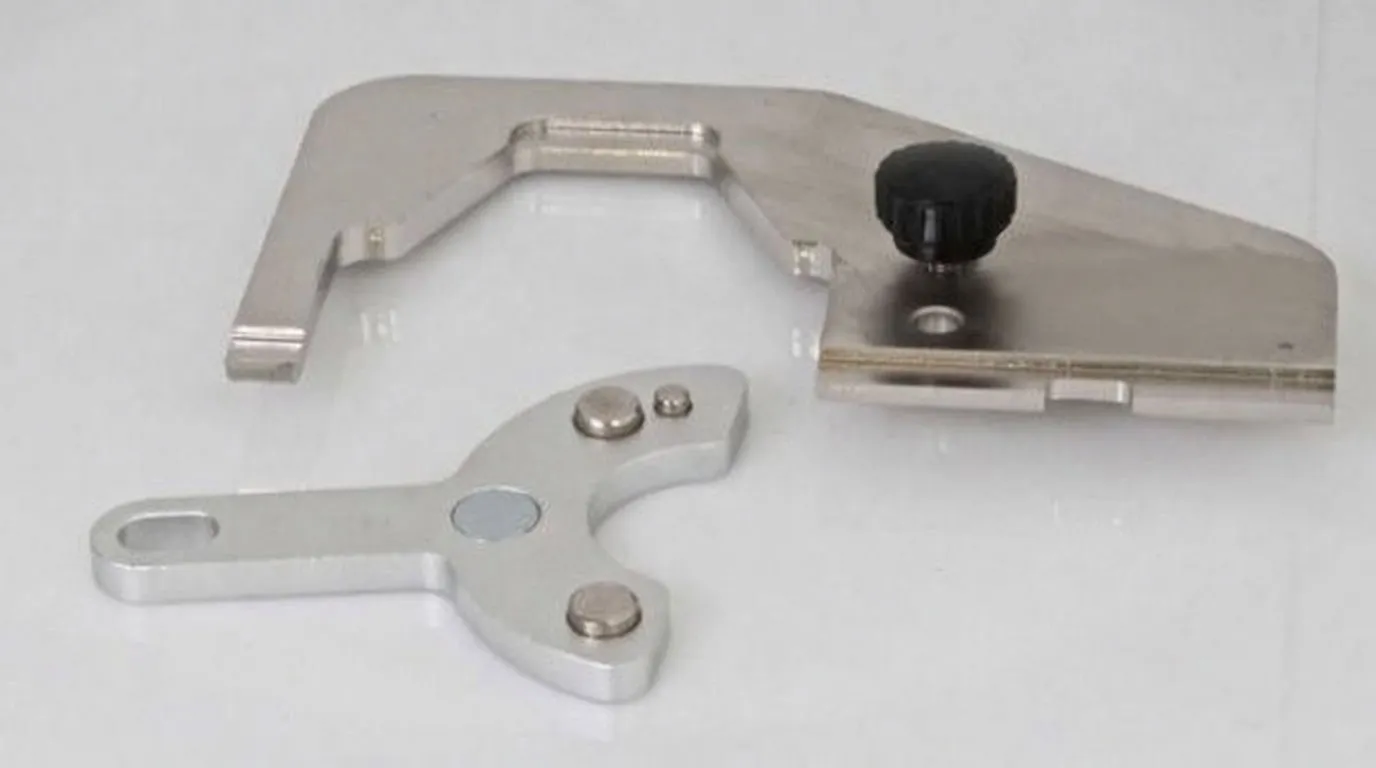

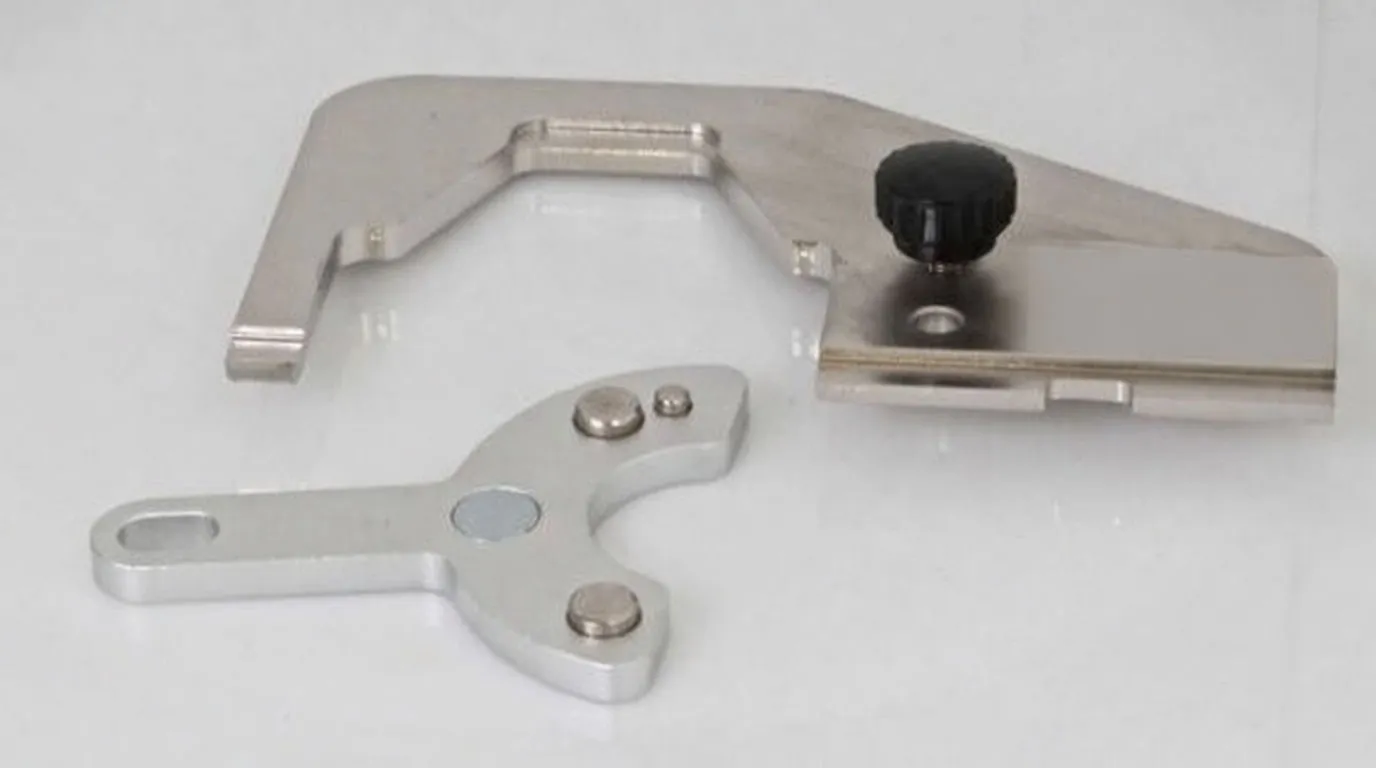

  • Precision Locating Components: U-shaped stainless steel fork with machined locating slots and flat clamping plate with adjustable thumbscrew for secure positioning
  • Multi-Function Adapter Set: Three-armed locking plates and specialized bracket assemblies accommodate multiple engine configurations across the Ford, Mazda, and Volvo range
  • Notched Positioning Bar: Long rectangular bar with keyed cutouts enabling accurate crankshaft and camshaft indexing across different engine variants
  • Durable Construction: Stainless steel and black-coated steel components with machined edges and engraved orientation symbols for reliability and longevity

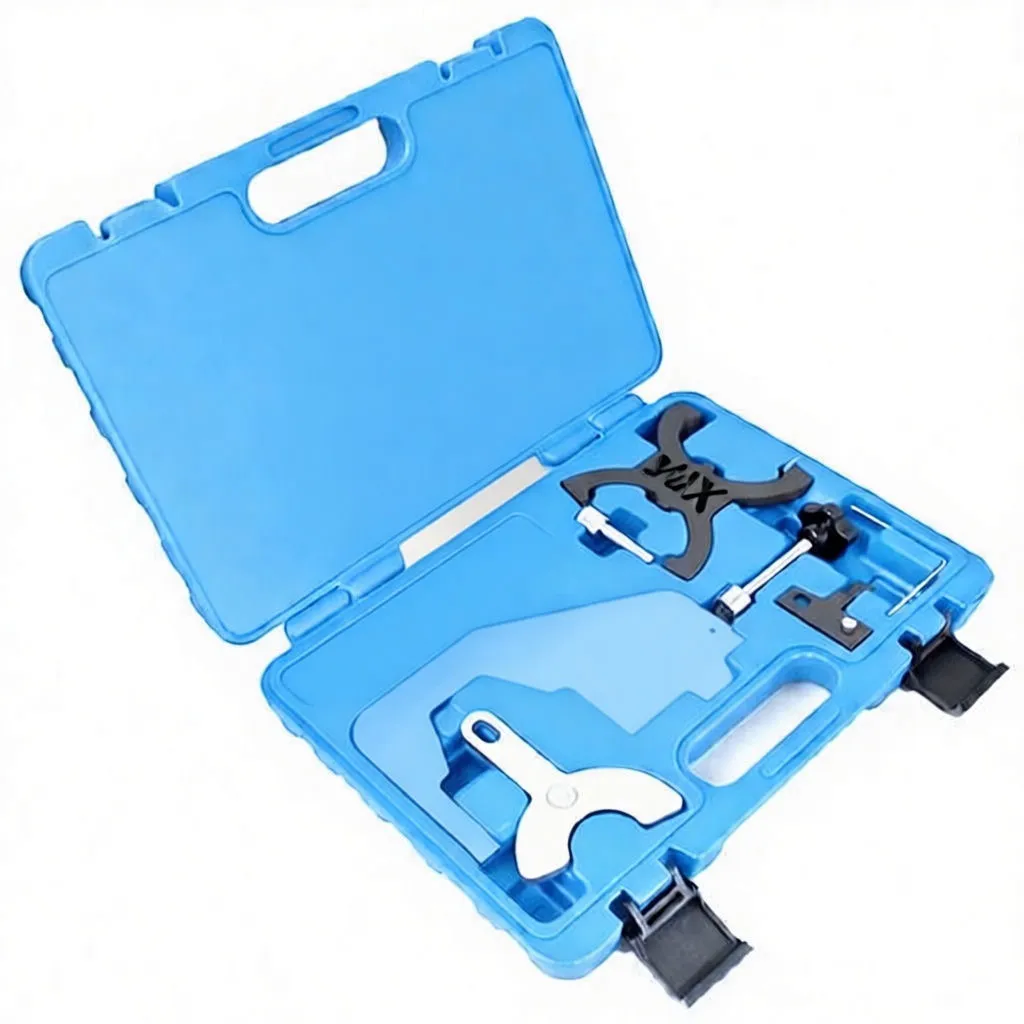

  • Organized Storage: Molded plastic carry case with dedicated cavities for each component, ensuring tools remain protected and easily located on the service counter
  • Broad Engine Compatibility: Supports 23+ engine type variants across three major manufacturers

Specifications

Specification Details
Application Ford, Mazda, and Volvo petrol engines (T4, T5)
Kit Components U-shaped locating fork, flat clamping plate with thumbscrew, three-armed locking plate, notched positioning bar, three-armed adaptor, mounting bracket
Primary Materials Stainless steel (fork, clamping plate), black-coated steel (positioning bar, locking plates), brushed alloy (adaptor)
Case Type Blue molded plastic with snap latches and carry handle
Ford Models Supported 303-1504, 303-1565, 303-1521, 303-748, 303-1097, 303-1550
Volvo Models Supported 999-7405, 999-7416, 999-7406, 303-1054, 999-7429, 999-7431, 999-7415
Mazda Models Supported 303-1061, 303-507, 205-072
Engine Types BYT, BZB, CABA, CABB, CABD, CAWB, CBFA, CCTA, CCZA, CCZB, CCZC, CDHA, CDHB, CDNB, CDNC, CDND, CFKA, CGYA, CCZD, CDAA, CDAB

Business Advantages for Resellers

  • High-Margin Service Tool: Engine timing work commands premium labor rates; positioning this kit as essential reduces customer wait times and increases shop capacity
  • Multi-Manufacturer Appeal: Covers three major European and Asian automotive brands, maximizing relevance across diverse customer bases
  • Reduces Rework Costs: Precise alignment eliminates timing errors that lead to comebacks and warranty claims—directly protecting shop margins
  • Professional Presentation: Organized carry case reinforces shop credibility during customer hand-offs and job documentation
  • Bulk Order Opportunity: Ideal for fleet maintenance facilities, independent shops, and automotive training centers seeking comprehensive timing tool solutions

Technical Applications

This kit is specifically designed for:

  • Variable Valve Timing (VVT) Service: Accurate camshaft positioning during VVT solenoid replacement or adjustment
  • Timing Belt/Chain Replacement: Crankshaft and camshaft indexing to ensure correct ignition timing post-replacement
  • Engine Head Work: Camshaft alignment during head removal and reinstallation
  • OBD Fault Resolution: Timing-related diagnostic work on vehicles with VVT system fault codes

Why This Kit Matters

Engine timing is non-negotiable. Incorrect camshaft or crankshaft positioning results in poor combustion, rough idle, check engine lights, and repeat customer visits. This precision tool kit removes ambiguity from the alignment process, ensuring first-time accuracy and customer satisfaction. The machined locating features and multi-configuration adapters mean one kit handles the majority of timing jobs across your Ford, Mazda, and Volvo customer base.

Ready to streamline your engine service operations? Stock this kit as a foundational tool for professional automotive shops targeting European and Asian engine service work.
