Ford Mondeo Rear Axle Subframe Bush Removal & Installation Kit

Brief Overview

This is a purpose-built kit for removing and installing the rear axle subframe bushings on Ford Mondeo vehicles (2001–2013, sedan models). The tool eliminates the risk of damage to surrounding suspension components that can occur with improvised methods. If you're stocking other Ford suspension bush tools or VAG vehicle subframe removal kits, this Mondeo-specific solution rounds out your Ford lineup and captures a dedicated market segment.

Key Features

• Complete Press Assembly: Threaded forcing rod with large diameter press plate for controlled, even pressure application
• Stepped Receiving Cups: Two cup sizes accommodate different bush positions on the Mondeo rear subframe
• Precision Adapter Disc: Slotted support plate ensures alignment and prevents eccentric loading

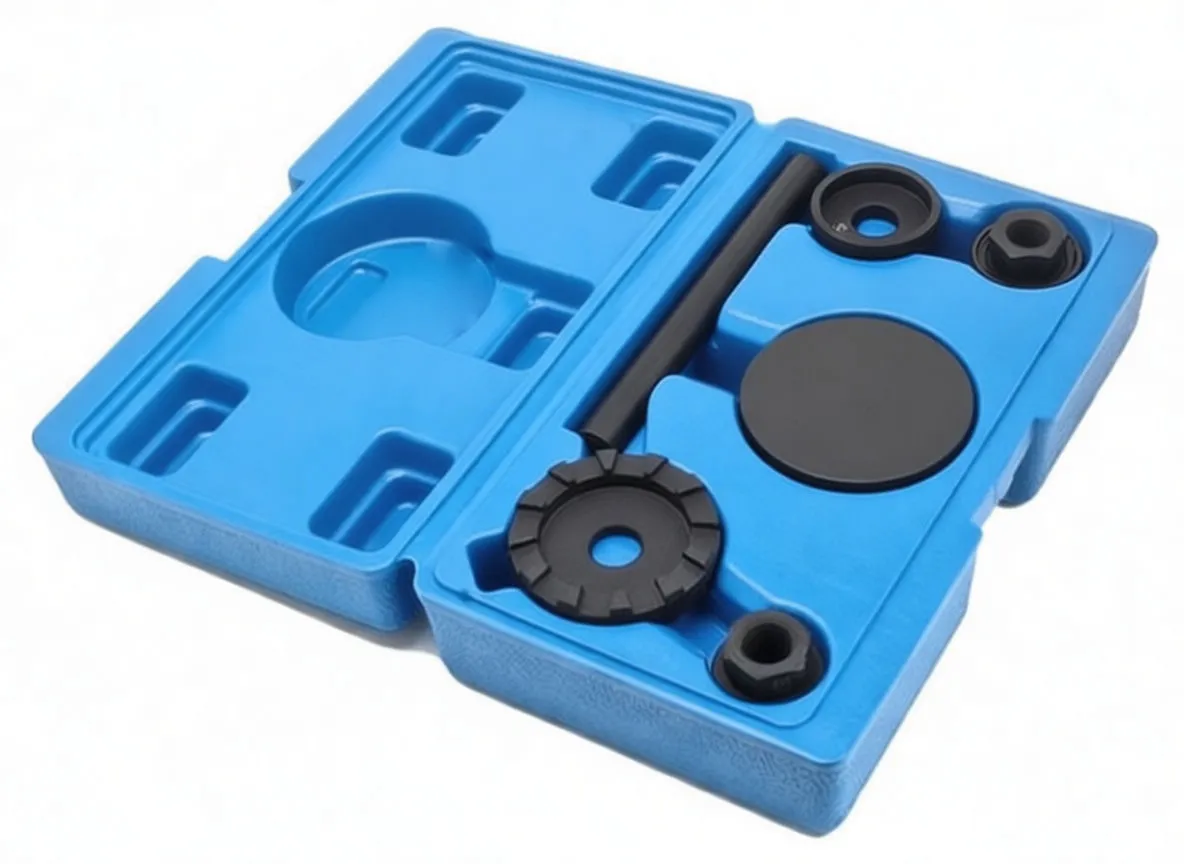

• Organized Carrying Case: Molded blue plastic case with custom-fitted compartments keeps all components protected and organized on the job site
• Vehicle-Specific Design: Engineered for Ford Mondeo (2001–2013) sedan models only—not compatible with Kombi or Turnier variants
• Damage-Free Operation: Distributes force evenly across the bush to prevent damage to the subframe or axle housing

Why This Matters for Your Business

Dedicated Market Appeal: Ford Mondeo is a high-volume vehicle across European markets. Workshops performing rear suspension work need a reliable, purpose-built tool to avoid costly damage claims.

Margin Opportunity: Bush replacement is a preventive maintenance and repair service performed on aging Mondeos. Shops with the correct tool can quote confidently and complete the job faster, increasing labor recovery.

Risk Reduction: Improvised methods (hydraulic jacks, grinding) damage threads, welds, or the subframe itself. This kit eliminates liability and rework costs—a strong selling point to fleet operators and independent garages.

Compact Storage: The molded case fits easily on shelves or in tool trolleys, making it an attractive addition to suspension tool displays without requiring significant floor space.

Technical Specifications

Aspect	Detail
Application	Ford Mondeo Rear Axle Subframe Bush
Vehicle Models	Ford Mondeo (2001–2013)
Excluded Variants	Kombi, Turnier (wagon models)

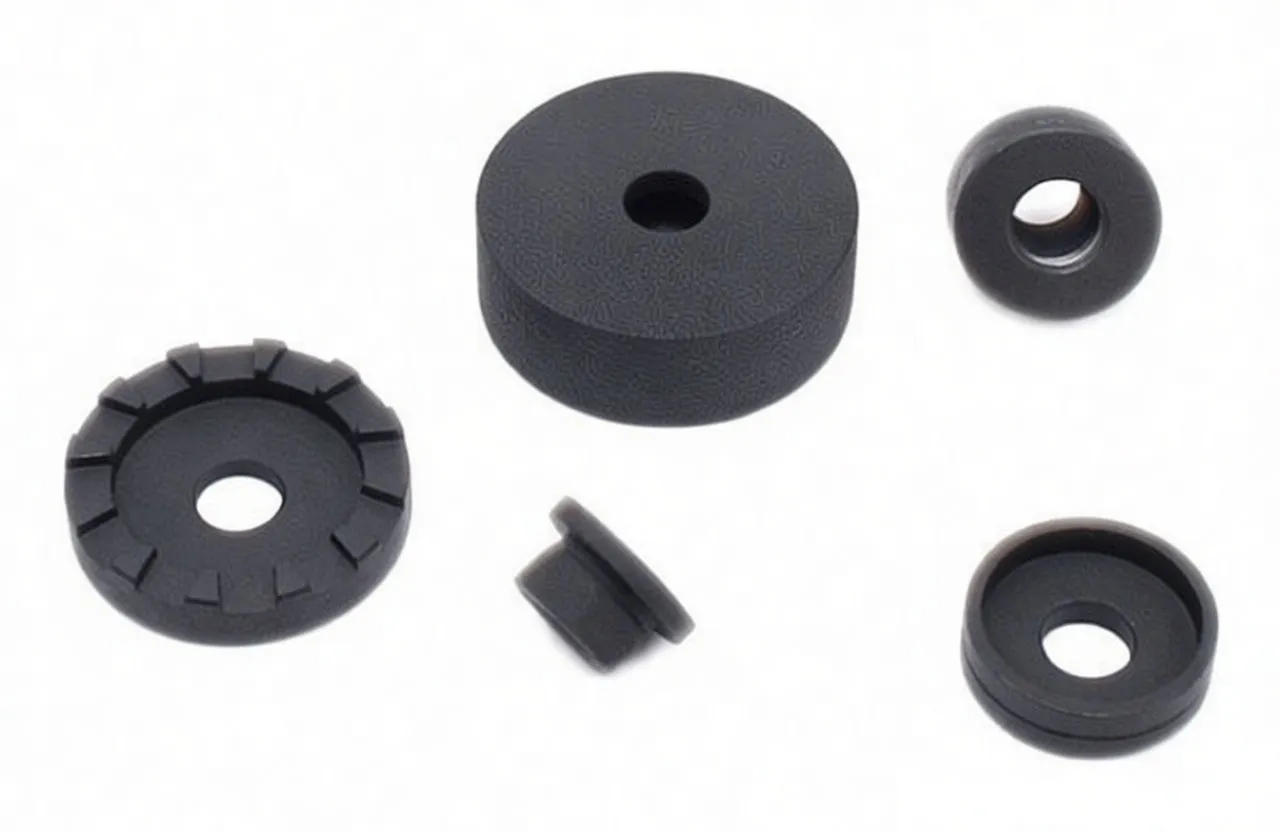

Main Components	Threaded forcing rod, large press plate, stepped receiving cups (×2), slotted support disc
Case Type	Molded blue hard plastic with latched closure
Finish	Black oxidized/powder-coated metal components
Operation Method	Manual mechanical press (hand-turned forcing rod)

Assembly & Use

The kit operates on a simple principle: the threaded rod passes through the slotted support disc and presses against the appropriate receiving cup, which contacts the bush. The large press plate distributes force over a wide area, protecting the subframe. Two cup sizes cover both inner and outer bush positions. Stepped pilot sleeves ensure the rod enters cleanly without cross-threading.

Closing Value Statement

For distributors serving the Ford service sector, this kit is a straightforward margin builder. It addresses a specific, repetitive repair task on a high-volume vehicle platform and reduces the risk of damage that would otherwise lead to frame repair costs. Stock this alongside your suspension and rear axle tools to capture the complete job.
