Front Axle Alignment Tool 25mm ID

Brief Overview

This is a precision alignment tool designed to maintain correct front axle positioning while the axle nut is being tightened. The indexed notch system ensures repeatable, accurate alignment during assembly and maintenance operations. If you work with multiple Ducati models or similar motorcycles, consider pairing this with a rear axle alignment solution for comprehensive drivetrain maintenance capabilities.

Key Features

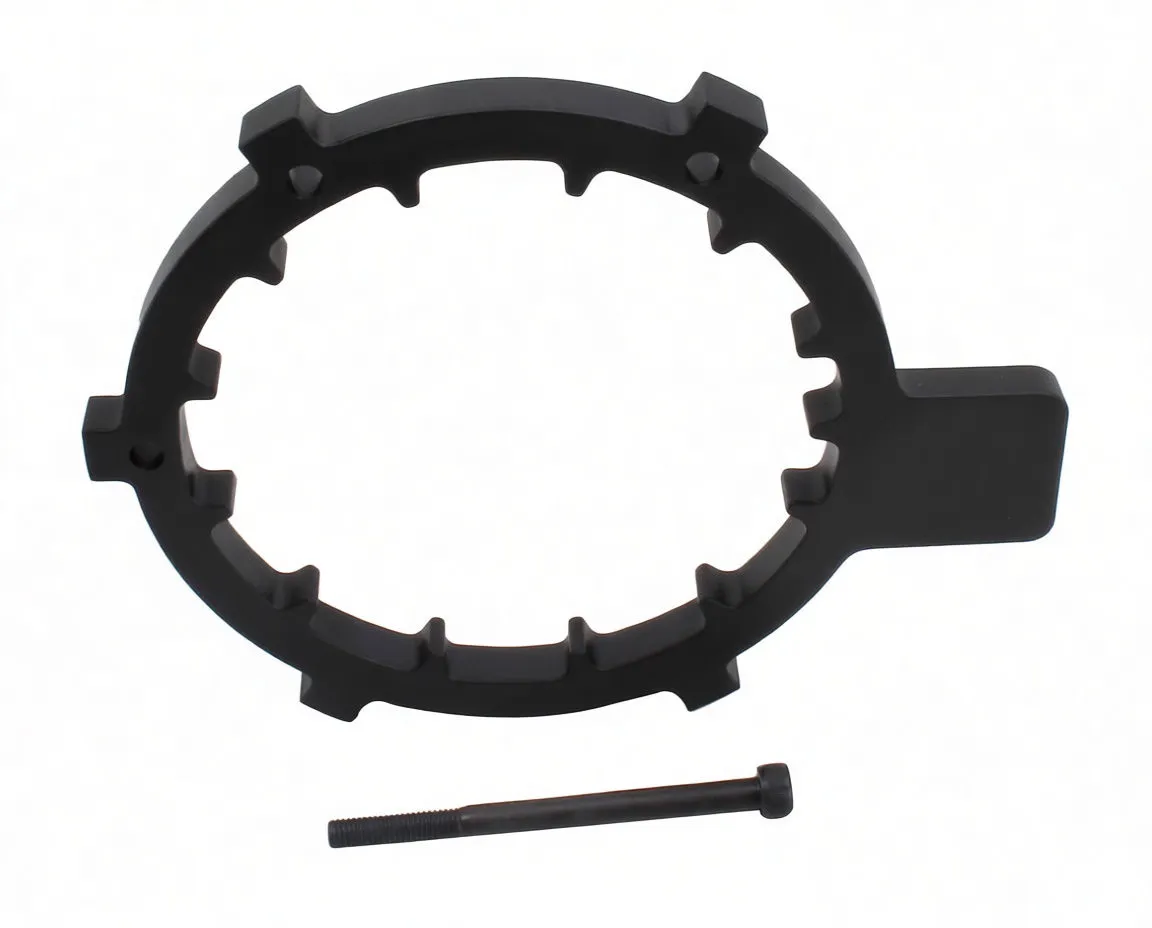

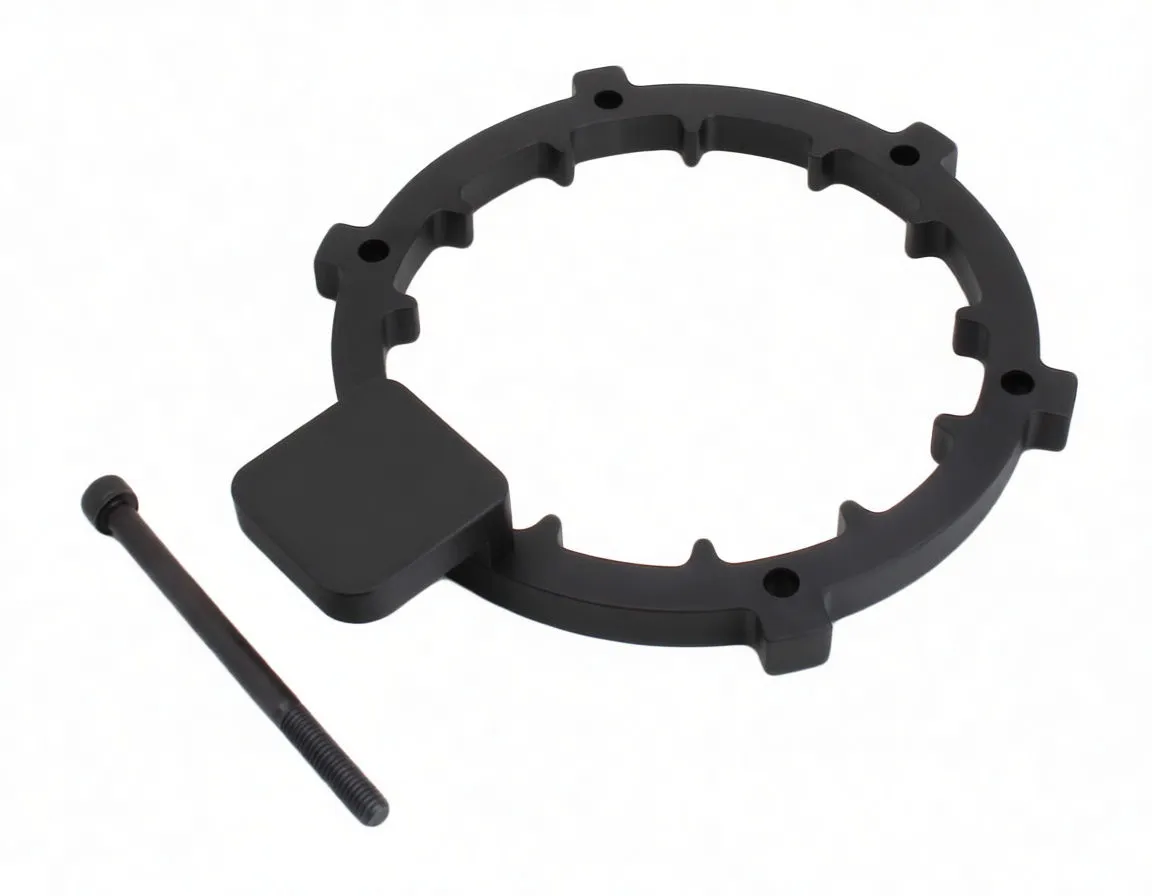

• 25mm ID Indexing Ring: Twelve evenly spaced internal notches provide positive alignment engagement with the axle
• External Locator Tabs: Multiple tabs on the outer ring locate the tool precisely on the axle flange or frame attachment points
• Mounting Pad with Through-Holes: Rectangular boss with countersunk mounting hole and internal ribs allows secure fastening during operation
• Included Steel Fastener: Long black steel bolt with hex head provided for secure tool installation
• Durable Black Plastic Construction: Impact-resistant polymer ring withstands repetitive use in shop environments
• Tool-Free Indexing: The notch design eliminates the need for adjustment—simply align and tighten

Why This Matters for Your Shop

Reduced Installation Time: The indexed notch system eliminates guesswork during axle nut tightening, cutting assembly time and reducing comebacks.

Accuracy Guarantee: Proper axle alignment prevents bearing wear, uneven tire wear, and handling issues—critical for customer satisfaction and warranty protection.

Ducati Specialist Ready: Fits 748, 916, 996, 998, 749, 999, ST2, ST3, ST4, 620SS, 800SS, 1000SS, and other models with 25mm ID axles—covers a significant portion of classic and modern Ducati service work.

Minimal Space & Cost: A small, durable tool that delivers high-value service capability. Low inventory footprint, high margin on labor.

Technical Specifications

Specification	Details
Axle ID Compatibility	25mm
Indexing Notches	12 evenly spaced positions
Material	Black molded plastic (impact-resistant)
Fastener Included	Steel bolt with hex head
Mounting System	Rectangular pad with countersunk hole
Locator Tabs	Multiple external positioning features
Typical Applications	Ducati motorcycle front axle installation and maintenance

Value Proposition

This alignment tool transforms a potentially problematic assembly step into a repeatable, confident procedure. For shops specializing in Ducati or similar motorcycle service, it's an essential addition to your axle maintenance toolkit. The indexed design means technicians work faster and with greater accuracy—reducing rework and increasing customer confidence in your service quality.
