Gasoline Fuel Pressure Tester, 0–10 Bar (140 PSI) with Multi-Adapter Kit

Brief Overview

This gasoline fuel pressure tester is a precision diagnostic tool designed for comprehensive pressure and tightness testing across most Bosch C.I.S and Jetronic fuel injection systems. The kit arrives in a custom-molded carrying case with a 0–10 bar (140 PSI) analog gauge, brass manifold block, and an extensive selection of threaded adapters—ensuring compatibility with virtually any fuel injection port configuration your customers encounter. For shops servicing multiple fuel system architectures, this kit pairs well with complementary diagnostics like an [oil pressure testing system](https://place-holder-link/{ID: 521}) to round out your fuel and lubrication diagnostic capabilities.

Key Features

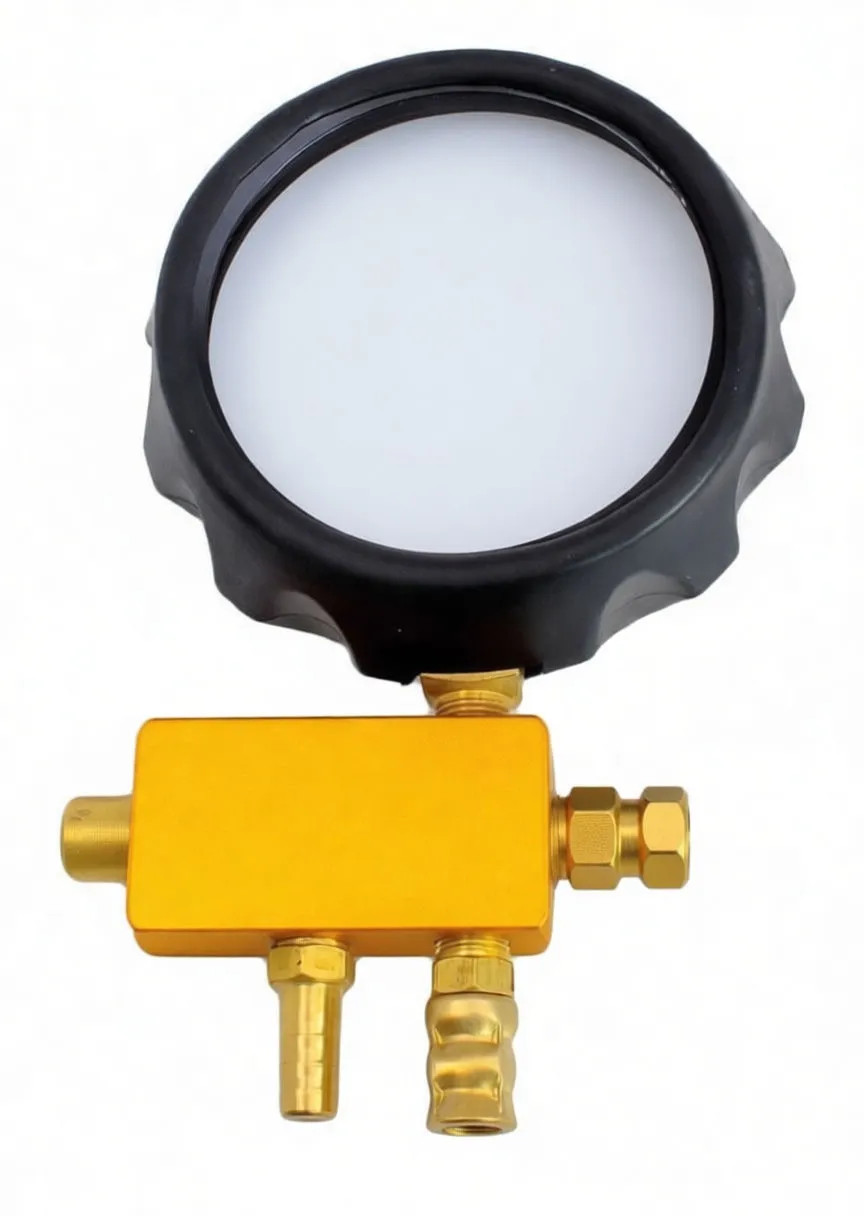

• Dual-Scale Analog Gauge: 0–10 bar pressure scale with parallel PSI markings (0–140 PSI) for immediate, intuitive readings
• Robust Manifold Block: Gold-finished brass construction with multiple ports for simultaneous pressure measurement and test line connections
• Comprehensive Adapter Arsenal:
  • M10×1, M12×1.5, M12×1.25, M14×1.5, M8×1 metric thread adapters
  • 7/16-20 UNF (Unified National Fine) threaded fittings for North American fuel system ports
  • Mixed-thread combinations (e.g., M8×1 & 7/16-20 UNF) for dual-port applications
• Professional Hose Connectivity: Black rubber high-pressure hose with brass quick-connect fitting, clear vinyl inspection hose, and brass hose clamps for secure, leak-free connections

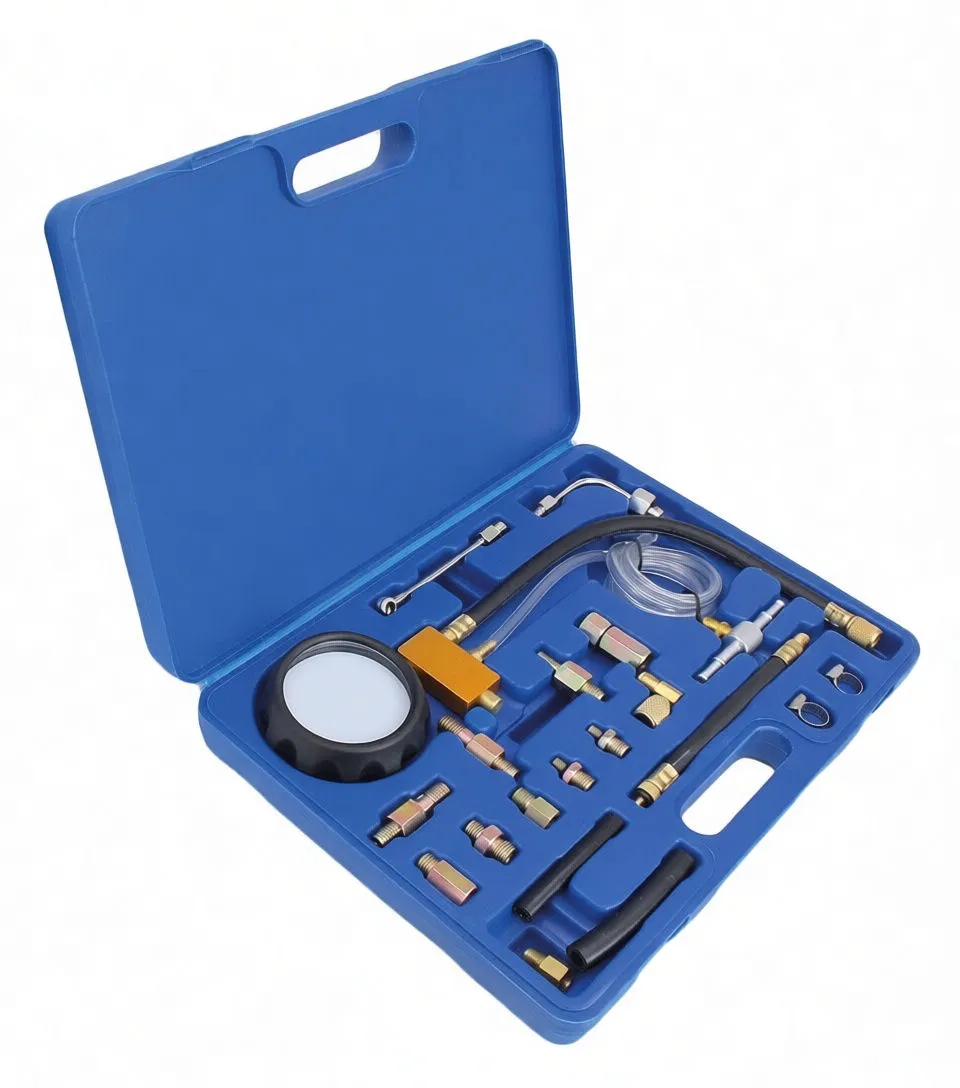

• Protective Carrying Case: Custom-molded blue plastic case with foam-lined compartments, built-in handle, and organized layout for all components
• Auxiliary Components: Two metal probes/extensions and rubber hose sleeves for specialized fuel line access and protection

Business Advantages

For Shop Owners & Distributors:

• High-Frequency Diagnostic Tool: Fuel pressure testing is a core diagnostic procedure—every shop performing fuel system work will need a tester, creating consistent replacement demand as units wear with regular use
• Bosch System Dominance: C.I.S and Jetronic systems are found across decades of European and global vehicles; this tester positions your inventory as essential for any shop servicing fuel-injected vehicles
• Margin-Friendly Professional Tool: Diagnostic equipment carries healthy margins and establishes customer relationships; users often become repeat buyers of complementary tools and consumables
• Complete Kit Reduces Returns: The extensive adapter selection minimizes customer callbacks due to missing fittings—improving satisfaction and reducing support overhead
• Resale Positioning: Market this as the "Complete Bosch Fuel System Diagnostic Kit" to independent shops, dealerships, and technical training centers

Technical Specifications

Specification	Detail
Pressure Range	0–10 bar (0–140 PSI)
Gauge Type	Analog (dial), dual-scale
Gauge Dial Diameter	~80–100 mm (estimated from image)
Manifold Material	Brass with gold plating
Metric Adapters Included	M10×1, M12×1.5, M12×1.25, M14×1.5, M8×1
UNF Adapters Included	7/16-20 UNF (single and combined with metric threads)
Primary Hose	Black rubber, high-pressure rated with brass quick-connect
Secondary Hose	Clear vinyl for visual fuel flow observation
Accessories	2× metal hose clamps, 2× rubber hose sleeves, 2× metal probes/extensions
Carrying Case	Molded blue plastic with custom foam-lined compartments and carry handle
Application	Bosch C.I.S, Jetronic fuel injection systems—tightness and pressure testing

Why This Kit Matters for Your Customers

Fuel pressure diagnostics are non-negotiable in modern fuel injection troubleshooting. This tester eliminates guesswork by delivering precise, repeatable pressure readings directly from the fuel rail or accumulator. The dual-scale dial (bar/PSI) accommodates both metric and imperial workshop standards, reducing technician confusion. The extensive adapter selection means one kit covers European, North American, and global fuel injection architectures—eliminating the need to stock multiple testers.

The brass manifold design ensures durability under repeated pressure cycling, while the quick-connect hose system speeds up setup and breakdown, keeping labor costs down for end customers.

---

Ready to Stock This Diagnostic Essential? Order in bulk for immediate delivery. This tester is a core revenue driver for any shop serious about fuel system diagnostics.
