Handheld Laser Infrared Thermometer (Pyrometer)

Brief Overview

This handheld laser infrared thermometer (pyrometer) delivers fast, non-contact temperature measurement from -30°C to 550°C, making it an essential diagnostic tool for HVAC technicians, electrical contractors, and industrial maintenance crews. The integrated laser targeting system ensures precise measurement placement, while the 0.25-second response time and 4-samples-per-second sampling rate provide instant feedback on critical temperature conditions. The ergonomic pistol-grip design with textured handle and detachable protective cap makes it portable and durable for field use.

Key Features

• Wide Temperature Range: -30°C to 550°C (-22°F to 1022°F) with dual display options (Celsius/Fahrenheit)
• Fast Response Time: 0.25-second measurement response for real-time diagnostics
• Laser Targeting System: Class 2 red laser (630–670 nm wavelength, <1 mW) for precise measurement point identification
• High Sampling Rate: 4 measurements per second for continuous monitoring
• Dual Display Resolution: 0.5°C or 1°C (automatic), with 1°F resolution in Fahrenheit mode
• Professional Accuracy: ±2°C within -30°C to 100°C range; ±2% of indicated value above 100°C
• 10:1 Measurement Cone: Optimal distance-to-spot ratio (100 mm measurement field at 1 meter)

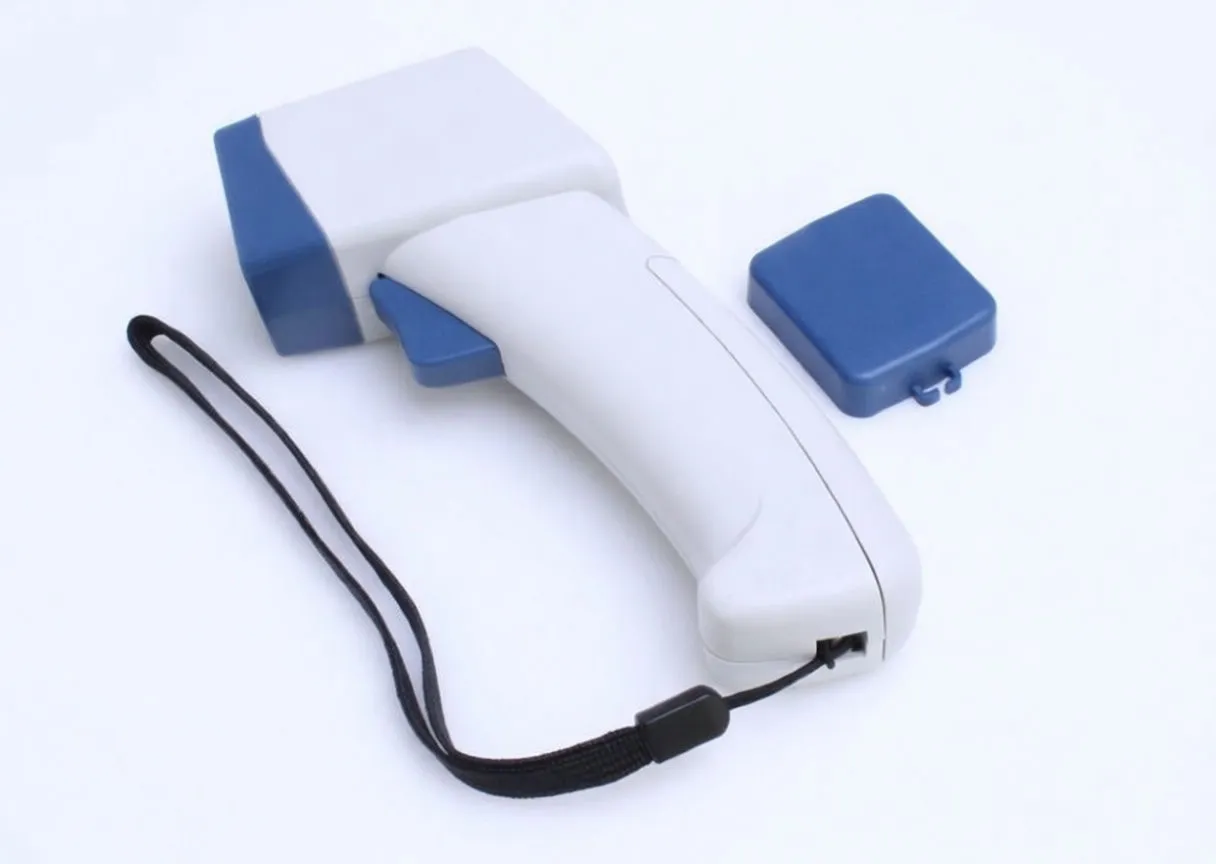

• Ergonomic Design: Lightweight (157 g with batteries), white pistol-grip body with textured handle and blue trigger
• Long Battery Life: Single 9V battery provides 9 hours of continuous operation
• Auto Power-Down: Automatic shutdown after 10 seconds of inactivity preserves battery
• LCD Display: Clear 3.5-digit display (max 1999) with low-battery indicator
• Robust Construction: Detachable blue protective cap with wrist strap for field durability
• Wide Operating Range: Functional in 0°C to 50°C environments; storage rated to -20°C to 60°C

Business Advantages for Resellers

• High-Margin Add-On: Pairs naturally with HVAC tools, electrical test equipment, and maintenance kits—strong upsell opportunity
• Professional-Grade Specs: Features and accuracy range justify premium positioning to contractors and facility managers
• Durable Design: Protective cap, wrist strap, and ergonomic construction mean fewer returns and higher customer satisfaction
• Long Product Lifecycle: Industrial-grade components support repeat purchases as consumables (batteries, caps)
• Cross-Sell Potential: Complements diagnostic and troubleshooting tool packages; appeal spans HVAC, electrical, manufacturing, and facilities management sectors
• Bulk Order Friendly: Compact size and single-SKU design simplify inventory and multi-unit orders for fleet outfitting

Technical Specifications

Specification	Detail
Temperature Range	-30°C to 550°C (-22°F to 1022°F)
Accuracy	±2°C (-30°C to 100°C); ±2% indicated (101°C–550°C)
Display Resolution	0.5°C / 1°C (auto), 1°F
Response Time	0.25 seconds
Sampling Rate	4 times per second
Measurement Cone Ratio	10:1 (distance-to-spot)
Measurement Field	∅100 mm at 1000 mm (∅3.9" at 39.0")
Infrared Spectrum	6–14 µm
Emissivity	0.95 (fixed)
Sensor Type	Thermoelectric pile with Fresnel lens
Laser Indicator	Red laser, 630–670 nm, <1 mW, Class 2 safety
Laser Range	0.6–15 m
Display Type	LCD 3.5-digit (max 1999)
Power Source	1× 9V battery (NEDA 1604 / IEC 6F22 006P)
Battery Life	9 hours continuous operation
Power Consumption (Standby)	<5 µA
Auto Shutdown	10 seconds inactivity
Operating Environment	0°C to 50°C, <70% relative humidity
Storage Environment	-20°C to 60°C, 0–80% relative humidity (without battery)
Dimensions	148 × 105 × 42 mm
Mass	157 g (with batteries)
Accessories	Blue protective cap, black wrist strap

Professional Applications

• HVAC Diagnostics: Monitor heat exchanger, compressor, and ductwork temperatures; verify system efficiency
• Electrical Troubleshooting: Detect overheating in motors, transformers, breaker panels, and connections
• Industrial Maintenance: Rapid bearing, gearbox, and machinery temperature monitoring
• Facility Management: Thermal inspection of insulation, steam lines, and cooling systems
• Quality Control: Non-contact temperature verification in manufacturing and assembly processes

Why Resellers Choose This Unit

The combination of industrial accuracy, fast response time, and Class 2 laser targeting makes this pyrometer a trusted diagnostic tool that commands respect on the job site. The 0.25-second response and 4-samples-per-second rate eliminate guesswork, while the wide -30°C to 550°C range covers nearly every temperature diagnosis a contractor will encounter. Professional build quality and protective accessories ensure durability and repeat business. Stock this as a core diagnostic instrument—it's a tool that proves its value with every measurement.
