High/Low Pressure Quick Coupler Set for R134a Air Conditioning Systems with SAE Adapters

Professional AC quick couplers with 90° design and SAE adapters—minimize refrigerant loss and ensure safe R134a system disconnection.

Request Quote

Description

High/Low Pressure Quick Coupler Set for R134a Air Conditioning Systems

Brief Overview

This matched quick coupler pair is engineered specifically for R134a air conditioning service work. The set combines color-coded high and low pressure couplers with integrated 1/4 SAE adapters, delivering the pressure-rated safety and leak prevention that professional AC technicians depend on. Whether you're servicing vehicles in high-volume shops or building specialized AC tool kits, these couplers eliminate guesswork during refrigerant system disconnection. If your operation handles broader pneumatic work, you may also want to stock universal pneumatic quick couplers for general air line applications.

Key Features

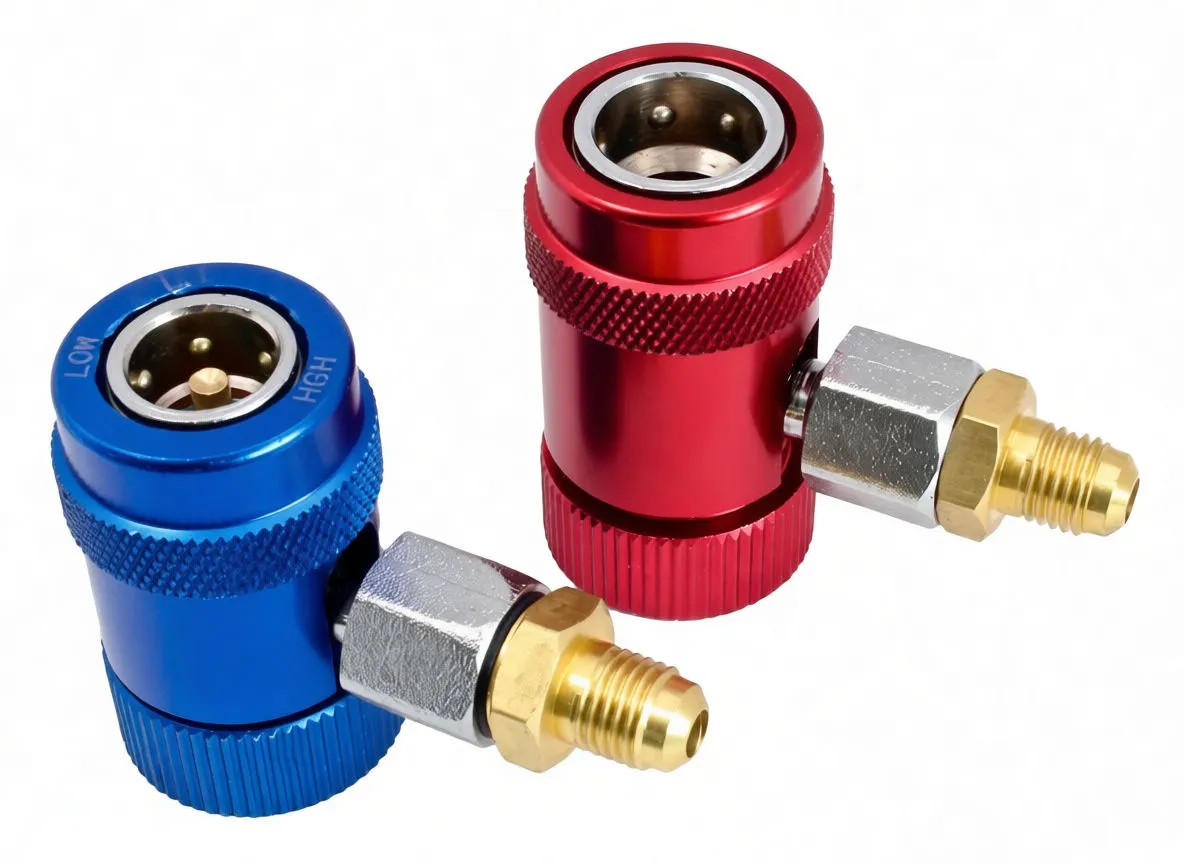

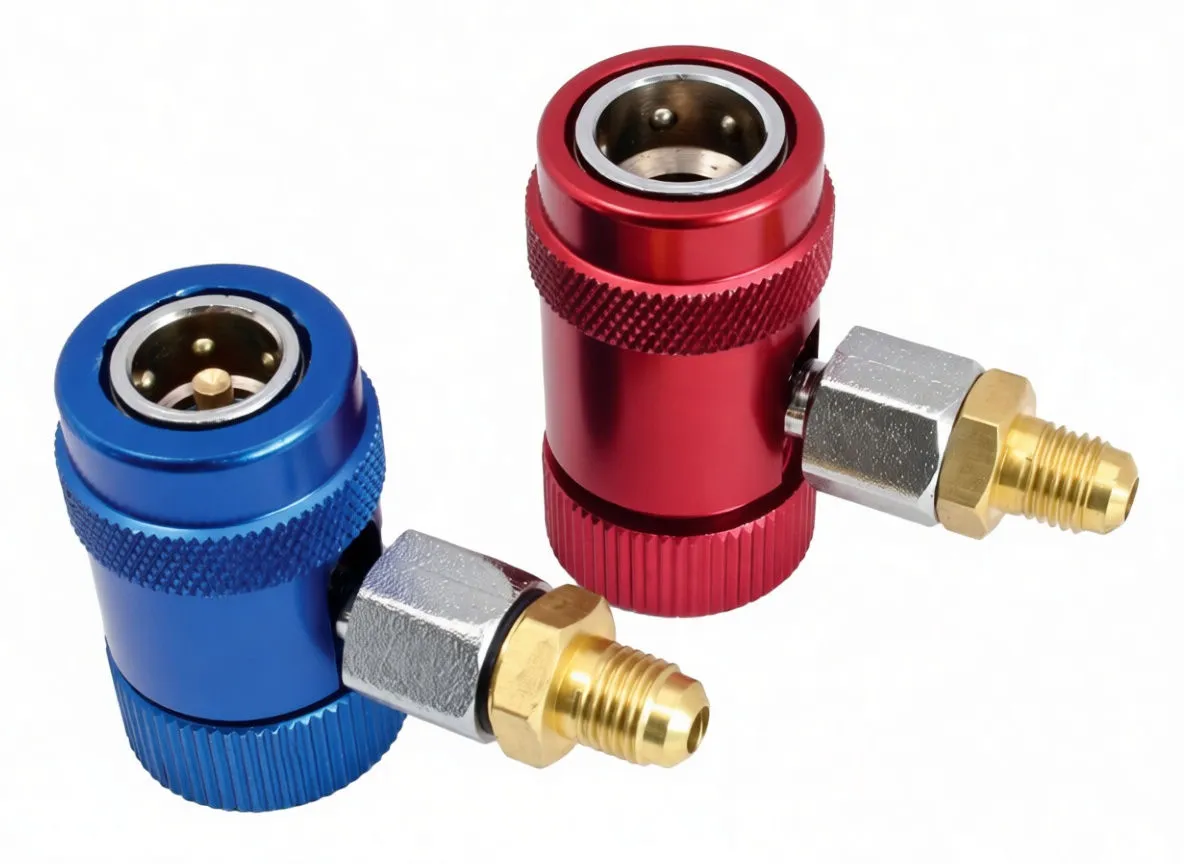

  • Color-Coded Design: Blue (low pressure) and red (high pressure) barrels with clear "LOW" and "HIGH" markings—prevents cross-connection and operator error
  • 90° Swivel Joint: Hex-body silver swivel connector allows flexible hose routing in tight engine compartments
  • Brass Male Threaded Fittings: 1/4 SAE threads on each coupler for direct system connection; includes integral sealing collars
  • Ball-Valve Retention System: Internal ball-style check valves minimize refrigerant vapor loss during disconnection—critical for R134a safety and environmental compliance
  • Knurled Aluminum Barrels: Textured grip surfaces provide secure, single-handed operation even when hands are wet or gloved
  • O-Ring Sealed Sockets: Precision-machined female coupling faces with internal O-ring grooves ensure reliable mating and prevent cross-contamination
  • Aluminum and Steel Construction: Durable materials engineered to withstand repeated pressure cycling and frequent disconnection cycles

Why This Product Works for Your Business

Reseller Perspective:

  • Clear Differentiation: Color-coding and pressure labeling eliminate customer confusion and support calls about incorrect coupling use
  • Safety Positioning: A/C shops and fleet maintenance operations view proper pressure-rated couplers as non-negotiable; this set justifies premium positioning over generic alternatives
  • Repeat Sales Trigger: Worn O-rings or damaged swivel joints drive replacement orders; pair this set with multi-fitting adapter kits to capture additional margin on related service jobs
  • Bulk Order Friendly: Standardized pairing means predictable stock rotation and minimal obsolescence risk

Shop Benefits:

  • Prevents Refrigerant Loss: Ball-valve design cuts vapor escape to near-zero, reducing coolant recharging costs and environmental waste
  • Speed & Efficiency: Color coding and SAE threads mean faster hookup; no need to verify pressure ratings on every connection
  • Compliance Ready: Proper coupler design demonstrates adherence to EPA refrigerant handling standards, reducing liability exposure
  • Longevity: Knurled grip and hex swivel joint reduce hand fatigue and accidental cross-threading during high-volume service days

Technical Specifications

Specification Detail
Coupler Set Composition 1× Low Pressure Coupler + 1× High Pressure Coupler
Pressure Rating (Low) Rated for R134a low-side system pressure
Pressure Rating (High) Rated for R134a high-side system pressure
Thread Type 1/4 SAE (male) on both couplers
Swivel Joint 90° hex-body silver connector
Valve Design Internal ball-check valves
Barrel Material Anodized aluminum (blue and red)
Fittings Material Brass (male threads and sealing collars)
Body Material Steel and aluminum construction
Sealing System O-ring grooved female sockets
Grip Feature Knurled grip rings for secure handling
Identification Clear "LOW" and "HIGH" markings on end caps

Application Context

This coupler pair is purpose-built for:

  • Vehicle A/C Service: Disconnecting and reconnecting R134a refrigerant systems without vapor loss
  • Fleet Maintenance: Shops servicing multiple vehicles daily—color coding prevents costly connection errors
  • AC System Diagnostics: Technicians performing pressure testing, evacuation, or recharging procedures
  • OEM Compliance: Meets standards for safe R134a handling in professional automotive environments

Call to Value

Stock this quick coupler set as a non-negotiable foundation for any shop offering A/C service. The matched pair eliminates cross-pressure mistakes, minimizes refrigerant loss, and signals professional-grade capability to your customer base. Pair with complementary universal quick coupler solutions to round out your pneumatic and refrigerant tool inventory, or build volume discounts into your bulk orders for fleet customers.

All specifications reflect standard R134a automotive air conditioning applications. Confirm pressure ratings with your local refrigerant handling regulations before service work.
