High-Pressure Pump Sprocket Remover Kit for Hyundai/Kia CRDi Engines

Brief Overview

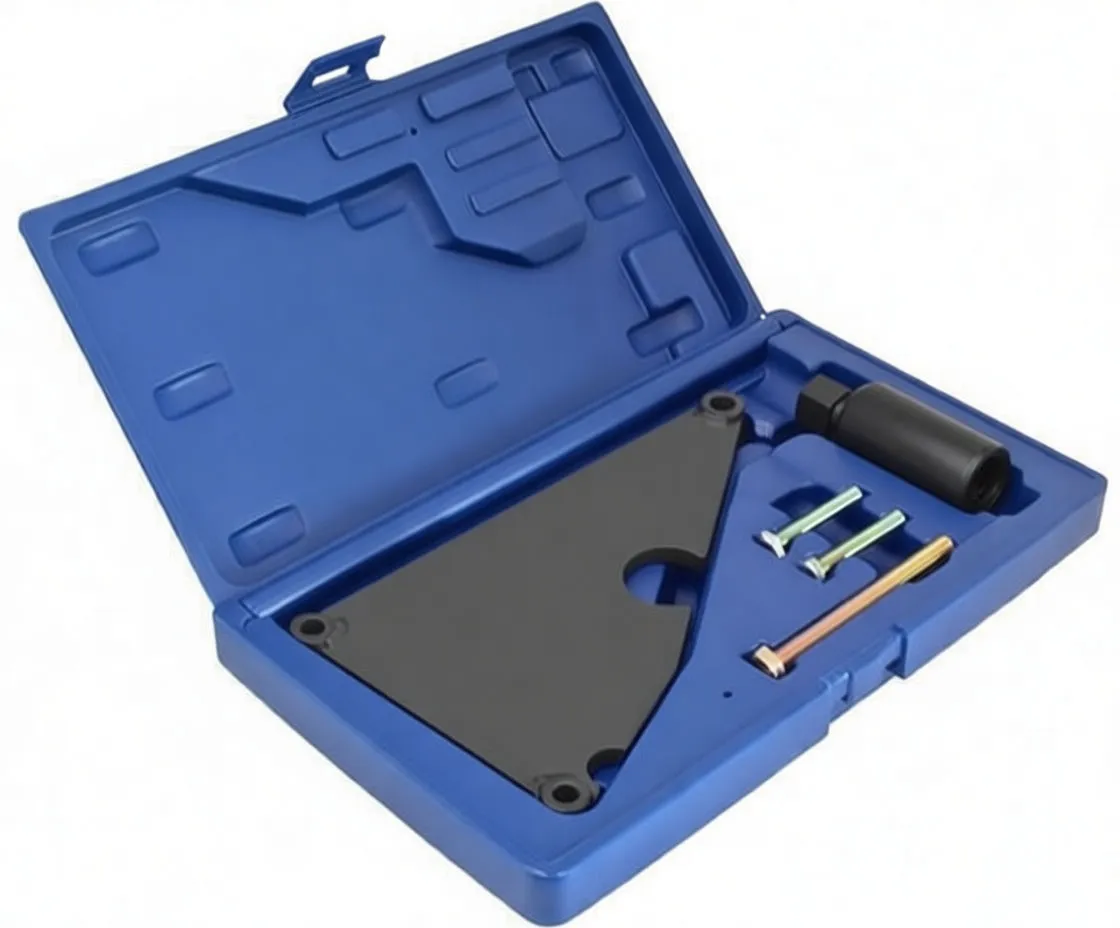

This specialized sprocket removal kit is engineered for safe, damage-free extraction of high-pressure fuel pump sprockets on Hyundai and Kia CRDi diesel engines. The kit includes a heavy-duty triangular mounting plate, precision-threaded extraction bolts, and a cylindrical adapter—all housed in a molded carrying case for shop organization and portability. Whether you're servicing fuel injection systems or performing scheduled maintenance, this tool eliminates the risk of sprocket damage that can occur with improvised removal methods. Complement your toolkit with a general-purpose crankshaft sprocket assembly tool for broader diesel engine coverage.

Key Features

• Engine-Specific Coverage: Covers Hyundai and Kia CRDi engines from 1.1L to 1.7L displacement (2001–2016 model years)
• Complete Kit: Includes triangular mounting plate with three corner attachment points, two short threaded studs, three graduated extraction bolts, and cylindrical driver adapter
• Precision Engineering: Threaded extraction bolts ensure controlled, even pressure distribution—eliminating cam-out and sprocket distortion
• Organized Storage: All components fit in a molded blue hard plastic case with custom recesses for each tool, enabling quick inventory and job-site mobility
• Repeatable Setup: Standardized mounting holes and threaded interface allow consistent, reliable tool positioning across multiple service calls

Vehicle Application Coverage

Hyundai Models: Matrix (01–11), Accent (02–15), Getz (03–09), i10 (08–10), Elantra (07–10), i30 (07–16), i20 (09–16), ix35 (10–16), ix20 (10–15), i40 (11–16), i20 Coupé (15–16), Tucson (15–16)

Kia Models: Cerato (04–07), Rio (05–16), Picanto (04–11), Cee'd (07–16), Pro-Cee'd (08–16), Soul (09–14), Venga (09–15), Sportage (10–16), Carens (10–16), Optima (11–15)

Supported Engine Codes: D3FA, D3FA (U2), D3FF | D4FC (U1), D4FC (U2) | D3EA, D4FA-L, D4FA, D4FA-H | D4FB-H (U1), D4FB (U1), D4FB-L (U1), D4FB (U2), D4FB-L (U2), D4FB-H (U2), D4FB | D4FD (U2), D4FD-L (U2), D4FD-H (U2), D4FD

Business Advantages for Resellers

• High-Demand Service Tool: CRDi fuel system maintenance is recurring work across Hyundai and Kia fleets—particularly in markets with strong diesel adoption
• Margin-Friendly: Specialized tools command higher resale value and justify premium service labor charges
• Turnkey Solution: Complete kit reduces need for customer sourcing or multi-tool purchases—increases average transaction value
• Professional Credibility: Owning engine-specific removal tools positions your shop as a serious diesel specialist, attracting fleet and professional clientele
• Long Shelf Life: Durable metal construction means minimal wear; tool does not degrade with storage

Technical Specifications

Specification	Detail
Kit Contents	Triangular mounting plate, two threaded studs, three extraction bolts (varying lengths), cylindrical adapter/driver
Material	Black hardened metal plate; plated steel extraction bolts; black polymer adapter
Mounting Interface	Three corner holes on triangular plate; threaded stud and bolt extraction system
Engine Displacement Range	1.1L, 1.4L, 1.5L, 1.6L, 1.7L CRDi diesel
Model Year Range	2001–2016
Storage	Blue molded hard plastic carrying case with fitted compartments
Setup	Install studs in corner mounting holes; thread extraction bolts through studs; position cylindrical adapter on sprocket

Why This Kit Matters

High-pressure fuel pump sprockets on CRDi engines are precision components. Using pry bars or improvised removal methods risks deforming the sprocket teeth, damaging the injection pump shaft, or cracking the timing chain housing. This kit's threaded extraction system distributes load evenly across three points, protecting both the sprocket and surrounding engine components. For shops servicing multiple Hyundai/Kia franchises, this kit pays for itself within the first 2–3 fuel pump service calls.

Call to Action

Stock this kit to unlock recurring CRDi fuel system work and establish your shop as a trusted specialist for Hyundai and Kia diesel engines. Pair with a high-pressure fuel injection pump sprocket tool for larger CRDi displacement to cover the full range of engine options in your market.
