Hydraulic Diesel Injector Puller Kit, 17-Ton Capacity, 700 bar Maximum Pressure

Brief Overview

This is a purpose-built hydraulic extraction system designed for controlled removal of seized diesel injectors in high-pressure common-rail engines. The kit delivers 17 tons of extraction force through a 30mm hydraulic piston, enabling extraction of stuck injectors without damaging threads or bores. The multi-adapter design accommodates a wide range of injector thread types and sizes across different diesel engine platforms. This tool pairs seamlessly with standard hydraulic pumps and integrates with bridge adapters for engine-specific applications. When your shop encounters stubborn injector removal jobs, consider pairing this with specialized solutions like a dedicated bridge adapter for specific engine platforms to maximize compatibility and reduce setup time.

Key Features

• 17-ton extraction force – Sufficient power to overcome seized injector corrosion without thread stripping
• Hydraulic piston: 30mm diameter, 16mm stroke – Precise, controlled advancement for safety
• Maximum working pressure: 700 bar – Professional-grade system suitable for workshop hydraulic pumps
• Eight precision puller spindles included:
  • M14 x 1.5 (240mm and 315mm lengths)
  • M17 x 1.0 (240mm and 315mm lengths)
  • M18 x 1.5 (250mm length)
  • M25 x 1.0 (240mm length)
• Hydraulic receiver with M16 x 1.5 internal thread – Standard coupling interface
• Machined aluminum/steel construction – Black oxide finish for corrosion resistance

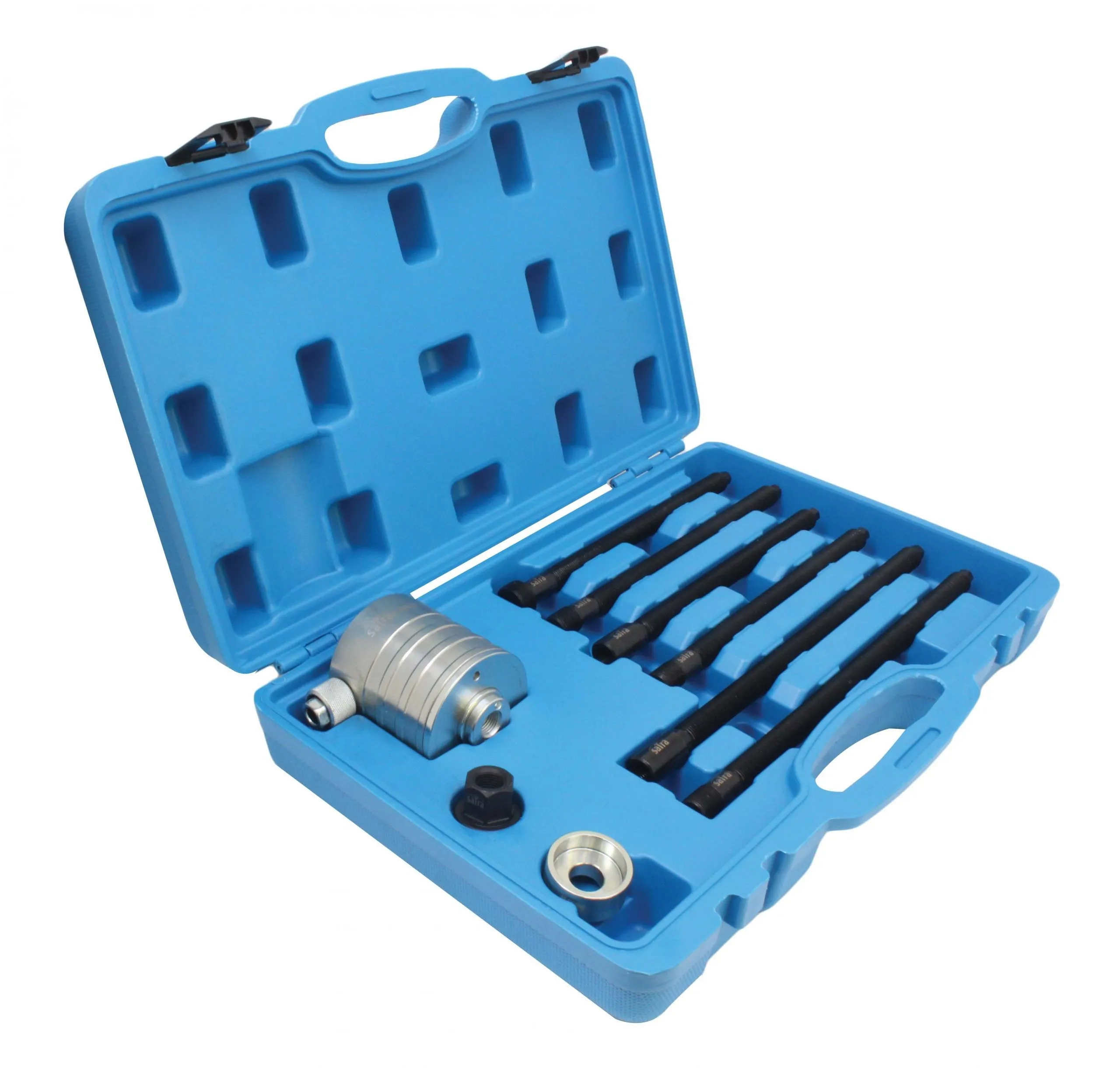

• Integrated carrying case with molded recesses – Organized storage and transport

Why This Tool Drives Shop Profitability

Time Efficiency: Multi-adapter design eliminates the need for engine-specific puller sets. One kit handles injector removal across multiple diesel platforms, reducing inventory cost and setup time per job.

Revenue Protection: Seized injector extraction is a high-margin service job. This kit enables your technicians to tackle difficult removals that competitors without proper hydraulic tools must outsource or refuse.

Operator Safety: Controlled hydraulic force prevents the sudden snap-back and thread damage inherent to mechanical slide-hammer tools, reducing warranty callbacks and rework.

Resale Value: Hydraulic puller kits maintain strong demand in diesel service shops. This 17-ton unit positions your inventory as a premium solution compared to lighter mechanical alternatives.

Technical Specifications

Specification	Value
Extraction Force	17 tons (170 kN)
Hydraulic Piston Diameter	30 mm
Hydraulic Piston Stroke	16 mm
Hydraulic Cylinder Diameter	78 mm
Maximum Working Pressure	700 bar
Hydraulic Port Thread	M16 x 1.5 (internal)
Coupling Nut	M21 x 1.25
Puller Spindles Included	8 adapters (M14, M17, M18, M25 threads)
Spindle Lengths	240 mm, 250 mm, 315 mm (varies by thread)
Material	Machined aluminum/steel with black oxide coating
Carrying Case	Blue hard plastic with integrated handle

Application Context

This hydraulic injector puller is engineered for diesel engine fuel system service—specifically the removal of common-rail injectors that have become seized due to carbon deposits, corrosion, or thermal stress. The multi-spindle configuration covers the most common metric thread sizes found in European and Asian diesel platforms (Bosch, Delphi, and Denso-equipped engines).

Compatibility Note: This kit is designed for use with standard workshop hydraulic pumps and is compatible with engine-specific bridge adapters (sold separately) for applications requiring precise locating surfaces.

Call to Value

Stock this kit to position your diesel service department as a full-capability repair facility. The 17-ton hydraulic force combined with precision adapters eliminates the frustration of failed mechanical extraction attempts, turning difficult injector removals into a reliable, repeatable profit center. For shops already performing diesel engine work, this is a non-negotiable tool investment.
