Inverter Jump Starter/Charger, 12V/24V, 5.1 kW Starting Capacity

Overview

The S-MOARY300 is a professional-grade inverter charger engineered for automotive workshops, fleet maintenance operations, and mobile service technicians. This unit combines intelligent AC-to-DC charging with emergency engine-starting capability, eliminating the need for two separate pieces of equipment. Whether you're servicing light-duty vehicles with 12V systems or heavy commercial equipment running 24V, this charger addresses both standard charging cycles and emergency starter scenarios. For shops requiring additional versatility, consider pairing this with a higher-capacity 80A charging inverter or exploring options like a multi-function inverter with welding capability for expanded revenue opportunities.

Key Features

• Dual-voltage operation: 12V and 24V charging modes switchable via front-panel control
• Wide battery compatibility: Handles lead-acid (standard), AGM VRLA, and gel VRLA batteries from 25Ah to 600Ah
• Powerful jump-start function: 250A maximum starting current—capable of turning over engines even with deeply discharged batteries
• Intelligent charging management: Variable charging current (5–40A) with automatic adaptation to battery condition

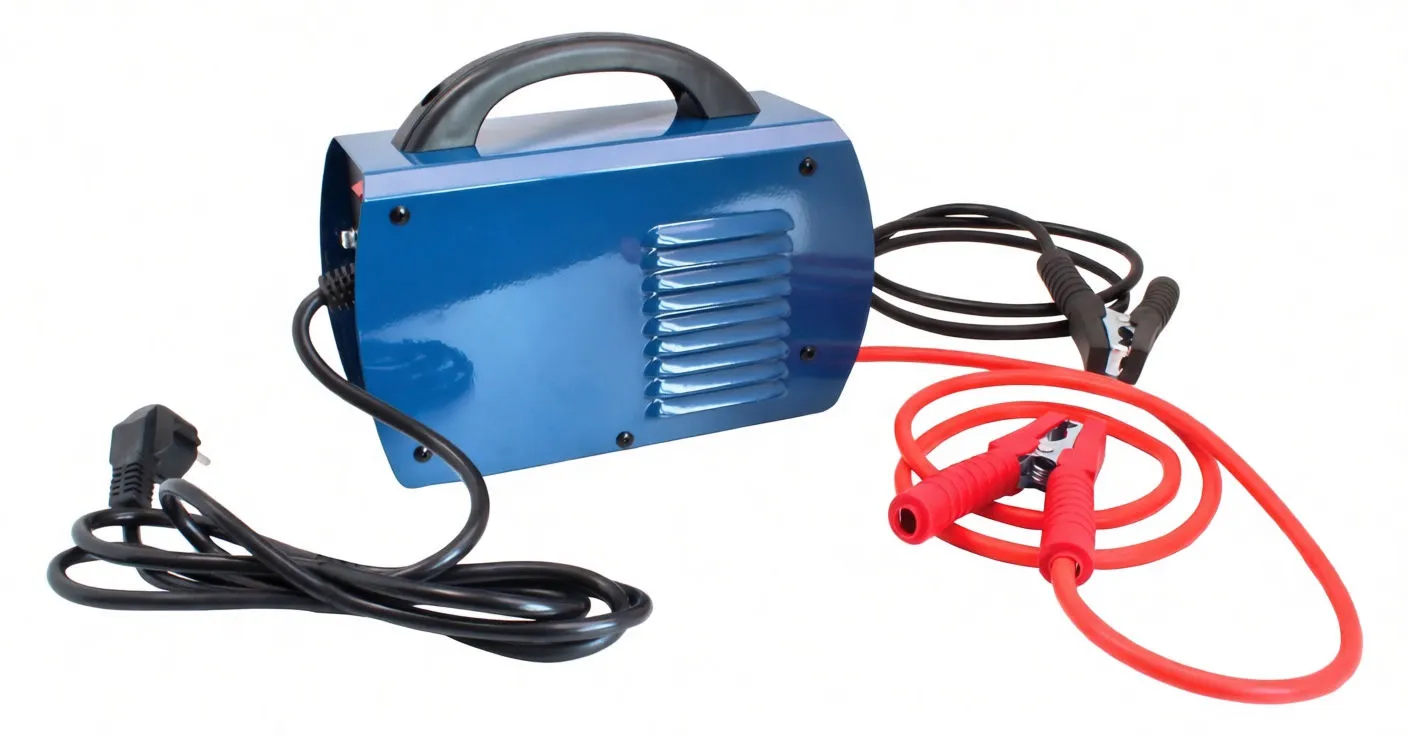

• Compact, portable design: Blue metal housing with carrying handle; weighs only 3.5 kg
• Heavy-duty output cables: Large-gauge red and black insulated clamps rated for high current delivery
• Safety compliance: IP23 insulation class, CE marked, thermal protection for continuous operation

Business Advantages for Resellers

Immediate Revenue Driver: This unit appeals to two distinct customer segments—workshop managers (bulk regular chargers) and mobile technicians (jump-start emergencies). The dual function justifies a higher price point than single-purpose chargers, directly improving your profit margin per unit.

Reduced Customer Support Burden: By consolidating charger and jump-starter functionality, you eliminate customer confusion about which tool to stock. One SKU serves multiple use cases, reducing inventory complexity and support inquiries.

Installation & Service Ecosystem: Position this as the "standard equipment" recommendation for automotive workshops upgrading from older, manual chargers. The intelligent design (automatic voltage detection, regulated current output) reduces user error and callback issues.

Cross-Sell Potential: Bundling with replacement cable sets, battery terminal adapters, or protective cases creates additional revenue per sale.

Technical Specifications

Parameter	Value
Model	S-MOARY300
Input Voltage (Mains)	230V AC
Input Frequency	50 Hz
Output Voltage (Selectable)	12V or 24V DC
Maximum Starting Capacity	5.1 kW (250A peak)
Charging Current Range	5–40A (adjustable)
Battery Capacity Range	25–600Ah
Battery Types Supported	Lead-acid, AGM VRLA, Gel VRLA
Mains Voltage Range (Safe Op.)	170–255V AC
Insulation Class	H / IP23
Output Cable Length	1.5m
Power Cord Length	2.1m (1.5 mm² cross-section)
Dimensions	310 × 150 × 230 mm
Weight	3.5 kg

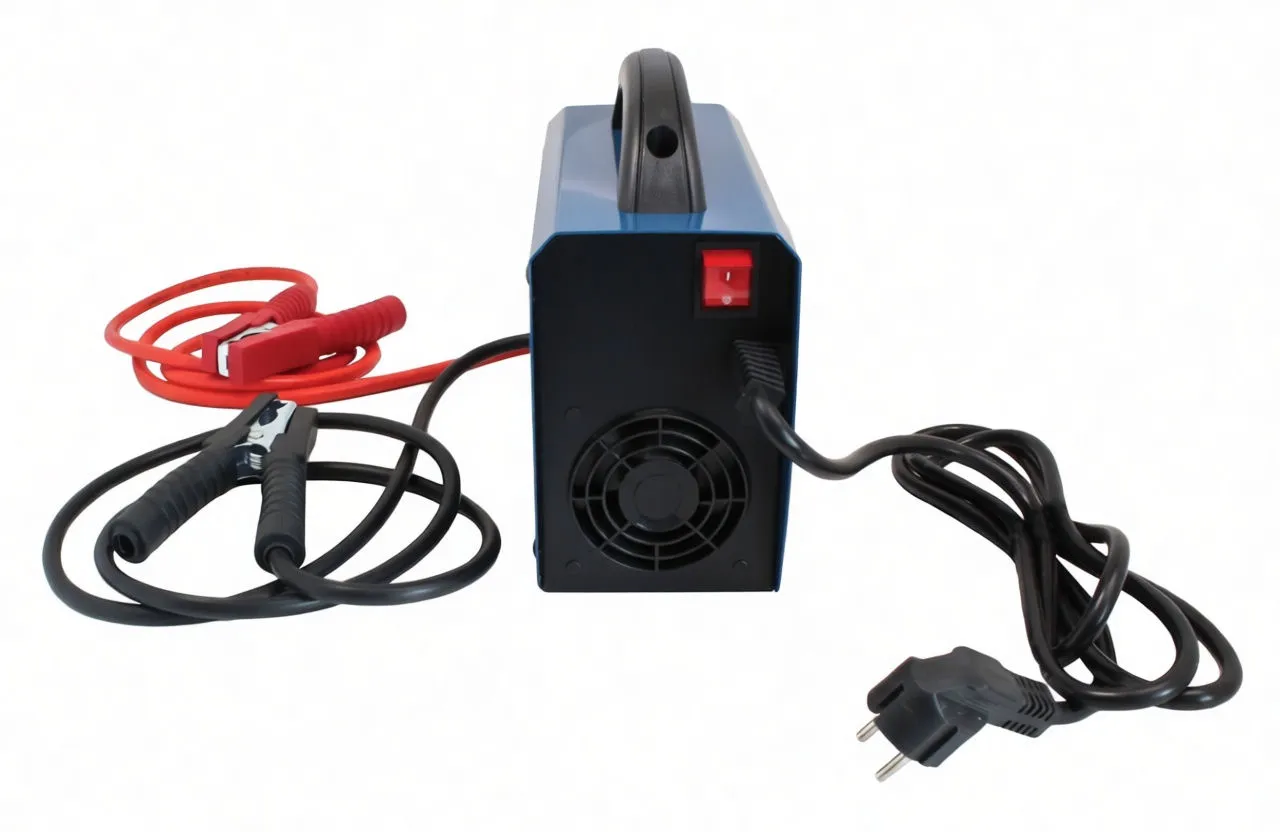

Cooling	Forced-air fan with protective grille
Control Interface	Rotary selector with digital indication

Application Reality Check

Perfect For:

• Automotive service centers and independent repair shops
• Fleet maintenance facilities with mixed 12V and 24V equipment
• Mobile repair technicians requiring compact, portable power
• Heavy equipment workshops needing occasional jump-start capability
• Training facilities and vocational schools

Not Suitable For:

• High-volume production charging (use stationary, higher-amperage chargers instead)
• Exclusively 6V systems (this unit is 12V/24V only)
• Deep-cycle lithium battery charging without external BMS integration

Why This Product Delivers for Your Customers

The S-MOARY300 eliminates the "dead battery" emergency call. When a customer's vehicle won't start, this unit delivers 250A of peak starting current within seconds—no waiting for a battery to charge, no tow truck expense. The adjustable charging current (5–40A) ensures safe conditioning of damaged or sulfated batteries without overcharging risk. Dual-voltage switching means a single purchase covers both light commercial and heavy-duty fleet applications.

Resellers benefit from clear positioning: This is not a budget charger for occasional home use—it's professional workshop equipment with proven reliability in commercial service environments.

---

Ready to stock? Order the S-MOARY300 as your core charging solution. Pair with battery chargers at different capacity levels to address price-sensitive customers and create a tiered product offering.
