BMW Diesel Engine Locking Tool Set for M47/M57 Series

Overview

This purpose-built locking tool set is engineered for precise timing control during engine overhauls, gasket replacements, and valve work on BMW's M47 and M57 diesel platforms. The kit enables technicians to lock both camshaft and crankshaft simultaneously, preventing accidental rotation and ensuring accurate reassembly. Whether you're servicing Series 1, 3, 5, or 6 models equipped with these diesel engines, this set eliminates guesswork and reduces labor time on critical timing procedures.

Complement your diagnostic capabilities with timing lock solutions for N47/N47S engines and explore additional BMW locking tool options for expanded engine family coverage.

Key Features

• Dual-Function Locking System: U-shaped locking plate with dual engagement points secures crankshaft position; clamp-style fixtures lock camshaft(s) independently
• Precision Alignment Rod: Long, knurled-grip holding rod ensures accurate component positioning during timing-critical operations
• Complete Hardware Suite: Includes threaded thumbscrews, locating pins, and hex/pin tools for various access points across M47/M57 variants

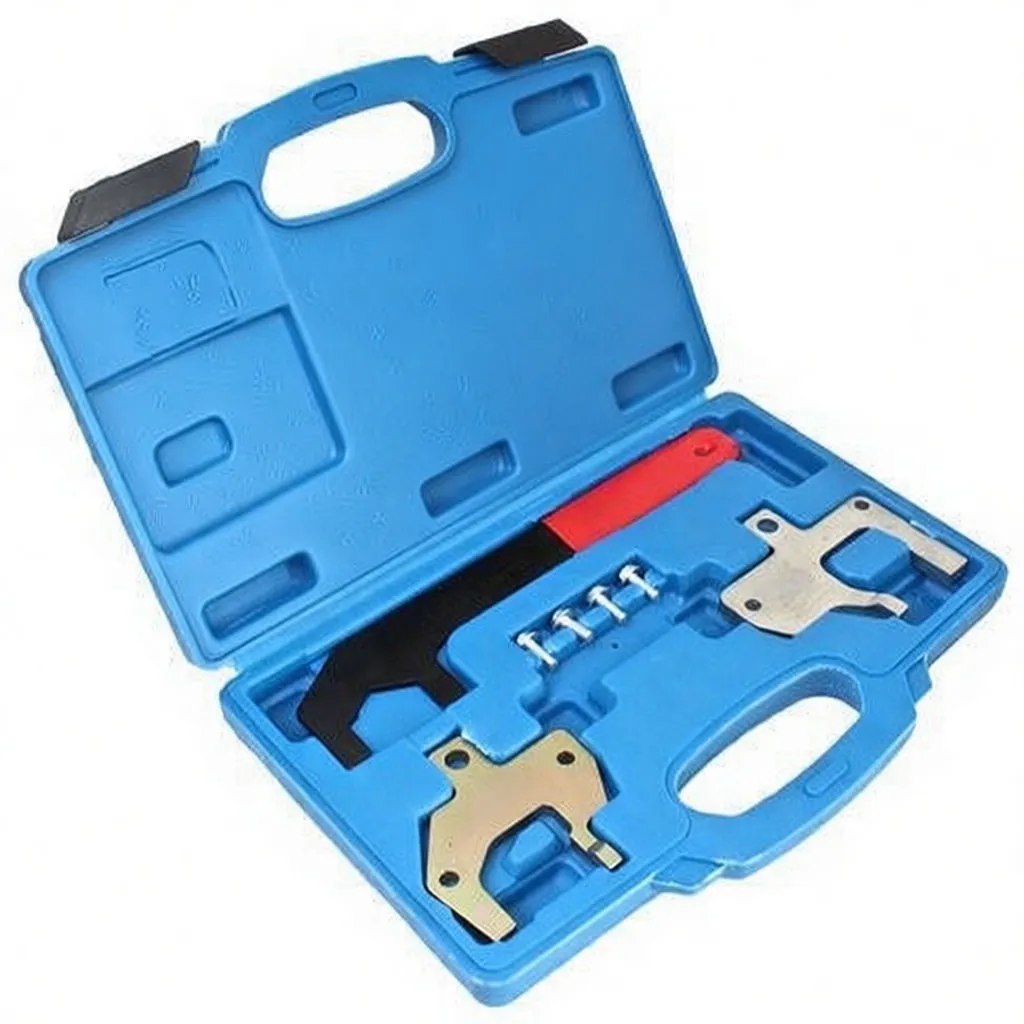

• Organized Storage: Custom-molded blue plastic carrying case with dedicated compartments for each tool—no lost pieces, ready for the next job
• Durable Construction: Black powder-coated steel and chrome-finished components resist corrosion and withstand repeated use in shop environments

Technical Specifications

Specification	Detail
Engine Family	BMW M47, M47TU, M47T2, M57, M57TU, M57T2
Compatible Series	1 (E87), 3 (E46, E90/91/92/93), 5 (E39, E60/61), 6 (E63/64)
Model Years	1997–2008 (see compatibility chart in documentation)
Primary Function	Camshaft and crankshaft locking during timing operations
Material Finish	Black powder-coat steel, chrome-plated components
Case Type	Hinged molded plastic with metal latch and custom tool recesses
Included Tools	Locking plate, clamp fixtures, alignment rod, hex/pin tools, hooked positioning rods

Business Advantages for Resellers

• High-Demand Service Category: Diesel engine overhauls and timing work are recurring revenue drivers in independent and franchise shops—mechanics need reliable locking tools to quote turnaround times accurately.
• Reduced Warranty Claims: Proper timing lock-up eliminates reassembly errors, lowering comebacks and protecting your shop's reputation.
• Differentiation: Shops equipped with OEM-spec locking tools attract customers seeking precision work; you can market this as a competitive service advantage.
• Bulk Order Margins: Timing tool sets are perfect for fleet maintenance contracts and multi-bay shops; volume pricing on this SKU supports solid reseller margins.
• Repeat Sales Trigger: Once a shop invests in one timing kit, they typically order complementary timing solutions for other BMW platforms as their customer base grows.

Real-World Application Context

This kit is specifically engineered for:

• Valve Cover & Gasket Replacement: Locks timing during removal of rocker covers and camshaft seals on M47/M57 engines without breaking timing chain integrity.
• Fuel Injector Removal: Prevents unwanted crankshaft rotation while accessing high-pressure common-rail injector bores—critical for maintaining compression and avoiding bore contamination.
• Cylinder Head Work: Enables safe removal and reinstallation of cylinder head assemblies without risk of piston-to-valve collision.
• Belt/Chain Service: Holds crankshaft and camshaft in precise TDC position during serpentine belt and timing chain inspections or replacement.

Why Resellers Choose This Kit

• Compact, Professional Presentation: The blue molded case with metal latch projects quality and organization—customers see a purpose-built solution, not a generic assortment.
• Diagnostic Accuracy: Locking both shafts eliminates timing uncertainty during troubleshooting of rough idle, misfire, or compression complaints on M47/M57 models.
• Labor Efficiency: Professional shops reduce timing-related downtime by 2–3 hours per overhaul when using dedicated locking tools versus improvised methods.

Call to Action

Stock this kit for your M47/M57 customer base. These diesel engines are workhorses in European fleets and remain common in independent shop networks. Order in bulk to support your diesel engine overhaul program and establish yourself as a trusted supplier for precision BMW service tools.
