Locking Tool Set for VAG 1.6/2.0 TDI Engines

Brief Overview

This timing and locking tool set is engineered for the complete range of Audi, Volkswagen, Seat, and Skoda 1.6/2.0 TDI engines, delivering the precision positioning required for camshaft and crankshaft work. Whether you're handling timing belt replacement, fuel injection system service, or valve train assembly, this kit eliminates guesswork and reduces job time significantly. For shops managing a broader VAG engine lineup, consider pairing this with specialized TSI/TFSI petrol engine tools to maximize your service capabilities across petrol and diesel platforms.

Key Features

• Dual-Axis Locking: Simultaneous camshaft and crankshaft positioning prevents accidental rotation during critical assembly phases
• Three-Point Engagement: Multi-stud adapter plate with precision locating pins ensures repeatable, secure positioning
• Comprehensive Component Set: Includes alignment rods (one telescopic), spanner plate with locating pins, thumbscrew clamping assembly, adapter blocks, and hex key

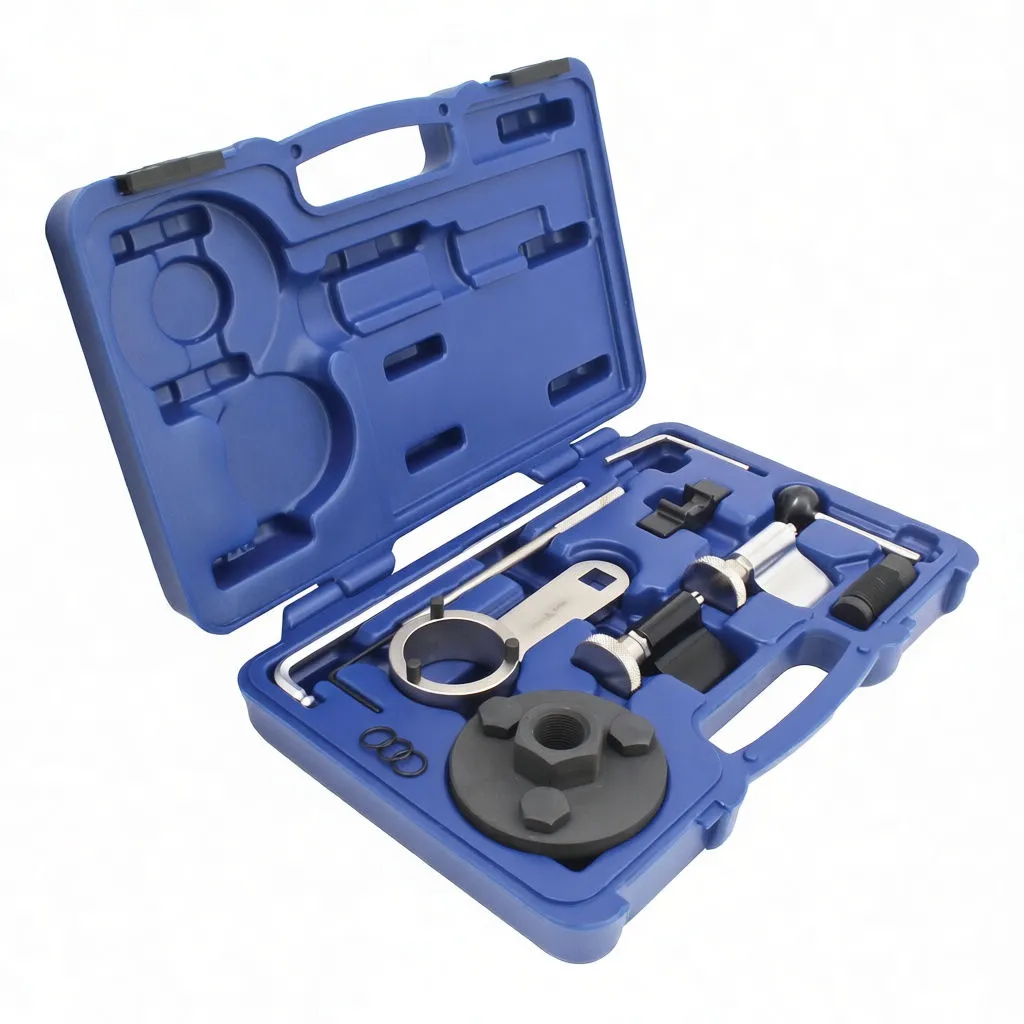

• Durable Carrying Case: Molded blue hard plastic case with labeled recesses keeps all components organized and protected in the workshop
• Wide Application Coverage: Supports 1.6 and 2.0 TDI variants across multiple model generations (2007–2009+)

Business Advantages for Resellers

• High Service Demand: 1.6/2.0 TDI engines dominate the VAG service sector across Europe. Timing belt and fuel system work are recurring revenue generators for independent shops.
• Reduces Labor Time: Precise locking eliminates trial-and-error positioning, cutting diagnostic and assembly time by 30–40 minutes per job.
• Margin-Friendly: Competitive markup on a specialized tool that shops will purchase repeatedly as they service fleet vehicles and customer bases with VAG engines.
• Consolidates Inventory: One kit covers multiple engine codes and model variants, reducing the need to stock separate tools for incremental engine updates.

Technical Specifications

Specification	Detail
Engine Application	VAG 1.6/2.0 TDI (2007–2009+)
Supported Models	Audi A3, A4, A6, Q5, TT, Q3; VW Golf V/VI, Passat, Tiguan, Polo, Jetta, EOS, Touran, Sharan, Caddy, Beetle; Seat Leon III, Altea, Alhambra II, Ibiza, Exeo; Skoda Fabia II, Octavia II, Superb II, Yeti, Roomster
Primary Function	Camshaft and crankshaft locking for timing belt replacement, fuel injection service, and valve train assembly

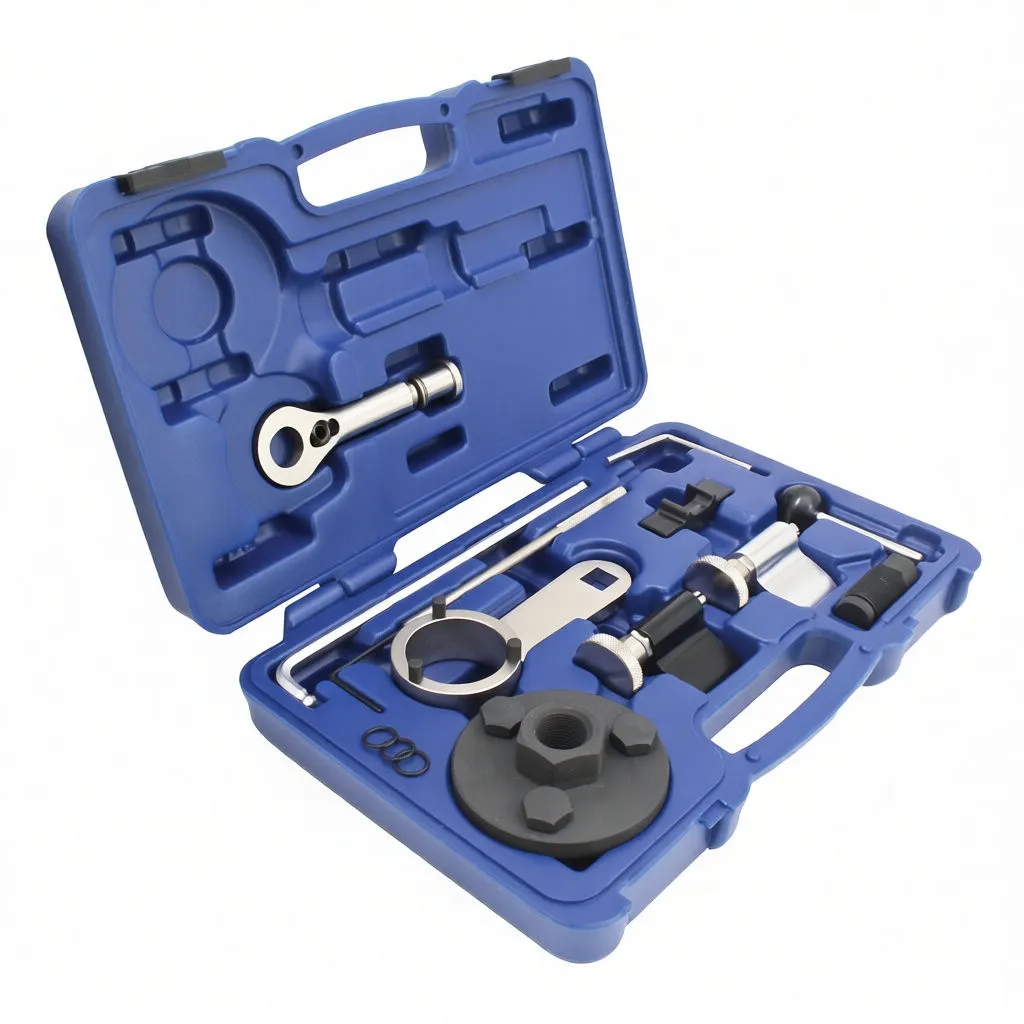

Kit Components	Multi-stud adapter plate, spanner/locking plate with locating pins, alignment rods (1 telescopic), thumbscrew clamping assembly, hex adapters, locating blocks, T-handle, rubber O-rings
Case Material	Molded blue hard plastic with labeled component recesses
Finish	Black-coated steel, polished chrome, machined aluminum
Weight	Approximately 3.5 kg (complete kit with case)

Why Shops Choose This Kit

Timing work on VAG TDI engines demands absolute precision. Misaligned camshaft or crankshaft positions lead to valve timing errors, poor combustion, and warranty claims. This kit's three-point locking engagement and dual-axis positioning eliminate these risks. The comprehensive component set—from telescopic alignment rods to precision spanner plates—handles both removal and installation phases without requiring auxiliary tools.

The carrying case isn't merely storage; it's a professional presentation piece that signals quality to customers and streamlines your shop's tool management. Organized tools mean faster job execution and fewer lost components.

Recommended Pairing

For shops servicing the full VAG diesel portfolio, complement this kit with timing tools for VAG 1.2/1.4/1.9/2.0 TDI variants to cover earlier engine generations and alternative displacement classes.

Final Notes

This is a professional-grade tool designed for repeated use in commercial service environments. Proper storage in the provided case extends component life and maintains precision alignment features. Ensure operators familiarize themselves with the instruction guide—provided on the case lid—before first use to maximize safety and accuracy.

Stock this kit for immediate availability to independent shops, franchise service centers, and fleet maintenance facilities managing VAG vehicle inventories.
