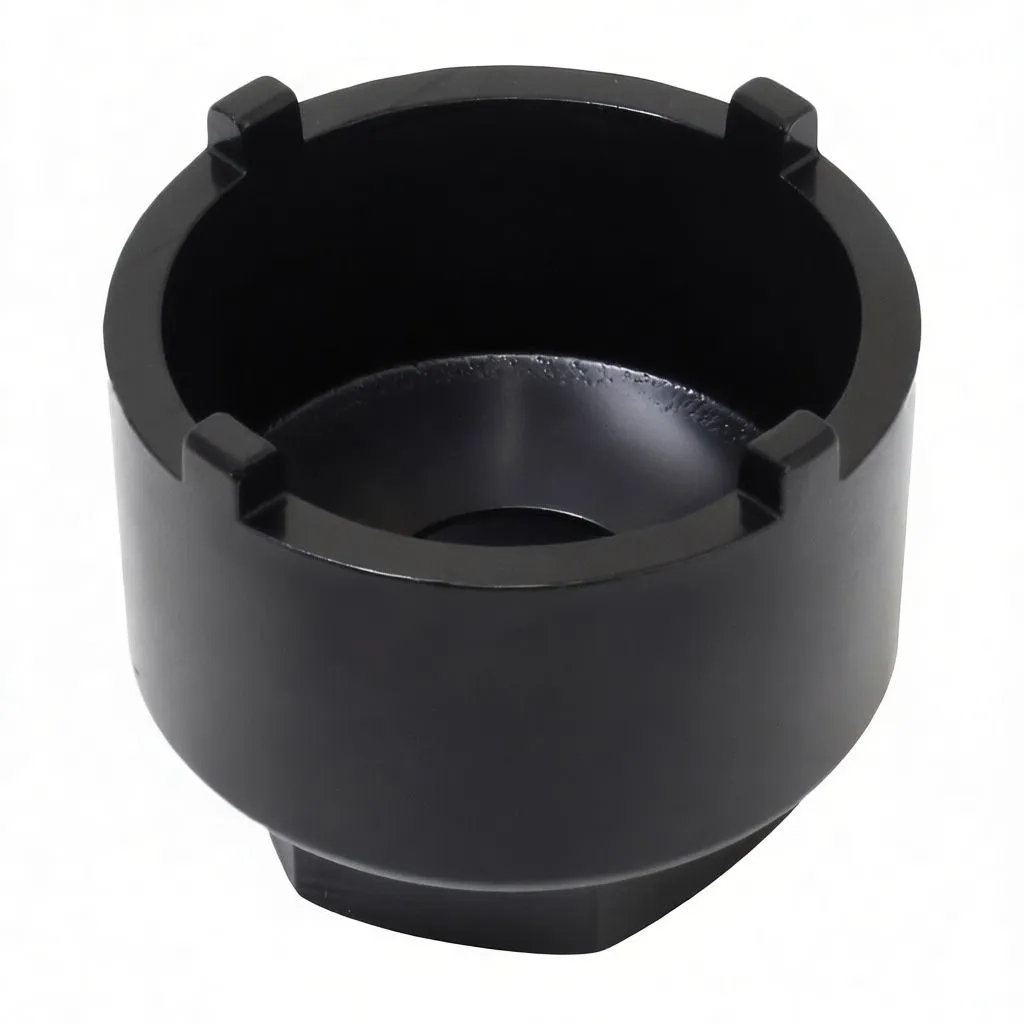

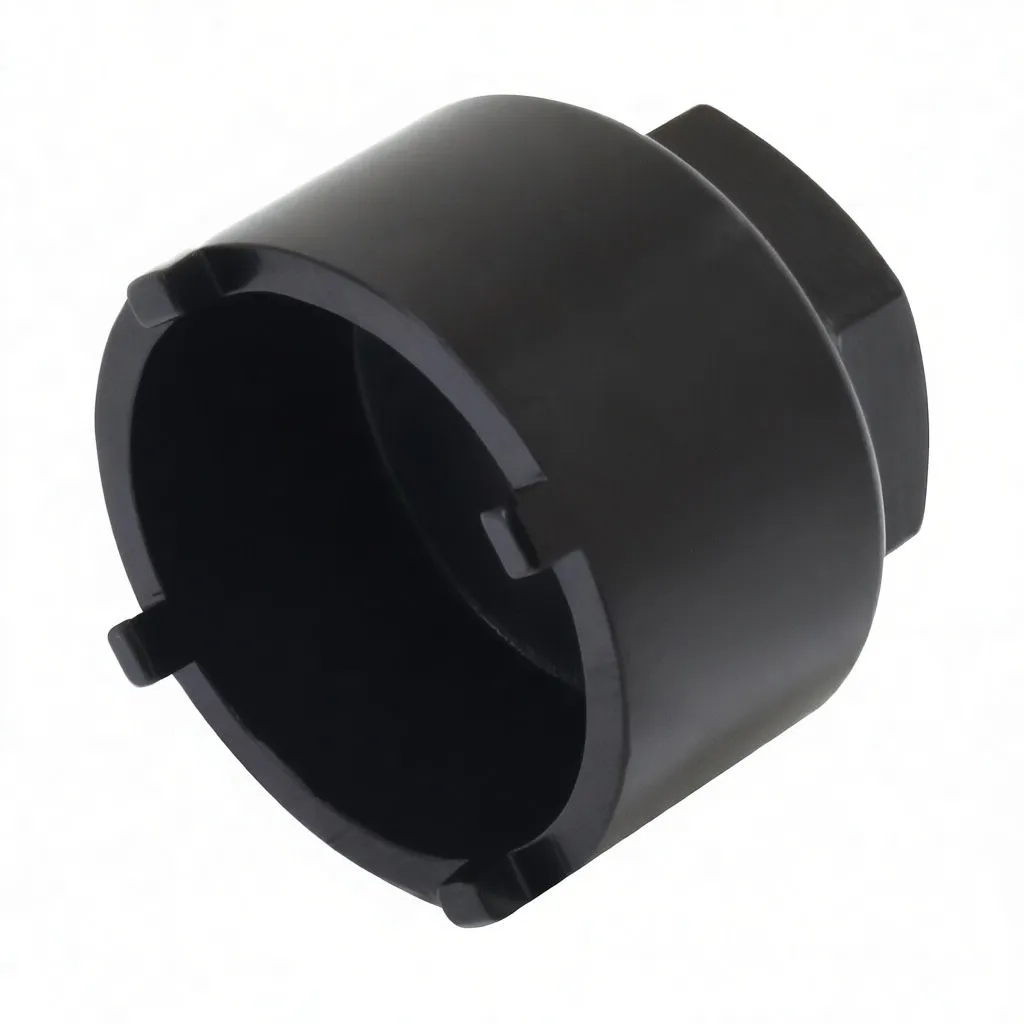

Angled view of a black cylindrical lower ball joint socket showing hex drive face, central hole and 'ASTA A-LBJ51' marking.Top-down view into the socket cavity showing four internal tabs, recessed base and 'ASTA A-LBJ51' text on the side.Oblique shot of the black lower ball joint socket highlighting four rim tabs, hex flat and 'ASTA A-LBJ51' branding.

Lower Ball Joint Socket for Citroën/Peugeot, 3/4-Inch Drive, 19 x 45mm

Precision-engineered ball joint socket with 4-pin design for safe removal on Citroën and Peugeot models without component damage.

Request Quote

Description

Lower Ball Joint Socket for Citroën/Peugeot

Brief Overview

This is a specialized removal socket engineered specifically for lower ball joints on Citroën and Peugeot vehicles. The 4-pin internal structure distributes load evenly across the ball joint, eliminating stress concentration and preventing damage to surrounding suspension components during removal. Designed for shops that service French domestic models regularly, this socket fits perfectly into a comprehensive ball joint toolkit alongside a universal ball joint remover set for maximum coverage across vehicle platforms.

Key Features

  • 4-Pin Internal Design: Four equally spaced rectangular lugs engage the ball joint cup uniformly, reducing risk of distortion or damage
  • 3/4-Inch Drive Socket: Compatible with standard 3/4" drive ratchets and breaker bars for controlled torque application
  • Precise Dimensional Fit: 19 x 45mm body with 50.8mm OD and 43mm external wedge dimension ensures secure seating
  • Heavy-Duty Metal Construction: Black protective coating resists corrosion and extends service life in shop environments
  • Application-Specific Design: Purpose-built for Citroën BX, C5, Xantia and Peugeot 305, 405, 406, 605, 607 models

Why Resellers Choose This Socket

High-Demand Application: French car suspension work is a consistent revenue driver. Mechanics handling Citroën/Peugeot platforms need this specific tool—no substitutions possible. Stock it and you'll see repeat orders.

Eliminates Comebacks: The 4-pin design prevents the damage that occurs with hammering or makeshift removal methods. Satisfied customers = job confidence = shop loyalty.

Compact Footprint: Small enough to store efficiently but specialized enough to command margin. Works with existing 3/4" drive sets, so no additional investment required from your customer base.

Technical Specifications

Specification Value
Drive Type 3/4-Inch Square Drive
Body Length 45 mm
Body Width 19 mm
Outer Diameter (OD) 50.8 mm
External Wedge Dimension 43 mm
Pin Configuration 4 pins, 4 x 4.1 mm each
Material High-strength steel with protective coating
Finish Black protective coating

Vehicle Applications

  • Citroën BX (1982–1994)
  • Citroën C5
  • Citroën Xantia
  • Peugeot 305 (1982–1990)
  • Peugeot 405 (1987–1996)
  • Peugeot 406
  • Peugeot 605
  • Peugeot 607

Professional Recommendation

This socket belongs in every shop working on French vehicles. The 4-pin design is not a luxury—it's insurance against costly comebacks and component replacement. Pair with ball joint puller sets for a complete suspension removal solution and maximize your shop's credibility in the European vehicle market.
