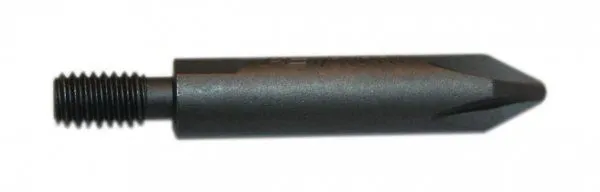

M5 Threaded Center Punch with 34mm Length, PH1 Tip Configuration

Brief Overview

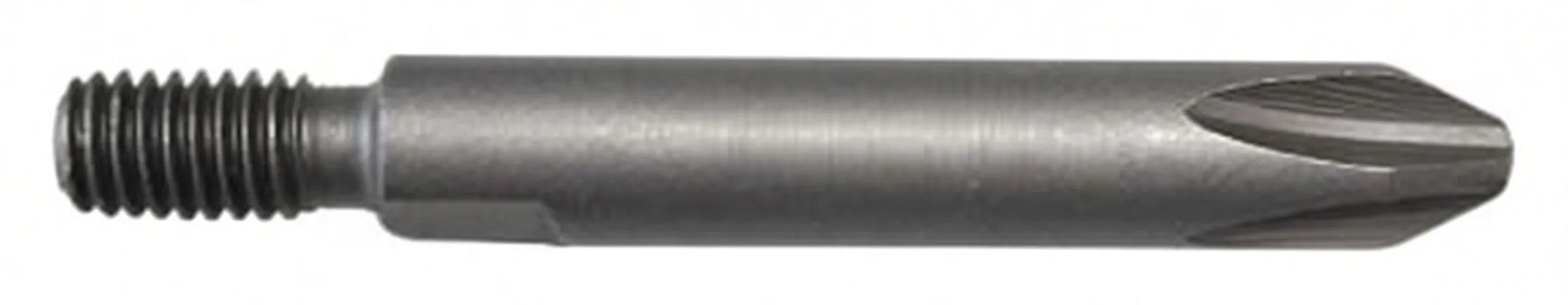

This is a replaceable center punch/locating tool designed for precision fixture work and assembly operations. The M5 male threaded stud screws into tooling blocks or fixture holders, while the faceted conical tip provides accurate part centering and pilot marking. The dark oxidized steel finish resists corrosion in workshop environments. This tool pairs well with fixture spacer components and complements the extended-length 34mm PH2 center punch variant for flexible setup configurations.

Key Features

• M5 Male Thread Stud: Directly mounts into standard M5 fixture tapped holes—no adapter required
• Faceted Conical Tip (PH1 Configuration): Four-relief design centers parts accurately and marks punch positions with minimal bounce-back
• 34mm Overall Length: Compact design for shallow fixture cavities and tight assembly layouts
• Dark Oxidized Steel Finish: Corrosion-resistant matte coating for humid workshop conditions
• Replaceable Design: Wear-resistant tip allows tool rotation or replacement without fixture overhaul

Business Advantages for Resellers

• High-Volume Assembly Lines: Automotive and precision manufacturing shops require these as standing inventory—predictable repeat orders
• Low Cost Per Unit, High Turnover: Tight margins offset by consistent volume demand; customers buy in packs of 10–50 units
• Cross-Sell Opportunity: Bundle with fixture spacers and longer-length variants to increase order value per customer
• Fixture Maintenance Essential: Shops cannot operate without replacements; establish this as a stock-keeping SKU in your distributor catalog

Technical Specifications

Specification	Detail
Thread Type	M5 Male
Thread Length	Approximately 5–6mm
Overall Length	34mm
Tip Configuration	PH1 (Faceted Conical, ~60° angle)
Tip Relief Count	4 longitudinal flats
Material	Carbon Steel
Surface Finish	Dark Oxidized (Matte)
Mounting	Direct screw-in to M5 tapped fixture block

Why Distributors Should Stock This

Precision fixture tooling is non-negotiable for manufacturers. Center punches wear and break; shops need rapid replacement without downtime. At this price point and length, this tool is a low-risk, high-velocity stock item that builds customer loyalty and generates reliable quarterly reorders.

---
