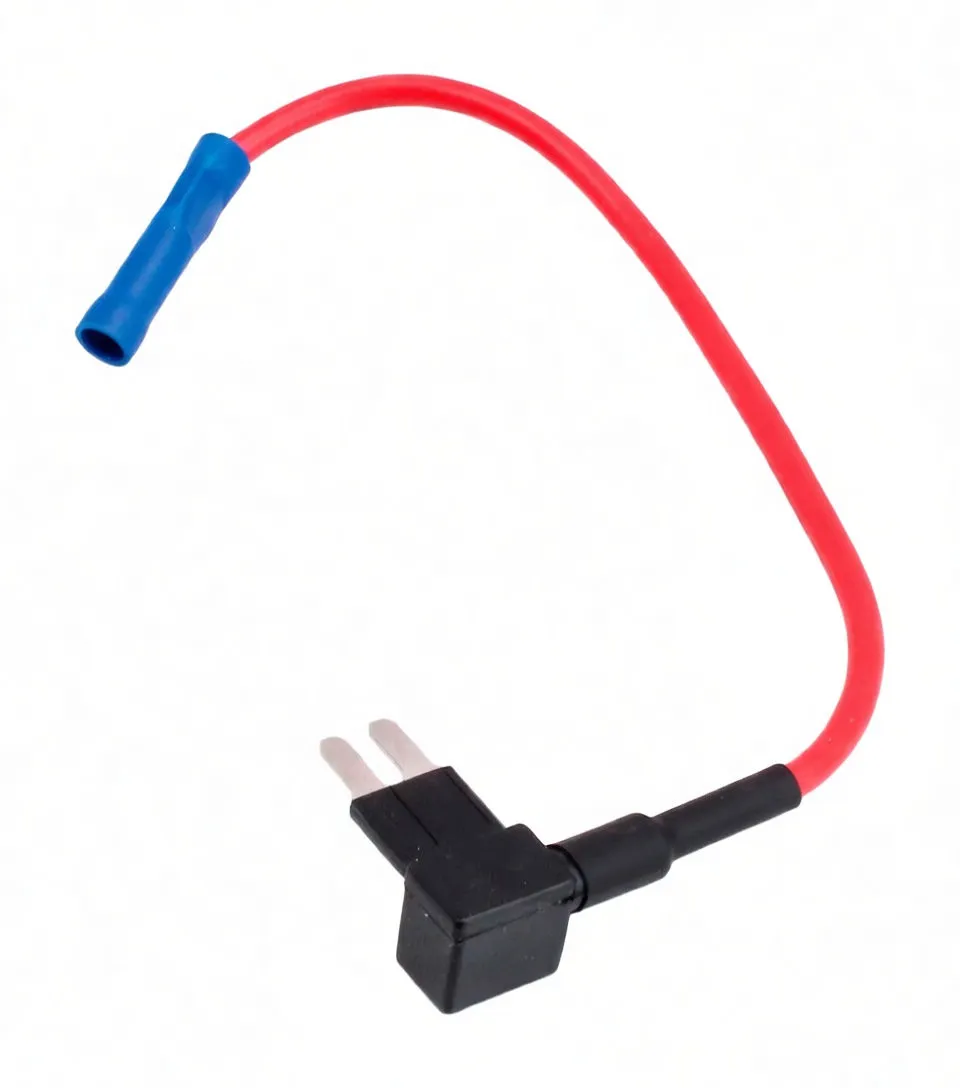

Micro 2 Fuse Holder with Pre-Wired Red Pigtail, 32V 3A–30A

Brief Overview

This Micro 2 fuse holder is a plug-and-play electrical safety component designed for automotive and industrial wiring systems. It arrives fully assembled with a pre-molded red insulated pigtail (14.5 cm), eliminating field termination labor and reducing installation time. The blade terminals connect directly to standard Micro 2 fuse slots, making this an ideal choice for OEM assembly lines, retrofit installations, and aftermarket electrical upgrades. Stock this alongside inline fuse protection solutions and modular multi-slot fuse banks to offer customers a complete electrical safety ecosystem.

---

Key Features

• Pre-Wired Assembly: Red insulated pigtail (14.5 cm) with molded connection—no field splicing required
• Nickel-Plated Brass Blade Terminals: Low-resistance contact, corrosion-resistant design for long service life
• UL16AWG Copper Wire: Full 100% PVC insulation meets automotive and industrial electrical standards
• Blue Female Quick-Disconnect Terminal: Standardized crimp connector for quick, reliable mating
• Voltage Rating: 32V DC, suitable for 12V and 24V automotive systems
• Fuse Range: Accommodates Medium fuse ratings from 3A to 30A, covering most automotive and light industrial circuits
• Heat-Shrink Identification: Printed marking on pigtail insulation for circuit identification and voltage notation (visible as "VW - (Ø5.0)" marking in assembly)

---

Business Advantages for Resellers

• Labor Cost Reduction: Pre-assembled wire eliminates manual crimping and insulation work; installers can connect directly to fuse slots
• Stock Efficiency: Single SKU replaces multiple wire/connector combinations; reduces warehouse complexity
• OEM & Aftermarket Appeal: Suitable for both original equipment assembly and retrofit/upgrade applications
• Safety Compliance: UL-rated construction and full PVC insulation meet automotive electrical standards—builds customer confidence
• Higher Margin Opportunity: Integrated assembly commands premium positioning versus loose components
• Quick Turnaround: No preparation time needed; grab, install, move to next vehicle

---

Technical Specifications

Specification	Detail
Product Type	Micro 2 Fuse Holder Assembly
Wire Length	14.5 cm (pre-molded pigtail)
Wire Gauge	UL16AWG
Wire Insulation	100% PVC
Conductor Material	Copper
Terminal Material	Nickel-plated brass
Terminal Type	Flat blade (Micro 2 standard)
Quick Disconnect	Blue insulated female crimp connector
Housing Material	Black PVC molded body
Voltage Rating	32V DC
Compatible Fuse Types	Medium blade fuses, 3A–30A range
Suitable Systems	12V / 24V automotive, industrial control circuits

---

Why Resellers Choose This Product

This fuse holder eliminates the need for installers to hand-fabricate wire assemblies on the job site. The integrated 14.5 cm red pigtail and blue female connector are already in place, reducing labor overhead and installation errors. Nickel-plated brass blade terminals resist corrosion and oxidation in harsh under-hood environments, translating to fewer warranty callbacks. The pre-identified heat-shrink marking supports faster circuit diagnostics and reduces re-work.

Pair this with complementary glass fuse holders for customers building multi-circuit protection systems or upgrade kits.

---

Call to Stock & Bulk Order Value

Stock this Micro 2 fuse holder assembly for immediate availability to customers upgrading electrical systems, adding auxiliary circuits, or building custom wiring harnesses. Competitive bulk pricing is available for OEM integrators and fleet service shops. Contact our sales team for volume discounts and custom wire-length options.
