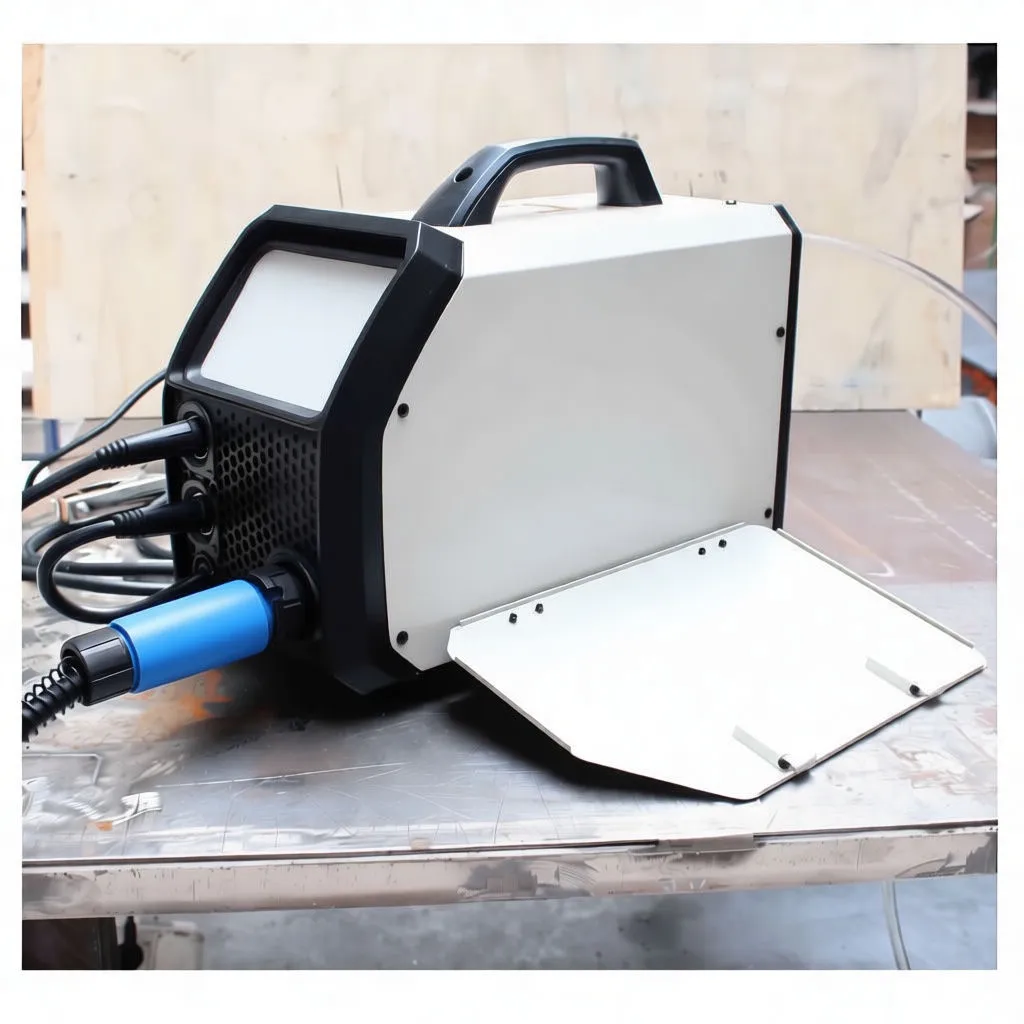

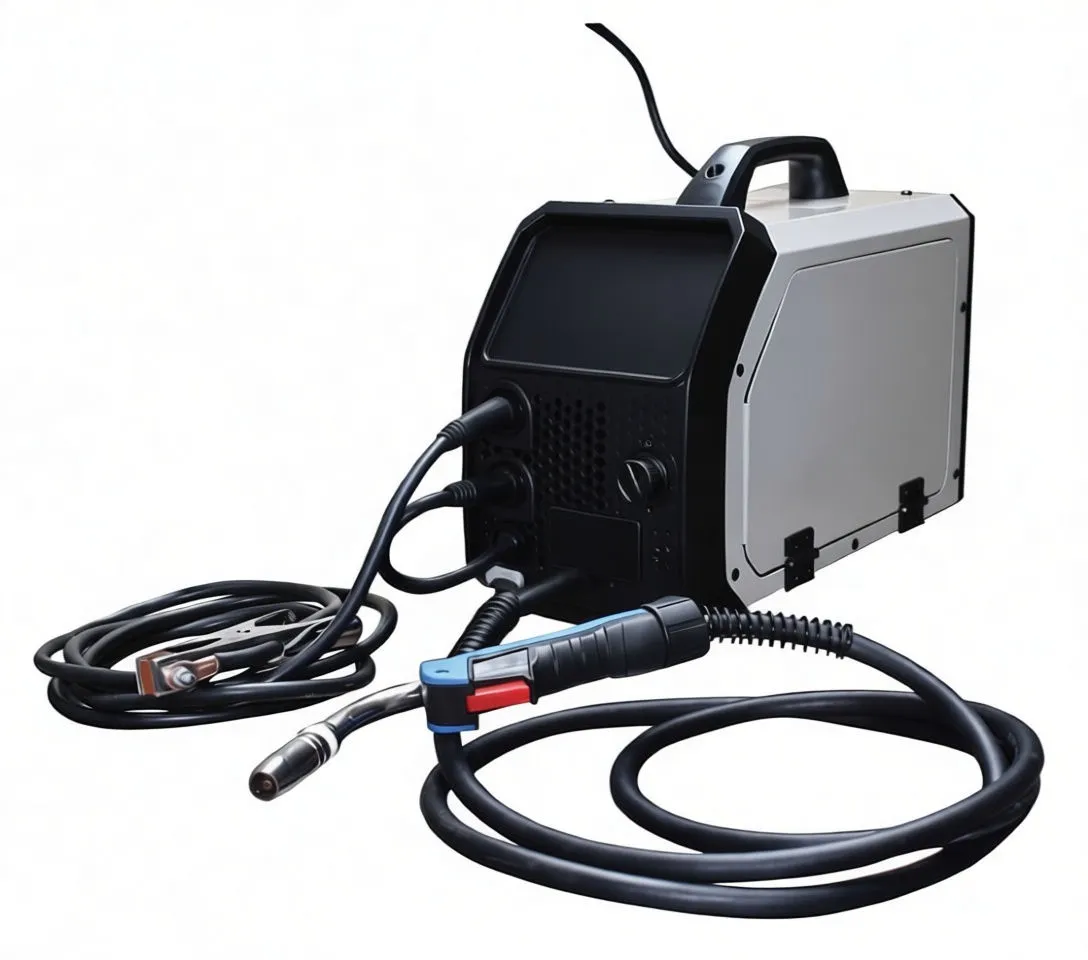

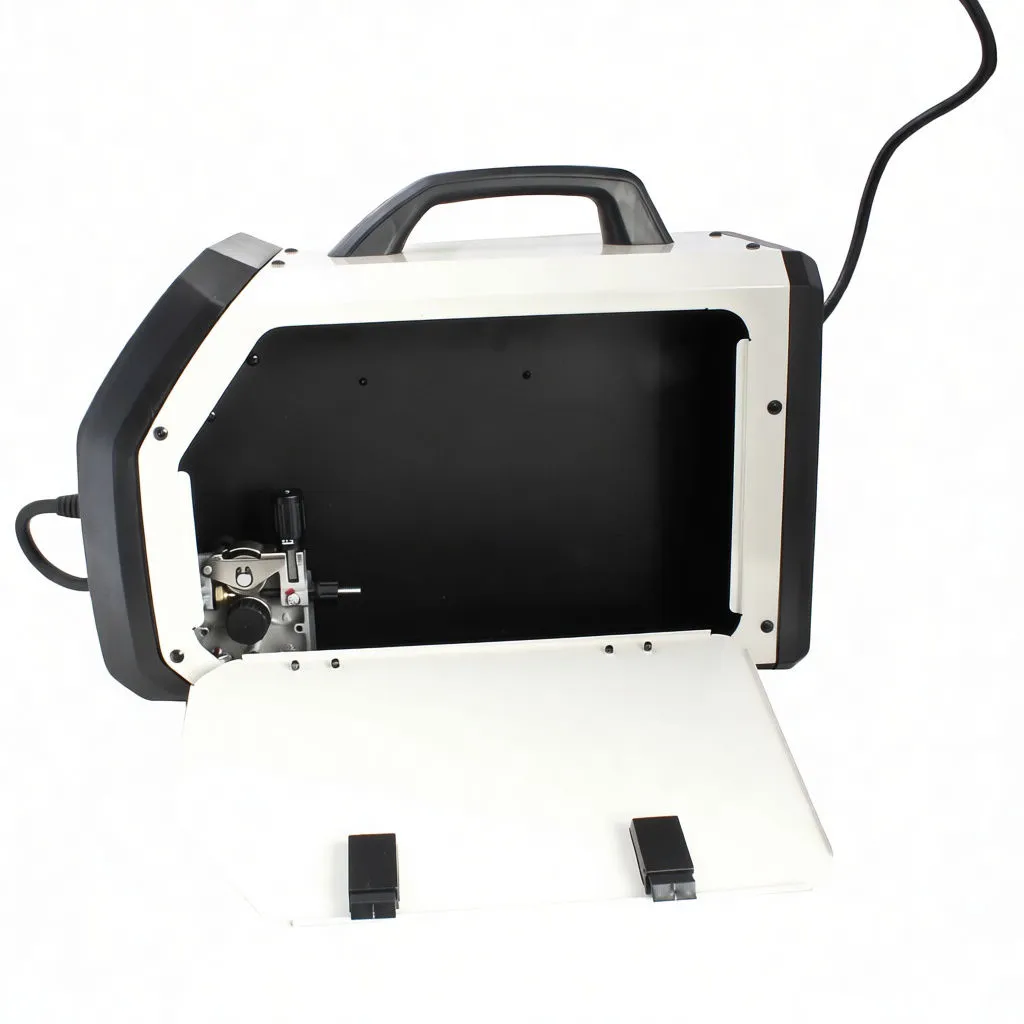

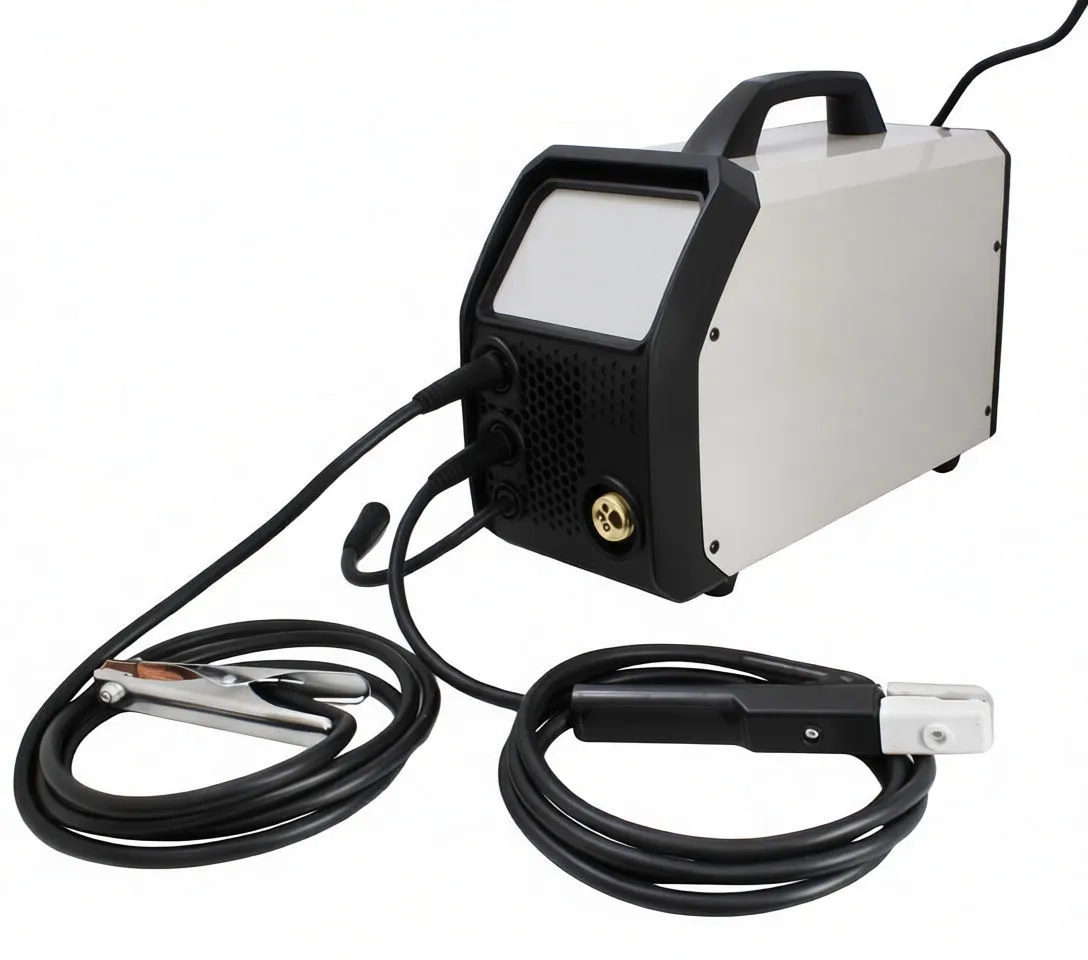

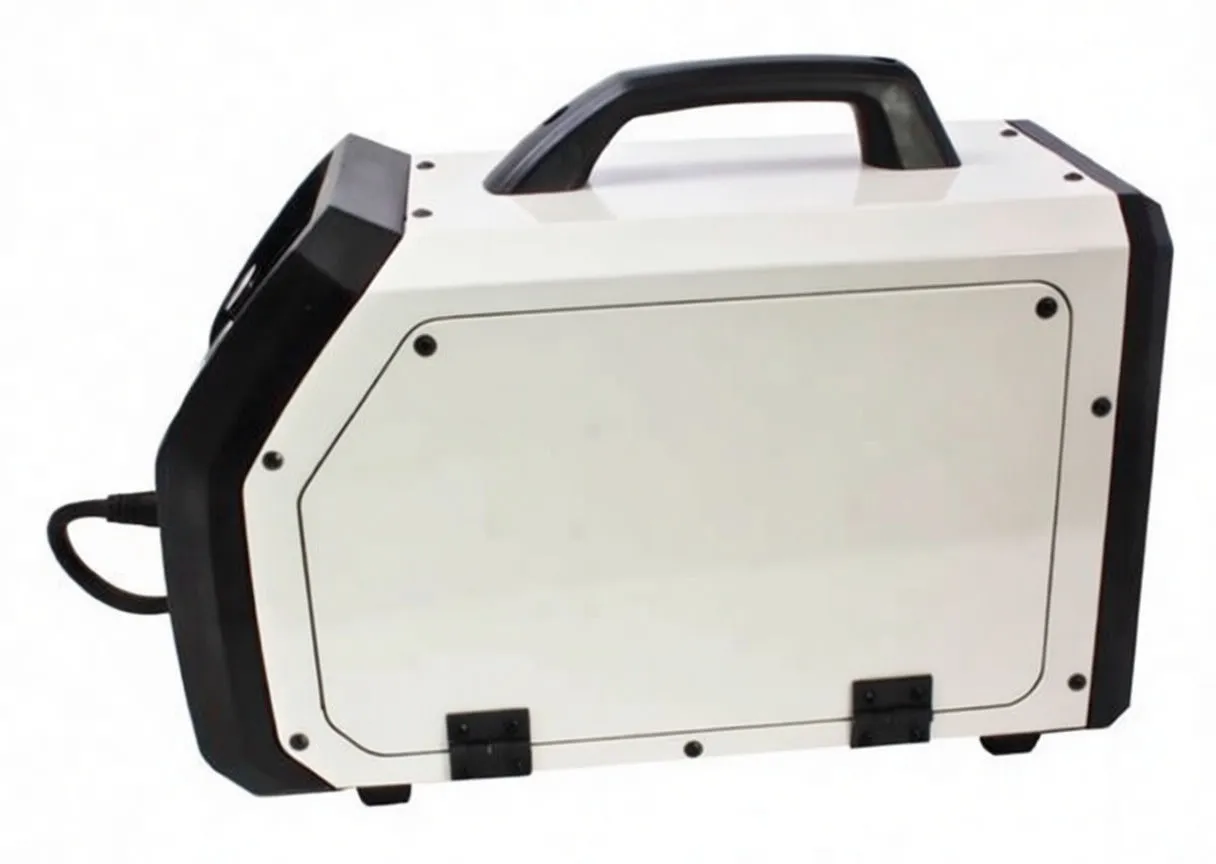

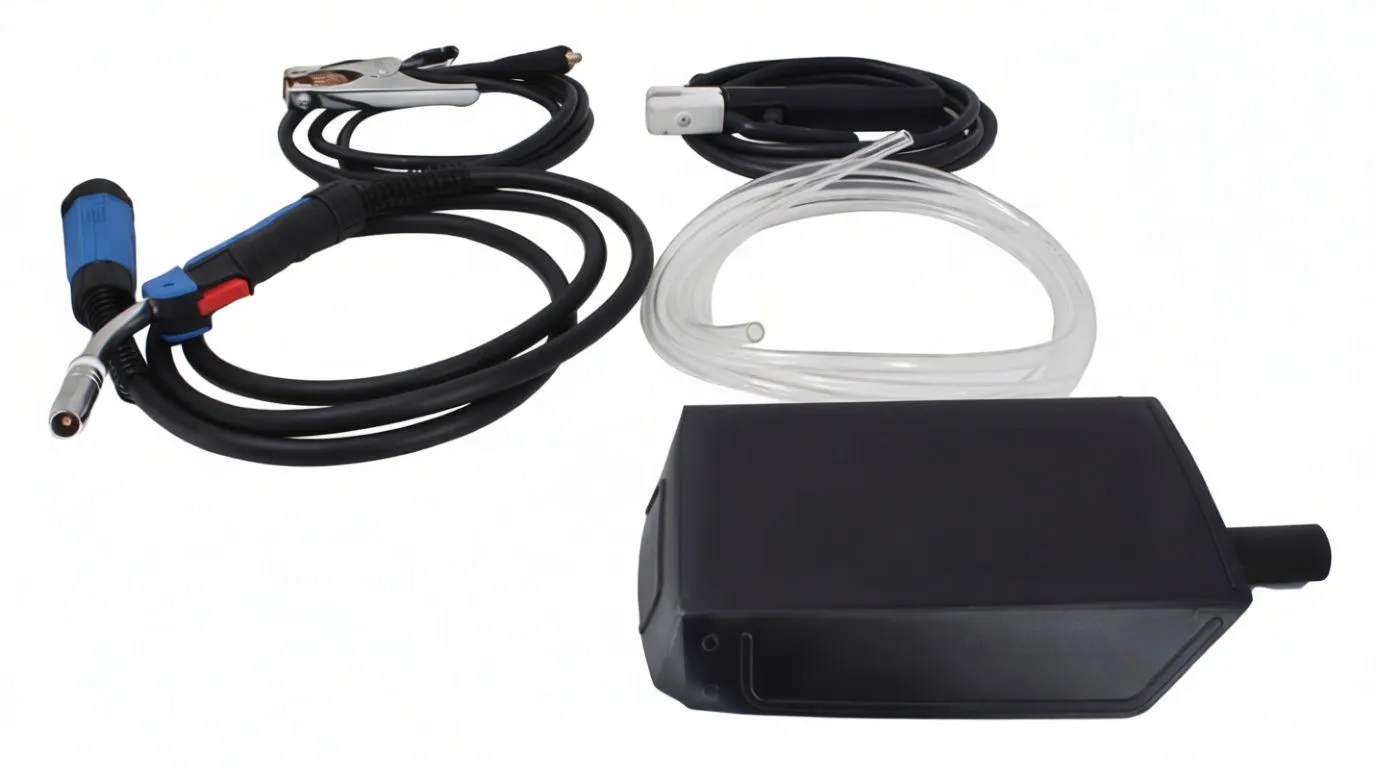

Portable MIG/MMA/Lift TIG welder with torch and ground clamp, front control panel with digital displays and knobs, saTra style housing.Welder in operation with sparks, gloved operator holding torch on metal table, saTra machine visible in background.Welder side door open showing wire spool and feed mechanism, gloved hand adjusting controls on front panel.SaTra S-311A200 welder on white background with MIG torch and coiled cable, side logo and top handle visible.Front-left view of welder with cables, ground clamp and electrode holder, illuminated digital displays and front connectors.Side panel of welder showing saTra logo, side door hinges and top carry handle.Accessories for welder including MIG torch, clamp, gas hose, face shield, brush and consumable tips laid out on white background.Close-up of internal wire feed mechanism with rollers, tension knob and mounting hardware.Open interior of welder showing spool mount knob, fold-down side door and wire feed area.

3-in-1 MIG/MMA/Lift TIG Welder, 200A Inverter, 230V Single-Phase

Versatile inverter welder combining MIG, MMA, and Lift TIG capability in a compact 11kg unit—ideal for resellers targeting hobby and professional workshops.

Request Quote

Description

3-in-1 MIG/MMA/Lift TIG Welder, 200A Inverter, 230V Single-Phase

Brief Overview

The S-3I1A200 is a three-process inverter welding machine that consolidates MIG, MMA (stick), and Lift TIG functionality into a single, portable platform. Designed for both hobby users and professional fabricators, this unit delivers the flexibility to handle multiple welding scenarios without requiring separate machines. Its compact footprint (470×195×315mm) and 11kg weight make it ideal for mobile workshops, small fabrication shops, and training facilities. For resellers seeking to expand their welding equipment portfolio, this multi-process capability naturally complements offerings like dedicated specialty TIG systems or compact MIG/MMA combinations.

Key Features

  • Triple-Process Capability: MIG (gas-shielded wire), MMA (coated electrode), and Lift TIG (non-HF ignition) in one machine
  • Advanced Inverter Technology: High efficiency (85%) with stable arc characteristics across all three processes
  • Flexible Wire Compatibility: Optimized for 0.8mm solid wire; also accepts 0.6mm, 0.9mm, 1.0mm, and flux-cored variants
  • Adjustable Wire Speed: 2.5–12 m/min range for precise filler-metal delivery
  • Wide Current Range: MIG 50–200A, TIG 10–170A, MMA 20–170A for application versatility
  • Single-Phase Input: 230V operation—no three-phase infrastructure required
  • Integrated Wire Feeder: Internal spool compartment with adjustable tension and feed-roller mechanism
  • Complete Accessory Package: Includes MIG torch, electrode holder/TIG connector, gas hose, cleaning brush, and consumable contact tips
  • Portable Design: Top carry handle and compact form factor for workshop mobility

Business Advantages for Resellers

High-Demand Convergence Tool: This three-process machine addresses a common reseller challenge—customers seeking one unit that covers multiple welding needs without bulk-purchasing separate equipment. The inverter platform reduces inventory complexity while maintaining margin-friendly pricing compared to standalone alternatives.

Training & Entry-Level Markets: Ideal for vocational programs, community colleges, and small-business startups. Resellers can position this as a cost-effective entry point into professional welding, with room for upselling specialized equipment as customers' requirements mature.

Efficient Power Consumption: At 7.7 kVA (MIG), 5.8 kVA (MMA), and 4.6 kVA (TIG), this unit operates on standard 230V single-phase circuits common to most small shops. No electrical infrastructure upgrades = faster customer adoption and shorter sales cycles.

Versatility = Repeat Business: Multi-process machines drive customer retention because they satisfy diverse project needs. As resellers grow their customer base with this unit, they naturally sell consumables (wire, electrodes, gas), torches, and accessories.

Technical Specifications

Parameter Specification
Input Voltage 230V, 50Hz, single-phase
Rated Input Power MIG: 7.7 kVA / TIG: 4.6 kVA / MMA: 5.8 kVA
No-Load Voltage 60V
Output Current Range MIG: 50–200A / TIG: 10–170A / MMA: 20–170A
Wire Feed Speed 2.5–12 m/min
Recommended Wire Diameter 0.8mm (optimized); also compatible with 0.6, 0.9, 1.0mm solid and flux-cored
Efficiency 85%
Power Factor (cos Φ) 0.73
Insulation Class H
Protection Rating IP21S
Dimensions 470 × 195 × 315mm
Net Weight 11kg
Power Cord 2.5mm² × 2.1m
Included Accessories MIG torch, electrode holder, gas hose, cleaning brush, contact tips, hose clamps

Application Context

MIG Mode (50–200A): Suited to mild-steel fabrication, sheet-metal work, and light structural assembly. The 0.8mm wire optimization handles typical production-shop welding without compromising travel speed.

MMA Mode (20–170A): Covers coated-electrode stick welding for maintenance repair, outdoor field work, and ferrous metalworking where gas shielding is impractical.

Lift TIG Mode (10–170A): Non-HF (high-frequency) ignition simplifies setup and reduces RF interference. Ideal for precision stainless-steel work, aluminum, and applications requiring aesthetic bead appearance.

Why Resellers Choose This Welder

  1. Single SKU, Multiple Markets: One product serves hobby enthusiasts, trade schools, small shops, and mobile service providers.
  2. Proven Inverter Platform: 85% efficiency and stable arc control reduce customer complaints and returns.
  3. Consumable Revenue Stream: Wire, electrodes, gas, and replacement torches drive ongoing margin recovery.
  4. Margin-Friendly Positioning: Compact, lightweight design justifies competitive pricing while maintaining healthy wholesale spreads.

Ready to Stock a Proven Multi-Process Solution?

This inverter welder bridges hobby and professional markets in one compact unit. Pair it with consumables, spare torches, and electrode holders to maximize customer lifetime value and shop floor retention. Order in bulk to secure preferred pricing and support resale velocity.
