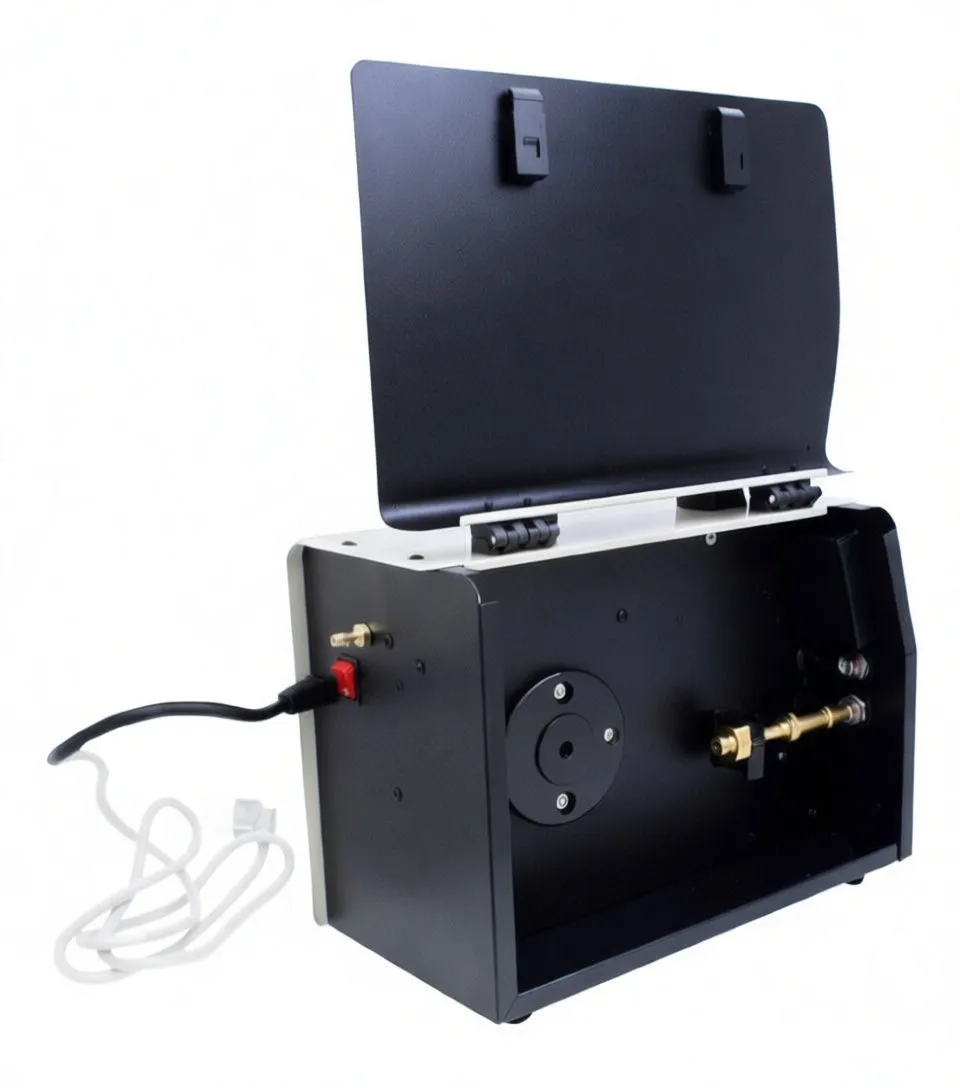

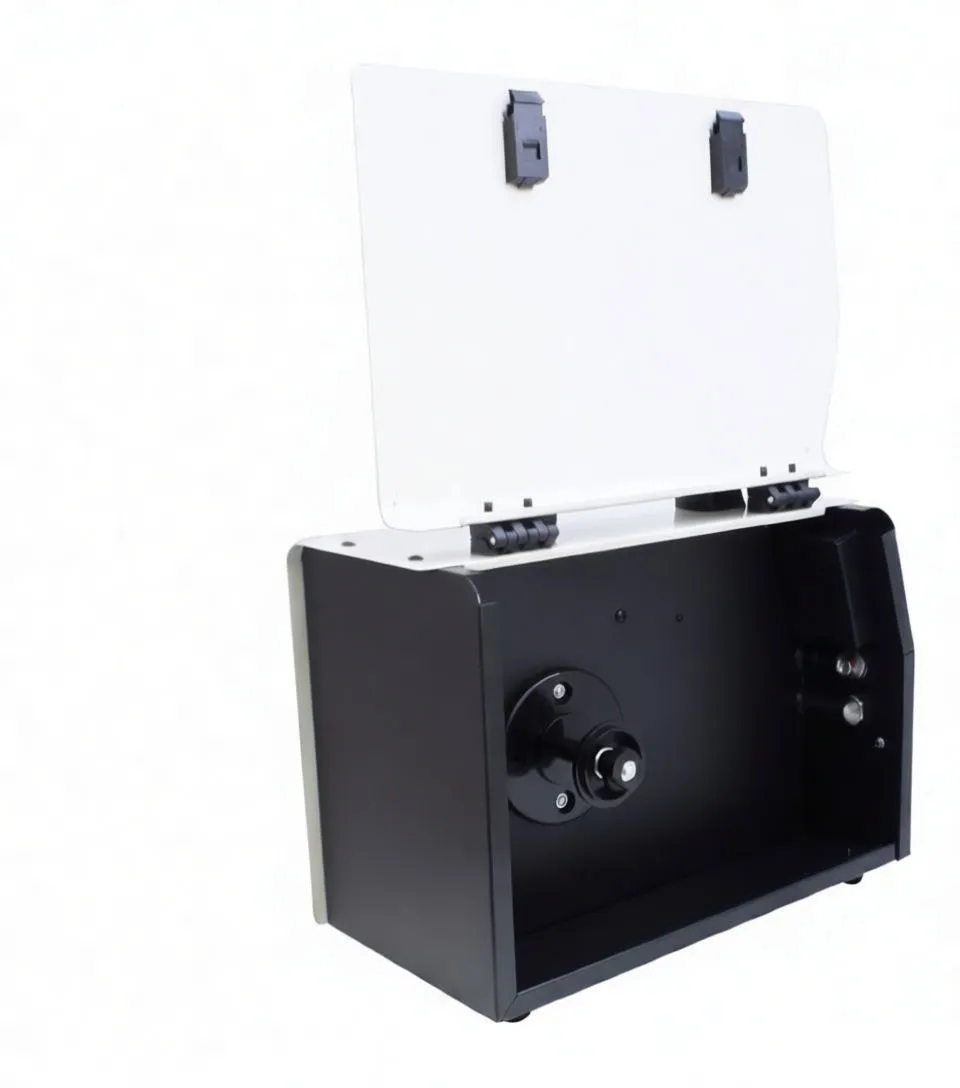

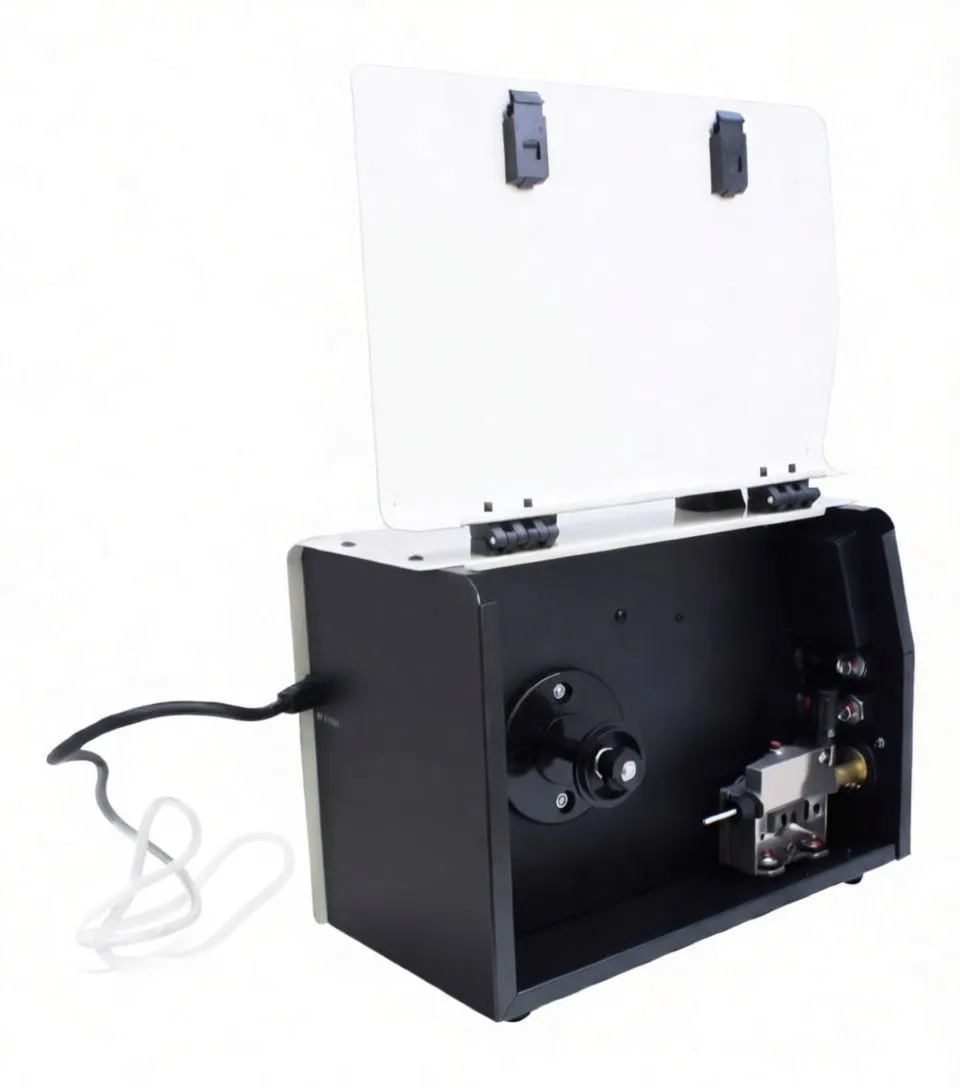

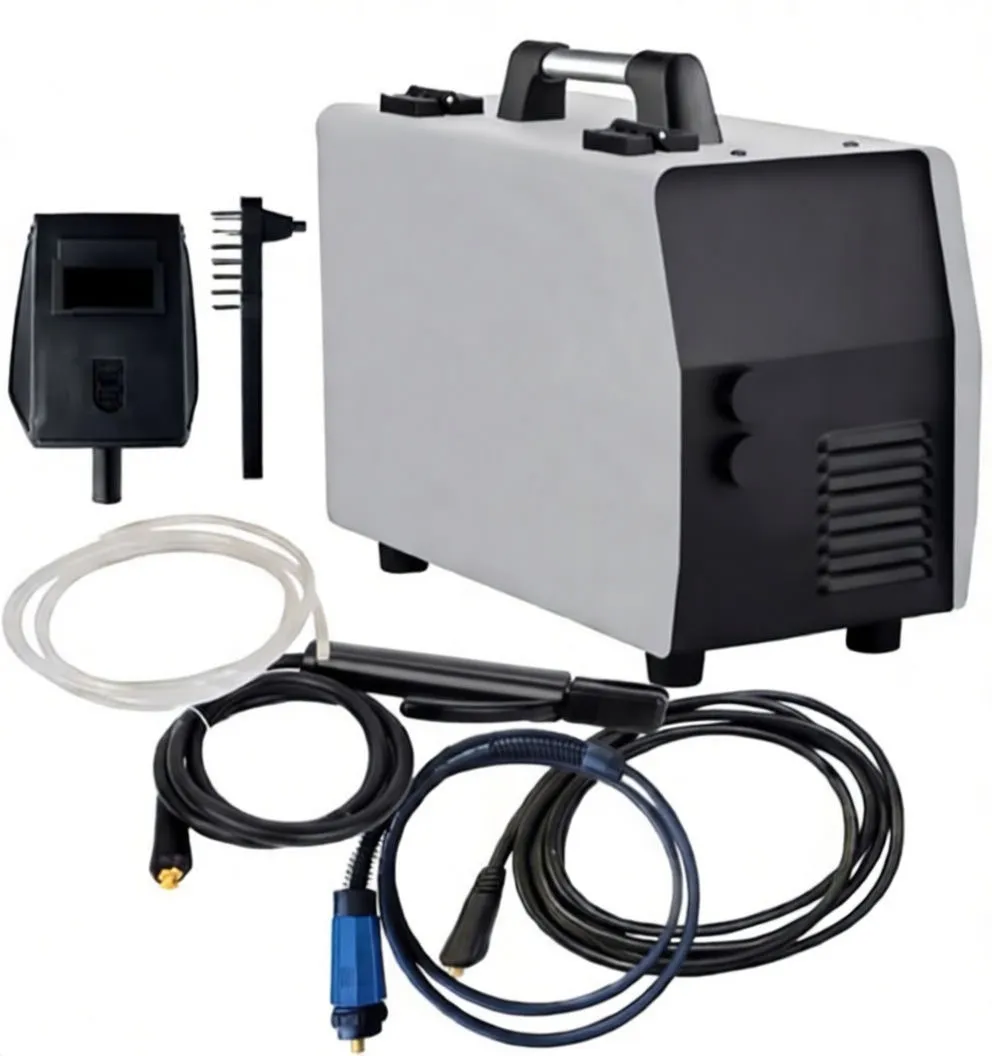

MIG/MMA welding machine with torch, ground clamp, electrode holder, gas hose and welding maskFront panel close-up with digital A/V displays, control knobs, connectors and saTra brandingRear of welder with gas inlet, on/off rocker, mains cable, cooling fan and specification plateSide of saTra welding machine with logo, ventilation grill and top handleOpen top showing internal spool hub and wire feed mechanism with tension knobs and terminalsClose-up inside the spool compartment showing drive rollers, motor/gear assembly, spindle and terminal posts

MIG/MMA Dual-Process Welding Machine, 160A MIG / 150A MMA, 230V Single-Phase

Compact dual-process welder with 160A MIG and 150A MMA capability, complete with torch, earth clamp, and accessories. Ideal for small workshops and mobile operations.

Request Quote

Description

MIG/MMA Dual-Process Welding Machine, 160A MIG / 150A MMA, 230V Single-Phase

Brief Overview

This is a practical, entry-level dual-process welding machine designed for small workshops, fabrication shops, and mobile welding operations. It delivers reliable MIG and MMA performance in a compact 5 kg package, complete with all essential accessories—torch, earth clamp, electrode holder, and gas hose. The machine is mode-switchable via front-panel control, making it straightforward for operators to transition between processes. If you're looking to expand capabilities, consider complementary options like an advanced TIG/MMA inverter welder or a triple-process MIG/MMA/TIG system for customers requiring broader welding versatility.

Key Features

  • Dual-Process Design: MIG mode (flux-core or gas-shielded) and MMA (stick) electrode welding from a single unit
  • Accessible Input Power: Operates on standard 230V single-phase, 50Hz European supply (no three-phase infrastructure required)
  • Digital Display: Real-time amperage (A) and voltage (V) readouts on front panel for precise process control
  • Intuitive Controls: Central mode selector switch and three rotary knobs for wire feed speed, current, and voltage adjustment
  • Complete Accessory Kit Included:
    • 2.8 m MIG torch with Euro-style connector
    • 200A electrode holder (MMA stick)
    • 20 mm² aluminum torch and earth cables (3 m each, both included)
    • 300A earth clamp for secure workpiece grounding
    • 2.5 mm² power input cable (2.1 m)
    • 3 m gas supply hose with clamps
    • Protective welding mask and wire brush
  • Portable Design: Foldable top-mounted carry handle; compact footprint (52.5 × 32 × 42.5 cm) fits in transit vans and workshop corners
  • Efficient Thermal Management: Rear-mounted cooling fan with protective grille; 60% duty cycle rated for continuous small-job workflows
  • CE Certified: Meets European safety and performance standards

Technical Specifications

Specification Detail
Input Voltage / Frequency 230V / 50Hz single-phase
MIG Output 5.7 kVA, 160A at 22V rated
MMA Output 6.3 kVA, 150A at 22V rated
Duty Cycle 60% (continuous operation under standard load)
Rated Output Voltage 22V DC
Efficiency 85%
Power Factor 0.73
Wire Feed Speed (MIG) 13 m/min
Machine Weight 5 kg
Dimensions 52.5 cm (W) × 32 cm (D) × 42.5 cm (H)
Housing Color Black with grey/white panels
Certifications CE marked
Spool Capacity Designed for 5 kg wire spools

Business Advantages for Resellers

  • Wide Market Appeal: Dual-process capability attracts both entry-level and budget-conscious professional buyers (small garages, agricultural repair, DIY fabricators, mobile welders)
  • Strong Accessory Bundle: Pre-packed with torch, electrode holder, clamps, and hose reduces customer frustration and returns from missing components
  • Proven Duty Cycle: 60% rated cycle is realistic and honest—resellers avoid complaints about undersized machines
  • Competitive Margin on Add-ons: Customers will need consumables (wire, electrodes, shielding gas), replacement torches, and spare cables
  • Straightforward Support: Simple dual-mode operation and standard 230V input mean fewer technical support calls compared to inverter systems
  • Portable Positioning: Market to mobile welders, farm equipment repair, and small construction sites where portability is valued

Recommended Use Cases

  • Small-scale MIG welding on mild steel (automotive repairs, furniture frames, light structural work)
  • MMA/stick electrode welding for maintenance and repair where simplicity is preferred
  • Mixed-process shops transitioning between MIG for speed and MMA for versatility on thicker materials
  • Mobile and field welding where single-phase mains are the only available power

Call to Value

This machine strikes the balance between capability and simplicity that working shops appreciate. It's neither oversized nor underpowered for its market segment, comes fully equipped, and operates on standard European mains. Stock this for immediate delivery to customers tired of waiting for premium systems—and position the accessory upsells (spares, torches, cable sets) as high-margin repeat business.
