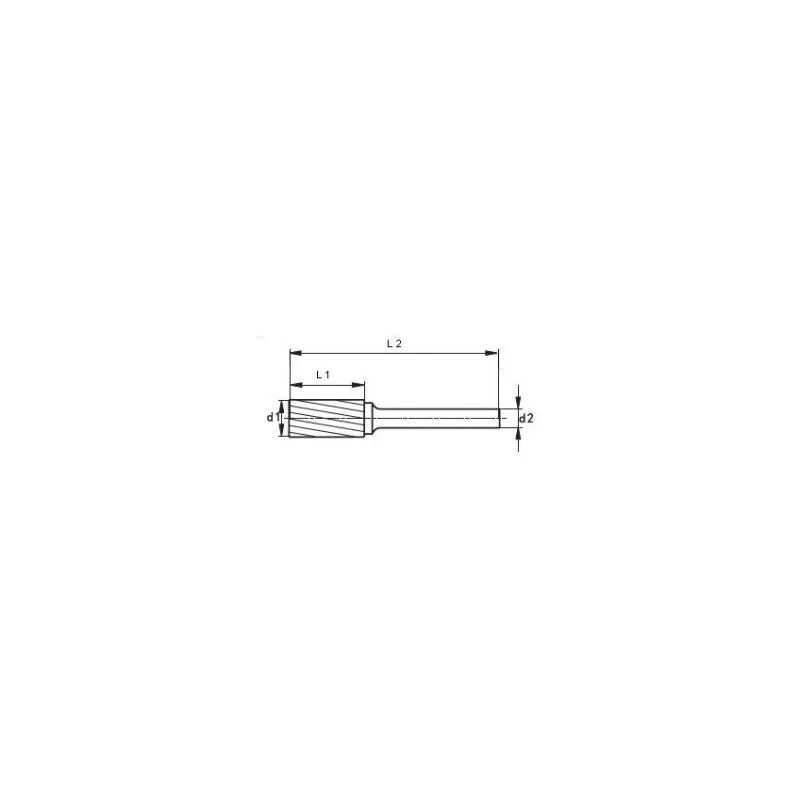

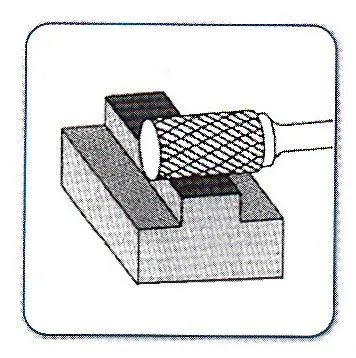

Close-up photo of a cylindrical rotary milling burr with diamond cross-cut flutes and a marked metal shank.Illustration of a cylindrical burr used on a stepped workpiece, showing contact with the shoulder for shaping or deburring.Technical side-view diagram of the cylindrical milling drill with labels d1, d2, L1 and L2 indicating head and shank dimensions.

Milling Drill ZYA Type, 12mm Head × 70mm Length, 6mm Shank

Professional double-cut cylindrical milling drill for precision finishing, deburring, and edge work on metal components.

Request Quote

Description

Milling Drill ZYA Type, 12mm Head × 70mm Length, 6mm Shank

Brief Overview

The ZYA Type milling drill is a precision rotary burr engineered for metal finishing, edge deburring, and controlled material removal in tool production and machining operations. With its double-cut, cross-hatched flute geometry, this tool delivers a smooth, finished surface on workpieces without secondary finishing. For shops requiring a complete finishing solution, consider pairing this with smaller precision deburring drills or alternative cylindrical burrs in complementary sizes to cover a full range of edge-finishing applications.

Key Features

  • Double-cut, cross-hatched flute pattern – Provides consistent chip evacuation and reduces vibration for clean, smooth surface finish
  • Cylindrical cutting head – Ideal for flat surfaces, edge work, and shoulder deburring on stepped components
  • Straight shank design – Direct mounting in standard chucks and rotary tool holders
  • Polished metal construction – Professional-grade durability for repeated use in high-volume production
  • Precise dimensional control – 12mm head diameter, 70mm overall length ensures compatibility with standard machine setups

Technical Specifications

Parameter Value
Head Diameter (d1) 12 mm
Head Length (L1) 25 mm
Shank Diameter (d2) 6 mm
Overall Length (L2) 70 mm
Flute Type Double-cut, cross-hatched
Shank Type Straight cylindrical

Business Advantages for Resellers

  • High-volume production tool – Essential for job shops and tool manufacturers handling edge finishing and deburring work
  • Consistent repeat orders – Resellers can bundle with complementary burr sizes to increase basket value
  • Professional-grade specifications – Meets expectations of tool production facilities and precision machining operations
  • Bulk-friendly dimensions – Standard 6mm shank fits universal chucks; easy to stock and demonstrate

Why This Tool Matters

For any operation performing metal finishing, edge deburring, or component shaping, the ZYA Type eliminates the need for secondary hand finishing. The cross-hatched cutting geometry minimizes chatter and surface defects, reducing rework and improving throughput. This is a go-to tool for shops that value precision and consistency in their finishing processes.

Stock this in your catalog as a core finishing burr. It's the tool professionals reach for when surface quality and edge control are non-negotiable.
