MMA Welding Machine – 200A Inverter, 230V Single Phase

Brief Overview

This is a solid, entry-level to mid-range MMA (stick) welding inverter designed for professional repair shops, fabrication work, and field welding applications. The 200A output handles standard electrode diameters (1.6–4.0mm) efficiently, making it suitable for general structural work, automotive repair, and maintenance welding. The compact form factor and straightforward single-dial control keep operator learning curves minimal while the included accessory kit (earth clamp, electrode holder, mask, and brush) means resellers can offer a complete, ready-to-use package. For shops looking to expand MMA capabilities or replace aging transformer-based machines, this inverter design delivers modern reliability at a competitive price point. Consider pairing this with complementary MMA welding electrodes in common gauges to maximize kit appeal and customer satisfaction.

Key Features

• 200A Output Current – Covers rod diameters from 1.6mm to 4.0mm for versatile electrode selection
• Single-Phase 230V Input – Standard industrial supply; 50Hz operation; 9kVA power consumption
• Inverter Technology – Modern IGBT-based design (inferred from compact form factor and 60% duty cycle efficiency) versus older transformer-based machines; quieter operation and faster response
• Smart Arc Control Functions – Anti-stick prevents electrode adhesion; arc force maintains stable arc under load; hot start eases electrode ignition
• 60% Duty Cycle – Suitable for intermittent shop use and field work; not rated for continuous industrial production lines

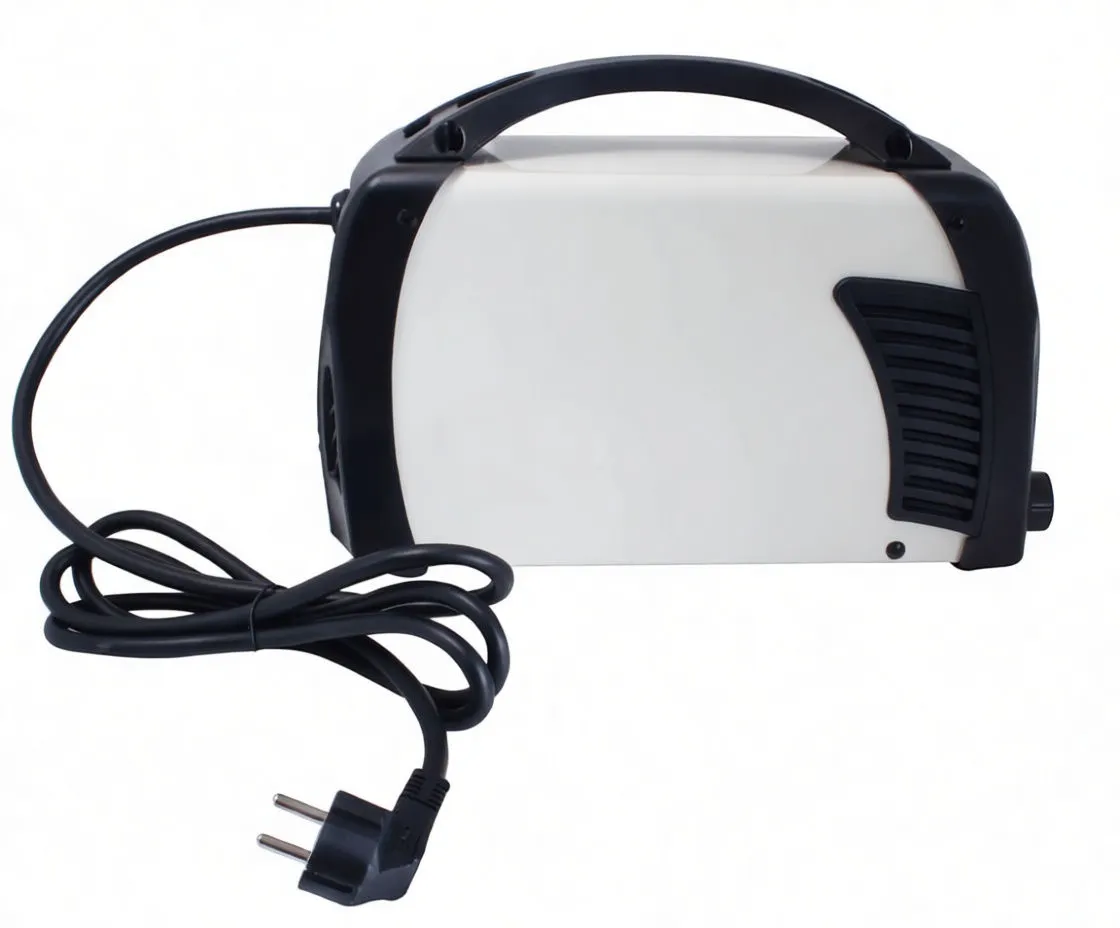

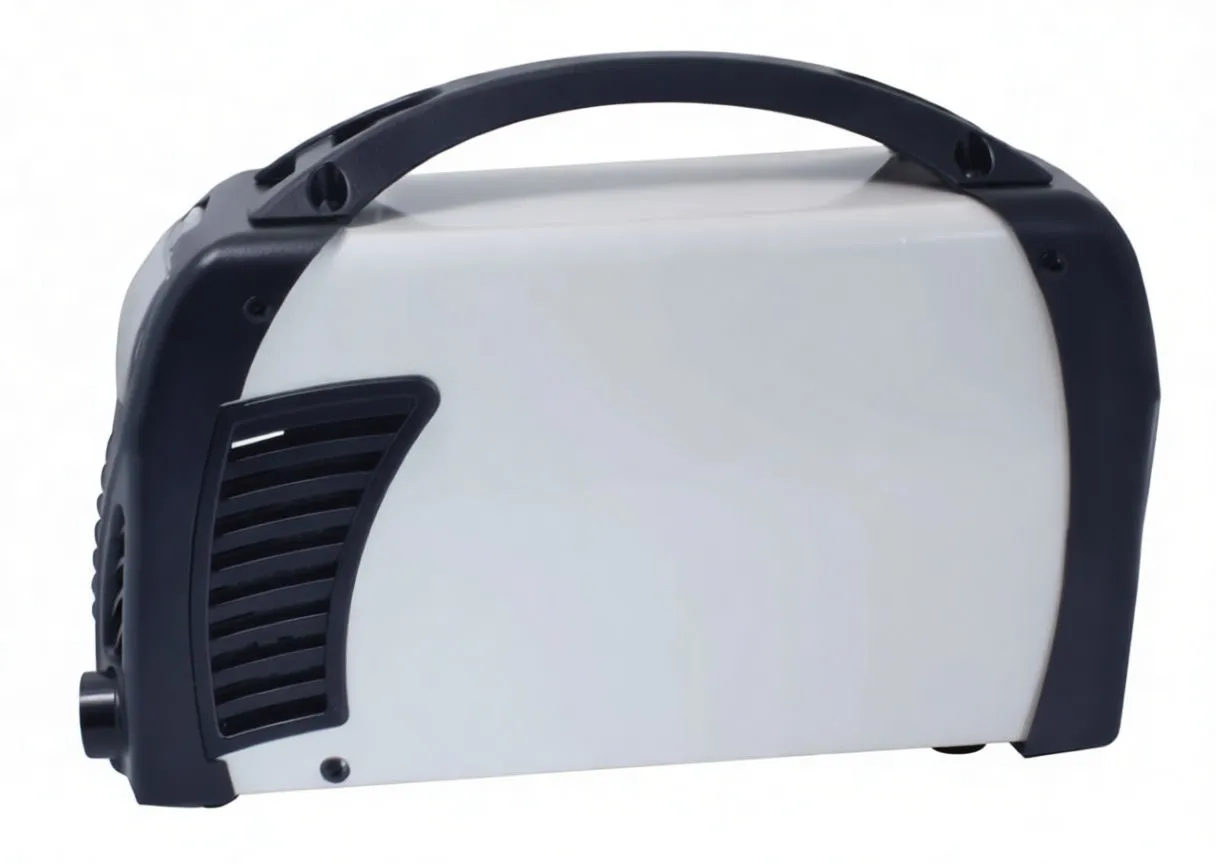

• Compact Portable Design – 37×13×26 cm footprint with integrated carry handle; white metal housing with black trim; approx. 15–18 kg (estimated)
• Clear Control Interface – Single rotary dial behind protective flip cover; straightforward operation with minimal user confusion
• CE Certified – Meets European safety and EMC standards

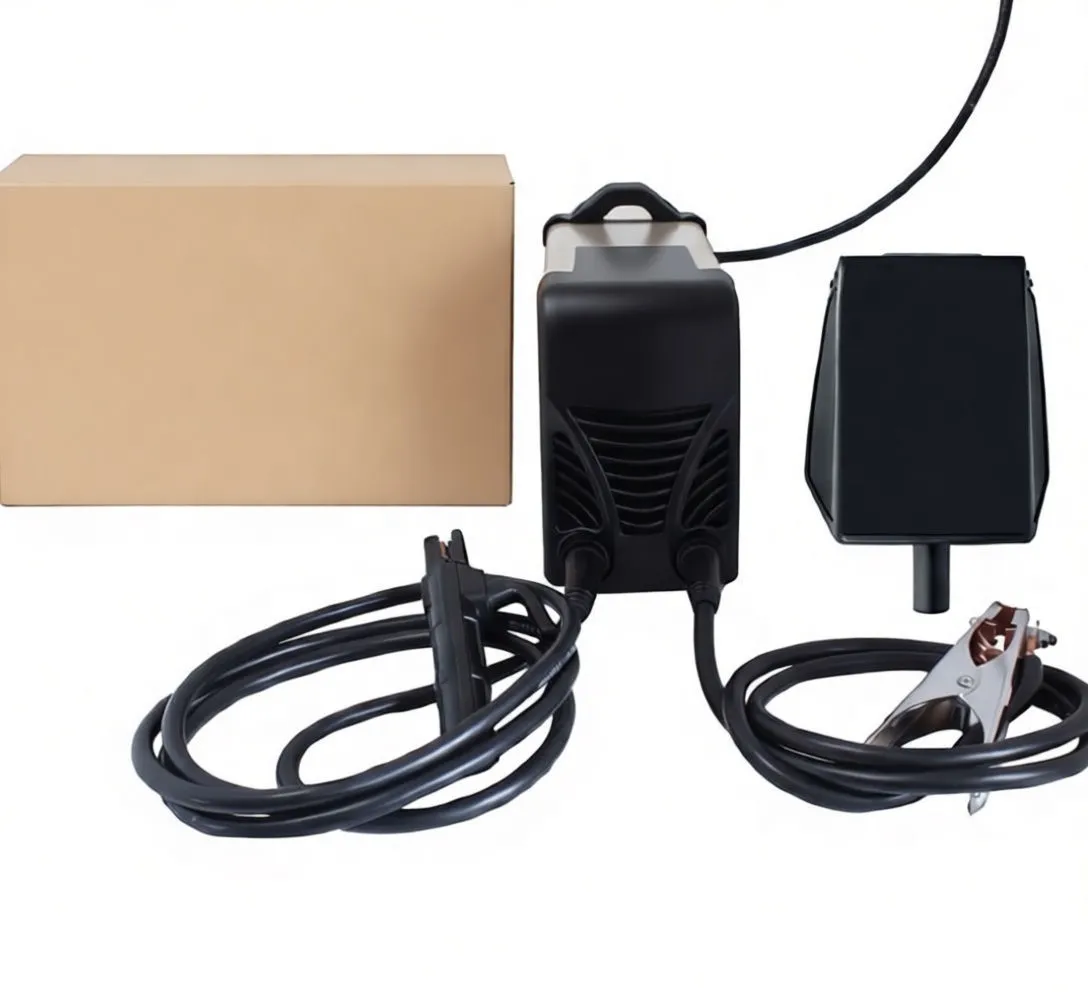

Complete Accessory Kit Included

• 2× Power Cables – 2.5mm² copper conductors, 2.1m length each (one for mains supply, one as spare)
• Main Earth/Ground Cable – 20mm² aluminum, 1.5m with 300A earth clamp; rated for heavy-duty return current
• Electrode Holder Cable – 20mm² aluminum, 2.5m with 200A holder; professional-grade connection
• Welding Mask & Wire Brush – Basic consumables for immediate use
• Mains Power Cord – Integrated with unit; coiled storage on rear

Business Advantages for Resellers

1. Complete Kit Appeal – Supplied with all essential consumables (cables, holder, clamp, mask, brush), meaning minimal additional investment required by the end customer; higher perceived value at point of sale
2. Versatile Market Positioning – Bridges entry-level shops upgrading from older equipment and professional field teams needing portable, reliable stick welding
3. Competitive Margin Opportunity – Single-phase 230V input removes the need for three-phase infrastructure, expanding your addressable market to smaller workshops
4. Low Service Burden – Inverter design with anti-stick and arc force reduces operator errors; customer satisfaction and fewer warranty complaints
5. Accessory Cross-Sell – Pair with complementary electrode types or upgrade to multi-process machines (TIG/MMA models) for existing customer base

Technical Specifications

Specification	Value
Input Voltage	230V AC, single-phase
Frequency	50 Hz
Output Power	9 kVA
No-Load Voltage	60V DC
Welding Current	200A
Duty Cycle	60% at rated current
Power Factor	0.73 (85% efficiency)
Rod Diameter Range	1.6 – 4.0 mm
Arc Control Functions	Anti-stick, arc force, hot start
Housing Dimensions	37 × 13 × 26 cm
Housing Color	Black/Grey composite (white body, black end caps)
Certification	CE marked
Cable Specifications	2× 2.5 mm² copper (2.1 m each); 20 mm² aluminum return cables (1.5 m & 2.5 m)
Included Holder/Clamp	200A electrode holder; 300A earth clamp

Realistic Applications

• Automotive Repair Shops – Frame work, exhaust repairs, structural patching
• Fabrication & Light Manufacturing – General structural assembly, maintenance welds
• Field Repair & Maintenance – Portable enough for on-site work; 60% duty cycle suits intermittent repair schedules
• Training & Educational Use – Straightforward single-dial operation; ideal for teaching stick welding fundamentals

Closing Statement

This MMA inverter offers a pragmatic balance of modern control features, portability, and competitive pricing. The complete accessory kit and CE certification reduce friction in the sales cycle, while the 200A capacity covers the majority of common stick-welding tasks. For resellers targeting professional shops transitioning from older equipment or expanding into portable welding solutions, this is a reliable workhorse that justifies inventory investment and repeat business potential.
