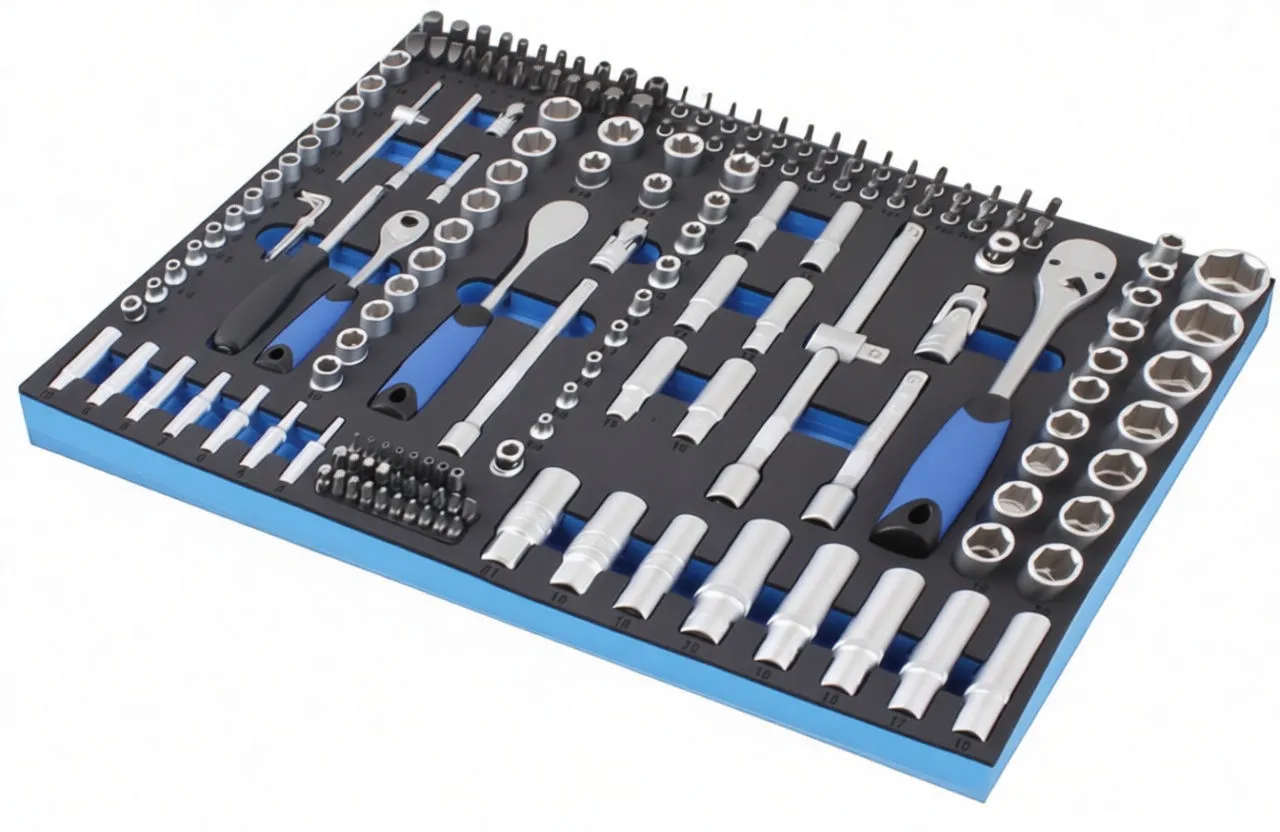

Top view of a black foam tool module with chrome sockets, two blue-and-black ratchets, extensions and bits, branded ASTA.Angled view of a foam-lined tool module with chrome sockets, extensions and two blue-handled ratchets, ASTA logo visible.

Oil-Resistant Foam Module for Workshop Trolley with 3-Piece Ratchet Socket Set

Organized foam insert with complete 1/4", 3/8", and 1/2" socket sets for workshop trolleys. Oil-resistant design keeps tools protected and organized.

Request Quote

Description

Oil-Resistant Foam Module for Workshop Trolley with 3-Piece Ratchet Socket Set

Brief Overview

This foam module insert combines workspace organization with a ready-to-use socket and ratchet system. The oil-resistant construction protects your investment in tools while maintaining a clean, professional workshop appearance. The pre-cut foam accommodates a full complement of 1/4″, 3/8″, and 1/2″ drive tools, making it an efficient choice for mechanics who demand both accessibility and durability. Pair this with complementary drive-system modules to standardize your fleet of workshop trolleys.

Key Features

  • Oil & Chemical Resistant Foam: Engineered to resist petroleum-based substances, dirt, and moisture—eliminating tool degradation and keeping your trolley tidy

  • Custom-Cut Organization: Precision foam cutouts hold each tool in its designated position, eliminating rummaging and reducing tool damage

  • Complete 1/4″ Drive System:

    • 36-tooth ratchet (150mm), plastic handle
    • Three extensions: 52mm, 103mm, 115mm (with sliding pin option)
    • 13 short sockets (4–14mm)
    • 7 long sockets (4–10mm)
    • 5 E-TORX sockets (E4–E8)
    • 15 bits in flat, Phillips, Pozidriv, hex, and TORX profiles
    • 7 hex L-keys (1–5mm)

  • Complete 3/8″ Drive System:

    • 36-tooth ratchet (200mm), plastic handle
    • 150mm extension
    • 10 short sockets (10–19mm)
    • 6 long sockets (10–15mm)
    • 6 E-TORX sockets (E10–E18)
    • 1 spark plug socket (18mm)

  • Complete 1/2″ Drive System:

    • 36-tooth ratchet (265mm), plastic handle
    • Two extensions: 125mm and 250mm (with sliding pin and joint)
    • 17 short sockets (10–32mm)
    • 2 E-TORX sockets (E20, E24)
    • 5 long sockets (16–22mm)
    • 2 spark plug sockets (16mm, 21mm)
    • Full bit set with flat, Phillips, Pozidriv, hex, TORX, and TORX with hole profiles

  • Super Lock System: All sockets feature a locking mechanism that prevents slipping during use

  • Chrome-Vanadium Construction: All sockets and wrenches are chrome-plated for corrosion resistance and durability

  • Modular Compatibility: Fits as a full drawer in SATRA 4007GB/GR trolleys or 4/5 drawer in ASTA 3607B trolleys

  • Foam-Only Option Available: Purchase replacement foam separately (Catalog No. APF-39)

Business Advantages for Resellers

  • High perceived value: This is a complete, organized solution that technicians recognize immediately as a professional-grade investment
  • Trolley compatibility: Fits major workshop trolley brands, making it a natural upsell when customers purchase or upgrade their mobile workstations
  • Retention benefit: Once installed, the organized system discourages tool loss and damage, increasing customer satisfaction
  • Margin opportunity: The foam-only replacement option (APF-39) creates recurring revenue as customers refresh worn modules
  • Bulk flexibility: Standardize multiple technician workstations with a single product line

Technical Specifications

Specification Detail
Material Oil-resistant foam (black) with chrome-plated sockets and chrome-vanadium ratchets
Dimensions 390mm (L) × 560mm (W) × 30mm (H)
Drive Systems Included 1/4″, 3/8″, 1/2″
Total Socket Count 70+ sockets and accessories
Ratchet Mechanism 36-tooth, hand-use only
Compatible Trolleys SATRA 4007GB/GR (full drawer), ASTA 3607B (4/5 drawer)
Handle Material Plastic (ergonomic grip)
Finish Chrome-plated

Important Operating Notes

  • Hand use only — Do not use with impact guns or shock-loaded equipment
  • Sockets feature Super Lock system to prevent slipping during manual operation
  • Oil-resistant foam requires no special maintenance; wipe clean as needed

Call to Value

This foam module transforms a simple trolley into an organized, professional workspace. The combination of oil-resistant protection, comprehensive tool coverage across three drive sizes, and aesthetic design makes it an essential offering for any distributor serving automotive, industrial, and mechanical shops. Stock this as a standard upsell with workshop trolleys, or recommend it to customers upgrading existing systems.

Foam-Only Replacement Available: Catalog No. APF-39
