Pantograph Oil Suction Drainer, 90-Liter Tank Capacity

Brief Overview

This pneumatic-powered oil suction drainer delivers fast, clean extraction of used oil and fluids from engines, gearboxes, and differentials across your entire fleet. The adjustable pantograph collection tray positions effortlessly to match any vehicle's drain valve height, while the integrated visibility bowl lets you inspect fluid condition before discharge. Built for high-volume shop operations, this 90-liter capacity unit minimizes downtime and labor costs per oil change. For shops seeking additional flexibility, consider pairing this system with smaller 65-liter capacity alternatives or comprehensive 2-in-1 oil drainer-changers for mixed service workflows.

Key Features

• 90-Liter Tank Capacity – Handles extended collection runs with minimal emptying intervals

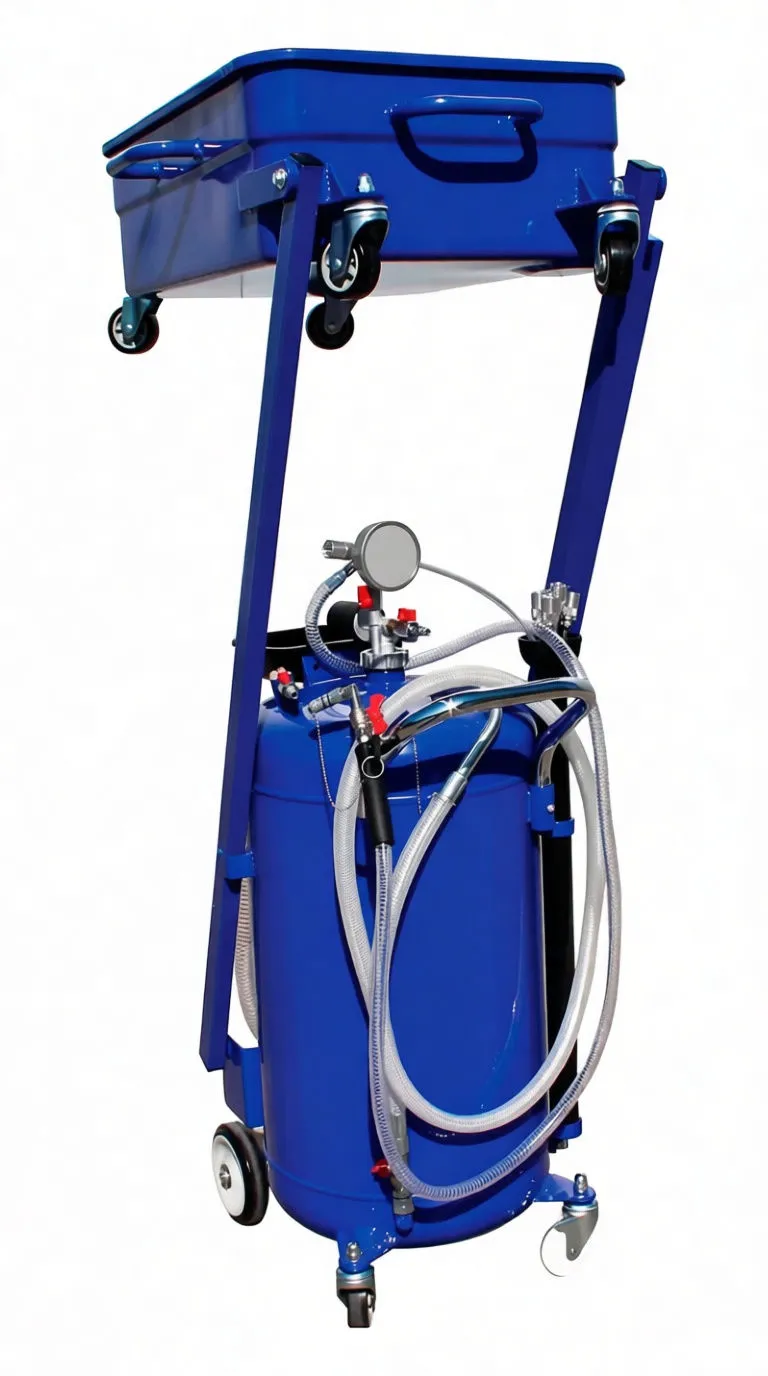

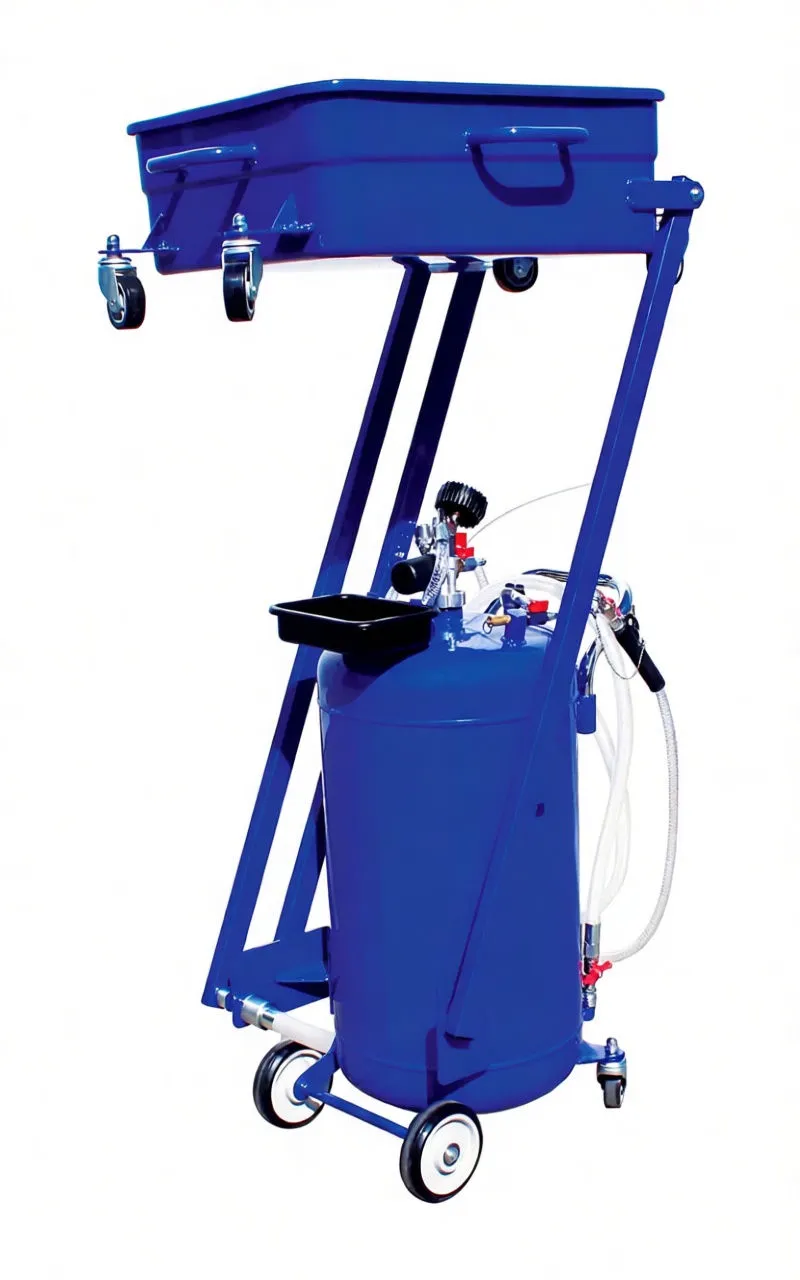

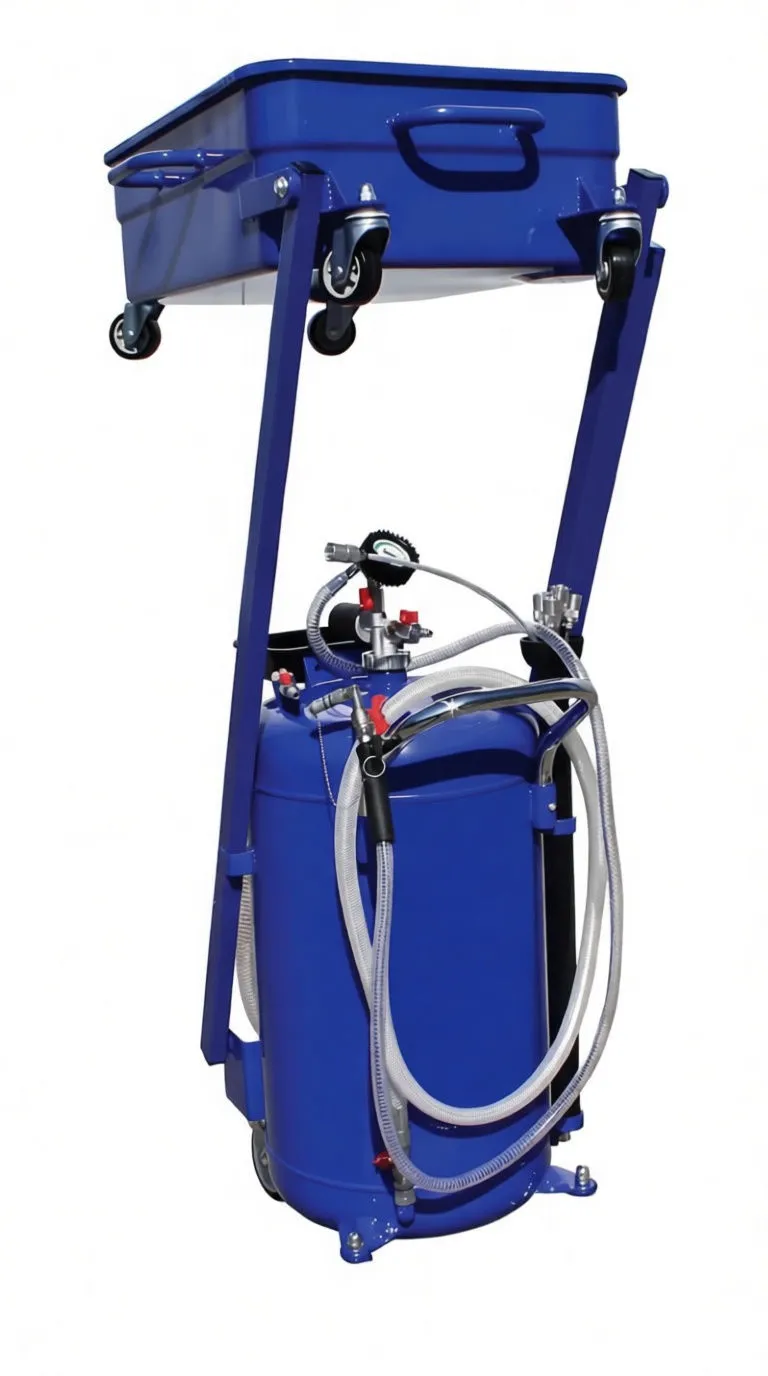

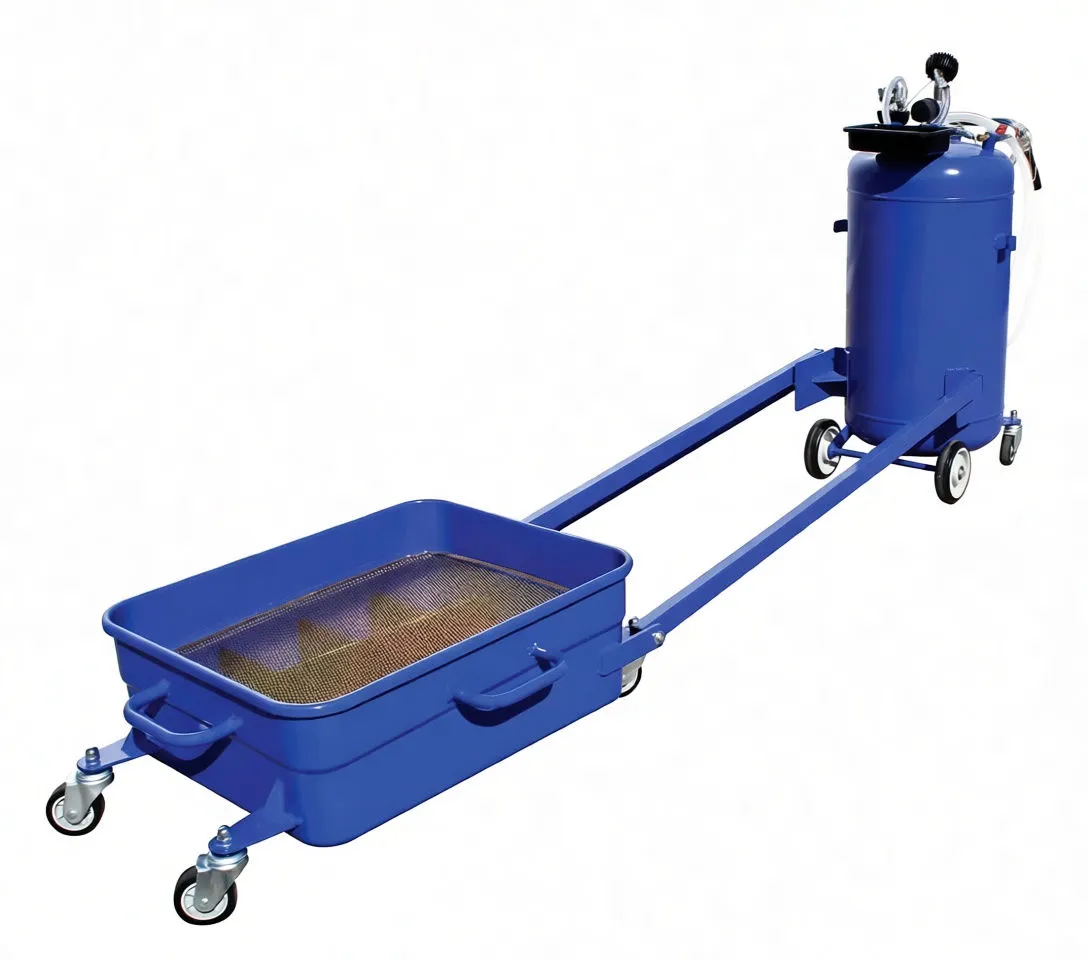

• Adjustable Pantograph Design – Collection tray height ranges from 900 mm to 1540 mm, adapting to any vehicle and drain position without manual repositioning
• Pneumatic Vacuum System – Operates at 7-8 bar; venturi-vacuum extraction achieves 2 L/min intake capacity for rapid fluid removal
• Visual Inspection Bowl – Underside valve with clear sight allows technicians to verify oil quality and catch contaminants before reservoir discharge
• 2-Meter Suction Hose & Drain Wire – Long reach reduces repositioning; quick-release connectors speed coupling and decoupling
• Swivel Caster Wheels – Full mobility across shop floor; supports positioning under vehicles without strain
• Optional Filter Bracket Mount – Upgrade path for sites requiring secondary fluid filtration
• Self-Evacuating Feature – Pneumatic discharge simplifies oil transfer and cleanup

Business Advantages for Resellers

• Fleet Service Efficiency – Reduces oil change cycle time by 30–40% versus gravity-only draining, increasing shop throughput and revenue per labor hour
• Reduced Technician Strain – Eliminates manual pumping and heavy lifting; lowers worker fatigue and injury risk, reducing workers' compensation exposure
• Space-Efficient Design – Compact footprint with high capacity delivers maximum collection volume without excessive floor footprint
• Regulatory Compliance Ready – Sealed collection and controlled discharge meet environmental and safety protocols in most jurisdictions
• Cross-Sell Opportunity – Higher capacity encourages bundling with complementary pneumatic tools and fluid handling equipment
• Premium Positioning – Pantograph adjustment and visibility features justify higher margins versus fixed-height competitors

Technical Specifications

Specification	Value
Tank Capacity	90 L
Usable Filling Capacity	65 L
Collection Pan Capacity	65 L
Operating Pressure	7–8 bar
Suction Rate	2 L/min
Suction Hose Length	2 m
Drain Wire Length	2 m
Height Range (Adjustable)	900 mm (min) – 1540 mm (max)
Dry Weight	75 kg
Mobility	Four swivel casters + two large wheels
Material	Steel tank with durable glossy blue finish; clear sight tubes and brass fittings

Operational Notes

• Pneumatic Supply Required – Connect to shop compressor system; ensure consistent 7–8 bar air pressure for optimal vacuum and self-evacuation performance
• Fluid Compatibility – Designed for mineral and synthetic motor oils, gear oils, and hydraulic fluids. Do NOT use with flammable liquids or highly corrosive substances

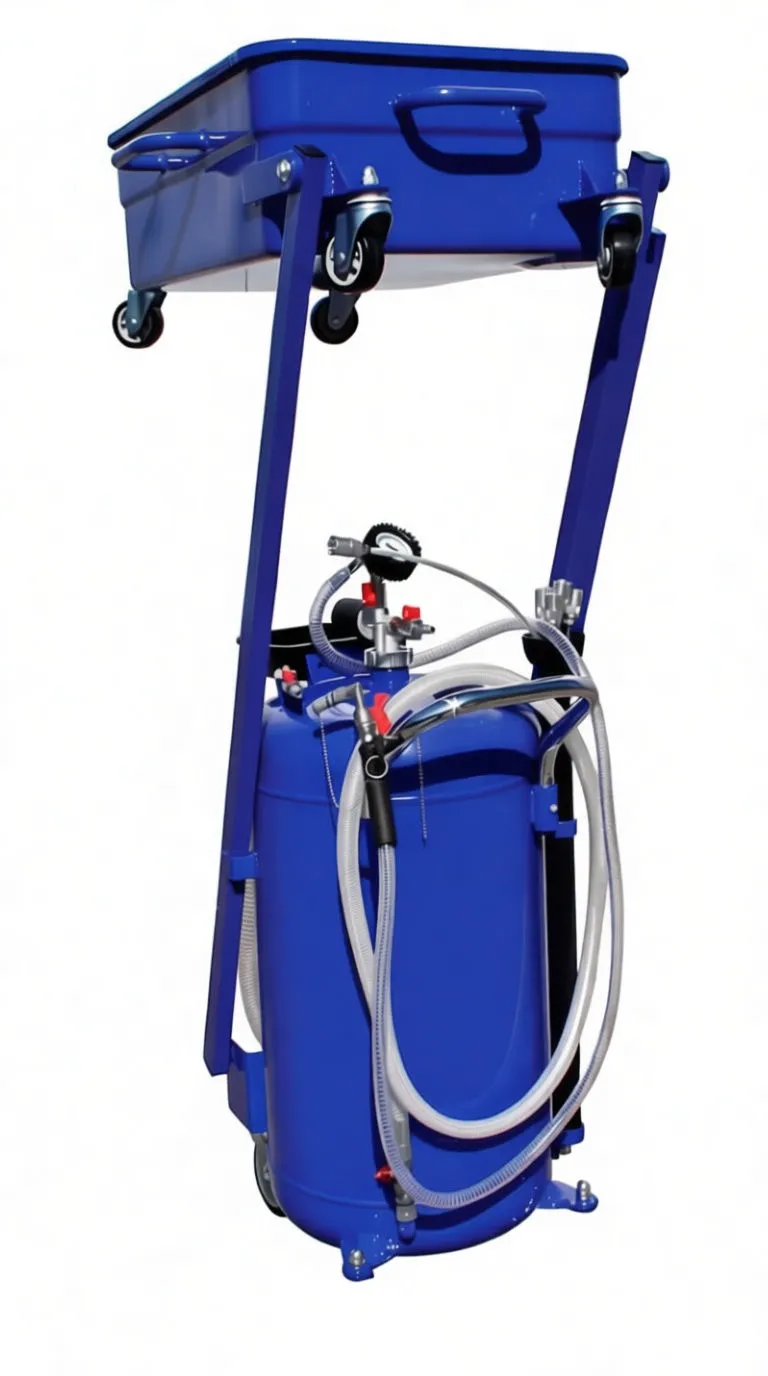

• Maintenance Access – Transparent sight tube with graduated markings enables quick level monitoring without opening tank
• Optional Enhancement – Filter bracket accessory supports secondary filtration workflows for extended oil life or fluid reclamation programs

Why Distributors Choose This Unit

The pantograph adjustment mechanism is the key differentiator: rather than requiring technicians to manually raise/lower the entire drainer (typical fixed designs), the collection tray extends and retracts independently, cutting setup time by 50% and eliminating positioning errors. This translates to faster shop cycles and fewer customer handoff delays—critical for high-volume operations managing 15–20 oil changes per day.

The 90-liter capacity positions this model at the sweet spot: large enough to serve 3–4 consecutive vehicle drains before emptying, yet mobile enough for single-technician operation. Paired with the built-in visibility bowl, technicians gain immediate confidence in fluid condition, reducing callbacks for contamination issues.

Ready to boost your shop's efficiency and margin? Stock this drainer in your premium service-equipment line and watch customer retention improve as cycle times drop.
