Piston Ring Compressor Tool, 60mm Diameter, Spring Steel with Quick-Release Clamp

Overview

This is the workhorse tool for controlled piston ring compression during engine assembly and rebuild operations. The 60mm diameter accommodates small to mid-sized automotive engines—the core segment for independent shop work. The self-locking, quick-release clamp system eliminates fumbling and adjustment errors, keeping both hands free for proper ring positioning during installation. Pair this with piston ring installation tools and professional piston ring pliers to establish a complete ring service workflow that customers recognize and trust.

Key Features

• Spring Steel Band: Premium material ensures consistent clamping force across hundreds of use cycles without fatigue or weakening
• Self-Locking Clamping System: Holds compressed rings firmly in place without manual pressure—both hands remain free for alignment and installation work

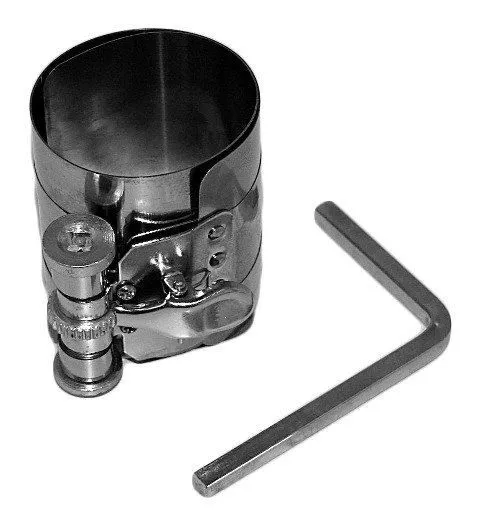

• Quick-Release Lever Latch: Chrome-plated cam mechanism with knurled adjustment screw for tool-free tightening and single-motion release
• Dual Reinforcing Straps: Stainless-steel wraparound design prevents band distortion during compression and extends effective tool life
• Smooth Interior Surface: Engineered finish protects ring coatings and resists scoring or damage to expensive engine components
• Integrated Hex Key: L-shaped Allen wrench housed within the clamp assembly for field adjustments and quick service

Business Advantages

Consistent Demand & Strong Margins: Piston ring compressors see reliable turnover in shops performing top-end work, with typical resale markup of 15–25% across professional channels. Stock depth builds customer loyalty and reduces competitor cross-shopping.

Non-Negotiable for Engine Service: Every shop doing engine rebuilds, performance builds, or block work must have this tool on hand. It's not optional—it's essential. This creates predictable, repeat purchasing.

Minimal Warranty & Return Risk: Spring steel construction and durable latch design mean virtually no field failures or customer complaints about worn clamps or loss of clamping force. Lower return rates protect your margin and reputation.

Completes Your Ring Service Offering: When customers ask for piston ring work, they expect a full solution. This compressor pairs naturally with removal pliers and installation tools, positioning you as a one-stop supplier and increasing average transaction value.

Technical Specifications

Specification	Value
Compression Band Diameter	60 mm
Overall Width	175 mm
Overall Height	100 mm
Band Material	Spring Steel
Clamping Mechanism	Chrome-plated, lever-actuated quick-release
Reinforcement Straps	Dual stainless-steel wraparound
Locking System	Self-locking with quick-release lever
Included Accessory	L-shaped hex (Allen) wrench

Why Stock This Tool

Engine service remains a cornerstone of shop revenue. The 60mm diameter is optimized for the high-volume segment—passenger vehicles and small-displacement rebuilds that make up the backbone of independent shop workload. Shops know they need a reliable compressor; they don't settle for cheap alternatives when ring installation affects engine durability. High-quality spring steel means minimal tool failure in the field, building customer confidence in your supply chain. This is industrial-grade equipment that performs exactly as promised—stock it with confidence.
