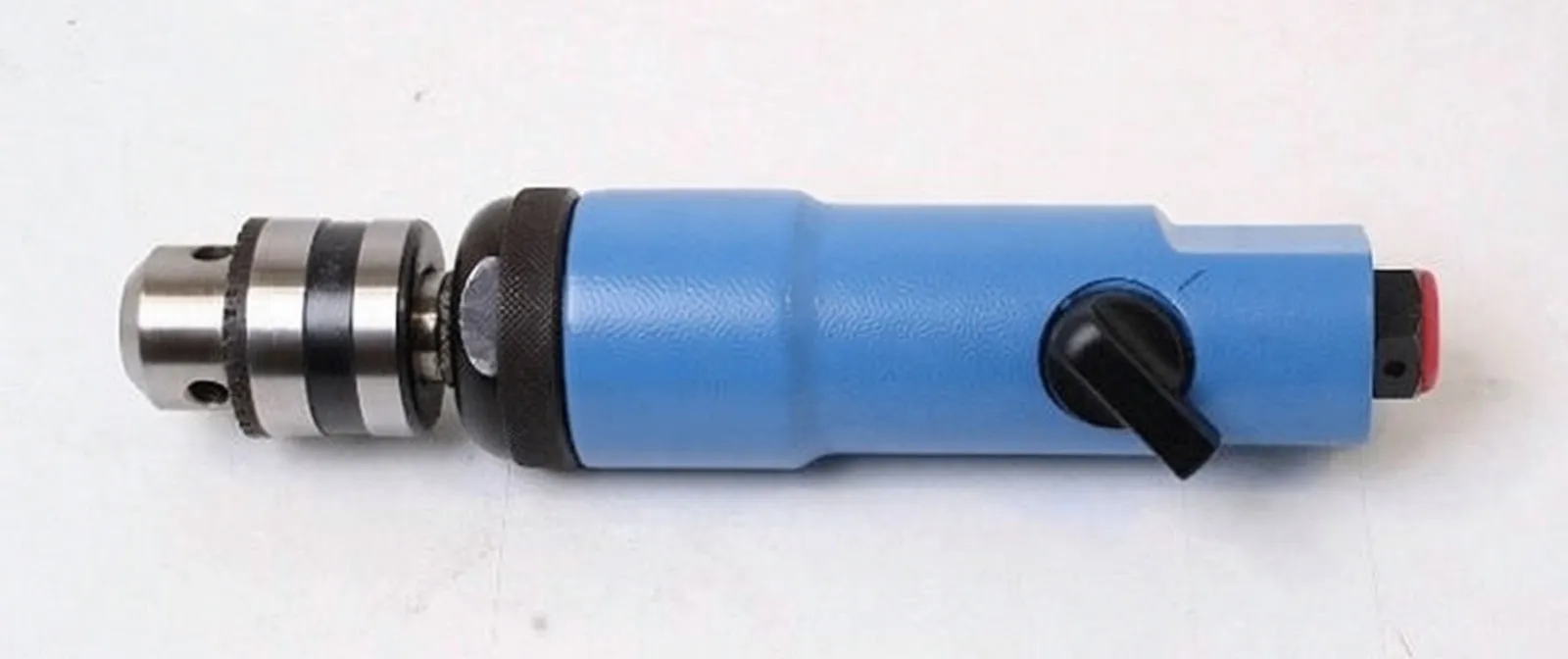

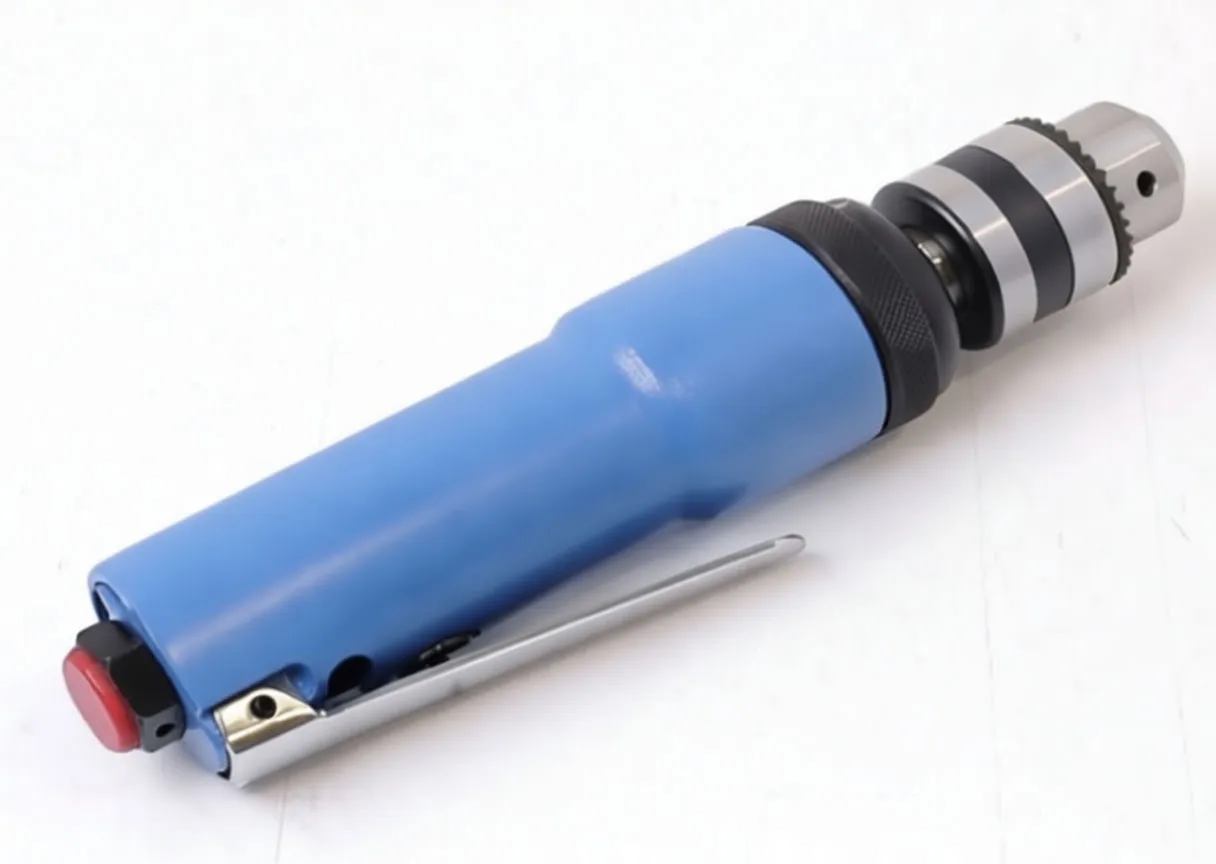

Side profile of blue ASA A-350 pneumatic straight drill with metal chuck, silver throttle lever and rear air inletAngled view of blue pneumatic A-350 drill showing chuck, forward/reverse control, sticker and silver throttle leverTop-side view of pneumatically powered A-350 drill showing spec label, selector knob, throttle lever and keyed chuckDimensional silhouette diagram of the straight drill showing 210 mm length, 80 mm height and 50 mm front depth

Pneumatic Air Straight Drill 10mm (3/8"), Reversible, Compact 1600 RPM

High-speed straight pneumatic drill with variable speed control and compact design for precision work in confined spaces.

Request Quote

Description

Pneumatic Air Straight Drill 10mm (3/8"), Reversible, Compact 1600 RPM

Brief Overview

This 3/8-inch straight pneumatic drill delivers reliable performance in tight spaces and precision applications where traditional pistol-grip designs won't fit. The compact 210mm profile makes it indispensable for confined area work—metal fabrication, woodworking, assembly operations, and detailed drilling tasks. The reversible chuck and three-position speed control (1200–1600 RPM) give your technicians flexibility across material types. If you're stocking pneumatic drilling solutions, pair this with angle-drive pneumatic drills for a complete lineup covering both straight and angled access requirements.

Key Features

  • 3/8" Keyed Chuck – Secure bit retention with standard 10mm capacity
  • Reversible Operation – Forward and reverse for drilling and light fastening tasks
  • Three-Position Speed Control – 1200, 1400, or 1600 RPM settings for material-specific optimization
  • Compact Straight Handle – 210mm length enables operation in tight, confined areas
  • Level Throttle Control – Top-mounted lever for intuitive speed management
  • Rear Exhaust Deflection – Directs air discharge away from the work surface and operator
  • Balancer-Ready – Includes hanger mounting point for pneumatic tool balancers
  • Low Vibration – 2.5 m/s² vibration level reduces operator fatigue during extended use

Why Distributors Stock This Model

Margin & Inventory Efficiency: The compact design fits easily into standard toolbox storage and display units—no oversized footprint to manage. Straight drills command consistent demand from metal fabrication, precision assembly, and maintenance shops that need alternatives to bulkier pistol-grip models.

Customer Retention: Once a shop discovers the value of a straight drill for confined spaces, they return for replacements and complementary tools. This model's three-speed control appeals to both high-volume production (precision setting at 1200 RPM) and general maintenance (full speed at 1600 RPM).

Spec Flexibility: The reversible function and speed range cover drilling, light tapping, and reaming—expanding the tool's utility and reducing the need for multiple SKUs in a shop's inventory.

Technical Specifications

Specification Value
Chuck Size 10mm (3/8") keyed
Maximum RPM 1600
Speed Control 3-position (1200, 1400, 1600 RPM)
Reversible Yes
Overall Length 210mm
Weight 0.68 kg
Air Consumption 200 L/min
Sound Level 75 dB(A)
Vibration Level 2.5 m/s²
Chuck Type Keyed 3-jaw
Handle Design Straight with throttle lever

Reseller Value Statement

This straight pneumatic drill fills a critical gap in any professional tool distributor's lineup. Shops that work in tight engine bays, panel assemblies, and precision metalwork will struggle without it. The compact footprint, reversible capability, and three-speed flexibility make it a versatile workhorse that justifies frequent reorder cycles. Pair with pneumatic pistol-grip drills to offer customers a complete drilling solution for every access scenario—straight for confined spaces, angled for awkward angles, and pistol-grip for standard operations.

Stock this model with confidence. It answers a specific operational need that broader, heavier tools cannot satisfy.
