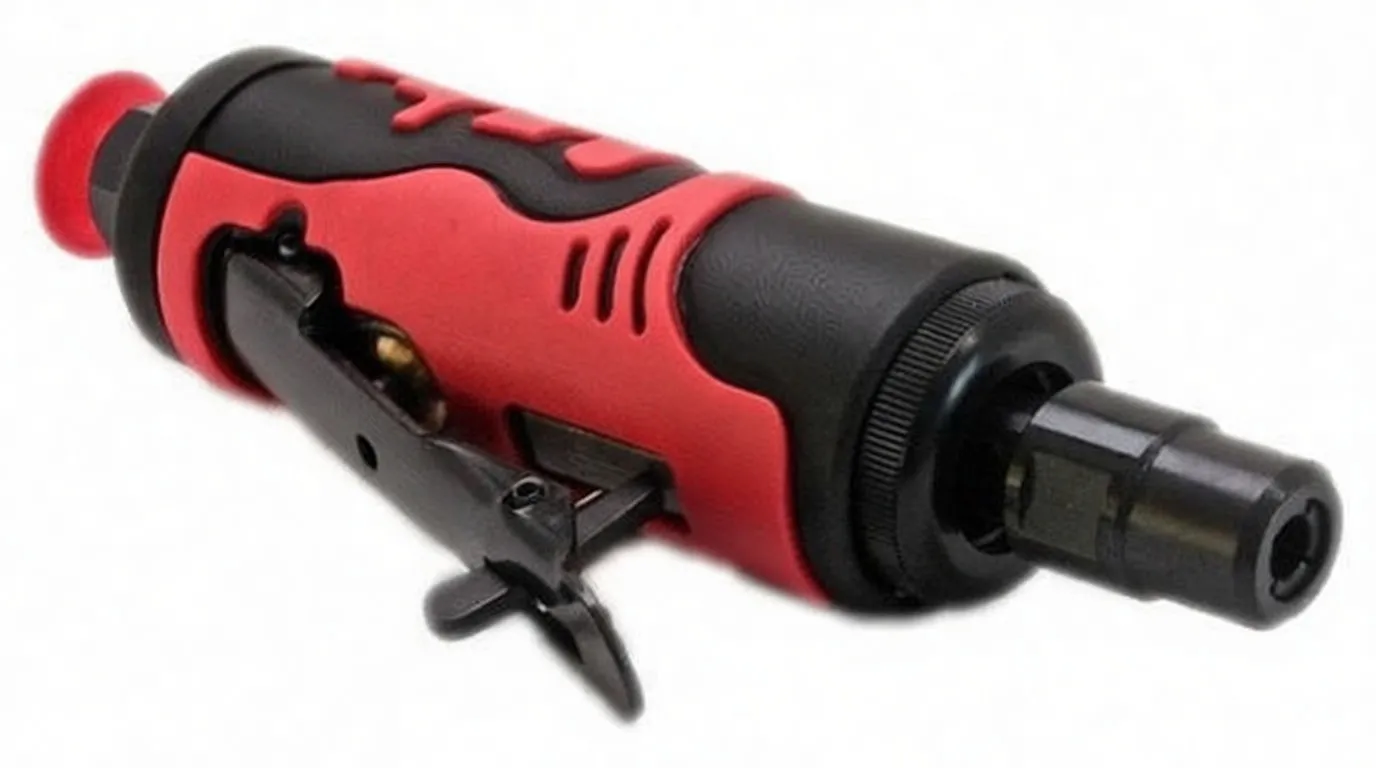

Red and black cylindrical die grinder with black collet at one end and red rubber cap at the other, showing a metal ID plate and round recessed port on the side.Close-up of die grinder front showing metal collet, recessed hex interior, red overmold with vents and a metal label reading 'SHINANO INC.' plus a red end cap.Angled image of die grinder showing metal throttle lever with safety latch, brass mechanism, raised 'S' logo on rear cap, and collet at the front.

Pneumatic Die Grinder, 6mm Collet, 27,000 RPM, Lightweight Inline Design

Compact pneumatic die grinder with 6mm collet, feather-touch throttle, and vibration-dampening composite body for precision grinding and finishing work.

Request Quote

Description

Pneumatic Die Grinder, 6mm Collet, 27,000 RPM, Lightweight Inline Design

Brief Overview

This compact pneumatic die grinder delivers the precision and control your shop needs for detailed grinding, finishing, and deburring operations. Engineered for comfort and durability, it features a 6mm collet configuration with dual-collet availability (1/4" and 6mm options), making it adaptable to various tooling requirements. If your customers require alternative spindle orientations, angled exhaust die grinders or extended-shaft models are also available to complement your product range.

Key Features

  • Feather-Touch Throttle Lever: Ergonomic paddle-style control with integrated safety latch for intuitive power modulation and operator safety
  • Dual-Collet Configuration: Ships with either 1/4" or 6mm collet options to match diverse customer tooling needs
  • Vibration & Temperature Protection: Double-molded composite body cover reduces vibration transmission and provides cold-temperature insulation for extended comfort
  • Lightweight, Inline Design: At just 0.37 kg, the compact cylindrical body minimizes fatigue during prolonged use while maintaining excellent balance
  • Industrial-Grade Construction: Metal identification plate and brass throttle components ensure longevity in demanding workshop environments
  • Efficient Air Consumption: Optimized at 1.2 L/min for cost-effective shop operation

Why Resellers Choose This Model

This die grinder sits in the high-speed, precision-focused segment of the market. At 27,000 RPM with low weight and feather-touch control, it's ideal for resellers targeting automotive, jewelry, dental, and small-parts manufacturing shops. The 84 dB(A) operational noise level makes it suitable for environments where operator comfort is important. Stock this tool to capture customers who need reliable finishing work without the premium pricing of specialty models.

Technical Specifications

Specification Value
Collet Size 6mm (1/4" collet also available)
Maximum Speed 27,000 RPM
Power Output 219 W
Weight 0.37 kg (0.83 lb)
Noise Level 84 dB(A) at operating pressure
Vibration (ISO 5349) 2.3 m/s² (vibration); 0.7 m/s² (acceleration)
Air Consumption 1.2 L/min (CFM: 2.6)
Housing Material Double-molded composite with rubberized grip sections
Throttle Type Feather-touch paddle lever with safety latch
Spindle Configuration Inline, rear-exhaust design

Typical Applications

  • Precision grinding and finishing on small components
  • Deburring and edge work in metal fabrication
  • Dental and jewelry workshop operations
  • Automotive parts finishing and surface preparation
  • Small-batch precision manufacturing

Bottom Line for Your Business

This pneumatic die grinder offers a competitive entry point into the high-speed precision-tool category. With efficient air consumption, proven vibration dampening, and an ergonomic design that reduces operator fatigue, it's a reliable product to stock for customers seeking dependable finishing capabilities. The dual-collet availability adds flexibility to your inventory positioning, allowing you to serve broader customer bases without maintaining separate SKUs.
