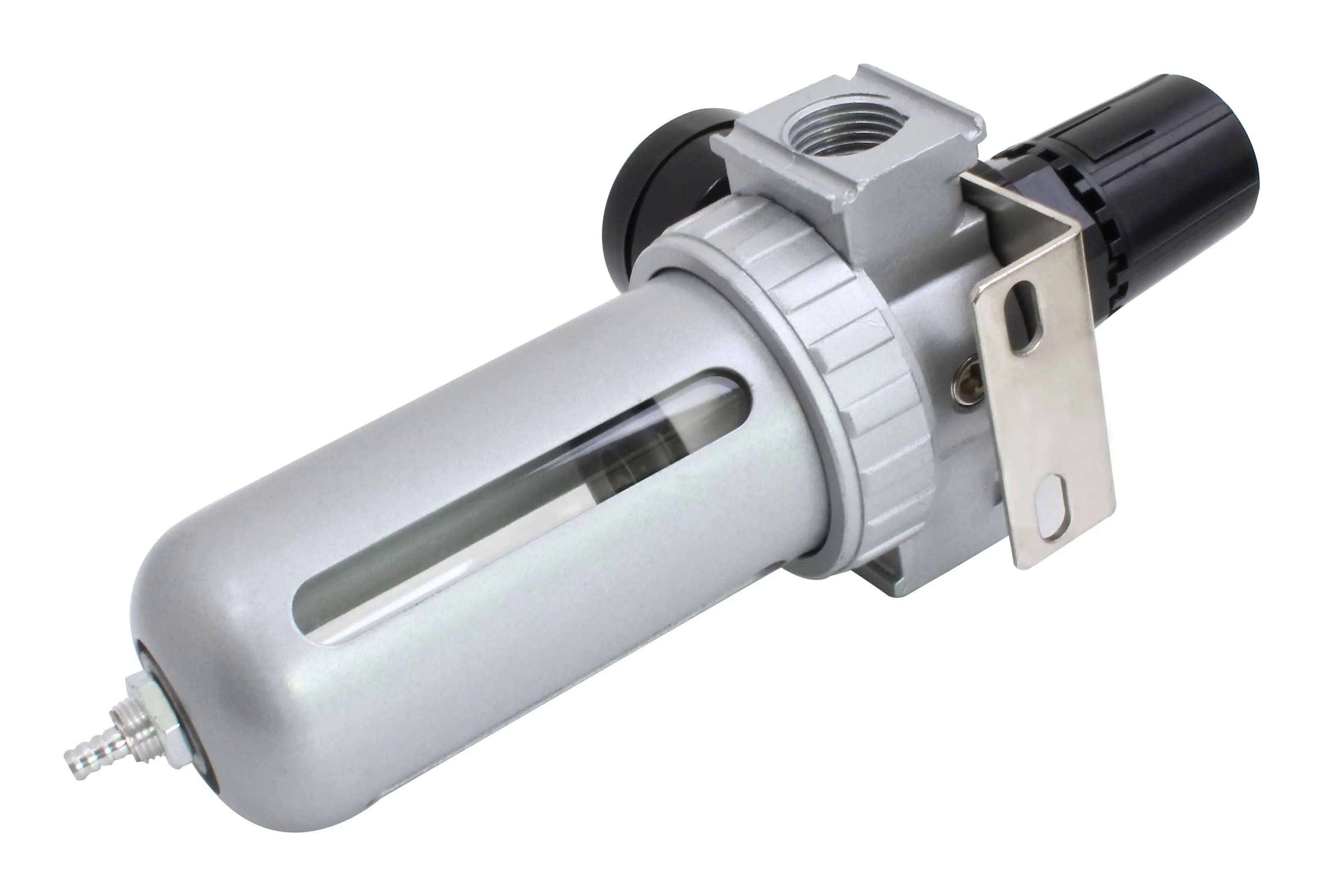

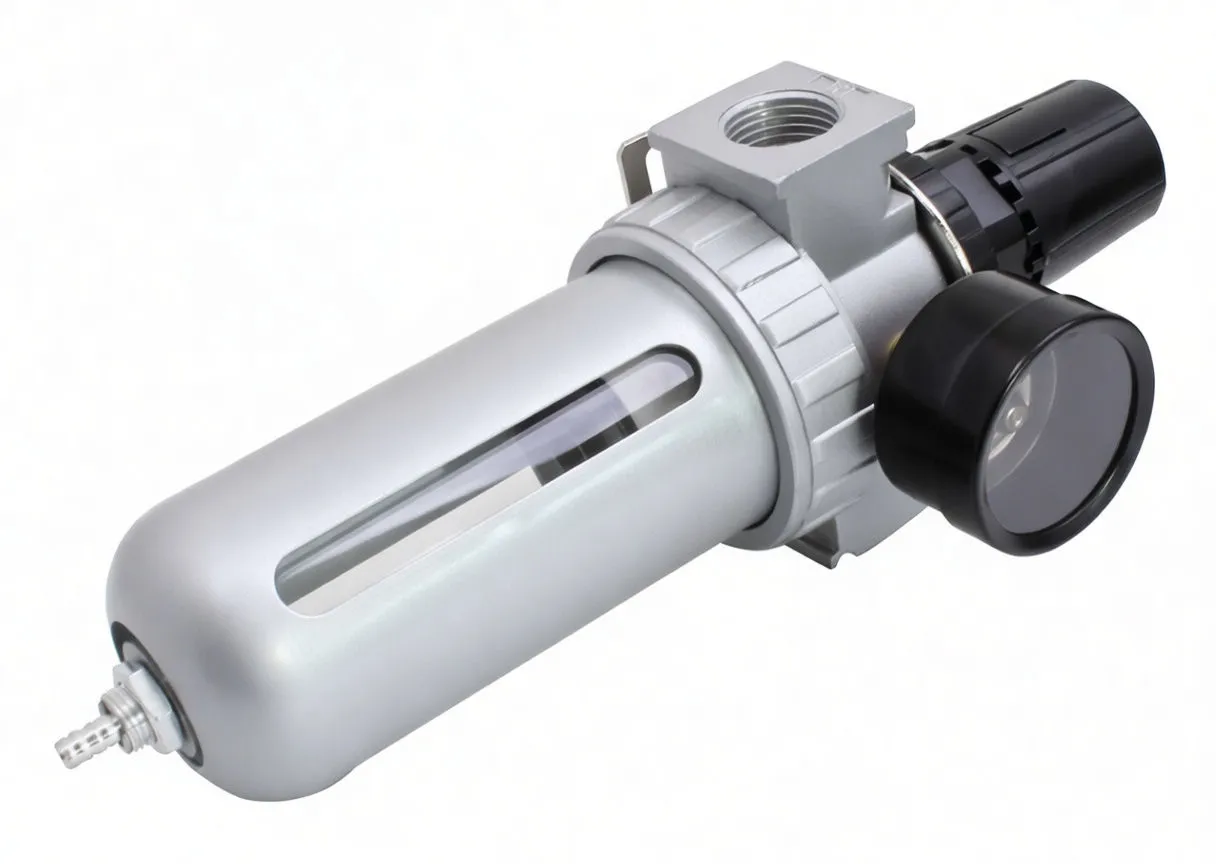

Pneumatic Filter Regulator, 1/2-Inch BSP, 10 Bar Max, 3000 L/min Flow

Brief Overview

This 1/2-inch BSP filter regulator is a essential component for compressed air systems requiring moisture removal and pressure stabilization. The unit combines a high-capacity water bowl, calibrated pressure regulator, and visual gauge monitoring in a compact aluminum assembly. Whether you're outfitting a workshop or upgrading existing pneumatic infrastructure, this regulator delivers consistent air quality and pressure control. For customers needing additional functional layers, consider pairing this with a complete air treatment system with integrated lubrication or a specialized inline filtration solution for specific application requirements.

Key Features

• Integrated dual-scale pressure gauge – Reads 0–10 bar and 0–150 psi simultaneously for intuitive pressure monitoring
• 80 ml water bowl capacity – Translucent design with sight window for easy condensate level assessment; includes manual drain valve at base
• Adjustable pressure range – Regulates system pressure between 0.5 and 8.5 bar to match application demands
• High flow capacity – Rated for 3000 L/min maximum flow, minimizing pressure drop in high-demand systems
• 5-micron filter element – Standard grade filtration removes particulates and moisture for clean, dry air delivery
• 1/8" BSP gauge port – Compatible with standard pressure monitoring instrumentation
• Durable aluminum construction – Corrosion-resistant body with ribbed locking ring for secure bowl attachment
• Convenient side-mount bracket – Metal bracket securely clips regulator to workshop walls or equipment frames
• Wide temperature operating range – Functions reliably from 5°C to 60°C, suitable for indoor and temperature-controlled environments

Business Advantages for Resellers

This filter regulator represents core pneumatic infrastructure—a workhorse product with consistent demand across automotive shops, manufacturing facilities, and tool rental operations. The transparent bowl and dual-scale gauge appeal to end-users who value visibility into system condition, reducing support calls about pressure issues. At this flow rating and price point, it sits in a sweet spot for margin-friendly bulk orders. Stock depth in 1/2-inch BSP configurations will strengthen your competitive positioning, particularly when bundled with pressure control accessories or air preparation upgrades.

Technical Specifications

Parameter	Value
Thread Size (Input/Output)	G/BSP 1/2"
Gauge Thread	1/8" BSP
Water Bowl Capacity	80 ml
Maximum Flow Rate	3000 L/min
Maximum Supply Pressure	15 bar
Maximum Operating Pressure	10 bar
Pressure Regulating Range	0.5–8.5 bar
Filter Grade	5 micron (Standard)
Operating Temperature Range	5–60°C
Pressure Gauge	Dual scale (0–10 bar / 0–150 psi)
Drain Type	Manual bottom outlet with hose barb fitting
Construction Material	Aluminum body with stainless/plated hardware
Mounting	Integrated metal side-mount bracket

Why This Product Works for Your Customers

End-users rely on filter regulators to maintain consistent pneumatic tool performance and extend equipment life by removing moisture and contaminants. The adjustable pressure range (0.5–8.5 bar) allows shops to optimize pressure for delicate precision work or robust industrial applications without changing components. The 3000 L/min rating handles multiple simultaneous pneumatic tools without excessive pressure drop, critical for productivity in busy environments. The transparent bowl design builds confidence—users can visually verify condensate accumulation and schedule maintenance before system performance degrades.

Stock This Regulator for Steady Turnover

Pneumatic filter regulators are repeat-purchase items in any professional setting. Whether replacing worn units, expanding air line networks, or upgrading from older systems, resellers who maintain consistent stock of 1/2-inch BSP configurations will capture ongoing demand. The dual-scale gauge, generous water capacity, and compact footprint make this model attractive for customers balancing performance and workshop real estate.
