Pneumatic Grease Pump Mobile Unit

Brief Overview

This is a complete, self-contained grease distribution solution designed for shops and service centers that need efficient, controlled lubrication delivery without frequent refilling. The unit combines a pressurized 13 kg reservoir with a mounted pneumatic pump, pressure regulation system, and 2-meter delivery hose, eliminating the need for manual pumping and reducing operator fatigue during extended lubrication tasks. For operations requiring broader fluid handling capabilities, you may also want to consider electric-driven oil distribution systems or a mobile oil dispenser for multi-application facilities.

Key Features

• 13 kg Grease Capacity: Reduces refill frequency during typical service operations
• Pneumatic Operation: Air-driven pump eliminates manual labor; requires standard shop air supply
• 8 bar Working Pressure: Consistent, controlled grease delivery without over-pressurization

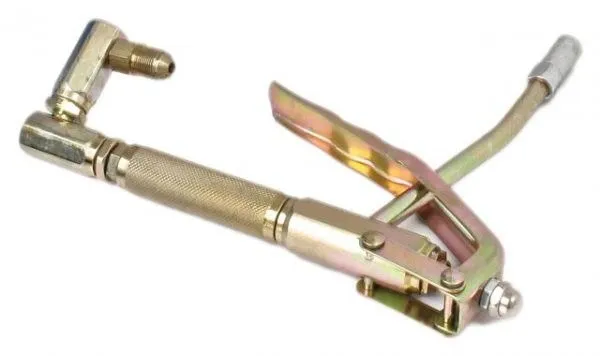

• 2-Meter Delivery Hose: Sufficient reach for most workshop stations; includes brass gun and swivel fitting
• Integrated Pressure Gauge: Real-time system pressure monitoring for operator control
• Wheeled Mobile Base: Portable unit moves between service bays; carrying handle for maneuvering
• Grease Control Valve: Precise delivery rate regulation (800 g/min nominal output)
• Durable Construction: Corrosion-resistant materials and sealed reservoir extend service life

Business Advantages for Resellers

Margin Driver: Grease pump systems are recurring inventory—shops purchase complementary hoses, replacement guns, and maintenance supplies regularly.

Shop Retention: Once installed, mechanics depend on the system daily. This creates customer lock-in for service parts and upgrades.

Bulk Order Incentive: Offer bulk discounts to fleet services and multi-bay facilities; positioning yourself as the complete lubrication supplier increases order frequency.

Competitive Positioning: Pneumatic systems are cost-effective compared to electric alternatives, making this an accessible entry point for price-sensitive customers.

Technical Specifications

Specification	Value
Reservoir Capacity	13 kg
Hose Length	2 m
Pressure Ratio	50:1
Working Pressure	8 bar
Air Consumption	120 L/min
Pump Delivery Rate	800 g/min
Air Connection	1/4"

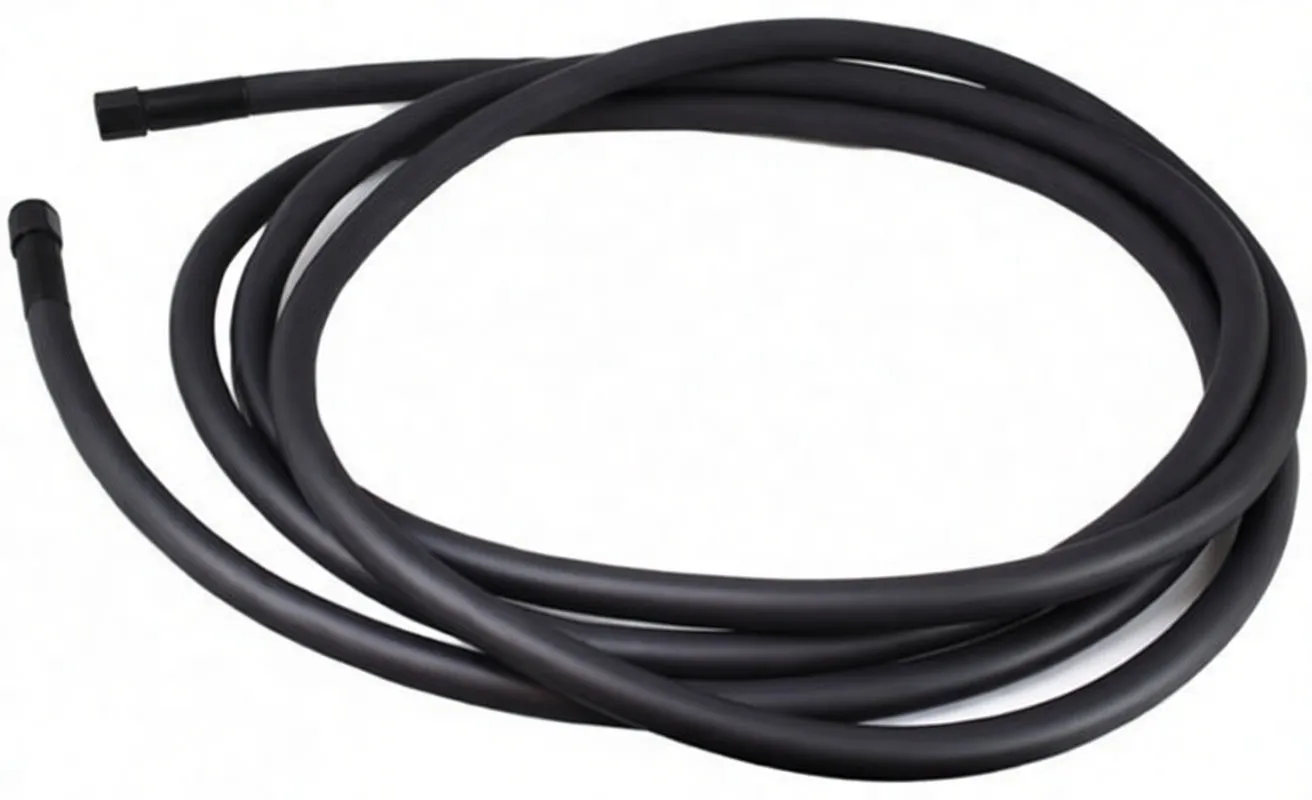

Hose Specification	High-pressure SAE 100R 1AT, rated 3500 PSI
Mobility	Wheeled base with carrying handle

Application Context

This unit is sized for mid-sized service operations: automotive repair shops, equipment maintenance facilities, and industrial service centers with 2–5 service bays. The 13 kg capacity and 800 g/min delivery rate support 4–6 hours of continuous or intermittent lubrication work before refilling. The pneumatic drive requires connection to a standard shop compressor (minimum 120 L/min at 8 bar); confirm your customer's air supply availability before recommending.

Why Resellers Choose This Unit

Simplicity: No electric motor, no complex controls—mechanics understand pneumatic operation immediately.

Reliability: Fewer moving parts than electric systems; minimal maintenance requirements.

Cost Control: Lower upfront cost than electric pumps; faster ROI for your customers.

Scalability: Easy to stock replacement hoses, guns, and seals; build a service revenue stream.

---

Ready to order in bulk? This unit is ideal for distributor stock. Position it as the entry-level grease distribution solution for shops upgrading from manual pumping. Pair it with our high-pressure hose assemblies to increase basket size and customer satisfaction.
