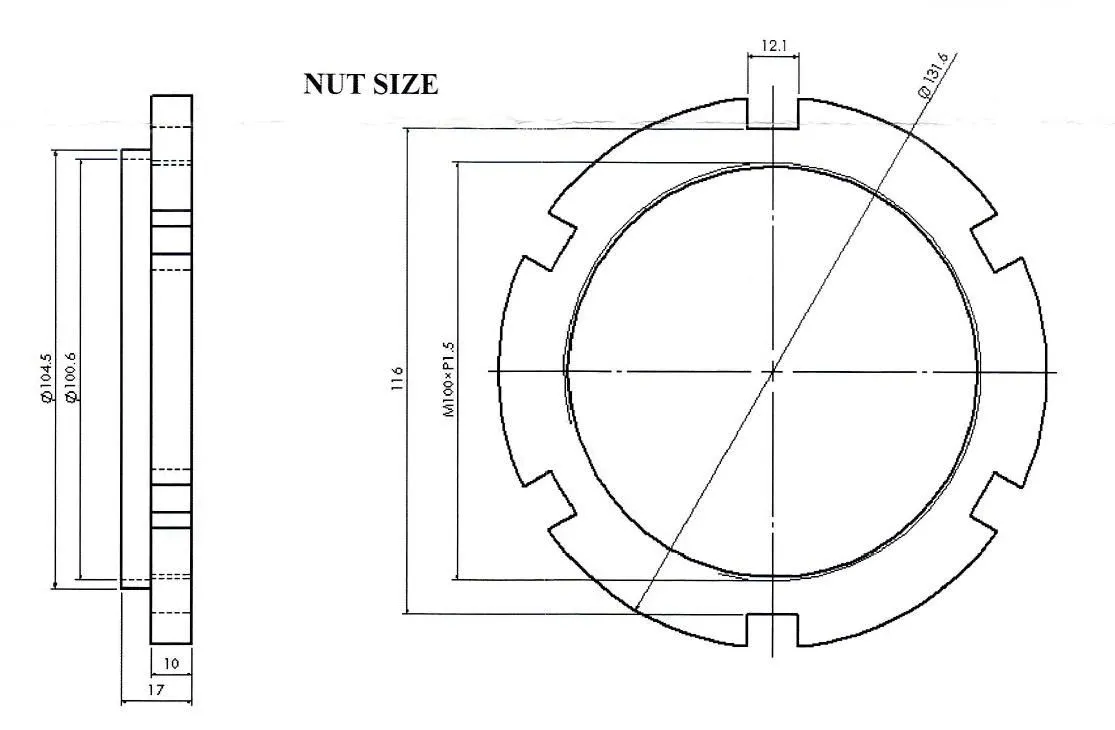

Top view photo of a round metal rear wheel nut socket with central cylindrical sleeve, square drive recess and several radial notches on the outer flange.Technical line drawing of rear wheel nut socket showing top and side views with dimensions including M100xP1.5 and 116 mm.Exploded line sketch of the rear wheel nut socket fitting over a hub and nut, showing alignment of socket notches with the hub for removal.

Rear Wheel Nut Socket, 3/4-Inch Drive, M100x1.5 Thread, MAN TGA

Precision-engineered rear wheel nut socket for MAN TGA heavy trucks. 3/4-inch square drive, 116mm flange with engagement notches for secure torque application.

Request Quote

Description

Rear Wheel Nut Socket – 3/4-Inch Drive, MAN TGA Application

Overview

This rear wheel nut socket is purpose-built for MAN TGA heavy-duty truck maintenance, delivering the precision fit and engagement geometry required for reliable wheel nut removal and installation on commercial vehicle rear axles. The 116mm flange with multi-point engagement notches ensures positive torque transfer without slippage, critical when working with the substantial fastening forces typical of heavy truck wheel assemblies. Pair this with complementary front wheel fastening tools or drive axle solutions to build a complete truck service kit for your shop.

Key Features

  • 3/4-inch Square Drive: Direct compatibility with standard breaker bars, torque wrenches, and impact tools
  • M100×1.5 Thread Engagement: Precision-machined internal bore matches MAN TGA rear wheel nut specifications exactly
  • Multi-Point Notch Design: Six equally spaced radial engagement notches distribute load across the nut and prevent rounding or cam-out
  • 116mm Flange Diameter: Provides optimal leverage and stability during high-torque operations
  • Machined Metal Construction: Durable, hardened steel with bluish protective finish resists corrosion in demanding fleet environments
  • Stepped Internal Bore: Engineered geometry centers the socket on the nut and guides alignment during engagement

Why This Matters for Your Business

Heavy truck workshops handle repeat wheel service across MAN TGA fleets. A dedicated rear wheel nut socket eliminates the risk of damage from universal sockets or improvised tools—protecting both the fastener and your shop's reputation. The multi-point notch system prevents the rounding that shortens tool life and creates comebacks, directly improving labor efficiency and reducing waste.

This is a essential inventory item for any shop servicing European heavy commercial vehicles. Stock it alongside front wheel fastening tools to offer complete wheel service capability to fleet customers.

Technical Specifications

Specification Value
Drive Size 3/4" square drive
Thread Size M100×1.5
Flange Diameter 116 mm
Engagement Notches 6 equally spaced
Slot Width 12.1 mm
Inner Bore (Primary) Ø104.5 mm
Inner Bore (Step) Ø100.6 mm
Overall Height 17 mm (body) + 10 mm (sleeve)
Application MAN TGA Rear Wheel Assembly
Material Hardened steel with protective finish

Recommended Use

  • Wheel removal and installation on MAN TGA commercial vehicles
  • Heavy fleet maintenance operations
  • Professional truck service centers
  • High-torque applications requiring secure fastener engagement

Value Proposition

This socket eliminates the uncertainty of universal tools and delivers the precision fit MAN TGA fasteners demand. For distributors, it represents a high-margin, specialized tool that commands premium pricing in commercial vehicle service markets while reducing your customer's downtime and comebacks.
