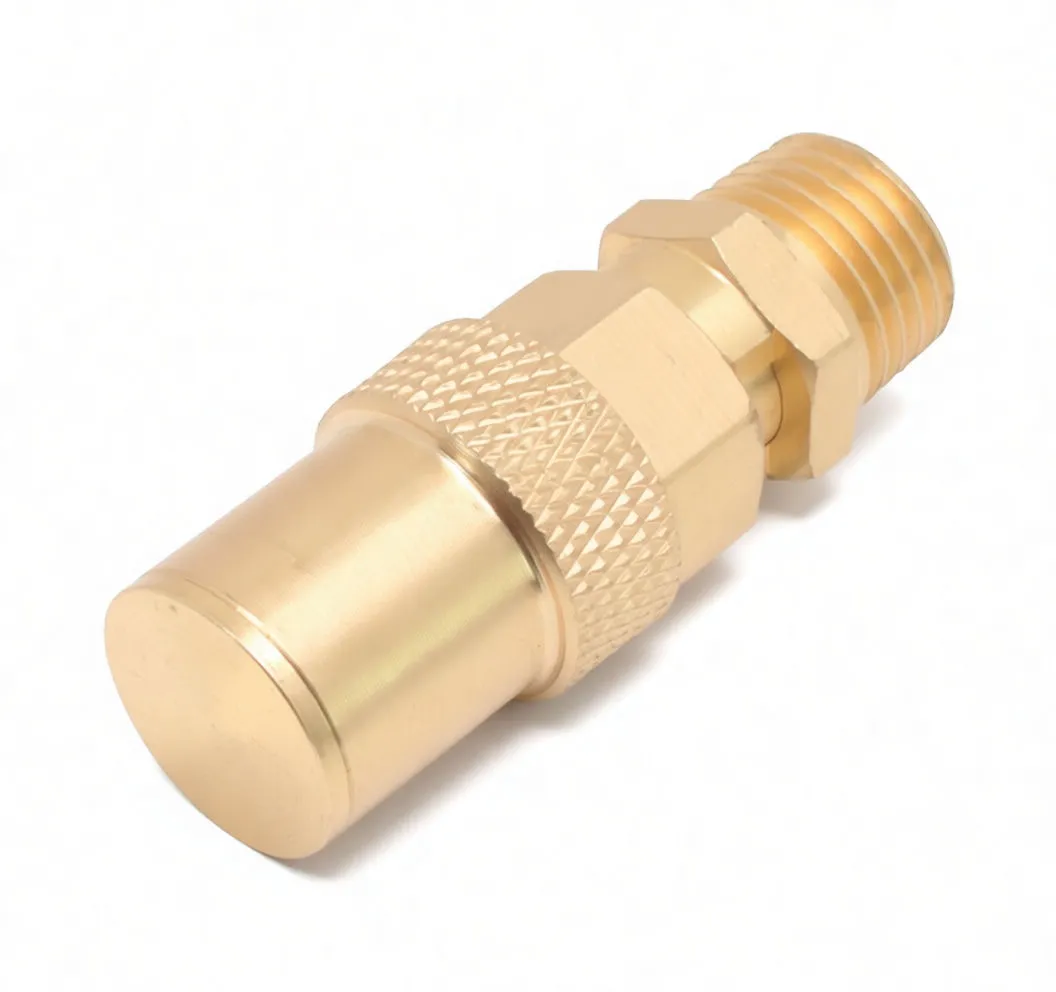

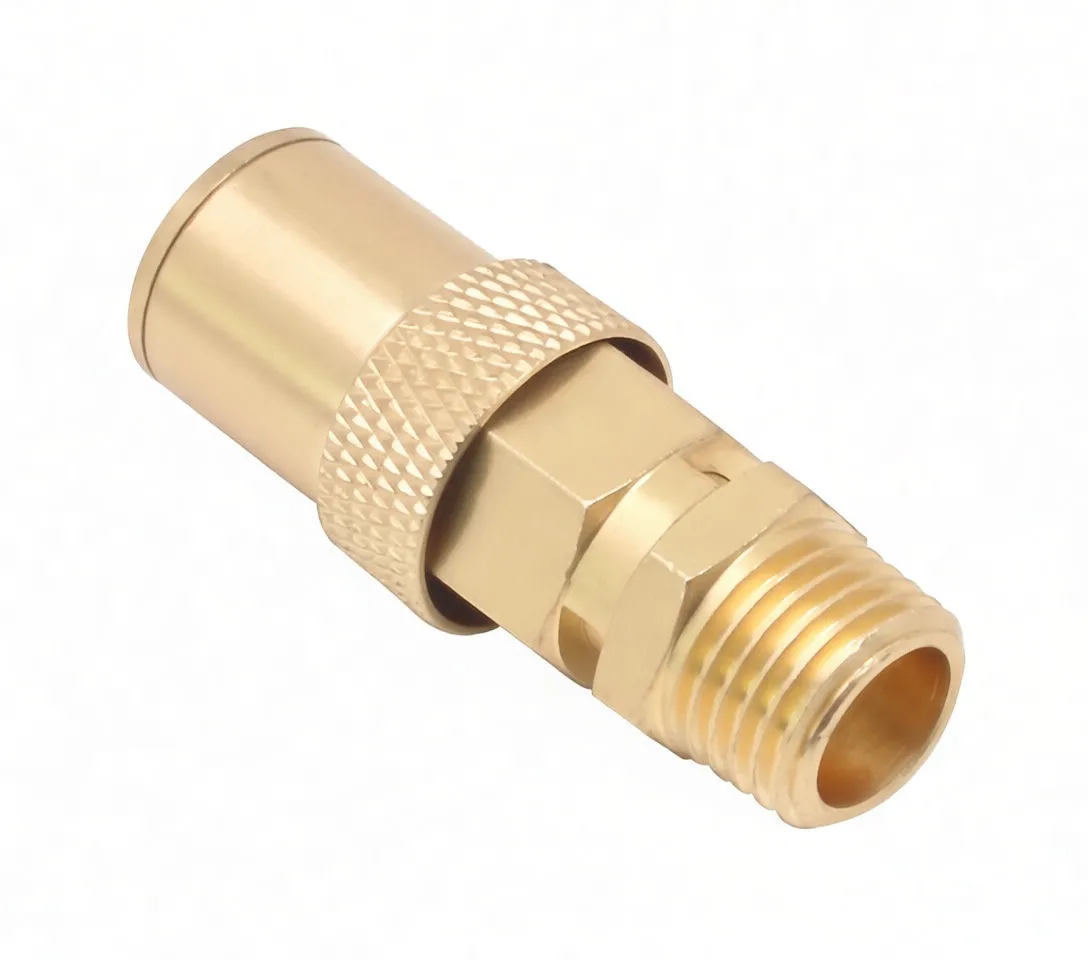

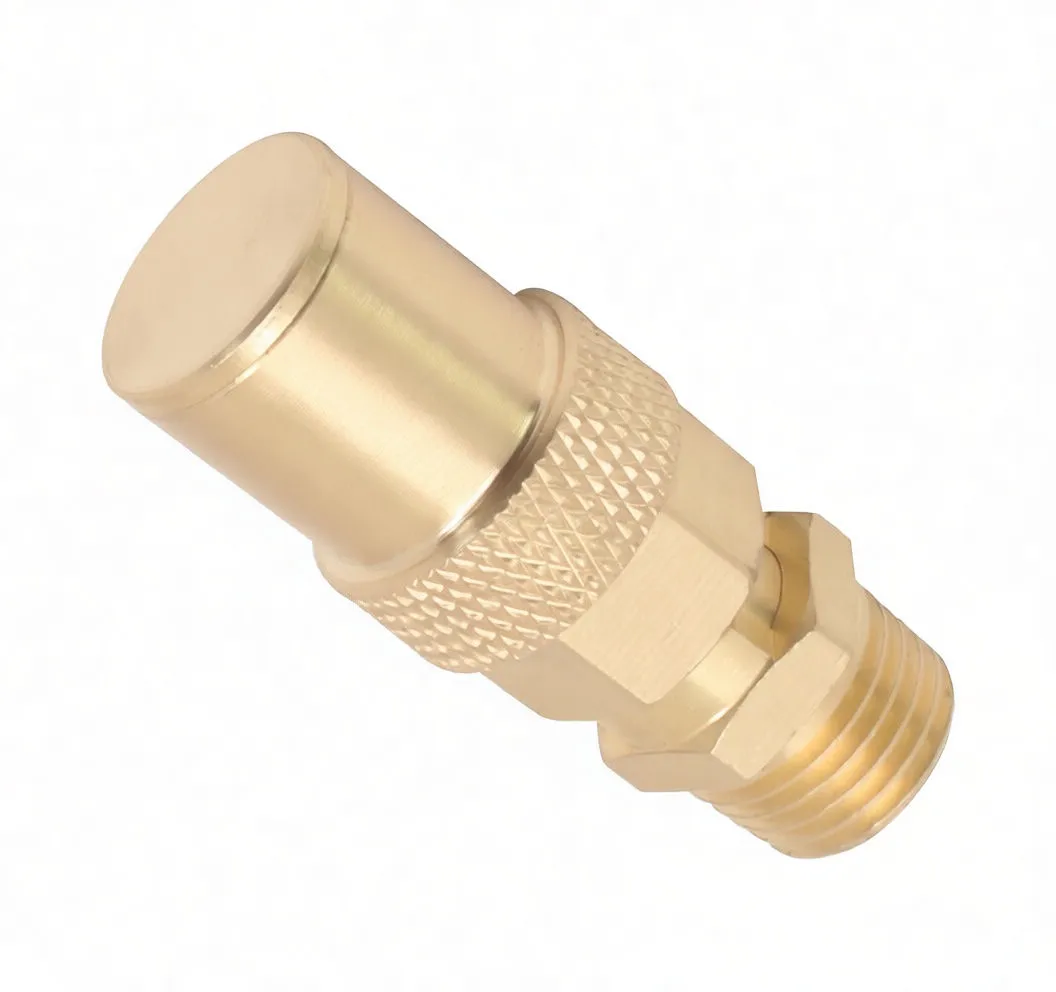

Angled view of brass safety valve with male 1/4 inch threads, knurled collar, hex nut and capped outlet with small hole; engraved markings including '10' visible.Close angled shot of brass safety valve showing male threads, hex flats, knurled collar and engraved text around the cylindrical cap.Brass safety valve seen from the discharge end with central hole, knurled collar, hex flats and threaded male fitting; stamped markings visible on cap.Diagonal view of brass safety valve highlighting vent hole in cap, knurled collar, hex nut and male threads; engraved pressure/part markings visible.Top-down close-up of brass safety valve showing internal bore of male thread, hex flats, knurled collar and engraved text on the cap.

Safety Valve 1/4" 10 Bar Pressure Relief - Brass Threaded Connection

Precision brass safety valve rated to 10 bar, designed for compressors and pressure tanks. Male 1/4" threaded inlet with adjustable relief collar.

Request Quote

Description

Safety Valve 1/4" 10 Bar Pressure Relief

Overview

This brass safety relief valve is engineered to protect pneumatic and hydraulic systems from dangerous overpressurization. With a 10 bar pressure rating, it automatically vents excess pressure before system damage occurs. The 1/4" male threaded inlet integrates seamlessly into compressors, inflators, pressure vessels, and tank assemblies. For resellers stocking pressure management solutions, this valve pairs well with higher-pressure relief alternatives and flow control check valves to offer complete system protection.

Key Features

  • Pressure Rating: 10 bar (145 PSI) relief threshold
  • Connection: 1/4" male NPT/BSPP threaded inlet
  • Body Material: Machined brass with polished finish
  • Adjustment: Knurled locking collar for relief point fine-tuning
  • Installation: Hexagonal spanner flats (between thread and collar) for secure mounting
  • Discharge Design: Capped outlet with small central vent hole for controlled pressure release
  • Markings: Engraved regulatory text and pressure rating for compliance documentation

Why Stock This Valve?

Margin & Volume Potential

This is a core protective component that every shop servicing pneumatic or compressor equipment must have on hand. End-users cannot operate pressurized systems safely without proper relief protection—demand is consistent and non-negotiable.

Technical Positioning

The 10 bar rating targets mid-range industrial compressors and portable inflators. It sits between lighter 8 bar systems and heavy-duty 12+ bar installations, making it a high-velocity stock item. End-users often purchase in multiples (system redundancy, backup units, replacement cycles).

Application-Driven Sales

  • Air compressor tank protection (primary safety device)
  • Pneumatic tool supply line overpressure safeguard
  • Portable tire inflator and air tank systems
  • Industrial pressure vessel compliance
  • Service shops restocking as wear items

Technical Specifications

Specification Detail
Pressure Rating 10 Bar (145 PSI)
Connection Type 1/4" Male NPT/BSPP Threaded
Body Material Brass (machined)
Relief Mechanism Spring-loaded poppet (internal 3804D cartridge)
Adjustment Range Knurled collar calibration
Outlet Configuration Capped end with small discharge orifice
Installation Format Wrench-mountable hex flats
Regulatory Markings Engraved pressure & compliance data

Bottom Line for Resellers

Stock this valve as a cornerstone safety product. The 10 bar rating ensures broad market appeal across light to mid-range industrial applications. Customers trust brass construction for reliability, and the straightforward design minimizes support calls. Pair with complementary pressure management tools to build complete system packages and increase average order value.
