Shock DWAL Head Installation Tool Set – 5 Sizes (10mm–18mm)

Brief Overview

Seal head installation requires precision and protection. This five-piece tool set is purpose-built to prevent shaft seal damage during shock absorber assembly work. Each tool is machined from brass to protect the delicate seal surfaces while you install or remove the seal head onto the shock shaft. The set covers the most common metric sizes, and pairs well with complementary shock service tools like a dedicated shock seal head setter or a full strut shock service kit for shops handling high-volume suspension work.

Key Features

• Five metric sizes included: 12.5×10mm, 14×12mm, 16×12mm, 18×12mm, and 18×16mm
• Brass construction: Soft metal prevents scoring or scratching hardened steel shafts and seal surfaces

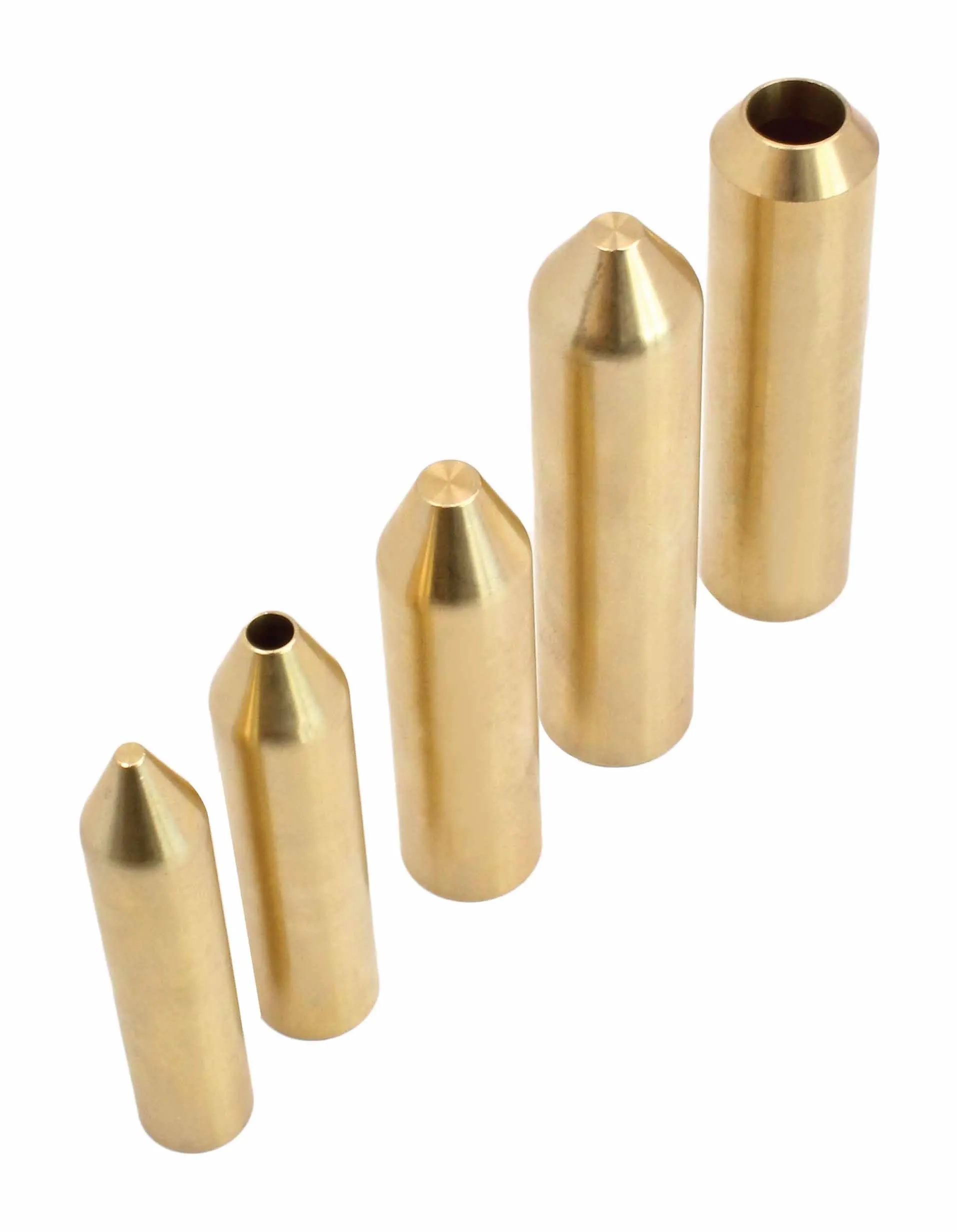

• Tapered and rounded tip geometry: Designed to guide the seal head onto the shaft without binding or misalignment
• Hollow-end design: Allows central guide pin or shaft to pass through unobstructed during installation

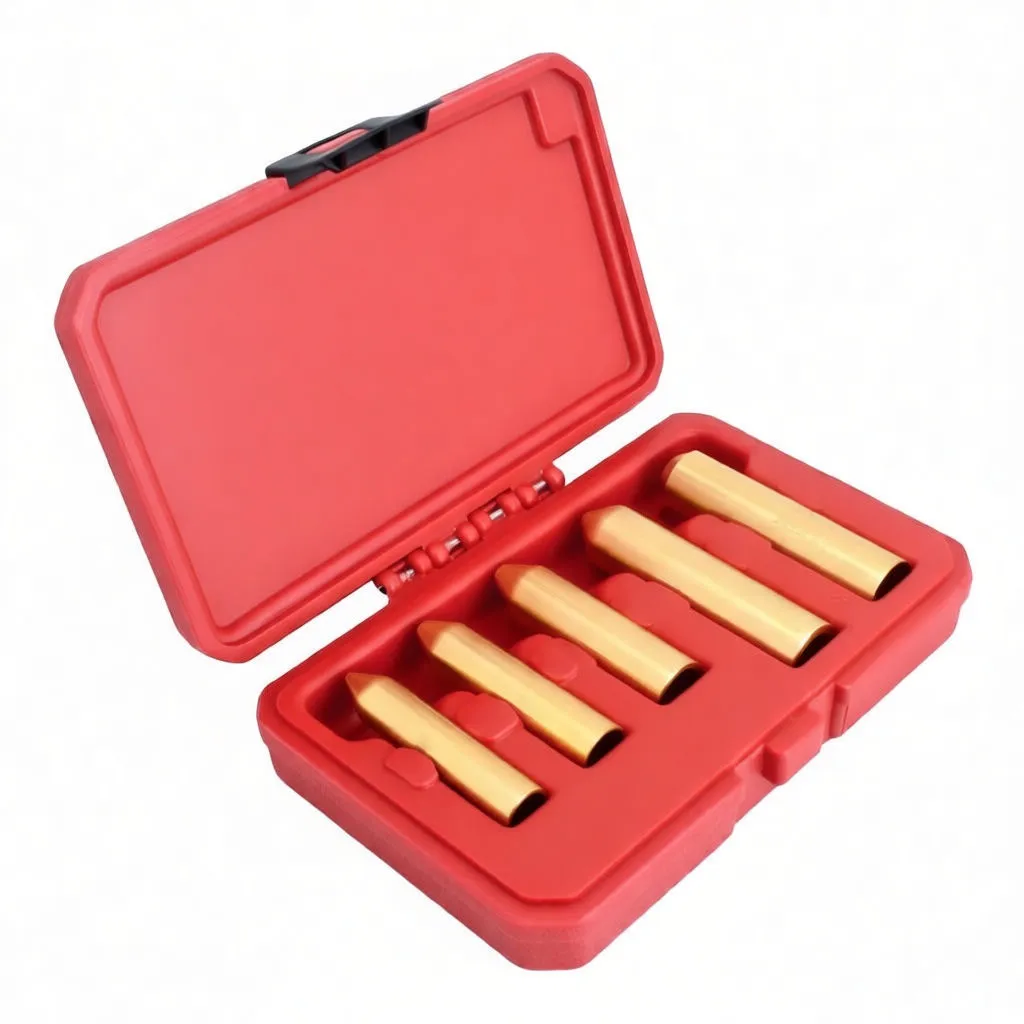

• Organized storage case: Red molded plastic hinged case with labeled cavities keeps all five tools organized and protected
• Professional finish: Smooth machined surfaces ensure smooth, reliable operation every time

Why This Matters for Your Shop

Rushing seal head installation is the fastest way to cross-thread or damage the seal assembly—turning a 10-minute job into a complete rework. This set eliminates guesswork. Each tool is pre-sized to match the seal head OD and shaft diameter, ensuring correct alignment without force. For shops performing regular shock service, these tools pay for themselves in reduced comebacks and faster turnaround times.

The brass material is non-negotiable here. Steel-on-steel contact risks micro-scratches that invite seal leaks under pressure. Brass protects both the shaft and the seal lip.

Technical Specifications

Specification	Detail
Set Contents	5 installation tools
Sizes Included	12.5×10mm, 14×12mm, 16×12mm, 18×12mm, 18×16mm
Material	Brass (protective, non-scoring)
Tip Geometry	Tapered and rounded profiles for guided installation
Design Feature	Hollow rear end for shaft clearance
Storage	Red hinged plastic case with molded recesses
Finish	Smooth machined, gold-toned protective coating

Reseller Value

This is a high-margin accessory with a specific, recurring need. Shops that service suspension systems will need these tools multiple times per week during heavy season. The compact case fits easily on a pegboard or shadow board, and the organized presentation reinforces a professional image to your customers.

Stock this alongside other specialized shock service sockets and build a complete suspension service department. The combination drives perceived expertise and keeps customers in your shop longer.

---

Bottom Line: A focused, low-cost investment that protects expensive suspension work and establishes your shop as serious about shock service. Order in bulk for consistent availability during spring/summer suspension season.
