Straight Pneumatic Screwdriver with Push-Start System and Auto Shut-Off, 2 Nm

Brief Overview

This is a purpose-built precision screwdriver for assembly operations where consistent torque control is non-negotiable. The push-start system engages on demand, and the automatic shutoff at 2 Nm eliminates over-tightening—critical for delicate fastening tasks. The straight body design provides excellent control in confined spaces and assembly fixtures. If your operation requires variable torque settings, consider pairing this with adjustable-torque pneumatic alternatives for greater flexibility across your assembly line.

Key Features

• Push-Start System: Tool only runs when operator depresses the trigger; prevents unintended activation
• Automatic Shutoff at 2 Nm: Torque-limiting design stops rotation when target fastening force is reached—eliminates fastener damage and operator guesswork
• Straight Body Design: Ideal for assembly jigs, tight spaces, and ergonomic hand positioning in high-volume operations
• Rubberized Grip Sleeve: Dual-layer blue rubber handle reduces fatigue during extended assembly sessions; removable sleeve allows quick grip replacement
• Metal Hanging Clip: Secures tool to workbench or assembly cart for quick access and organization
• Adjustable Collar: Fine-tune startup behavior or torque sensitivity without tools
• Environmental Air Exhaust System: Special air outlet design (O.E. variant) reduces operator noise and directs exhaust away from work area—improves shop compliance with noise regulations
• Hex-Shank Bit Compatibility: Accepts standard 1/4-inch hex driver bits; includes two bits and color-coded socket caps for bit organization

Business Advantages for Resellers

Production Efficiency: The automatic shutoff eliminates the learning curve—operators can't over-torque fasteners, reducing scrap and rework costs. This translates to faster, more reliable assembly for your customers.

Reliability & Service Life: Consistent 2 Nm shutoff means fasteners are never stressed beyond design limits, extending product life in the field and reducing warranty claims.

Inventory Management: Compact straight design fits into confined assembly spaces; the modular bit system and included color-coded caps encourage customers to standardize on this platform across multiple work stations.

Competitive Positioning: Position this as the "precision assembly specialist"—ideal for electronics, small appliance, automotive, and medical device assembly where torque consistency directly impacts product quality and liability.

Technical Specifications

Specification	Value
Tool Type	Straight Pneumatic Screwdriver
Torque Setting	2 Nm (auto-shutoff)
Actuation System	Push-Start (manual trigger)
Bit Chuck	1/4-inch Hex Shank
Grip Material	Rubberized blue composite (removable sleeve)
Housing	Black composite with metal fittings
Air Inlet	Hex-shaped connector (standard barbed fitting adapter included)

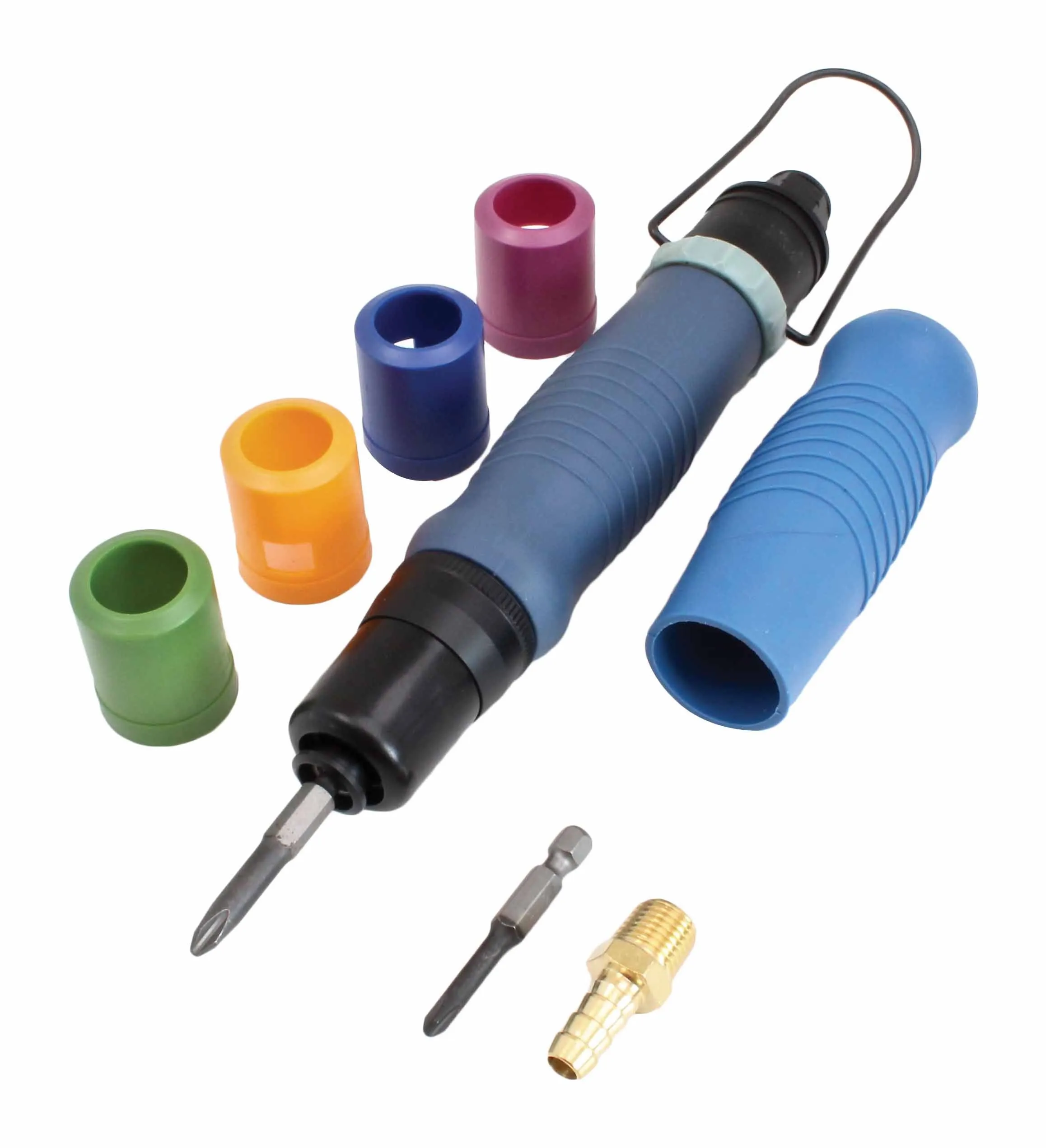

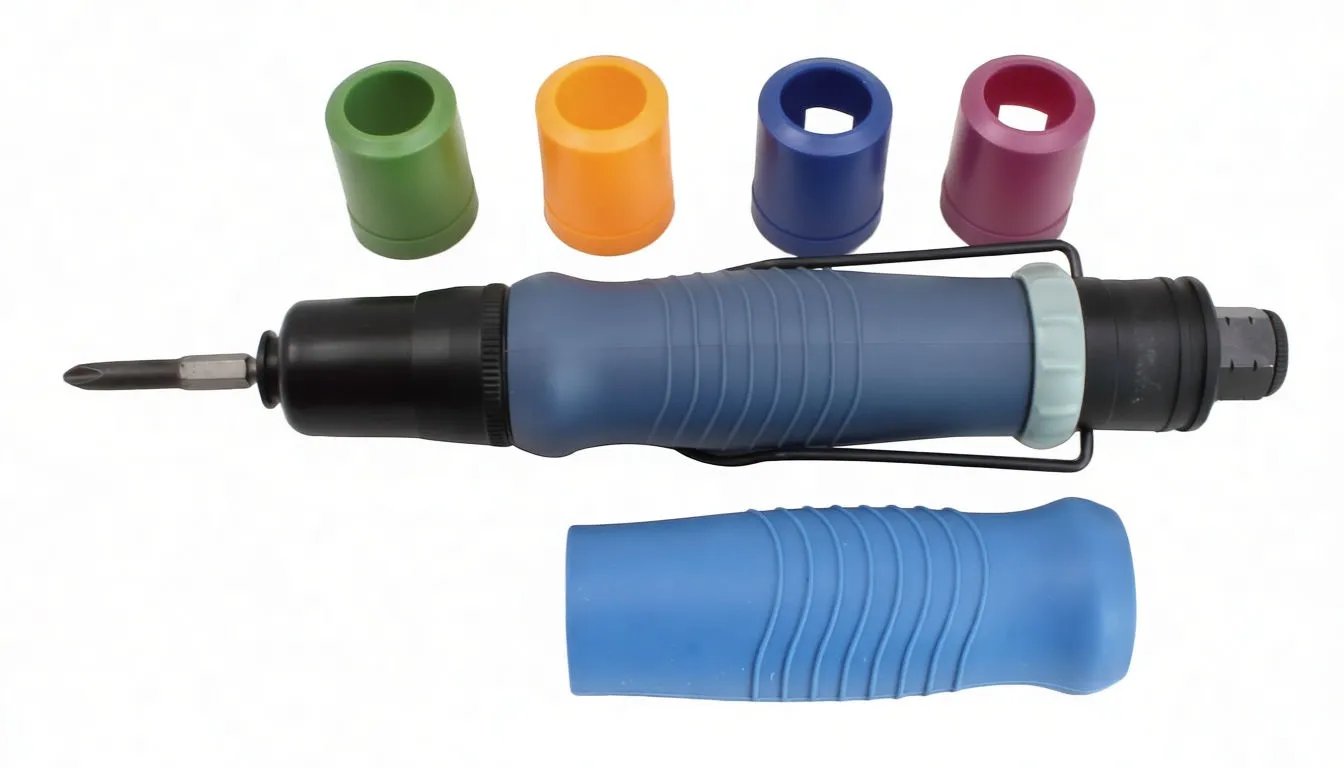

Accessories Included	2x hex-shank driver bits, brass barbed air adapter, 5x color-coded socket caps
Hanging/Storage	Metal belt clip
Optional Feature	Special air exhaust system for environmental/noise control (O.E. variant)

Applications & Market Fit

Optimal Use Cases:

• Electronics assembly (PCB mounting, enclosure fastening)
• Small appliance manufacturing (handle attachment, motor mounting)
• Automotive sub-assembly (trim components, interior fastening)
• Medical device assembly (where over-torque can compromise sterility or function)
• Furniture or precision cabinetry assembly

Not Recommended For:

• Heavy-duty industrial fastening (use higher-torque alternatives)
• High-speed applications requiring variable RPM (consider dual-speed or high-RPM models)
• Situations requiring torque above 2 Nm

Closing Statement

This screwdriver is a workhorse for operations where precision and repeatability matter. The automatic shutoff is not a convenience feature—it's a quality-control tool that pays for itself by eliminating fastener damage and assembly errors. Stock this for customers running assembly lines where consistent results directly impact their bottom line and reputation.
