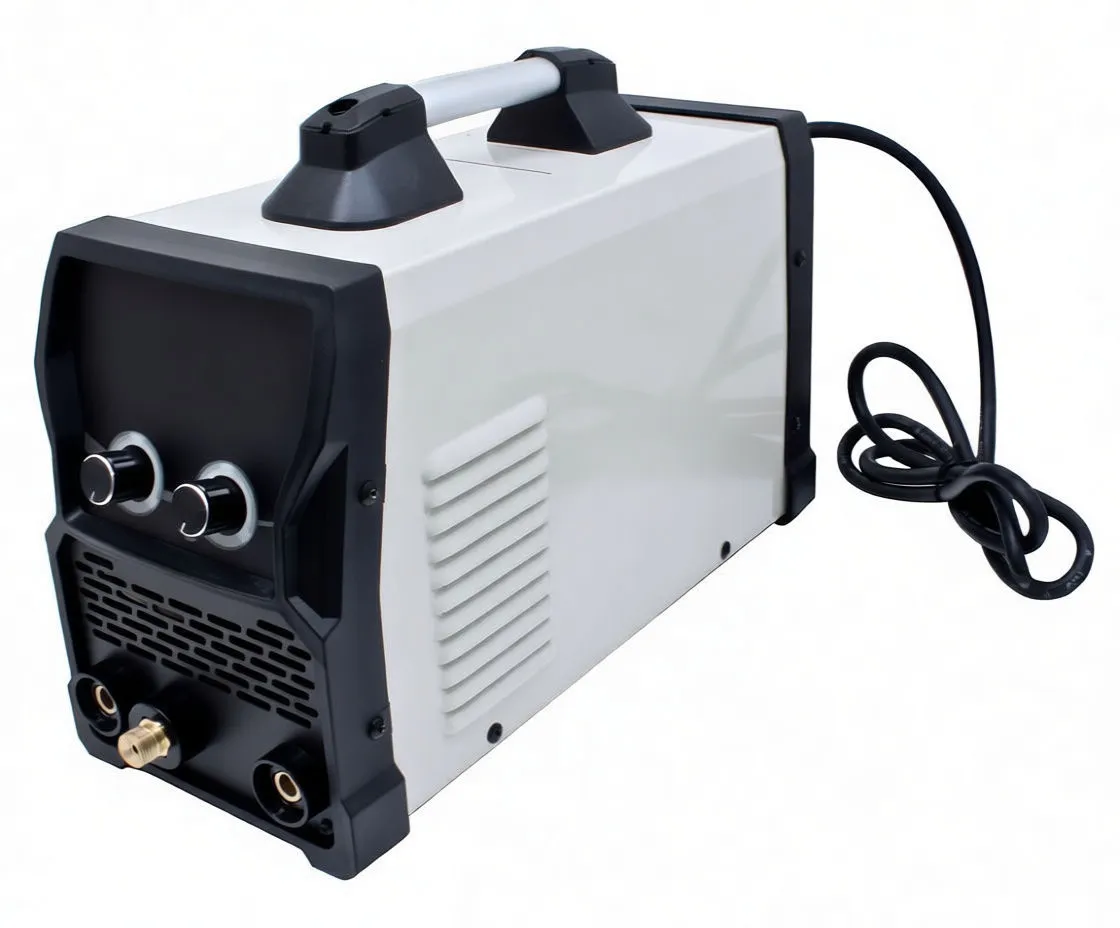

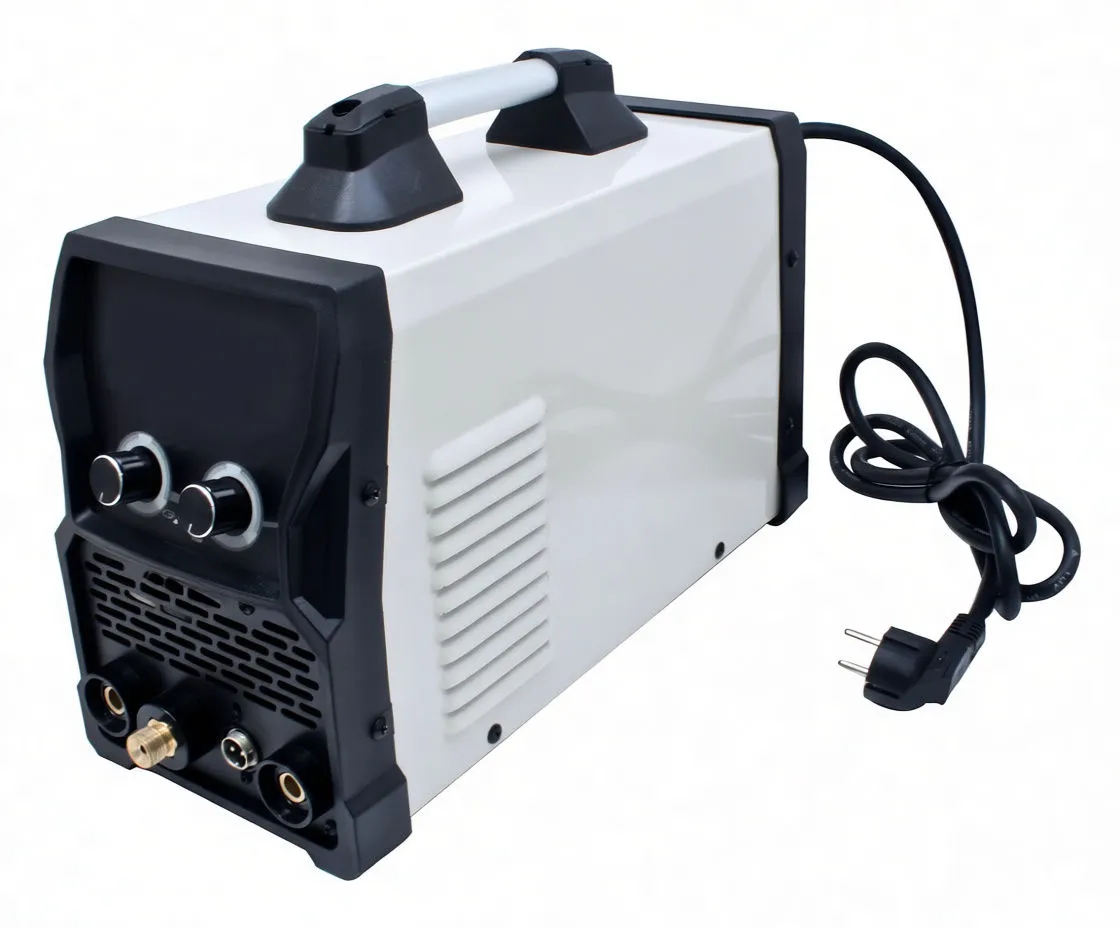

TIG/MMA AC/DC IGBT Pulse Welding Machine, 200A, Single-Phase 230V

Brief Overview

This single-phase IGBT inverter welder delivers professional-grade arc (MMA) and tungsten inert gas (TIG) welding in a compact, portable package. Rated at 200A output with full AC/DC capability, it's engineered for shops requiring versatility without the weight and power demands of traditional transformer-based welders. The pulse function and gas flow delay controls provide precision for both routine fabrication and specialized alloy work. For operations needing broader process flexibility, consider pairing this unit with a 3-in-1 MIG/MMA/TIG combination welder to cover additional welding processes, or a DC-only inverter electrode welder as a dedicated backup MMA station.

Key Features

• Dual-Process Capability: Full TIG (tungsten inert gas) and MMA (manual metal arc/stick) welding modes with AC/DC switching
• IGBT Inverter Technology: Significantly lower input current draw (18.4A TIG / 23.3A MMA) compared to transformer welders; lighter, more efficient design
• Pulse Function: Enhanced arc stability and control, particularly useful for thin materials and positional welding
• Versatile Output Range: 200A MMA / 170A TIG on standard 230V single-phase supply
• 2T/4T Torch Control Options: 2-touch for short welds; 4-touch for extended runs or hard-to-access areas
• Gas Flow Delay Function: Prevents gas waste during torch ignition and post-weld cooling phases
• Data Storage: Saves up to 24 welding parameter sets for rapid job setup

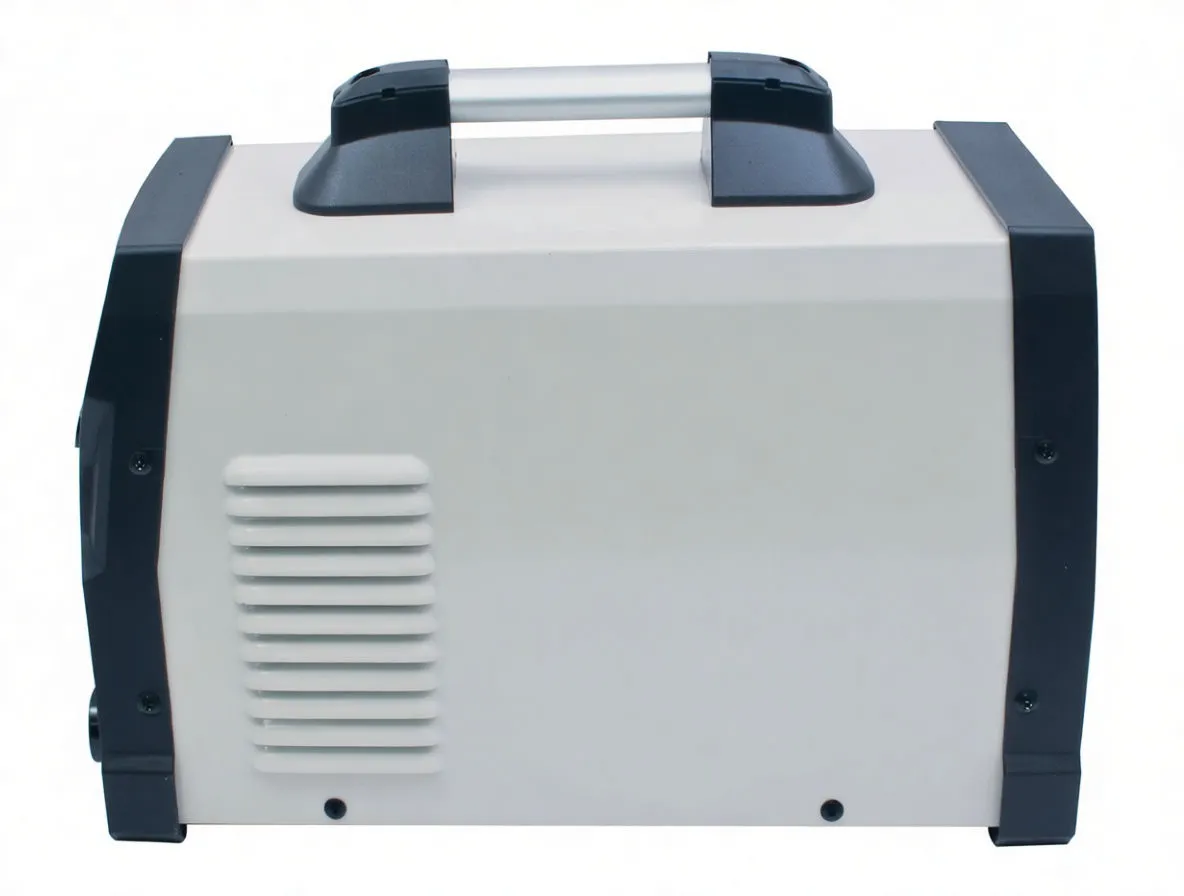

• Portable Design: Compact dimensions (36 × 14.5 × 24.5 cm) with integrated carry handle; suited for workshop, fabrication shop, or field service work
• Complete Accessory Kit Included: TIG torch, electrode holder, earth clamp, welding mask, chipping brush, and cables (2.5mm² × 2.1m power cable; 25mm² × 3m work cables)

Technical Capabilities

• Welding Thickness Range: 0.5–10 mm (ideal for precision assembly through moderate structural work)
• Power Supply: 230V single-phase, 50 Hz
• Input Current: TIG 18.4A / MMA 23.3A (standard residential/light commercial circuits)
• No-Load Voltage: 60V (safe for touch-starting)
• Duty Cycle: 30% (suitable for intermittent shop use, not continuous production)
• Efficiency: 85%
• Power Factor: 0.73
• Protection Class: IP 21S (protected against dust and low-pressure water jets)
• Insulation Class: F (high-temperature component rating)
• Certification: CE marked

Specification	Value
Process Modes	TIG / MMA / AC / DC
Output Current (MMA)	170A
Output Current (TIG)	200A
Input Voltage	230V, Single-Phase, 50 Hz
Input Current (TIG)	18.4A
Input Current (MMA)	23.3A
No-Load Voltage	60V
Welding Thickness	0.5–10 mm
Duty Cycle	30%
Machine Efficiency	85%
Dimensions (L × W × H)	36 × 14.5 × 24.5 cm
Protection Rating	IP 21S
Insulation Class	F
Certification	CE

Business Advantages for Resellers

Lower Barrier to Entry: The reduced input current requirement (18.4–23.3A) means customers can operate this on standard residential 230V supplies without electrical upgrades—expanding your addressable market to smaller fabrication shops, mobile service technicians, and rural operations.

Margin-Friendly Bundle: The included accessory kit (torch, holder, cables, mask, brush) eliminates the need to source and bundle separately, reducing fulfillment complexity and enabling competitive all-in pricing.

Inventory Efficiency: A single unit covers two high-demand processes (TIG for aluminum and stainless; MMA for carbon steel), reducing the need to stock multiple dedicated machines while serving a wider customer base.

Professional Perception: IGBT inverter technology carries a "modern, professional" positioning—customers recognize it as the current industry standard, making it easier to justify pricing against older transformer designs.

Service & Support Potential: The 24 parameter memory and dual-mode operation create opportunities for customer training, setup consulting, and consumables upselling (TIG gas, electrode types, filler rods).

Ideal Applications

• Metal Fabrication Shops: General purpose TIG/MMA work on carbon steel, stainless, and aluminum in the 0.5–10 mm range
• Small-Scale Structural Work: Frame repairs, bracket fabrication, and light architectural metalwork
• Specialty Alloy Work: TIG capability for high-alloy steel and aluminum welding where quality is non-negotiable
• Mobile Service & Repair: Compact, portable design suits on-site repairs and field fabrication
• Training & Educational Use: Dual-process capability teaches multiple techniques in one investment

Closing Statement

This IGBT inverter welder bridges affordability and versatility for resellers seeking to serve both routine repair shops and specialized fabricators. The AC/DC pulse functionality, lower operational costs, and included accessory kit make it a strong entry-level to mid-range offering in the professional welding equipment segment.
