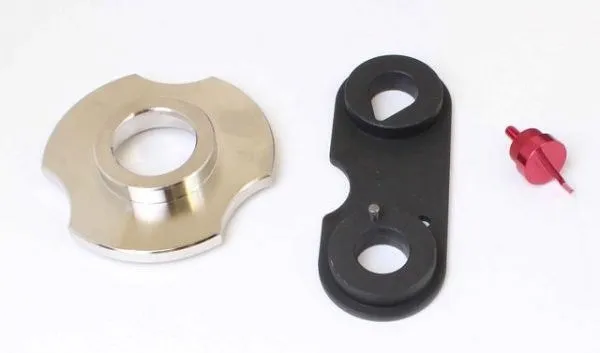

Open blue carrying case showing timing chain test tool set with black degree plate, silver adapter, black link and red pinCase interior with black degree plate, polished adapter, black bracket and red alignment pinSilver adapter, black link plate with dowel, and small red locating pin on white backgroundClose-up of black circular timing plate with central hole, scale markings and mounting screws

Timing Chain Wear Measurement Tool for VAG 1.2/1.4 TFSI Engines

Diagnostic tool for measuring timing chain wear on VAG 1.2/1.4 TFSI engines with minimal engine dismantling required.

Request Quote

Description

Timing Chain Wear Measurement Tool for VAG 1.2/1.4 TFSI Engines

Brief Overview

This precision timing chain test tool is purpose-built for rapid diagnosis of timing chain wear on VAG 1.2 and 1.4 TFSI petrol engines across Audi, VW, Seat, and Skoda platforms. The kit enables technicians to measure timing chain slack and wear progression without extensive engine teardown, reducing diagnostic labor costs and improving shop throughput. Complement this tool with a diesel engine timing diagnostic set for VAG TDi engines to cover your full VAG timing system service capability.

Key Features

  • Minimal Disassembly Design: Measures wear directly without removing the cylinder head or timing belt cover completely
  • Degree-Scale Measurement: Engraved angular scale (0–40°) on primary gauge plate for precise wear quantification
  • Multi-Component Kit: Four precision-machined components (timing plate, adapter, locating bracket, alignment pin) for secure engine mounting
  • Polished Adapter Plate: Four-lobed chromed adapter ensures positive engagement with engine timing points
  • Indexed Locating System: Dual-hole bracket and red anodized pin provide repeatable, accurate positioning
  • Rugged Case Carrying System: Blue molded hard plastic case protects components and enables field transportation
  • Instruction Label: Yellow safety and operation guide on case lid for technician reference

Engine Coverage

Audi Models:

  • A1 (2012–2015), A1 Sportback (2012–2015)
  • A3 (2013–2015), A3 Sportback (2012–2015)

VW Models:

  • Golf VII (2008–2015), Golf VII Estate (2008–2017)
  • Jetta (2012–2017), Polo (2012–2017)
  • Sports Van (2014–2017)

Seat Models:

  • Ibiza (2012–2017), Leon (2012–2015)
  • Toledo (2012–2017)

Skoda Models:

  • Fabia II (2010–2015), Fabia III (2014–2017)
  • Octavia II (2010–2013), Octavia III (2010–2015)
  • Praktik (2010–2015), Roomster (2010–2015)
  • Rapid (2015–2017)

Engine Codes Supported:

Engine Series Engine Codes
1.2 TFSI CJZA, CJZB, CJZC, CJZD
1.4 TFSI Standard CGGA, CGGB, CHPA, CMBA, CPVA, CPVB, CRJA, CXSA
1.4 TFSI ACT CPTA

Business Advantages for Resellers & Shops

  • Reduced Diagnostic Time: Eliminates guesswork on timing chain condition. Quick measurement capability translates to faster customer turnaround and higher labor billing efficiency.
  • Preventive Service Upsell: Enables proactive timing chain wear detection before catastrophic failure. Position this as a diagnostic step during routine maintenance to capture lucrative preventive replacement work.
  • Competitive Diagnostic Edge: VAG timing chain issues are common in these model years. Shops without this tool often over-quote repairs or miss early intervention opportunities. This positions your service as more thorough.
  • Bulk Stock Incentive: Timing chain diagnostics create recurring service demand. Stock this tool alongside comprehensive camshaft timing tool sets for VAG TFSI engines to capture complete timing system service revenue.
  • Margin-Friendly: Low acquisition cost with high perceived value to customers. Diagnostic fees easily justify the tool investment within first 5–10 uses.

Technical Specifications

Specification Detail
Primary Measurement Component Black matte-finished gauge plate with engraved degree scale (0–40°)
Adapter Type Polished four-lobed chrome adapter with central raised bore
Locating System Dual-hole bracket with red anodized indexing pin
Assembly Method Countersunk fasteners; pin-indexed for repeatability
Case Material Blue hard plastic with molded component recesses
Case Type Portable carrying case with handle and instruction label
Surface Finish Matte black (gauge plate), polished chrome (adapter), anodized aluminum (pin)
Engine Application VAG 1.2/1.4 TFSI petrol engines, 2008–2017 model years

Why Resellers Choose This Kit

Timing chain wear diagnostics represent a high-confidence, high-margin service. This tool moves a technician from subjective assessment ("the chain sounds tight") to objective measurement ("the chain has advanced 8° from factory spec"). That objectivity converts hesitant customers into committed repair orders—and positions your shop as the one that knows the difference.

For resellers, this is a low-inventory, high-turnover item that generates repeat business through both direct tool sales and the diagnostic services it enables.
