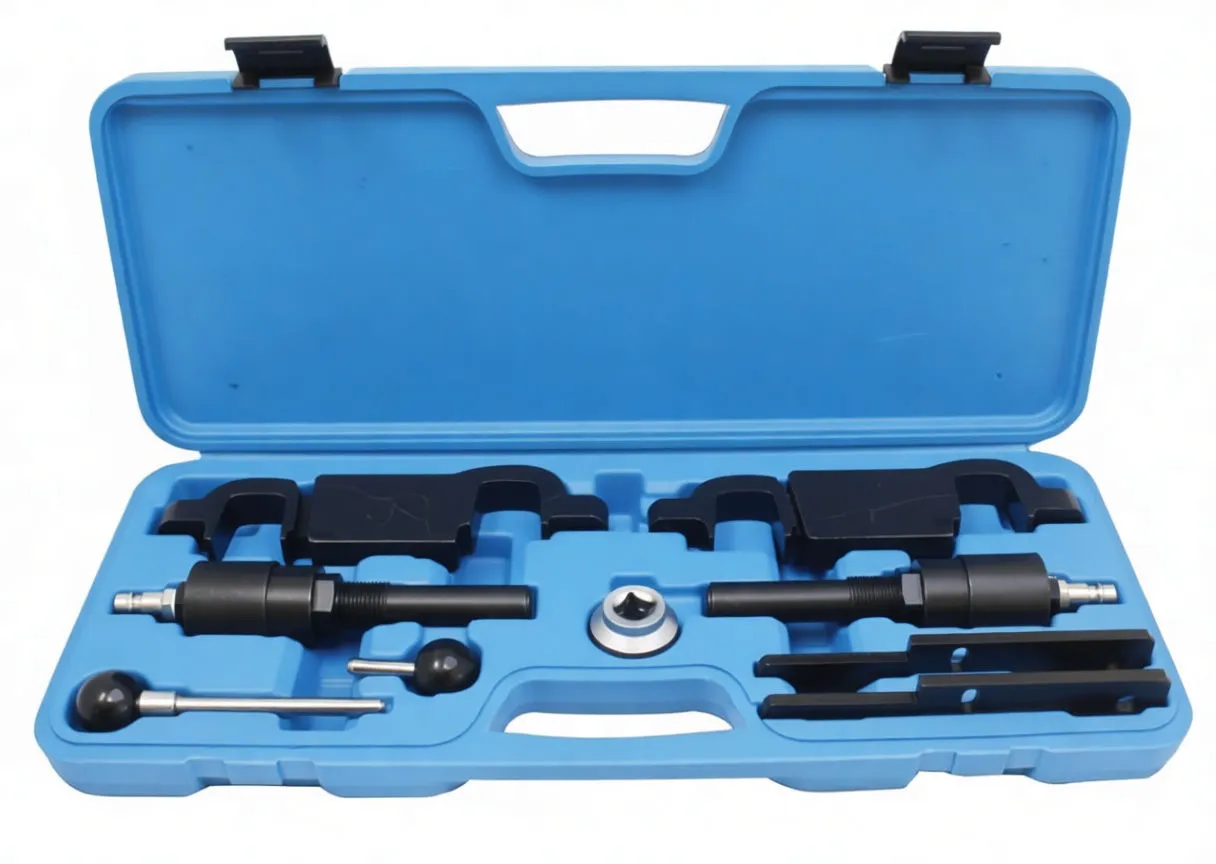

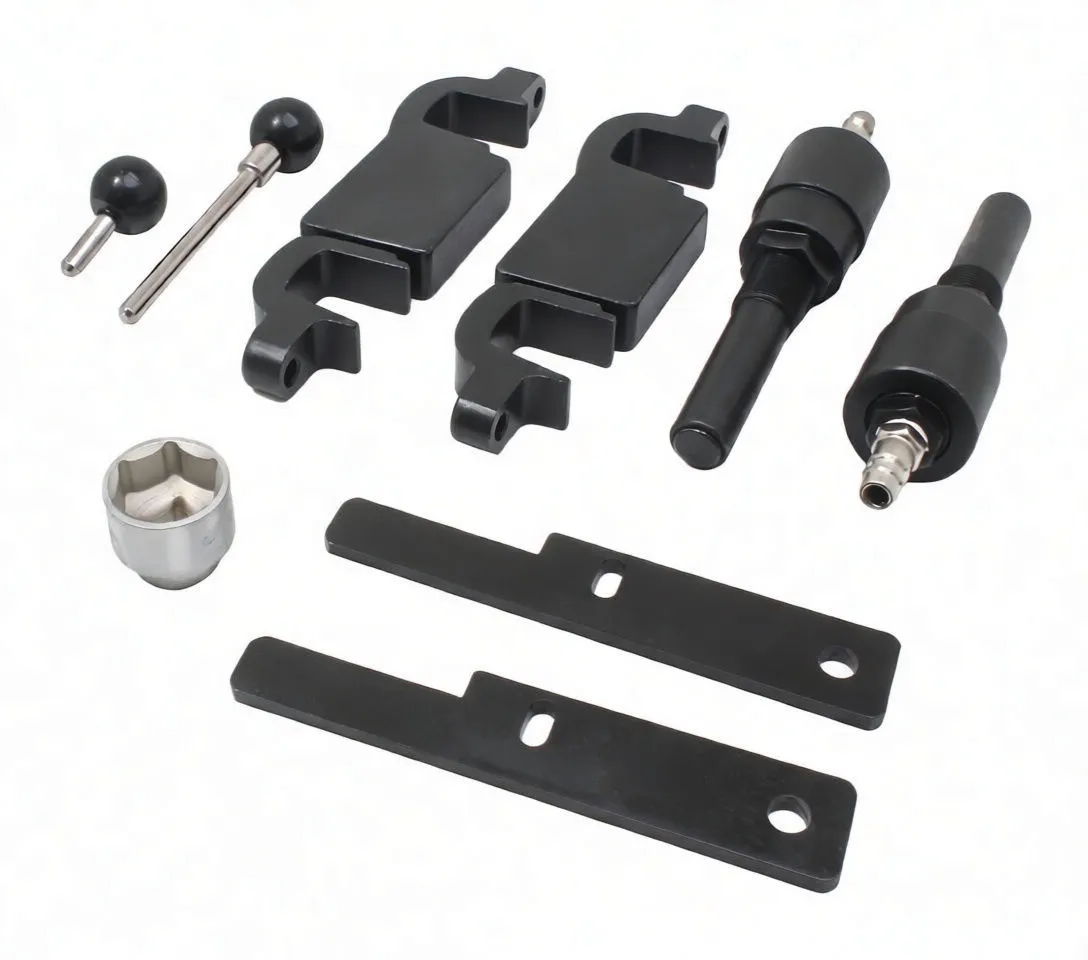

Blue case open showing black timing lock tools, clamps, cylindrical adapters, pins and flat bars, yellow label inside lidOpen blue tool case laid flat with camshaft locking blocks, cylindrical adapters, socket, pins and flat timing platesIndividual timing lock components on white background: clamps, cylindrical adapters, socket, ball pins and slotted bars

Timing Lock Tool Set for Porsche V6 3.6L & V8 4.5/4.8L – Complete Camshaft & Crankshaft Positioning Kit

Professional timing lock kit for Porsche V6/V8 engines. Includes camshaft clamps, crankshaft pins, and timing plates for cylinder head and timing chain work.

Request Quote

Description

Timing Lock Tool Set for Porsche V6 3.6L & V8 4.5/4.8L

Brief Overview

This is a comprehensive timing lock and positioning kit designed for precision work on Porsche V6 and V8 engines. The set enables technicians to lock camshafts and crankshafts in their correct positions during cylinder head gasket replacement, camshaft service, or timing chain work. If your shop handles Audi Q7 timing maintenance alongside Porsche models, a dedicated Audi Q7 timing positioning tool set provides complementary coverage for that platform.

Key Features & Components

  • Camshaft Locking Clamps (2x): U-shaped clamps with adjustment screws for secure camshaft positioning
  • Crankshaft Locating Pins (2x): Ball-tipped locating pins with chrome shafts for precise crankshaft alignment
  • Timing Plates (2x): Long slotted bars for chain and sprocket alignment verification
  • Cylindrical Locking Adapters (2x): Purpose-built pullers and lockers for chain tensioner access
  • Socket Adapter: 1/2" drive, 6-point, 27mm socket for fastener work during timing operations
  • Custom Molded Case: Blue plastic carrying case with dedicated component recesses and instruction label

Technical Specifications

Specification Detail
Engine Applications Porsche V6 3.6L, V8 4.5L, 4.8L
Vehicle Coverage Cayenne (2011–2013), Panamera (2010–2013), Carrera (2006–2011), Boxer (1998+)
Audi Compatibility Q7 models with M46 and M48 engine codes
OEM Reference Numbers 9678/1, 9678, 9683/1, 9714, 9595/1
Socket Size 27mm (6-point, 1/2" drive)
Case Type Molded blue plastic with protective foam
Material Finish Black powder-coated metal components
Primary Use Cylinder head gasket replacement, camshaft service, timing chain work

Application Summary

Porsche Vehicles:

  • Cayenne: V8 4.5L, 4.8L (S, Turbo, GTS models 2011–2013)
  • Panamera: V6 3.6L, V8 4.8L (DFI, Turbo, Turbo S, GTS 2010–2013)
  • Carrera: 3.6L DFI (2006–2011)
  • Boxer: 2.5L, 2.7L, 3.2L (1998+)

Audi:

  • Q7 (2008–2015) with 3.6L and 4.8L engines

Business Advantages for Resellers

  • High-Value Service Work: Cylinder head and timing service commands premium labor rates; this kit enables faster, more reliable execution.
  • OEM Specification Compliance: Includes original Porsche/Audi timing reference numbers, building customer confidence in proper procedure adherence.
  • Reduced Comebacks: Precise locking prevents mis-timing issues that lead to costly rework and warranty claims.
  • Broad Market Appeal: Covers multiple Porsche models (Cayenne, Panamera, Carrera, Boxer) and Audi Q7—significant overlap in luxury service shops.
  • Professional Presentation: Molded case and instruction label reinforce quality messaging to end customers.
  • Recurring Revenue: Timing work is routine maintenance; shops performing this work regularly will justify kit purchase quickly.

Professional Recommendation

This kit is essential for any shop servicing Porsche or Audi vehicles with 3.6L–4.8L engines. The precision locking mechanism eliminates guesswork during critical timing procedures, reducing labor time and minimizing risk of valve-to-piston contact or improper cam phasing. Stock this kit for immediate availability when cylinder head or timing chain work is quoted.
