Complete Timing Tool Set & Fuel Pump Remover for JLR 2.0 Diesel Ingenium Engines

Essential 4-piece timing and fuel pump tool kit for JLR 2.0L Ingenium diesel engines. Includes camshaft, crankshaft, and fuel pump locking tools in protective carry case.

Request Quote

Description

Timing Tool Set & Fuel Pump Remover for JLR 2.0 Diesel Ingenium Engines

Brief Overview

This is a specialized timing tool set designed specifically for the 2.0L Ingenium diesel platform used across Jaguar and Land Rover's current lineup. The set enables proper timing chain removal and installation by locking the crankshaft and camshaft assemblies in their synchronized position—critical for preventing catastrophic engine damage during major service work. The integrated fuel pump removal tool rounds out the kit, making this an all-in-one solution for timing-related diesel engine work on these platforms.

If your shop handles JLR petrol engines, also consider pairing this with a dedicated petrol timing tool kit for broader model coverage.

What's Included

This four-component set provides all the essential locking and adjustment tools needed for timed engine service:

  • Camshaft Holding Tool – Secures the camshaft in position during chain removal
  • Camshaft Adjusting Tool – Enables precise camshaft positioning and synchronization
  • Crankshaft Pulley Locking Tool – Locks the crankshaft assembly to prevent rotation during critical service intervals
  • Fuel Pump Sprocket Removal Tool – Specialized design for safe fuel pump component removal and installation

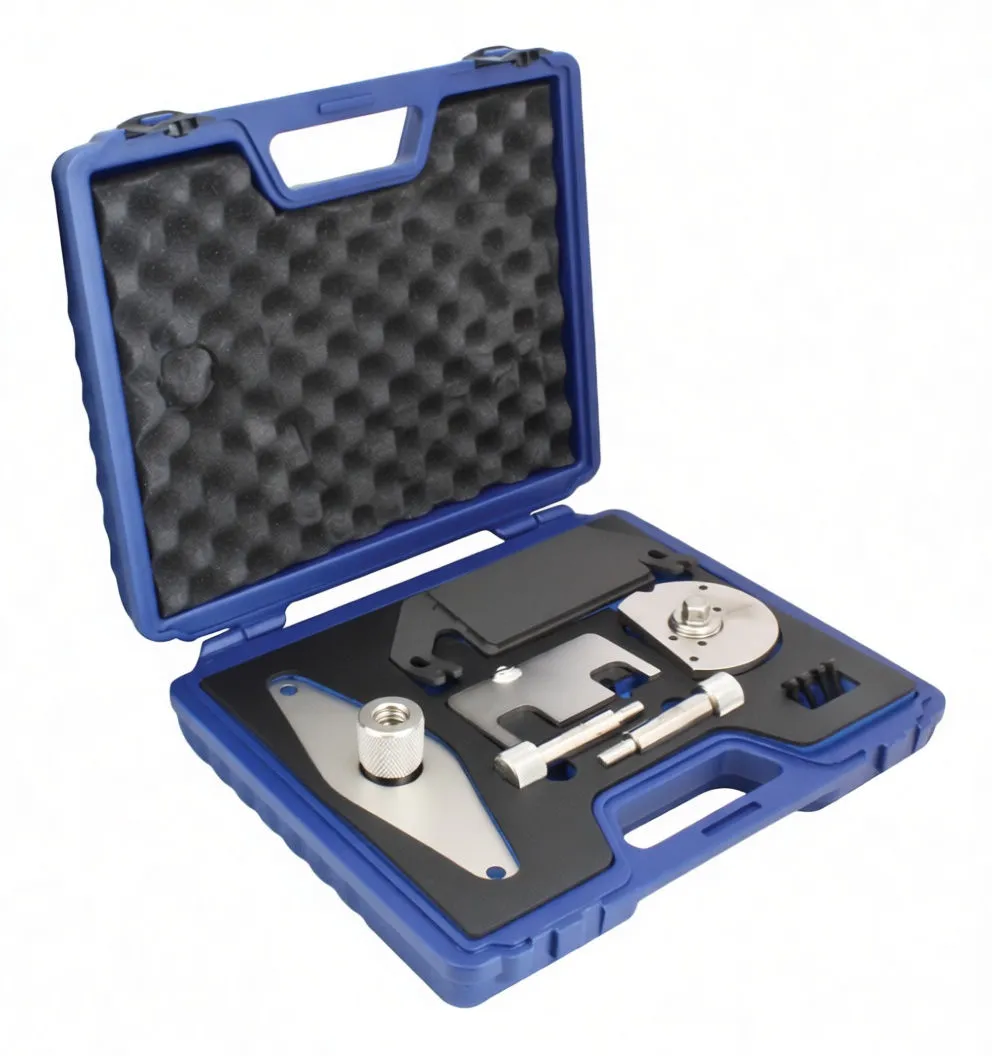

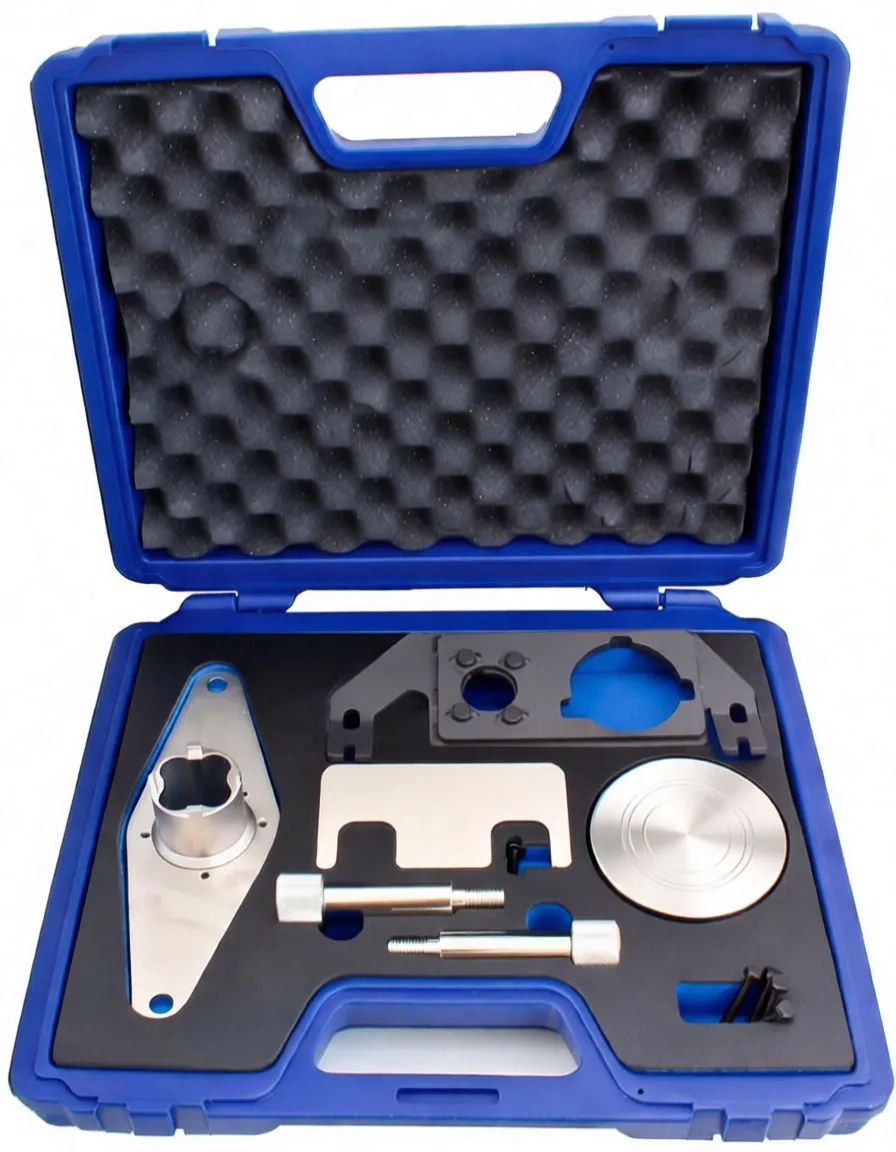

All components are manufactured from stainless steel and precision-coated materials for durability. The tools nest securely in a custom-molded foam insert within a protective blue plastic carry case with integrated handles and secure latch closures.

Vehicle & Engine Coverage

This kit is engineered for the following JLR platforms with 2.0L Ingenium diesel powerplants:

Jaguar Models:

  • E-Pace (2017 onwards)
  • F-Pace (2016 onwards)
  • XE (2015 onwards)
  • XF (2015 onwards)

Land Rover Models:

  • Defender (2019 onwards)
  • Discovery (2017 onwards)
  • Discovery Sport (2015–2019)
  • Range Rover Evoque (2015 onwards)
  • Range Rover Sport (2016–2018)
  • Range Rover Velar (2017 onwards)

Engine Codes Covered: 204DT, 204DTA, 204DTD, AJ200, AJ200D, AJ-200D/204DT, AJ-200D/204DTA, AJ200/204DTD

Business Advantages for Resellers & Workshop Owners

High Demand, Stable Market: Timing chain service on these modern JLR platforms is unavoidable maintenance. These engines operate in premium segments with strong residual values, making owners willing to invest in professional service. This translates to predictable, recurring revenue.

Margin Protection: Shops that own specialized timing tools can charge appropriate labor rates for this specialized work rather than turning away jobs or farming them out. The tool investment pays for itself within a small number of jobs.

Platform Consolidation: Land Rover and Jaguar have standardized the 2.0L Ingenium diesel across multiple segments (compact SUVs, sport utility, sedans). A single tool set covers a broad customer base, reducing inventory complexity while maximizing job coverage.

OEM-Matched Specification: Manufactured to match original equipment specifications (OEM references: 303-1625, 303-1631, 303-1630, 303-1627), ensuring compatibility and eliminating liability concerns.

Professional Presentation: Supplied in a custom carry case with foam organization. This elevates shop professionalism and signals to customers that you have invested in proper equipment—justifying premium service pricing.

Technical Specifications

Specification Detail
Target Platforms Jaguar & Land Rover (2.0L Ingenium Diesel)
Primary Application Timing chain removal/installation; fuel pump service
Tool Count 4 pieces
Material Construction Stainless steel components with precision coating
Storage Custom foam-lined blue plastic carry case with handles & snap latches
Engine Codes 204DT, 204DTA, 204DTD, AJ200 series
Compatibility E-Pace, F-Pace, XE, XF, Defender, Discovery, Range Rover Evoque/Sport/Velar (see date ranges above)

Why This Matters for Your Workshop

Timing chain service on modern Ingenium diesels is not a task for improvisation. Improper crankshaft and camshaft synchronization during reassembly leads to catastrophic engine damage—easily £3,000–£5,000+ in liability. This tool set removes guesswork and ensures repeatability across jobs.

The fuel pump removal tool inclusion eliminates the need for secondary equipment or workarounds, streamlining your workflow and reducing the risk of damage to fuel system components.

For shops managing multiple JLR platforms, complement this diesel set with a fuel pump timing tool for 3.0L diesel engines to extend your service capabilities to higher-displacement powerplants and capture additional market segments.

Stock Recommendation

This kit is suitable for any independent shop, franchised dealership, or fleet service center supporting the Jaguar and Land Rover customer base. Given the broad platform coverage and essential nature of the work, bulk inventory supports strong turnover and customer retention.

Ready to expand your JLR diesel service capability? This is the foundation tool set that every premium independent shop should stock.
