Timing Tool Upgrade for BMW N47 Diesel Balance Shaft

Brief Overview

This balance shaft timing tool upgrade is engineered specifically for N47 and N47S chain-driven diesel engines found in BMW 1, 3, and 5 Series vehicles, as well as X1, X3, and X5 models (2007-2015). The kit enables precise removal and timing of balance shafts—a critical operation during engine overhauls, chain replacement, or timing adjustment work. For shops servicing these diesel platforms, this tool eliminates improvisation and reduces job time significantly. Complement this upgrade with a complete N47 diesel engine timing and locking kit to cover all camshaft and crankshaft positioning tasks in a single service.

Key Features

• Balance shaft specific design: Dedicated tooling for N47/N47S balance shaft positioning and removal
• Precision locating system: Multi-hole circular locator plate ensures accurate shaft alignment
• Timing plate with multiple cutouts: Black steel timing plate accommodates various balance shaft configurations
• Adapter and spacer components: Two cylindrical spacer/adapter pieces facilitate proper tool engagement and height adjustment
• Stainless-steel bracket assembly: Durable mounting bracket with integrated locator plate for repeatable positioning
• Retention pins and locating blocks: Metal clips and black locating blocks secure components during operation

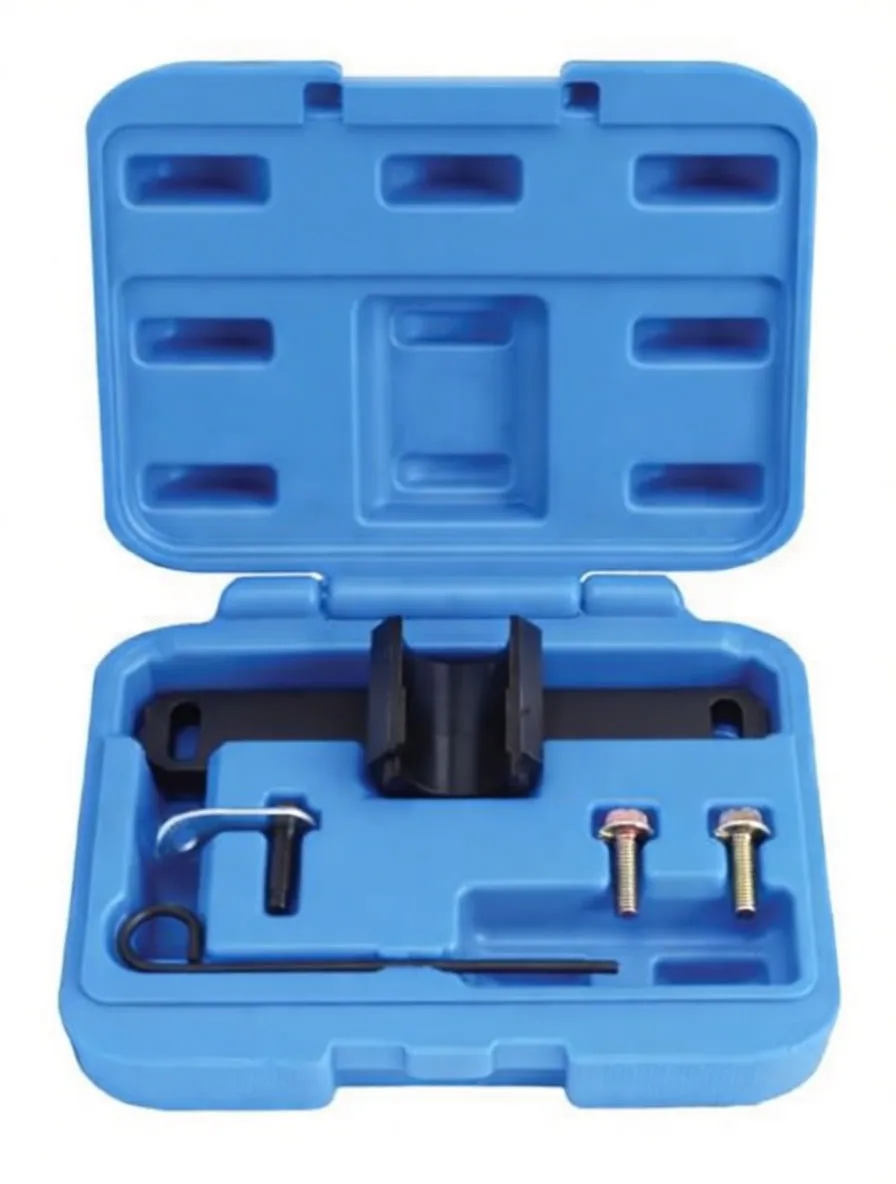

• Professional-grade carrying case: Blue hard plastic molded case with compartments for tool organization and job-site portability

Why Resellers Choose This Product

Shop Efficiency & Labor Recovery Balance shaft timing is a frequent operation in diesel engine overhauls. Without proper tooling, technicians resort to time-consuming alignment methods or guesswork, resulting in misalignment and comebacks. This upgrade eliminates that waste and positions your shop as equipped for serious diesel work.

OEM Compatibility Coverage Covers BMW OEM codes 118750, 118790, and variants 791, 792, 793 across high-volume models (1, 3, 5 Series, X1, X3, X5). This breadth means a single kit services multiple customer vehicle generations and model lines.

Turnover & Margin Opportunity Diesel timing work commands premium labor rates. Offering this service—backed by proper tooling—attracts customers willing to pay for expertise. Shops without this kit lose jobs to better-equipped competitors.

Professional Presentation The molded carrying case with instruction label reinforces your shop's professional image and ensures tools are protected between jobs.

Technical Specifications

Specification	Detail
Application	BMW N47/N47S Diesel Balance Shaft Timing
Compatible Models	BMW 1, 3, 5 Series; X1, X3, X5 (2007–2015)
OEM Codes	118750, 118790 (variants 791, 792, 793)
Primary Components	Precision timing plate, spacer/adapter pieces, stainless-steel bracket with locator plate
Secondary Components	Metal retention pins, locating blocks, hex socket adapters
Material Composition	Black-coated steel (plate, spacers), stainless steel (bracket), polished steel (adapters)
Storage	Blue molded hard plastic carrying case with compartmented layout
Instruction Label	Integrated in case lid (printed reference guide)

Call to Value

Balance shaft timing on N47 diesel engines requires precision—this tool kit delivers it. Stock this upgrade alongside a full complete camshaft and crankshaft locking kit to position your shop as the diesel specialist in your region. Shops that invest in proper timing tooling retain diesel customers and command higher service margins.
