Truck Universal Ball Joint Removal Tool Set

Overview

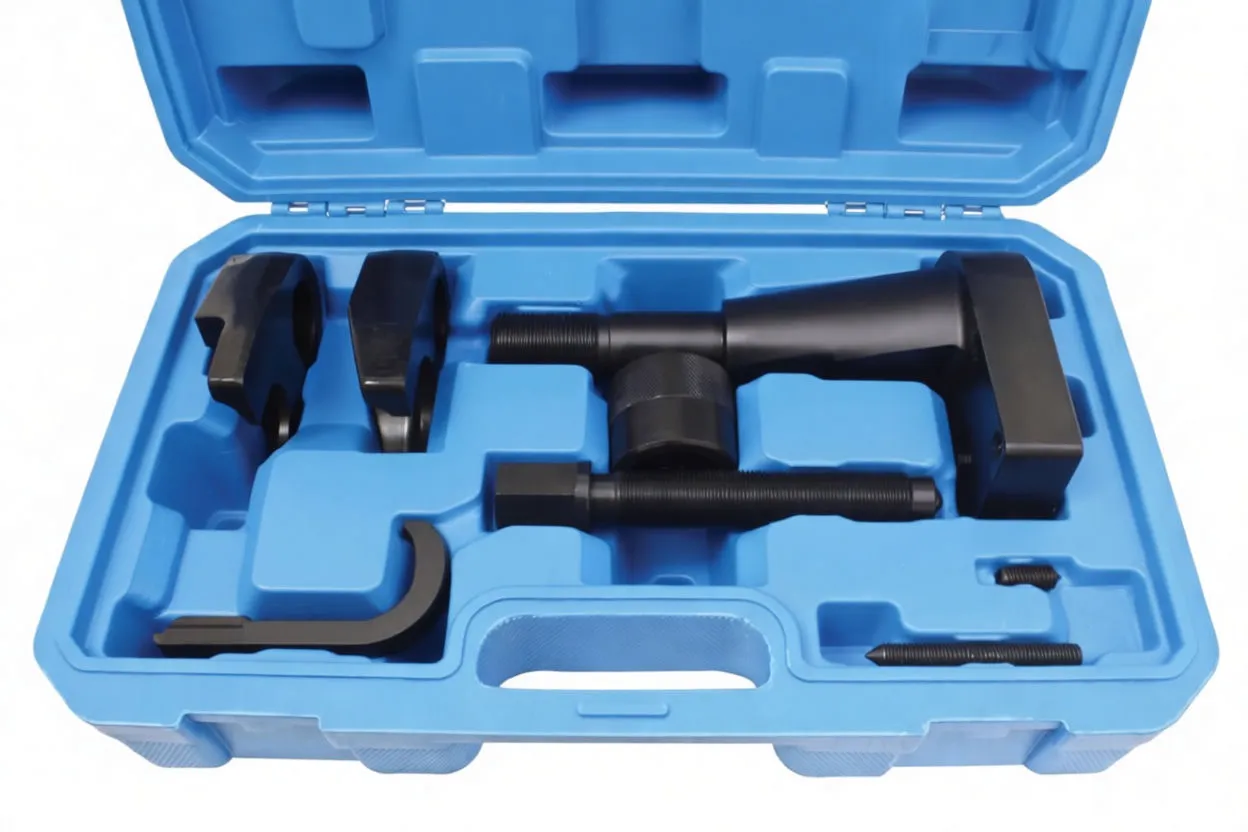

This is a purpose-built ball joint removal system designed for heavy-duty applications in truck, bus, and construction equipment maintenance. The kit includes a rigid puller body with fine-threaded forcing screw, three interchangeable fork adapters to accommodate different joint sizes, and a professional carrying case. If your shop handles diverse vehicle types, you may also want to consider a universal separator with adjustable clamping for jobs requiring extended range flexibility, or a heavy-duty truck-specific remover if you focus primarily on commercial fleets.

Key Features

• Three Interchangeable Fork Adapters: Accepts 25 mm, 32 mm, and 48 mm fork spacing configurations, covering the 30–50 mm joint working range
• Hardened, Machined Steel Construction: Powder-coated finish resists rust and wear; fine-rolled thread on forcing screw maximizes strength and controlled engagement
• 10-Ton Maximum Load Capacity: Handles high-resistance steering rod and ball joint separations without risk of tool failure
• Precise Dimensions: Compact overall profile (230 mm height × 95 mm width × 135 mm length) allows access in tight undercarriage spaces
• Ball-Finished Forcing Screw: Enables smooth, controlled pressure application; hex end accepts wrench or manual force

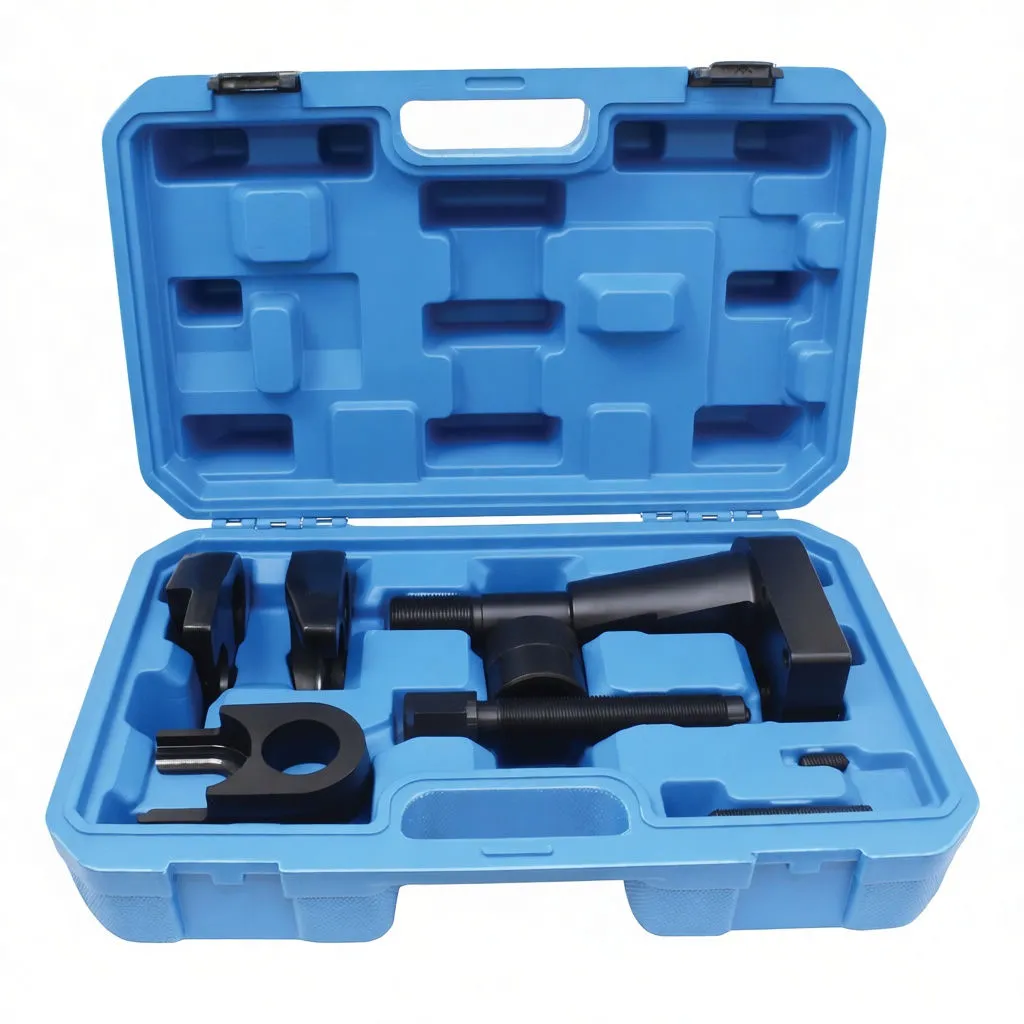

• Professional Carrying Case: Molded blue hard plastic case with dedicated component slots ensures organization and job-site portability

Why Resellers Choose This Kit

High-Frequency Application: Ball joint removal is routine work in any shop handling trucks, buses, or heavy construction equipment. This tool directly addresses a recurring labor need, making it an essential stock item.

Durable Asset for Rental Operations: The 10-ton capacity and hardened steel construction mean extended tool life and minimal replacement costs. Distributors with rental divisions can justify premium tool pricing.

Versatile Adapter System: Three fork configurations reduce the need for multiple specialist tools, allowing one kit to handle a broad customer base. Lower inventory footprint, higher attachment rates.

Professional Presentation: The organized carrying case projects quality and builds customer confidence. Shop owners perceive this as a "complete professional solution," justifying higher labor billing.

No Consumables—Pure Margin: This is a one-time sale with minimal wear or maintenance. Once sold, the customer owns the tool; recommend it annually for routine maintenance contracts.

Technical Specifications

Specification	Value
Fork Spacing Options	25 mm / 32 mm / 48 mm
Working Joint Range	30–50 mm diameter
Overall Dimensions (H × W × L)	230 × 95 × 135 mm
Maximum Load Capacity	10 tonnes
Maximum Torque Rating	300 Nm
Forcing Screw Thread	Fine-rolled, ball-finished
Material	Hardened, machined alloy steel
Finish	Black powder coat
Included Adapters	Three forked separators
Case	Molded hard plastic with component slots

Important Operating Notes

• Hand Tools Only: Do not use electric impact wrenches or power tools with this puller. The fine thread and hardened construction are engineered for controlled manual or wrench-applied force only. Impact loading risks thread stripping or adapter fracture.
• Conical Holder Application: Designed specifically for ball joints mounted on conical bases; ensure adapter fork properly engages the joint housing before applying load.

Call to Action

Stock this kit to meet routine truck and heavy equipment maintenance demands. The combination of three adapters, professional case, and 10-ton capacity positions it as the go-to solution for steering rod and ball joint work. Recommend it to fleet maintenance managers and construction equipment repair shops—it's the kind of tool that builds repeat business and reduces customer callbacks due to incomplete service.
