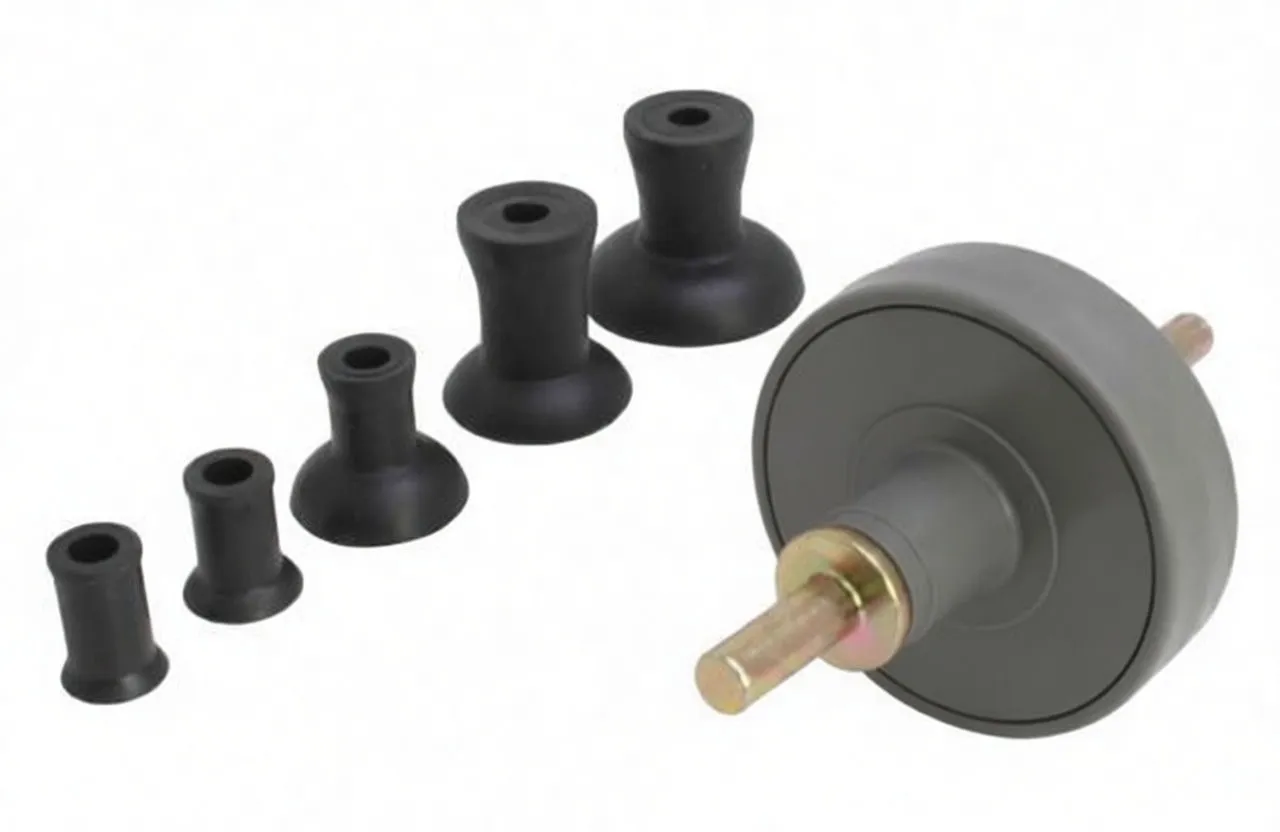

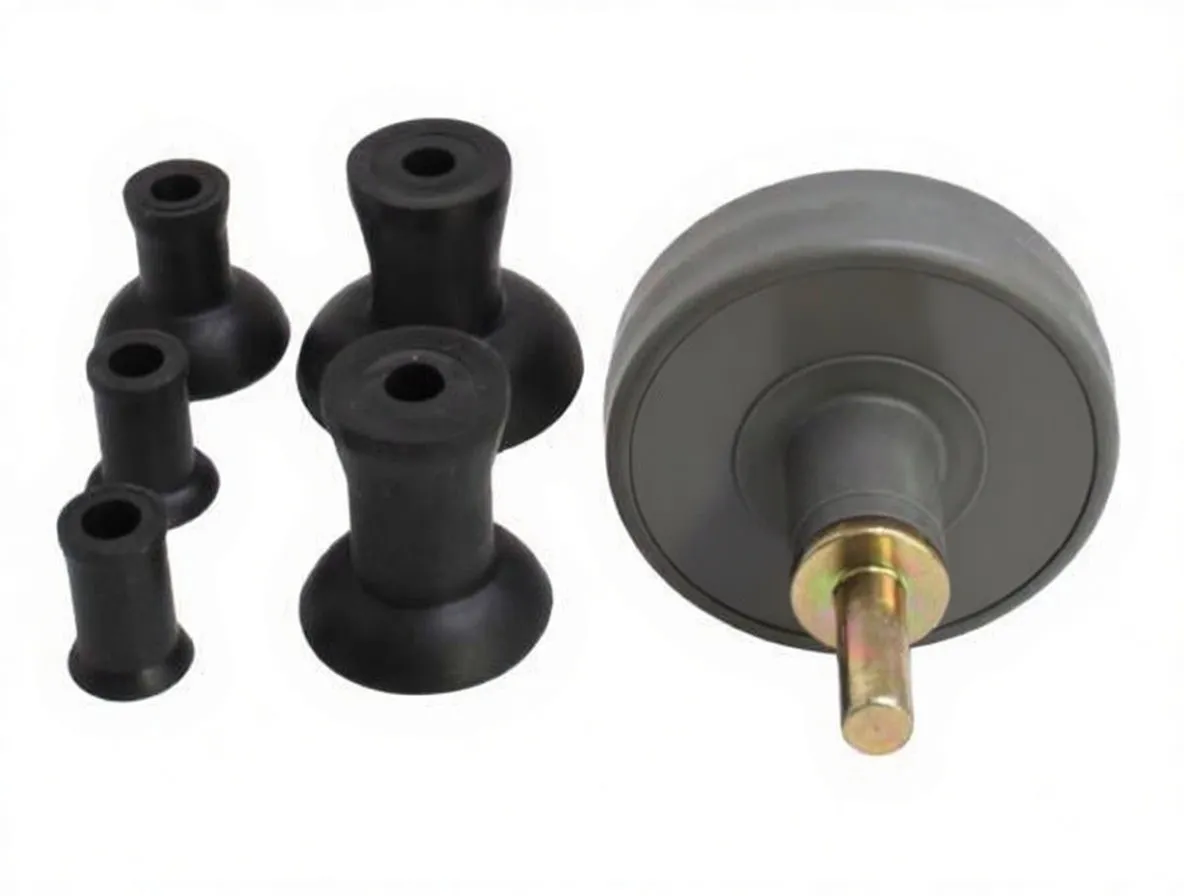

Valve lapping tool wheel with metal spindle and five black rubber adapter cups arranged in frontValve lapping tool showing labeled face, metal spindle pointing forward and five rubber adapters in a rowClose view of valve lapping wheel with labeled face, metal spindle and five black rubber adapter cups grouped to the left

Valve Lapping Tool with 5 Rubber Pads (16-45mm) and 8mm Shank

Complete valve lapping kit with automatic directional reversal and five interchangeable rubber pads for precision engine valve work.

Request Quote

Description

Valve Lapping Tool with 5 Rubber Pads (16-45mm) and 8mm Shank

Brief Overview

This valve lapping tool is engineered for precision engine valve grinding and seating operations. The kit combines automatic directional reversal with a complete set of five interchangeable rubber adapter pads, eliminating the need for multiple tools. The 8mm shank fits standard drill chucks, making integration into existing shop workflows straightforward. For shops handling a range of valve sizes, this tool provides the flexibility needed without inventory complexity. Consider pairing this with pneumatic grinding solutions for shops requiring higher-speed automation.

Key Features

  • Automatic Directional Reversal: Eliminates manual direction changes during operation; tool self-reverses to optimize valve seating contact
  • Five Interchangeable Rubber Pads: 16mm, 20mm, 30mm, 35mm, and 45mm sizes cover the majority of standard automotive and small engine valve applications
  • Universal Drill Chuck Compatibility: 8mm shank fits all standard drill chucks; no adapter required
  • Fine Grinding Pad Design: Rubber material composition delivers controlled abrasive action, preventing damage to valve seats while ensuring proper seating geometry
  • Optimized Speed Range: 1000–1250 rpm operating window balances material removal rate with precision control

Business Advantages for Resellers

  • Complete Kit Model: One SKU addresses multiple valve sizes, simplifying inventory management and reducing shelf space allocation
  • Lower Barrier to Entry: Priced competitively for smaller shops upgrading from manual lapping methods; strong margin potential on bulk orders
  • Cross-Sell Opportunity: Shops purchasing this tool frequently need additional consumable pads and complementary grinding accessories
  • Established Application: Valve lapping is a recurring maintenance task across automotive, small engine, and industrial sectors—predictable demand cycle

Technical Specifications

Specification Value
Shank Diameter 8mm (for drill chuck)
Shaft Diameter 8mm (for rubber pad mounting)
Operating Speed Range 1000–1250 rpm
Rubber Pad Sizes Included 16mm, 20mm, 30mm, 35mm, 45mm
Pad Material Rubber (fine grinding composition)
Directional Control Automatic reversal
Pad Attachment Direct screw-on to 8mm shaft
Suitable Abrasive Medium Fine grinding compound or valve lapping paste

Call to Value

This valve lapping tool kit delivers the precision and versatility expected in modern engine service departments. The automatic reversal feature reduces operator fatigue and improves consistency, while the five-pad selection covers the majority of applications without requiring multiple purchases. Stock this in bulk for consistent turnover and margin performance.
