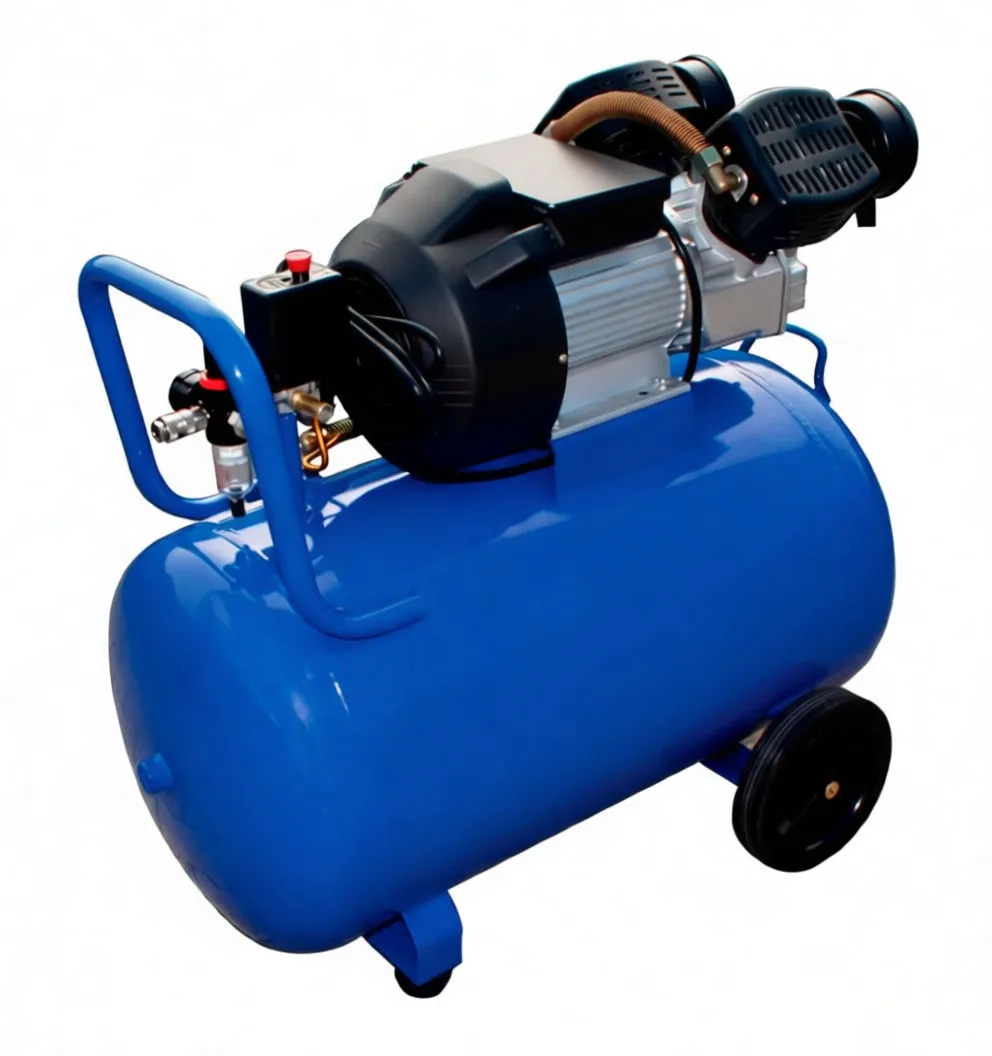

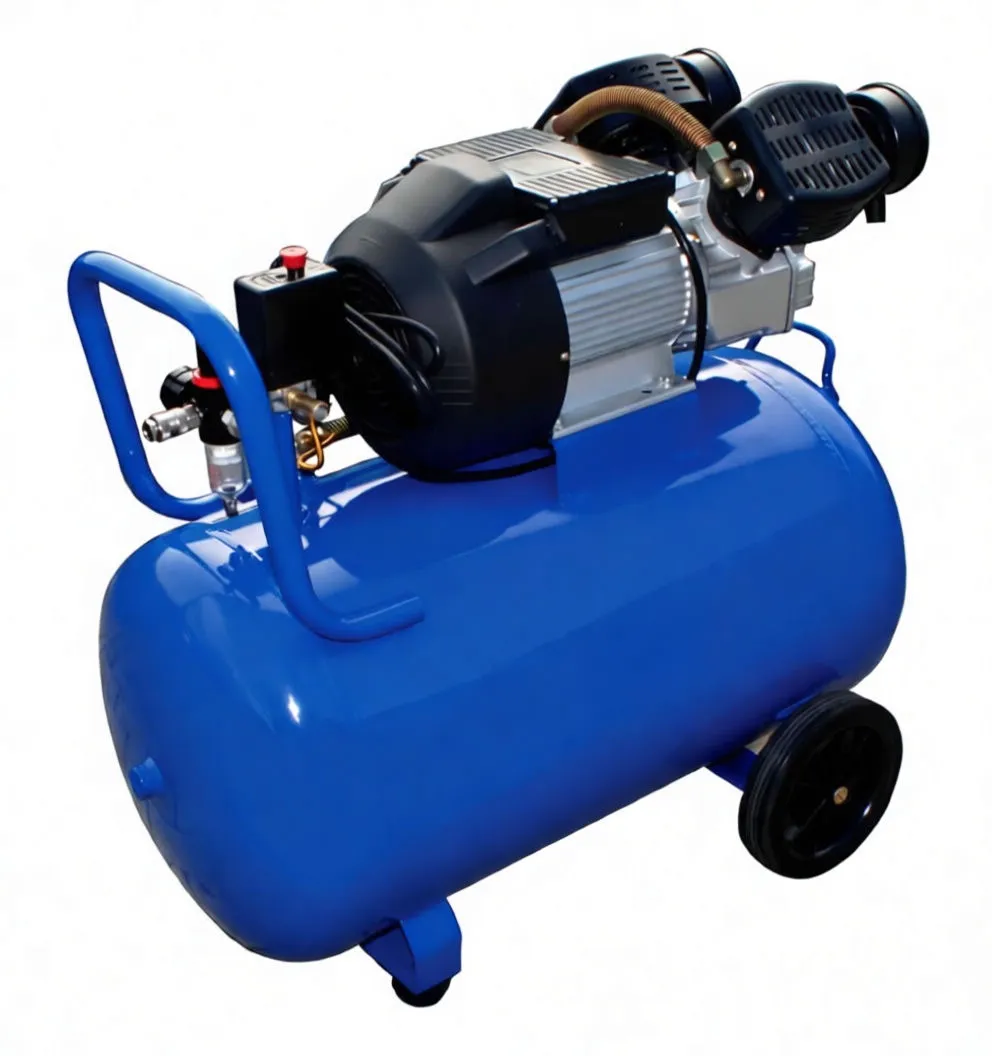

100-Liter Direct-Driven Air Compressor

Brief Overview

This 100-liter direct-driven air compressor delivers reliable, continuous compressed air for general shop work, pneumatic tools, and multi-purpose applications. The robust V-configured piston design eliminates belt wear and maintenance overhead while offering straightforward operation. If you need capacity beyond this unit, consider pairing it with larger belt-driven systems for scaled-up operations, or explore compact direct-drive alternatives for specialized mobile or confined-space applications.

Key Features

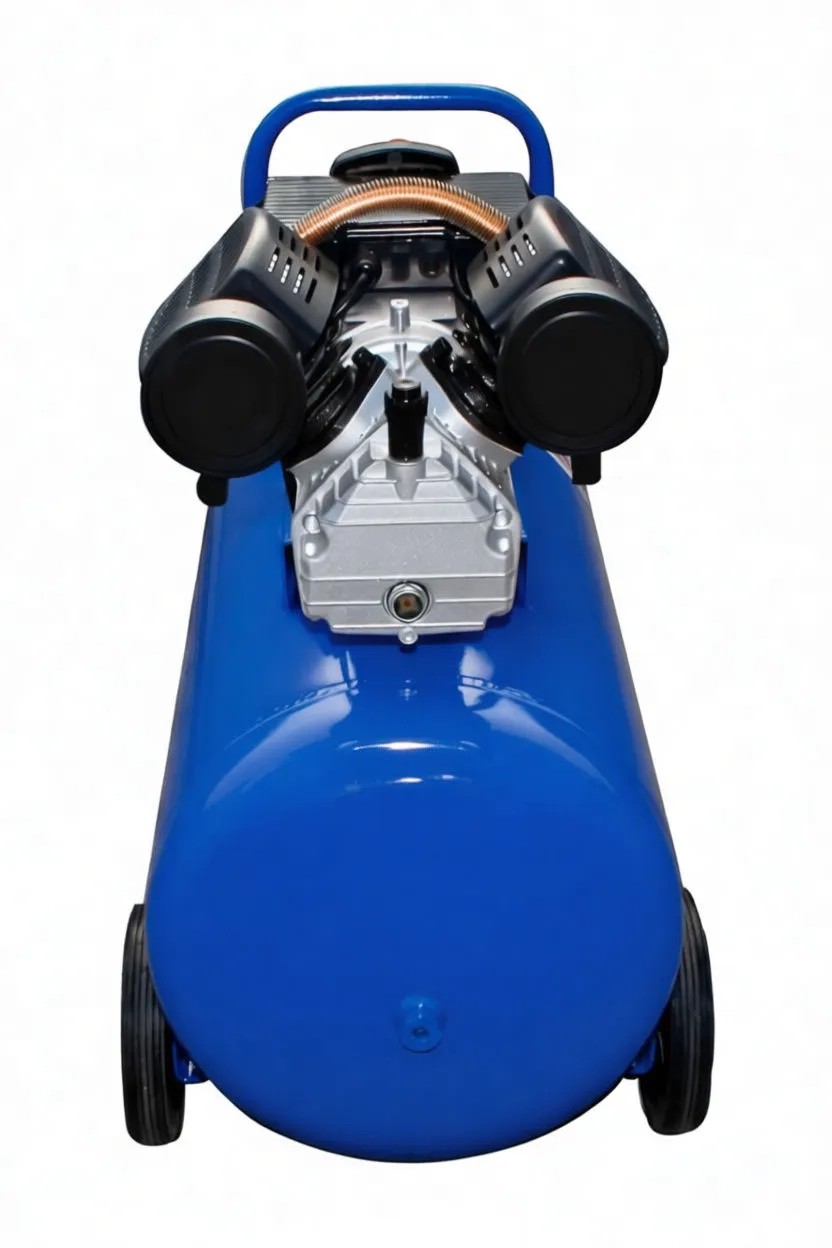

• Direct-Drive V-Piston Design: Low-speed, double-piston configuration in V-arrangement eliminates belt slippage and synchronization issues; reduced mechanical complexity means fewer failure points.
• Aluminum Pistons + Cast Iron Cylinders: Superior heat dissipation compared to all-aluminum designs; extended piston and ring life under continuous duty cycles.
• 2.2 kW (3 HP) Electric Motor: Standard single-phase or three-phase input (confirm electrical spec for your market); direct coupling to pump minimizes power loss.
• 100-Liter Steel Tank: Heavy-gauge steel construction with anti-corrosion powder coating; rated to 10 BAR working pressure with integrated safety valve protection.
• Dual Pressure Gauges: Tank pressure readout (shows maximum charge) and working pressure regulator gauge (shows current delivery pressure)—essential for monitoring system health and tool compatibility.
• Oil-Level Sight Glass: Visual confirmation of lubrication status; reduces downtime from oil starvation and piston seizure.
• Thermal Engine Protection: Integrated motor overload cutout prevents heat damage during extended operation or high ambient conditions.
• Mobility: Two wheels and tubular handle for easy shop repositioning; compact footprint suitable for small-to-medium workshop layouts.

Business Advantages for Resellers

• Straightforward Positioning: Direct-drive eliminates customer belt-replacement costs and service calls—lower total cost of ownership improves customer retention.
• Proven Reliability: Oil-lubricated piston design is forgiving of intermittent duty; aluminum/cast-iron construction handles temperature swings in unheated garages.
• Bulk Order Margin: Entry-level capacity point (100L) aligns with small-shop budgets; high repeat-purchase frequency for shops upgrading to larger systems.
• Multi-Application Appeal: Suitable for pneumatic tools, spray painting, inflation, cleaning, and light industrial uses—broad customer base with minimal re-qualification effort.
• Service-Friendly Design: Fewer moving parts (no belt tensioners, pulleys, or alignment issues) means lower warranty claims and faster customer satisfaction resolution.

Technical Specifications

Specification	Value
Tank Capacity	100 liters
Tank Material	Heavy-gauge steel with anti-corrosion powder coating
Pump Type	Oil-lubricated, V-configured, double-piston, direct-drive
Piston Material	Aluminum
Cylinder Material	Cast iron
Maximum Working Pressure	10 BAR
Motor Power	2.2 kW (3 HP)
Mobility	Two wheels + tubular handle
Pressure Monitoring	Dual pressure gauges (tank + regulator)
Safety Features	Pressure relief valve, thermal motor protection, oil sight glass
Mounting	Tank-top motor coupling (direct-drive, no belt)

Why Choose This Compressor?

For resellers targeting small professional shops, mobile service units, and general maintenance facilities, this 100L direct-drive model offers an unbeatable balance of durability, simplicity, and profitability. The absence of belt-drive components reduces support overhead, while the proven piston-and-cylinder architecture maintains resale value. Stock this unit as your entry-point offering; customers inevitably graduate to higher-capacity models as their operations expand—creating a natural upgrade path that strengthens customer lifetime value.
